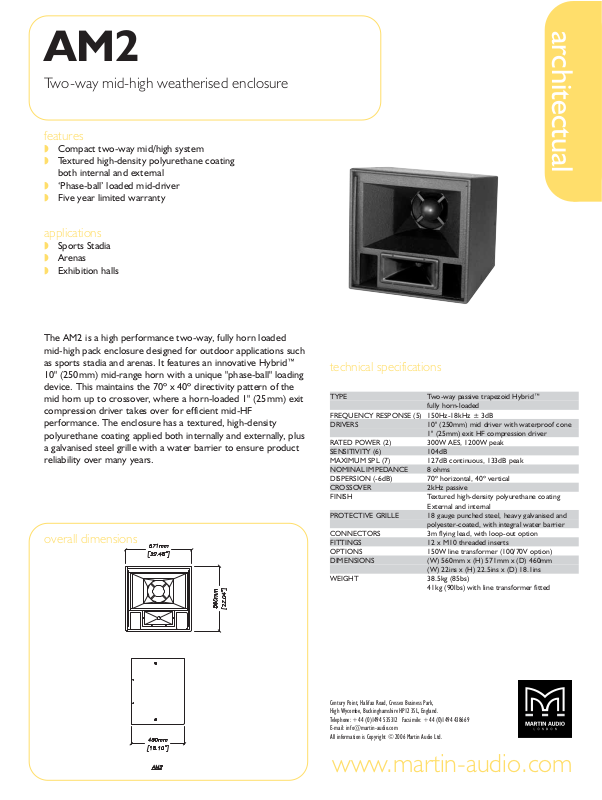

AM2
Tw o -way mid-high weatherised enclosure
features
! Compact two-way mid/high system
! Textured high-density polyurethane coating
both internal and external
! ‘Phase-ball’ loaded mid-driver
! Five year limited warranty
applications
! Sports Stadia
! Arenas
! Exhibition halls
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2006 Martin Audio Ltd.
The AM2 is a high performance two-way, fully horn loaded
mid-high pack enclosure designed for outdoor applications such
as sports stadia and arenas. It features an innovative Hybrid™
10" (250mm) mid-range horn with a unique "phase-ball" loading
device. This maintains the 70º x 40º directivity pattern of the
mid horn up to crossover, where a horn-loaded 1" (25mm) exit
compression driver takes over for efficient mid-HF
performance. The enclosure has a textured, high-density
polyurethane coating applied both internally and externally, plus
a galvanised steel grille with a water barrier to ensure product
reliability over many years.
architectual
www.martin-audio.com
overall dimensions
technical specifications
TYPE Two-way passive trapezoid Hybrid™
fully horn-loaded
FREQUENCY RESPONSE (5) 150Hz-18kHz ± 3dB
DRIVERS 10" (250mm) mid driver with waterproof cone
1" (25mm) exit HF compression driver
RATED POWER (2) 300W AES, 1200W peak
SENSITIVITY (6) 104dB
MAXIMUM SPL (7) 127dB continuous, 133dB peak
NOMINAL IMPEDANCE 8 ohms
DISPERSION (-6dB) 70º horizontal, 40º vertical
CROSSOVER 2kHz passive
FINISH Textured high-density polyurethane coating
External and internal
PROTECTIVE GRILLE 18 gauge punched steel, heavy galvanised and
polyester-coated, with integral water barrier
CONNECTORS 3m flying lead, with loop-out option
FITTINGS 12 x M10 threaded inserts
OPTIONS 150W line transformer (100/70V option)
DIMENSIONS (W) 560mm x (H) 571mm x (D) 460mm
(W) 22ins x (H) 22.5ins x (D) 18.1ins
WEIGHT 38.5kg (85bs)
41kg (90lbs) with line transformer fitted
