Martin Archery Compound Bow User Manual

Compound Bow Manual &

Warranty Registration

*MUST REGISTER BOW WITHIN 90 DAYS FOR FULL WARRANTY

Owner's Record - Critical Information

TO ACTIVATE WARRANTY YOU MUST REGISTER ONLINE WITHIN 90 DAYS OF PURCHASE!

WWW.MARTINARCHERY.COM/WARRANTY

ONLINE WARRANTY REGISTRATION NUMBER

NOTICE:

Warranty VOID without

online Registration within 90 days

and valid sales receipt

We would like to welcome you to the Martin Archery family. If it is your rst Martin or your 10th we are

condent you will enjoy over 60 years of rening excellence in archery. We take great pride in the products
that we produce and strive to oer you the best equipment on the market.

Thank You,

Rich Weatherford
CEO MARTIN ARCHERY

Basic Setup

Your new Martin bow takes little setup to get started shooting. Please read and fa­miliarize yourself with these starting procedures before shooting. Many of these
procedures may have been completed by your authorized Martin dealer. After
completing these simple steps, you will be more accurate and will have greater success
from the start. A careful and thorough initial setup will make the tuning process much easier.

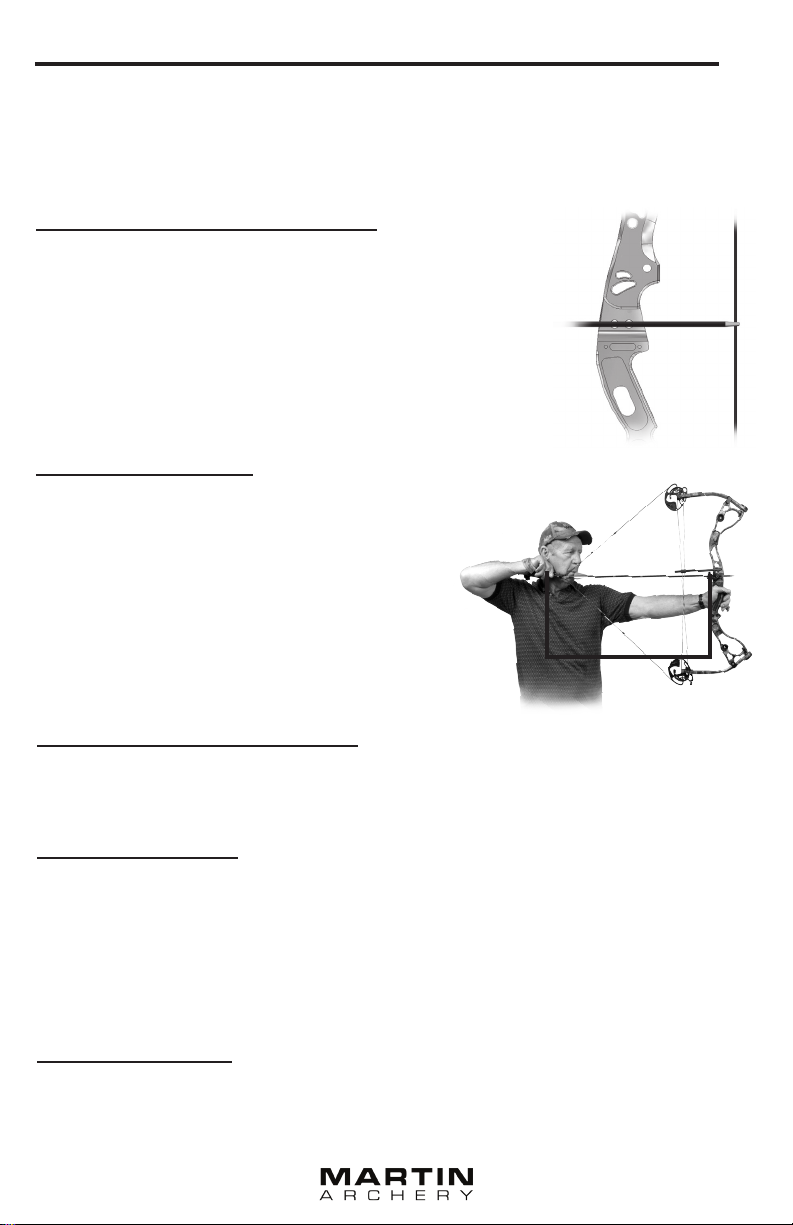

Quick Arrow Rest and Nock Placement

You can quickly and easily set the position of your rest and nock
point using the rest mount holes in your bow. Your rest should sit level
with the two rest mount holes, or lock mount of your bow. (See graphic)
When the rest placement is correct, you can begin placing the nock set.
Place a nock loosely on the string and nock an arrow. Visually align the
arrow level with or slightly tail high of the rest mount holes.
When the correct height is set, crimp the nock set into place.
This will give you a good starting point to begin tuning your bow.

Measuring Draw Length

When your bow is at full draw, the apex of the

string should be near the corner of your mouth.
Draw length can easily be measured from the apex
of the string at full draw to the pivot point of the grip.
From that measurement add 1 ¾” and you will have
the A.M.O. standard draw length. All Martin Bows are
adjustable with the use of modules. Refer to the sec­tion that covers your specic cam style for instruc­tions on adjusting draw length.

Arrow Speed and String Accessories

Certain bowstring accessories including D-loops, string silencers, and peep sights, can reduce

arrow speed by as much 10-15 fps.

Changing Draw Weight

Martin bows have a fteen pound draw weight range. Using a 3/16” allen wrench ; you will turn

the limb bolts clockwise to add weight and turn counter clockwise to reduce weight. One complete
turn on each limb bolt provides about 3 pounds of adjustment.
TIP: Mark a line on each limb bolt in white-out or white paint marker to make it easier to keep
track of how far you are turning each bolt.
Note: Do not shoot your bow with the limb bolts more than 5 turns out from the riser.

Replacing The Strings

Should your string need replacing, it is best to go to your Martin dealer and have it done by

experts. Always be sure that the string you replace it with is of the correct length and material
for your bow. We recommend using Martin Hammerhead bow strings. String wear is not covered
by warranty.

Basic Setup

Care And Storage

When properly cared for, your new Martin bow will give you years of trouble-free service. When your bow
is new it will require no lubrication. Over time you may need to lubricate your cams to guard against friction
and noise. Use a dry lubrication such as Teon spray powder or graphite powder. You can also use wet lube
such as Moly Lube or Tri-Flow. Do not use WD-40 lubrication.
A good rule of thumb when caring for your bow is to keep it as comfortable as you are. If it is too hot for
you, it is too hot for your bow. If it gets wet, dry it o completely. Periodically clean your bow with a wet rag
and mild soap to remove mud or dust (caution: do not store until completely dry). Prolonged exposure to
extreme heat may cause failure in your bow limbs and excessive stretch in your string system. It will not hurt
your bow if it is rained on while shooting, but make sure it is completely dry before storing it in a bow case to
guard against rust or corrosion.

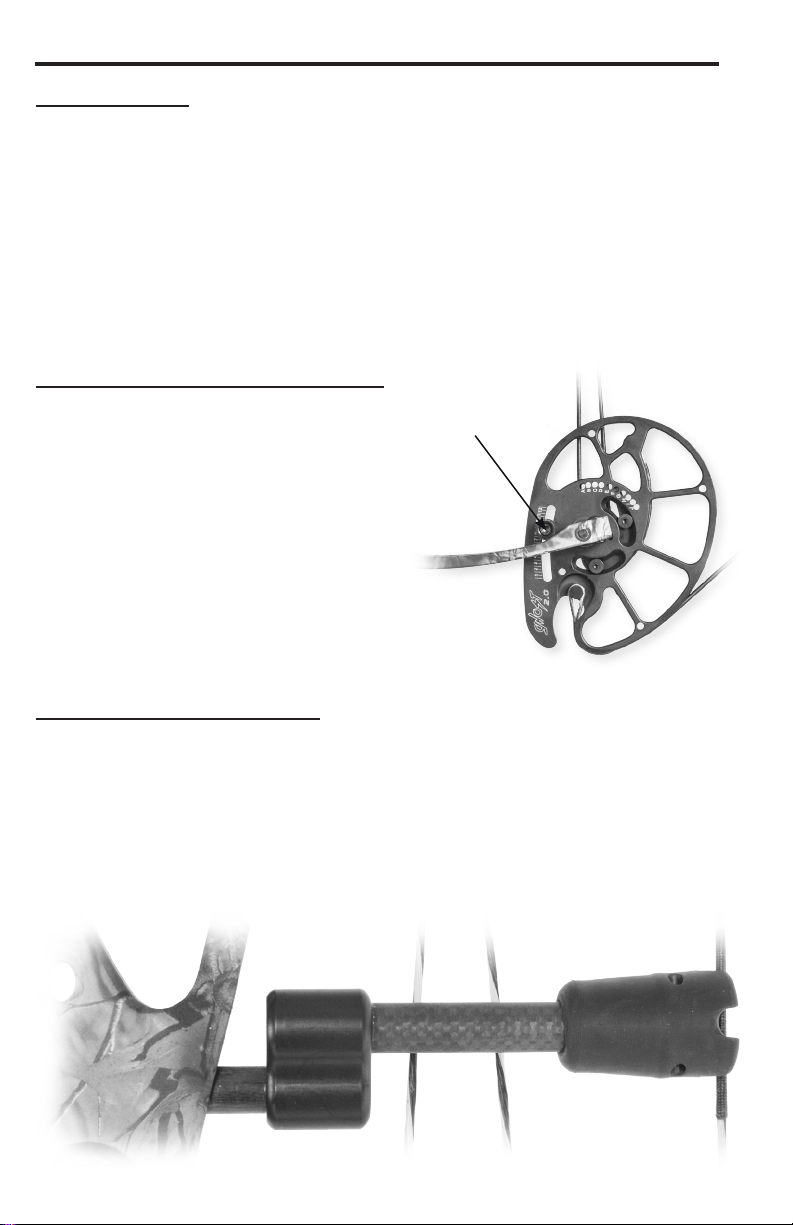

Installing and Adjusting the Draw Stop.

There are a total of four parts to the Draw Stop
assembly. A rubber cap, the aluminum body of the
Draw Stop, an 8/32 screw and an 8/32 hex nut. To
install the stop, place the hex nut in the track on
the back side of the cam. To adjust the stop, draw
the bow back either by hand or in a scale/shoot­ing machine. At full draw, slide the stop until it
contacts the under side of the limb. Back the stop o
of the limb 1/32” (appox.) to allow for the rubber cap
to be installed. Snug down the Draw Stop with the ap­propriate Hex head wrench, and install the rubber cap
over the Draw Stop.

Draw Stop

In Place

Installing and Adjusting the STS

Most Martin bows are outtted with an STS String Dampening unit, or are equipped to accept one. This unit
is installed in the 3/8” diameter hole located just below the grip and is secured in place with the set screw
intersecting this hole from the side of the riser. The STS rod should be positioned so that the STS Bumper is
nearly against the bowstring when the bow is at rest. Excessive contact with the bowstring will prevent the
STS Bumper from performing eectively as a dampener, and may cause the Bumper to be pulled o by the
bowstring during the shot. A small gap (approximately 1/16”) should be allowed between the bowstring and
Bumper when the bow is at rest.

Ghost 2.0 Cam System

The Martin Ghost 2.0 Cam system features a rotating module for draw length adjustments in half-inch
increments. This cam system also features an adjustable draw stop for a customized valley and solid stop.

Parts Of The Martin Ghost 2.0 Cam Sytem

MODULE
SCREWS

DRAW

STOP

SHOOTING

STRING

ANCHOR

MODULE
SETTING

MARK

ALIGNMENT

MODULE
SCREWS

LIMB

HOLE

DRAW

STOP

MODULE
SETTING

MARK

Top Cam Bottom Cam

Adjusting The Ghost 2.0 Cam Draw Length

Make a note of the letter on the Module by the setting mark. To rotate the draw length mod­ule, you will first need to remove the two (2) allen head module screws. Lift and rotate the
module to the desired position and replace and tighten the screws in the appropriate
positions on BOTH cams. As letters on the module increase, the draw length will also increase by 1/2" incre­ments. DO NOT draw the bow without the draw length module in place and secured.

Adjusting The Ghost 2.0 Cam Draw Weight

The draw weight on any Martin bow using the Ghost 2.0 cam system can easily be adjusted by moving the
limb bolts out (counterclockwise) a MAX of 5 turns. This will decrease draw weight by 15 LBS total. (WARNING:

DO NOT UNSCREW LIMB BOLTS MORE THEN 5 TURNS OR SEVERE INJURY MAY OCCUR)

Ghost 2.0 Cam String Diagram

The string harness on your Ghost 2.0 Cam is installed according to the diagram below. Your string harness
should be installed by your qualied Martin dealer.

Buss Cable Buss + Split Cable

Shooting String

Silk Cam System

The Martin Silk Cam system feature a modular draw length adjustment. The draw length module is

used to adjust draw length in 1/2" increments (see below). Adjusting the draw weight can also be adjusted
by moving the limb bolts out or changing the string position.

Adjusting The Single Cam Draw Length

Using draw length modules, the draw length can
be adjusted in 1" increments. To change the draw
length, replace the module on the cam by removing
the screws that hold it to the cam. NOTE: do not draw
your bow without the module installed. It will damage
your harness.

The module sizes range from A to G. As the
module letters get higher, the draw gets longer.
The draw length can also be adjusted in 1/2" in­crements using the pegs on the back of the cam.

This method of draw adjustment applies to the
Martin Acu-Trak, Fuzion, Dyna, M-Pro, and M2 Single
Cam System.

Single Cam String Diagram

The string harness on your Single­Cam is installed according to the dia­gram below. Your string harness should
be installed by your qualied Martin
dealer.

STANDARD SPLIT

STRING ANC HOR

SHOOTING STRING

Parts Of The Silk Single Cams System

Front Side

Bottom

Cam

MODULE
SCREWS

SHOOTING

STRING

ANCHOR

DRAW
STOP

Back Side

MODULE
SETTING

MARK

BUSS + SPLIT CABLE

SHOOTING STRING

Adjusting The Silk Cam Draw Weight

To adjust your draw weight, simply use an allen wrench and turn the limb bolts out (counterclockwise) a
MAX of 5 turns. This will decrease draw weight by 15 LBS total. (WARNING: DO NOT UNSCREW LIMB BOLTS MORE
THEN 5 TURNS OR SEVERE INJURY MAY OCCUR) the Draw weight can also be adjusted by moving the string
position for the Buss + Split Cable. The anchor labeled "STND" is your standard designated weight and position.
By moving the cable position to the anchor labeled -1 you decrease the weight by aprox 13 LBS and by mov­ing your buss positon to the anchor labeled -2 you decrease the weight by another 13 LBS. Draw length will
decrease by 1" for peg -1 and 2" for peg -2. Draw length may need to be re-adjusted by changing the module
position for your desired length.

Equalizer Cam System

The Martin Equalizer Cam system features two rotating modules for draw length adjustments in inch increments as

well as let o adjustment. This cam system also features an adjustable draw stop for a customized valley and solid stop.

Parts Of The Equalizer Cam Sytem

MODULE
SETTING

MARK

Top Back Cam

DRAW STOP
ADJUSTMENT NUT

MODULE
SCREWS

MODULE
SCREWS

Bottom Back Cam

The equalizer cam system
comes equiped with a built in let
o adjustment perfect for Bow
Hunting or Bow Fishing. Simply

move your module screws to the
FISH symbol and take advantage
of a low let o draw.

DRAW

STOP

STANDARD

LET OFF

(HUNTING)

LOW LET OFF

(FISHING)

Top Front Cam

MODULE
SETTING

MARK

SPLIT

STRING

ANCHOR

SHOOTING

STRING

ANCHOR

DRAW

STOP

MODULE
SCREWS

Bottom Front Cam

Adjusting The Equalizer Cam Draw Length

Make a note of the number on the Module by the setting mark. To rotate the draw length mod­ule, you will first need to remove the two (2) allen head module screws. Lift and rotate the
module to the desired position and replace and tighten the screws in the appropriate
positions on BOTH cams. Draw length is adjusted in one inch increments and is labeled on the module. DO NOT

draw the bow without the draw length module in place and secured.

Adjusting The Equalizer Cam Draw Weight

The draw weight on any Martin bow using the Equalizer cam system can easily be adjusted by moving the
limb bolts out (counterclockwise) a MAX of 5 turns. This will decrease draw weight by 15 LBS total. (WARNING:

DO NOT UNSCREW LIMB BOLTS MORE THEN 5 TURNS OR SEVERE INJURY MAY OCCUR)

Equalizer Cam String Diagram

The string harness on your Equalizer Cam is installed according to the diagram below. Your string harness
should be installed by your qualied Martin dealer.

Split Cable

Shooting String

Split Cable

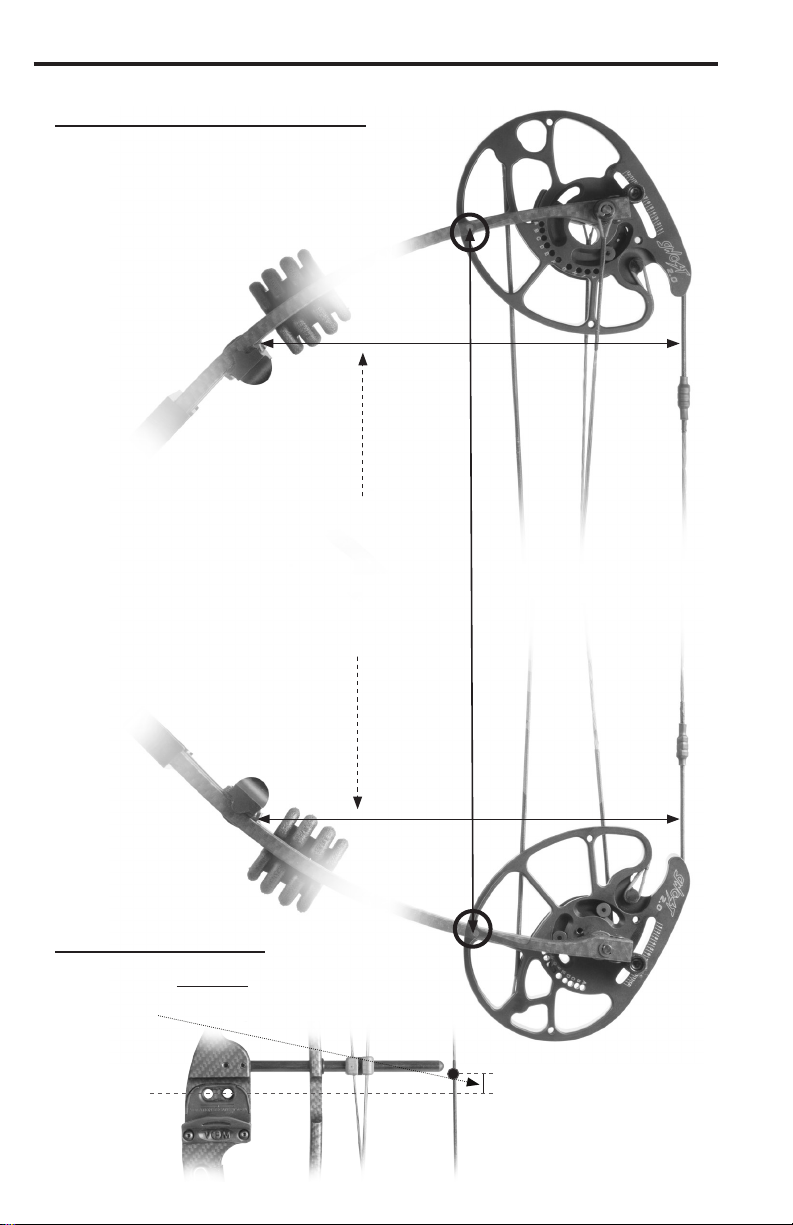

Ghost Cam Tuning

Ghost 2.0 Cam Tuning Instructions

For correct tuning, adjust the strings to keep a
equal tiller measurment and make sure the cam
alignment holes sit directly under the limb on both
top and bottom cam at rest.

(SEE BELOW)

Tiller measurments

should be exactly the

same on top to bottom

when measuring from

limb pocket to draw string.

Setting Your Nock Point

Set the Nock from 1/6" - 1/4" high o arrow rest center

(SEE BELOW)

Notice the allignment of the
cams with the limb. There is an
alignment hole on the cam that
must intersect directly under
the limb at rest.

Ten Commandments Of Archery Safety

Never - “Dry re" your bow (shoot it without an arrow.) This will result in
damage to your bow and/or possible injury.
Never - Let anyone draw or shoot your bow if their draw length is longer than
yours. Over drawing of the bow can cause cable damage.
Never - Draw, aim, or shoot your bow unless you are sure that the line of re
is clear. Remember, once an arrow is red it cannot be recalled.
Never - Shoot an arrow that is less than ve grains per pound. For example,
an 80# bow requires a minimum of 400 grains of arrow weight. Less
than ve grains per pound of arrow weight simulates a dry re eect
and may damage your bow.
Never - Expose your bow to extreme heat. Excessive heat, such as your car
on a hot day, could lead to limb failure and premature wearing of the
string harness.
Always - Check all of your arrow shafts and nocks upon removal from the
target. If the arrows show defects or broken nocks, do not shoot them.
Always - Carefully inspect your bow after each use. Be sure all screws are
snug and accessories are tight. Inspect your string and cables for
wear or damage.
Always - Draw your bow while pointing it at the target. A premature release
of the arrow can be very dangerous. If you cannot draw your bow
while pointing it at the target without excessive movement, lower the
peak weight of your bow until you can draw smoothly and correctly.
Over time you will build up strength, and will be able to return to the
higher weight.
Always - Draw your bow with an arrow on the string while keeping it pointed
in a safe direction. Never draw your bow with a release aid without
an arrow. A release aid failure could result in the dry re of your bow.
Always - Back your limb bolts o ve full turns from the riser before putting it
in a bow press. Only let a qualied professional or a Martin authorized
dealer put your bow in a bow press.
Inexperienced use of a bow press or a T-stringer can result in damage
to your bow. The type of damage caused by a press is not covered
under the Martin Archery bow warranty.

Warranty

MARTIN COMPOUND BOW WARRANTY

What is the warranty? Martin Archery warrants that your Martin compound bow will perform its intended func-

tion if used in accordance with the instructions provided.

Who does the warranty cover? The warranty covers the original purchaser of the bow and is not transferable.
What does the warranty cover? This warranty covers the replacement parts, labor, and ground transportation

costs for return of the bow to the customer.
The warranty covers defects in materials or workmanship on all risers, limbs, limb pockets, axles, bearings, and

cams (everything except the string, cables and nish) for specied periods of time as set forth below.

What are the specied time periods?
Year 0-5 after date of purchase.

Martin Archery will fully repair the bow to working condition based on the availability of parts. If needed parts
are not available, Martin Archery will upgrade or exchange for product similar in value. Any misuse of the com­pound bow eectively eliminates all warranty claims. Aftermarket accessories and modications to the bow
are not covered by this warranty.

Year 6-10 after date of purchase.

Martin Archery will make every eort to repair the bow to full working condition. All parts needed for the repairs
will be billed 50% of dealer price. If needed parts are not available, Martin Archery will upgrade or exchange the
bow for a newer similar model at a cost of 50% of the retail of that product.

Are there any exclusions to what the warranty covers? Strings and cables are not included and should be
changed either every season, or anytime they show wear, whichever comes rst. Transportation for the return
of the bow to Martin Archery is not covered. No C.O.D. shipments will be accepted by Martin Archery.

This warranty does not apply to the Adventure Series which have a 1 year warranty.

Can warranty repairs be performed by authorized dealers? Yes, warranty repairs can be performed by an Autho­rized Martin Dealer, for which Martin Archery will cover replacement parts and ground transportation costs to the
Authorized Dealer. Labor costs for warranty repairs performed by Authorized Dealers are not covered, however.

What limitations are there on the warranty? If the bow shows signs of misuse, alteration, or mishandling this
warranty will be void. Use of arrows weighing less than ve (5) grains per pound of draw weight is considered
misuse and will void this warranty. This warranty applies to original components only and does not extend to
cover aftermarket strings, cables or other accessories not manufactured by Martin Archery. The use of any
aftermarket products / accessories that alter the manufacturer’s specications or design will void the warranty.

What is needed to obtain service under the warranty?
The warranty is conditioned upon proof of purchase and other requirements listed below:

1. The bow must be registered on Martin Archery’s website at martinarchery.com/warranty with the unique
Bow Registration Number that will be found in the original purchaser’s user manual for the bow.

2. All returns to Martin Archery must be pre-authorized. The Owner must contact Martin Archery at
509-529-2554 prior to shipping in order to obtain a Return Authorization number.

3. All accessory items must be removed from the bow prior to shipping. Martin Archery will not be
responsible for damage or loss of any accessory item left on the bow.

4. After acquiring a Return Authorization number, send bow with sales receipt to:

MARTIN ARCHERY

Attn: Warranty Service
3134 Heritage Rd.
Walla Walla, WA 99362

What else do I need to know about the warranty? Martin Archery makes no other warranty either express or
implied, whether of tness or of marketability, except as stated above. Any such additional warranty is expressly
disclaimed. No agent, employee, or representative of Martin Archery or its authorized dealers has the authority
to bind Martin Archery to any agreement to the contrary.

Martin Archery shall not be liable for injury or property other than the bow itself. Martin Archery reserves the right to replace
defective parts according to availability with compatible replacement parts.

This warranty gives you specic legal rights. You may also have other rights which vary from state to state.

This warranty is subject to change and/or cancellation at the discretion of Martin Archery. Some states do not allow
limitations on how long an implied warranty lasts, so some or all of the limitations set forth above may not apply to you.
