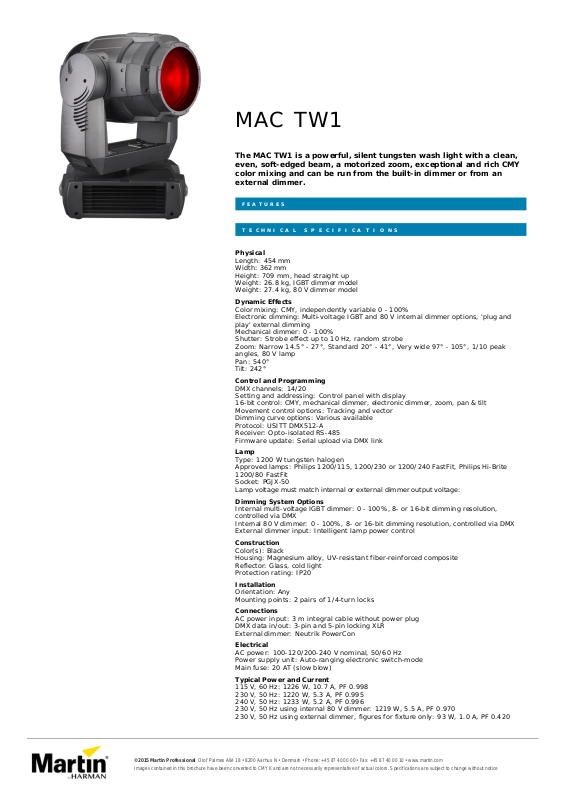

MAC TW1
The MAC TW1 is a powerful, silent tungsten wash light with a clean,
even, soft-edged beam, a motorized zoom, exceptional and rich CMY
color mixing and can be run from the built-
in dimmer or from an
external dimmer.
F E A T U R E S
T E CHNI CA L S P E CI F I CA T I O NS
Physical
Dynamic Effects
Control and Programming
Lamp
Dimming System Options
Construction
Installation
Connections
Electrical
Typical Power and Current
Length: 454 mm
Width: 362 mm
Height: 709 mm, head straight up
Weight: 26.8 kg, IGBT dimmer model
Weight: 27.4 kg, 80 V dimmer model
Color mixing: CMY, independently variable 0 - 100%
Electronic dimming: Multi-voltage IGBT and 80 V internal dimmer options, 'plug and
play' external dimming
Mechanical dimmer: 0 - 100%
Shutter: Strobe effect up to 10 Hz, random strobe
Zoom: Narrow 14.5° - 27°, Standard 20° - 41°, Very wide 97° - 105°, 1/10 peak
angles, 80 V lamp
Pan: 540°
Tilt:
242°
DMX channels: 14/20
Setting and addressing: Control panel with display
16-bit control: CMY, mechanical dimmer, electronic dimmer, zoom, pan & tilt
Movement control options: Tracking and vector
Dimming curve options: Various available
Protocol: USITT DMX512-A
Receiver: Opto-isolated RS-485
Firmware update: Serial upload via DMX link
Type: 1200 W tungsten halogen
Approved lamps: Philips 1200/115, 1200/230 or 1200/240 FastFit, Philips Hi-Brite
1200/80 FastFit
Socket: PGJX-50
Lamp voltage must match internal or external dimmer output voltage:
Internal multi-voltage IGBT dimmer: 0 - 100%, 8- or 16-bit dimming resolution,
controlled via DMX
Internal 80 V dimmer: 0 - 100%, 8- or 16-bit dimming resolution, controlled via DMX
External dimmer input: Intelligent lamp power control
Color(s): Black
Housing: Magnesium alloy, UV-resistant fiber-reinforced composite
Reflector: Glass, cold light
Protection rating: IP20
Orientation: Any
Mounting points: 2 pairs of 1/4-turn locks
AC power input: 3 m integral cable without power plug
DMX data in/out: 3-pin and 5-pin locking XLR
External dimmer: Neutrik PowerCon
AC power: 100-120/200-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Main fuse: 20 AT (slow blow)
115 V, 60 Hz: 1226 W, 10.7 A, PF 0.998
230 V, 50 Hz: 1220 W, 5.3 A, PF 0.995
240 V, 50 Hz: 1233 W, 5.2 A, PF 0.996
230 V, 50 Hz using internal 80 V dimmer: 1219 W, 5.5 A, PF 0.970
230 V, 50 Hz using external dimmer, figures for fixture only: 93 W, 1.0 A, PF 0.420
©
2015 Martin Professional
Olof Palmes Allé 18 • 8200 Aarhus N • Denmark • Phone: +45 87 40 00 00 • Fax: +45 87 40 00 10 • www.martin.com
Images contained in this brochure have been converted to CMYK and
are not necessarily representative of actual colors. Specifications are subject to change without notice
Page 2
Thermal
Acoustic
Approvals
Included Items
Accessories
Spare Parts
Ordering Information
Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Lamp cooling: Patent-pending low noise ducted forced air system
Cooling: Filtered forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 0° C
Maximum surface temperature, steady state, at 40° C ambient: 200° C (392° F)
Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 4180 /
4160 BTU/hr.
Sound power level: 31 dBA (steady state, lamp on, effects static, Ta=20°C, test
conditions ISO 3743-2:1994)
EU safety: EN 60598-2-17, EN 61347-1
EU EMC: EN 55 015, EN 55 103-1, EN 55103-2
US safety: ANSI/UL 1573
Canadian safety: CAN/CSA E60598-1, CAN/CSA E598-2-17
Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001
Four 20 AT main fuses (installed): 05020051
User manual: 35000184
Philips Hi-Brite 1200/80 FastFit 80 V lamp: 97000006
Philips 1200/115 FastFit 115 V lamp: 97000112
Philips 1200/230 FastFit 230 V lamp: 97000113
Philips 1200/240 FastFit 240 V lamp: 97000114
Very wide-angle lens kit: 91610032
Narrow-angle lens kit: 91610033
Front accessory holder.: 91611260
Internal 80 V dimmer: 91614026
Flightcase (holds 2 fixtures): 91510019
Half-coupler clamp: 91602005
G-clamp: 91602003
Quick trigger clamp: 91602007
Omega bracket: 91602001
T-shaped omega bracket with quarter-turn fasteners: 91602008
Safety cable, safe working load 50 kg: 91604003
Gel frame:
Top hat:
Top hat with louver:
Accessories listed without part numbers are available from City Theatrical
www.citytheatrical.com :
20 AT main fuse: 05020051
MAC TW1™, Multi-voltage, 80 V dimmer in cardboard box: 90202400
MAC TW1™, Multi-voltage, 80 V dimmer, 2-unit flightcase: 90202401
©
