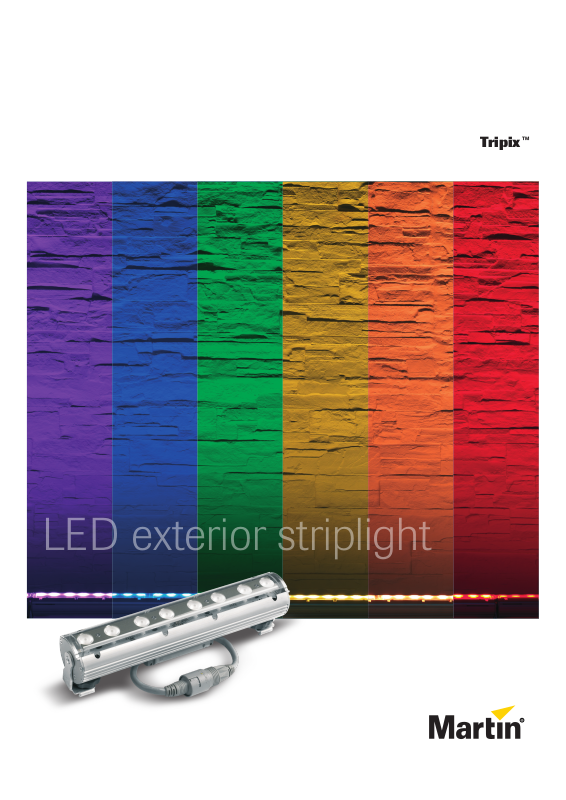

Tripix

LED exterior striplight

™

Tripix™ 1200 & 300
Tricolor LED exterior striplight

The Tripix 1200™ and Tripix 300™ are attractively
designed IP65 rated outdoor LED luminaires that use
tricolor LEDs for superior color mixing directly at the lens.

The result is an absence of color shadows and a broader range of color
choices. The Tripix range incorporates a custom-designed lens system for
very narrow beam angles that have been difficult to achieve with tricolor
LED fixtures in the past.

The Tripix range can be used in a variety of indoor and outdoor applications
and installs in minutes using a slim IP65 cable connector. These fixtures are
ideally suited to applications where uniform color right out of the fixture is
desired like coves, architectural design highlights or any setting requiring
smooth color mixing.

Specifications

• Uniform color mixing using powerful tricolor LEDs

• No multicolor fringe shadows

• No unwanted colors that mix outside the fixture

• Easy to control: 64 built-in programs and auto
addressing

• Fast to install with new IP66 quickplug connectors

• Available in 300 mm (1 ft) and 1200 mm (4 ft) lengths
in various beam angles

Physical

Tripix fixture

Length: Tripix 300: 300 mm (11.8 in.),
Tripix 1200: 1200 mm (47.2 in.)
Width: 61 mm (2.4 in.) including mounting bracket
Height: 81.4 mm (3.2 in.) including mounting bracket
and DIN rail
Weight: Tripix 300: 1200 g (42.3 oz.),
Tripix 1200: 4230 g (149.2 oz.)

Tripix Power

Length: 447 mm (17.6 in.)
Width: 141 mm (5.6 in.)
Height: 68 mm (2.7 in.)
Weight: 5.8 kg (12.8 lbs.)

Dynamic Effects

Color mixing: RGB
Red: 0 - 100%
Green: 0 - 100%
Blue: 0 - 100%
Color temperature control: 5600 K +/- 300 K for mixing white color

Optics

Light source: RGB 3-in-1 LE D, approx. 3 W per LE D
Total LED power: Tripix 300: approx 24 W, Tripix 1200: approx.
82 W
Beam angle: Narrow, medium and wide available

Control and Programming

Color control modes: RGB (raw and calibrated), HSIC
Control system: DMX, stand-alone, master/slave
DMX channels: 3 or 4 per 300 mm (11.8 in.)
Grouped pixel control options: Divided into sections of 300, 600 or
1200 mm (47.2 in.)
DMX address setting: Martin MU M” application running on
Windows PC
Protocol: USITT DM X512-A
Receiver: RS-485
Firmware update: Serial upload via DMX link

Photometric Data

Tripix 1200, Narrow (all LEDs at 100%)

Efficacy: 8.9 lumens per watt
Half-peak angle: 24°
Total output: 1440 lm

Tripix 1200, Medium (all LE Ds at 100%)

Efficacy: 11 lumens per watt
Half-peak angle: 60°
Total output: 1100 lm

Tripix 1200, Wide (all LEDs at 100%)

Efficacy: 10 lumens per watt
Half-peak angle: 120°
Total output: 1000 lm

Tripix 300, Narrow (all LEDs at 100%)

Efficacy: 8.9 lumens per watt
Half-peak angle: 24°
Total output: 360 lm

Tripix 300, Medium (all LEDs at 100%)

Efficacy: 11 lumens per watt
Half-peak angle: 60°
Total output: 275 lm

Tripix 300, Wide (all LEDs at 100%)

Efficacy: 10 lumens per watt
Half-peak angle: 120°
Total output: 250 lm

Photometric data is preliminary

Construction

Housing: Aluminum
Finish: Clear anodized
Front cover: Flame-retardant PMMA
End covers: Aluminum
Mounting brackets: Aluminum
Protection rating: IP66

Installation

Orientation: Any
Aiming: Any angle between +/- 105°
Mounting: 35 mm (1.4 in.) DIN rail
Distance between strips: Extendable (see User Manual)

Connections

Tripix Power power input: Male (C14) IEC chassis connector
Fixture-to-fixture power and data: IP66 13-pin DIN cable tail
system

Electrical

AC power: 100-120/200-240 V nominal, 50/60 Hz
(input to Tripix Power device)
Standby power: 300 mm (11.8 in.) models, 3 W / 1200 mm
(47.2 in.) models, 10 W
Power output: 48 V DC (output from Tripix Power device)

Thermal

Cooling: Convection
Maximum ambient temperature (Ta max.): Fixtures 45° C (113° F),
Tripix Power 40°C (104° F)
Minimum ambient temperature (Ta min.): -30° C (-22° F)

Maximum surface temperature, steady state, Ta=45° C (113° F):
Fixtures 65° C (149° F),
Maximum surface temperature, steady state, Ta=45° C (113° F):
Tripix Power 55° C (131° F)

Approvals

EU safety: EN 60598-1, EN 60598-2-1
LED Safety: IEC 60825-1, 2001; IEC 62471, 2006
EU EMC: EN 55 015, EN 55 103, EN 61 000-3
US safety: UL 1598
Canadian safety: CAN/CSA C.22.2 No. 250

Included Items

Included with Tripix 300 and 1200 fixtures:
Tripix striplight fixture with narrow diffuser
Safety leaflet
2 x lengths Short DIN rail, 35 mm (1.4 in.)
Included with Tripix Power:
Tripix power supply device
EU-type power cable with Schuko connector
US-type power cable without mains plug
User manual
Tripix power inserter cable (3-way, power and data
insertion)
Tripix DMX Termination Plug

Accessories

Tripix DMX Input Adapter: P/N 91611337
Tripix DMX Output Adapter: P/N 91611338
Tripix Cable Adapter extension connector set: P/ N 91611323
Tripix Diffusers Narrow, includes eight 304 mm (12.0 in.)
diffusers, installation by Martin Service only P/N 91611329
Tripix Diffusers Medium, includes eight 304 mm (12.0 in.)
diffusers, installation by Martin Service only P/N 91611330
Tripix Diffusers Wide, includes eight 304 mm (12.0 in.)
diffusers, installation by Martin Service only P/N 91611331
Tripix Front Cover: P/N 91611332

0.5 m (1.6 ft.) Tripix Extension Cable: P/ N 91611335
1 m (3.3 ft.) Tripix Extension Cable: P/ N 91611334
5 m (16.4 ft.) Tripix Extension Cable: P/N 91611333
Tripix DMX Termination Plug: P/N 91611336
Tripix Power Inserter (3-way power and data insertion cable): P/N
91611339

Ordering Information

Tripix 300: P/N 90354520
Tripix 1200: P/N 90354530
Tripix Power: P/N 90760310
