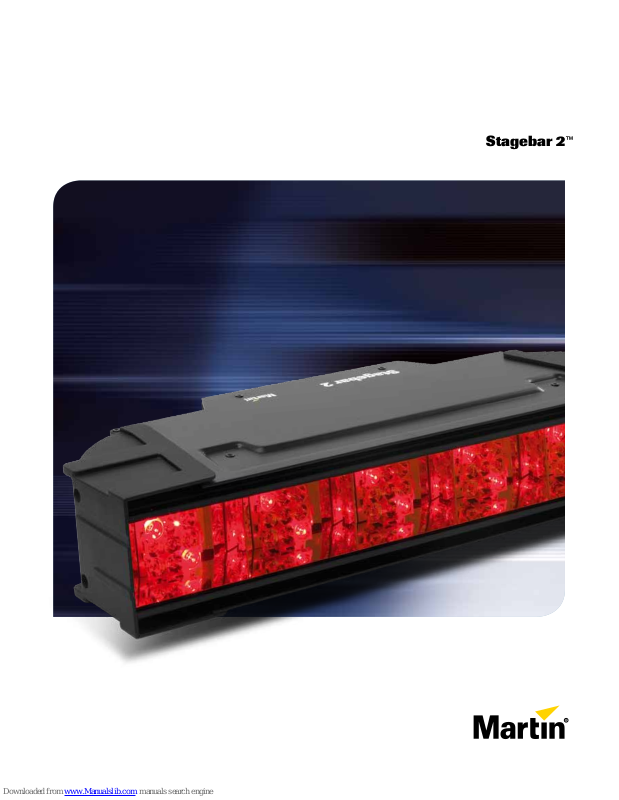

Stagebar 2
Page 2
Martin’s versatile LED Stagebar 2
luminaire is bright …yet so much more.
The Stagebar 2 powers out almost 10,000 lumens per
meter, and with a tighter field of light 10 times the intensity
of the predecessor Stagebar 54™, it’s an extremely bright
LED fixture. But that’s just the beginning.
Color choice and consistency
Useful as an LED pixel bar for displaying imagery and video
or as a wash luminaire for floodlighting surfaces and stages,
the Stagebar 2 offers an outstanding color palette from an
RGBAW color system.
A central feature of the Stagebar 2 is the ability to create
exceptionally even and consistent colors. Each diode has
been color calibrated, guaranteeing standardized brightness and color performance.
Advanced lens design
A new and advanced lens design provides a narrower,
more concentrated field of light for better beam control and
greater light intensity for overall improved floodlighting capability.
A choice of lens options, which includes an opal diffuser
lens for scenic on-camera looks, provides designers with
greater beam angle flexibility.
Responsive
Overall responsiveness has been improved for much faster
color and intensity control.
Even quieter
In order to ensure the best possible lumen performance
and diode longevity, on-demand fans from an automatic
heat management system monitor and regulate cooling. In
fact, fan noise in the Stagebar 2 has been reduced for the
benefit of TV studios and other noise-sensitive environments.
Flexible control
The Stagebar 2 is controlled by industry standard DMX
512-A and is possible via four distinct control modes - RGB,
RGBAW, HIS (Hue, Saturation, Intensity), and HS IC (Hue,
Saturation, Intensity, Color Temperature). This gives the option of simple control or full comprehensive control when a
designer needs it.
The Stagebar 2 also allows for individual pixels or groups of
pixels to be controlled for increased design creativity.
Simple setup
The Stagebar 2 is an easy setup. Using 5-pin XLR and
PowerCon connectors, it is simple to daisy chain both data
and power, saving meters of cable spaghetti, and requires
no external power supplies or additional cables and DMX
boxes. A floor stand is available as an option.
A battery-powered control menu on each fixture lets users
configure and address the units off-site, even when fixtures
are not powered up. The mounting system allows for both
truss and floor mounting and comes standard with Martin’s
Omega bracket. Additionally, cutouts in end profiles make
horizontal fixture alignment easy and accurate.
Available in a short (420 mm, 16.5 in) or long (630 mm,
24.8 in) version, the Stagebar 2 is also lightweight at 5.5 or
7.3 kg (12.1 or 16.1 lbs.).
Overall simplicity
Rigorously tested and CE, ETL & CETL approved, the
Stagebar 2 is built for simplicity. With an auto sensing
switch mode power supply, simple lens and LED access,
and an ergonomic construction that makes for fast and easy
cleaning, the Stagebar 2 is as trouble-free as LED can be.
Beyond Bright!
The color system mixes red, green, blue, amber
and white for an extremely broad palette of colors.
A choice of lens options includes an opal diffuser
lens for scenic on-camera looks.
Individual pixel control allows for increased design
creativity.
A floor stand is available as an option.
Page 3
Physical
Length: 420 mm (16.5 in.), Stagebar 2 S
Length: 630 mm (24.8 in.), Stagebar 2 L
Width: 190 mm (7.5 in.)
Height: 105 mm (4.1 in.)
Weight: 5.5 kg (12.1 lbs.) without bracket, Stagebar 2 S
Weight: 7.3 kg (16.1 lbs.) without bracket, Stagebar 2 L
Dynamic Effects
Color mixing: RGBAW
Red: 0 - 100%
Green: 0 - 100%
Blue: 0 - 100%
Amber: 0 - 100%
White: 0 - 100%
Control and Programming
Color control modes: RGBAW, RGB, HS I, HS IC
DMX channels: 3 - 30
Grouped pixel control options: 6 x 1 (individual), 3 x 2,
2 x 3 or 1 x 6 (all as one group) pixels
DMX address setting: Manual, auto addressing and
auto address copy
Fixture setup: Onboard control panel with display
Display: Battery-powered backlit LCD, 2 x 16
characters
16-bit control (internal): RGBAW, RGB, HSI, HSIC
Protocol: USITT DM X512-A
Receiver: RS-485
Firmware update: Serial upload via DMX link
Photometric Data
Light source: Cree XP-E high power emitters
Total LE D power per bar: 150 W
Even pitch across adjacent fixtures: Horizontal/vertical
(Stagebar 2 L), horizontal (Stagebar 2 S)
Even pitch across adjacent fixtures:
Total output: 3650 lm
Construction
Color: Black
Housing: Steel and aluminum
Finish: Electrostatic powder-coated
Protection rating: IP20
Installation
Mounting points: Adjustable mounting bracket,
1/4-turn locks, four M6 threaded holes
Orientation: Any
Connections
Power in/out: Neutrik PowerCon
Data in/out: 5-pin locking XLR
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Integrated, auto-sensing
multi-voltage
Power output fuse: 15 AT (slow blow)
Main fuse: 4 AT (slow blow)
Typical Power and Current
100 V, 50 Hz: 238 W. 2.5 A, PF 0.998
100 V, 60 Hz: 240 W, 2.5 A, PF 0.998
110 V, 60 Hz: 237 W, 2.3 A, PF 0.997
120 V, 60 Hz: 233 W, 2.1 A, PF 0.996
208 V, 60 Hz: 228 W, 1.2 A, PF 0.986
220 V, 50 Hz: 227 W, 1.1 A, PF 0.986
220 V, 60 Hz: 244 W, 1.3 A, PF 0.984
230 V, 50 Hz: 225 W, 1.1 A, PF 0.986
240 V, 50 Hz: 224 W, 1.0 A, PF 0.984
Figures apply to both S and L models with all LEDs
at max. intensity. Measurements made at nominal
voltage. Allow for a deviation of +/- 10%.
Thermal
Cooling: Filtered forced air (temperature-regulated,
low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Maximum surface temperature, steady state,
Ta=40° C (104° F): 90° C (194° F)
Total heat dissipation (calculated, +/- 10%): 860 BTU/hr.
Licensing
Available under license from Color Kinetics
Incorporated
Approvals
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
EU EMC: EN 55 015, EN 55 103-1, EN 55 103-2
US safety: ANSI/UL 1573
Canadian safety: CAN/CSA E598-2-17 (CAN/CSA
E60598-1)
Included Items
Narrow diffuser film, Stagebar 2 S: P/N 41600130
Opal diffuser front, Stagebar 2 S: P/N 41704080
Narrow diffuser film, Stagebar 2 L: P/N 41600131
Opal diffuser front, Stagebar 2 L: P/N 41704060
Neutrik PowerCon NAC3FCA
male input connector: P/N 05342804
Omega clamp attachment bracket
with quarter-turn fasteners: P/N 91602001
User manual: P/N 35000250
Accessories
Neutrik PowerCon NAC3FCA power input connector,
cable mount, blue: P/N 05342804
Neutrik PowerCon NAC3FCB power output
connector, cable mount, light grey: P/N 05342805
Narrow field diffuser (4 pcs)
for Stagebar 2 S: P/N 91614035
Medium field diffuser (4 pcs)
for Stagebar 2 S: P/N 91614036
Narrow field diffuser (4 pcs)
for Stagebar 2 L: P/N 91614037
Medium field diffuser (4 pcs)
for Stagebar 2 L: P/N 91614038
Adjustable floorstand/mounting
bracket: P/N 71606007
Ordering Information
Stagebar 2™ S, RGBAW: P/N 90352070
Stagebar 2™ L, RGBAW: P/N 90352090
Specifications Stagebar 2
