Martin PR1 User Manual

Mania PR1

user manual

Measurements are expressed in millimeters.

315

158

340

290

Ø13

© 2003-2004 Martin Professional A/S, Denmark.

All rights reserved. No part of this manual may be reproduced, in any form or by any means,
without permission in writing from Martin Professional A/S, Denmark.

Printed in China.

P/N 35000148, Rev. B.

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Mania PR1 overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Overhead mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Installing a gobo/texture glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Installing a color filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Focusing the Mania PR1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Gobo rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Remote control operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Basic service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Lamp maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Reconfiguring the beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Lens assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

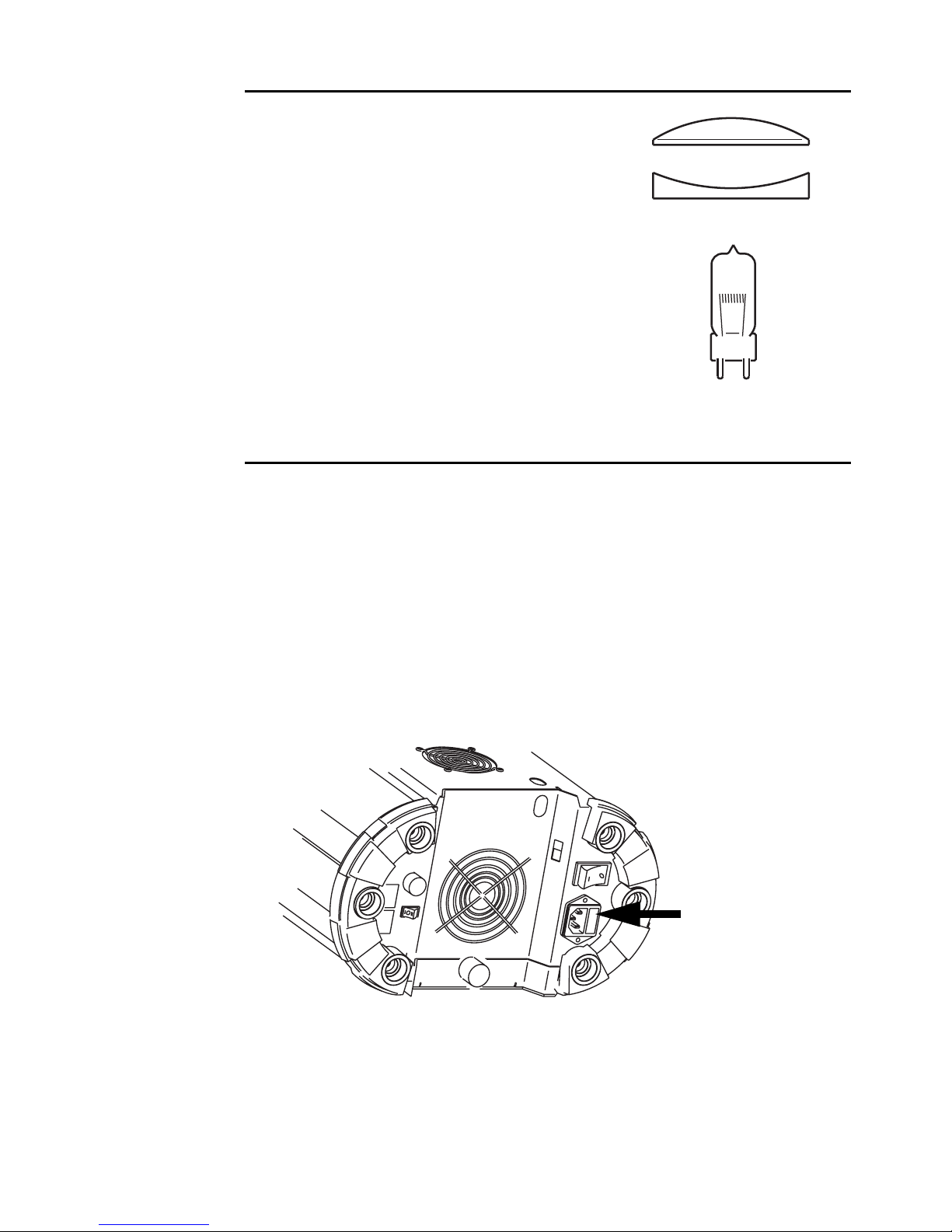

Replacing the mains fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3

4 Mania PR1 user manual

I

NTRODUCTION

Thank you for selecting a Martin Mania PR1. The Mania PR1 is a gobo
projector with a motorized rotating gobo. Gobo rotation speed and
direction can be adjusted, and a remote control is supplied with the
product. The beam angle can be adjusted from 25° to 32°. A 43° beam
angle can also be obtained using a separately available accessory.

1

SAFETY INFORMATION

Warning! This product is not for household use. It presents risks of

lethal or severe injury due to fire and heat, electric shock, and
falls.

Read this manual before powering or installing the fixture, follow the
safety precautions listed below and observe all warnings in this manual
and printed on the fixture. If you have questions about how to operate the
fixture safely , please cont act a Martin distributor for assistance. Refer any
service operation not described in this manual to a qualified technician.
Do not modify the fixture or install other than genuine Martin accessories
and upgrade kits.

Refer servicing to qualified personnel.
Maximum ambient temperature T
See serial label for replacement fuse size and lamp type.
Suitable for mounting on normally flammable surfaces.
Do not look directly into the light.
Risk of fire, electrical shock and burns.
Use only in dry locations.
For indoors use only.

= 40°C(104°F).

a

Do NOT block exhaust vents.

Introduction 5

Shields, lenses or ultraviolet screens must be changed if they become
visibly damaged to the extent that their effectiveness is impaired, for
example, by cracks or deep scratches.

The lamp must be changed if it becomes damaged or thermally deformed.
If the external power cord of this luminaire is damaged, it must be

replaced by a special cord exclusively available from your Martin dealer.

Avoiding electric shocks

Warning Always disconnect from mains power before replacing the

lamp, fuses, or any part, and when not in use.

• Before operation ensure that factory setting of voltage and frequency
match local power supply.

• Always ground (earth) the fixture electrically.

• Use only a source of AC power that complies with local building and
electrical codes and has both overload and ground-fault protection.

• Do not expose the fixture to rain or moisture.

• Never operate the fixture with missing or damaged lenses and/or covers.

Protecting yourself and others from burns and fire

Warning Hot lamp. The exterior of the fixture can become hot. Allow to

cool for at least 20 minutes before handling or opening.

• Surface temperature under steady state condition = 95°C (203° F).

• Minimum distance to flammable material = 0.3 m (1 ft).

• Minimum distance to illuminated surface 1.0 m (3.3 ft).

• Never attempt to bypass the thermostatic switch or fuses. Always replace
defective fuses with ones of the specified type and rating.

• Ensure that the air flow through vents is free and unobstructed.

• Provide a minimum clearance of 0.1 meters (4 inches) around air vents.

• Never place filters or other mate ri al s over the lens or in the optical path.

• The exterior of the fixture can become hot. Allow the fixture to cool for at
least 20 minutes before handling.

• Do not operate the fixture if the ambient temperature (T
(104° F).

• Do not stare directly into the light.

• Never operate the fixture without all lenses and covers installed: an
unshielded lamp emits dangerous UV radiation that can cause burns and
eye damage.

) exceeds 40° C

a

6 Mania PR1 user manual

Preventing injuries due to falls

• When suspending the fixture above ground level, verify that the structure
can hold at least 10 times the weight of all installed devices.

• Verify that all external covers and rigging hardware are securely fastened
and use an approved means of secondary attachment such as a safety
cable.

• Block access below the work area whenever installing or removing the
fixture.

UNPACKING

The packing material is carefully designed to protect the fixture during
shipment - always use it to transport the fixture.

The Mania PR1 is packaged with the following:

• 3-wire power cable

• User manual

• Blue-hued texture glass

• Steel gobo with Martin logo

• Remote control unit with 5-metre (16.4 ft) RJ-45 cable

• White glove with Martin logo

Introduction 7

MANIA PR1 OVERVIEW

Cooling vent

Gobo rotation speed

Remote control input

Remote control output

Gobo rotation direction switch

Safety cable attachment eye

AC supply setting

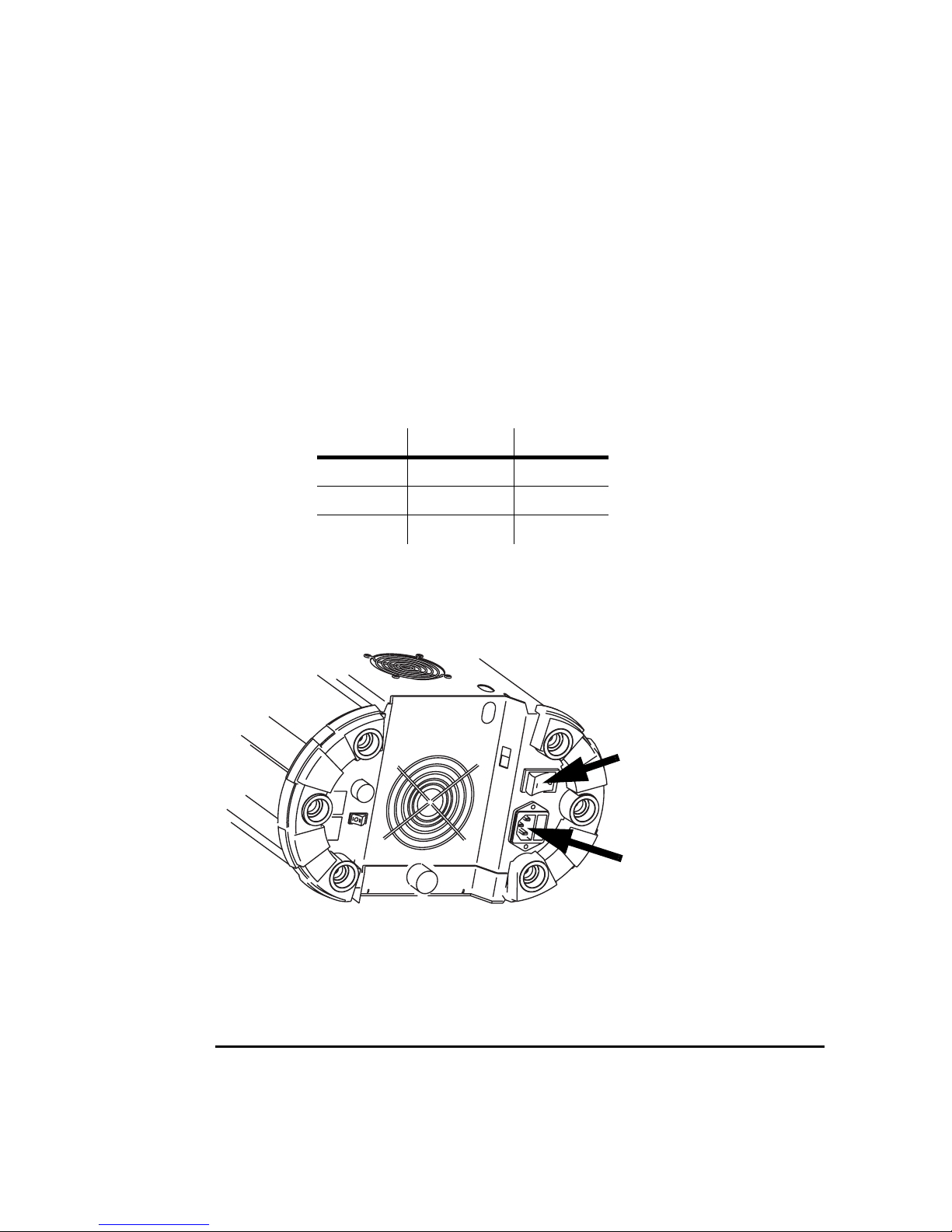

Mains switch

Mains socket

Fuse holder

Cooling fan

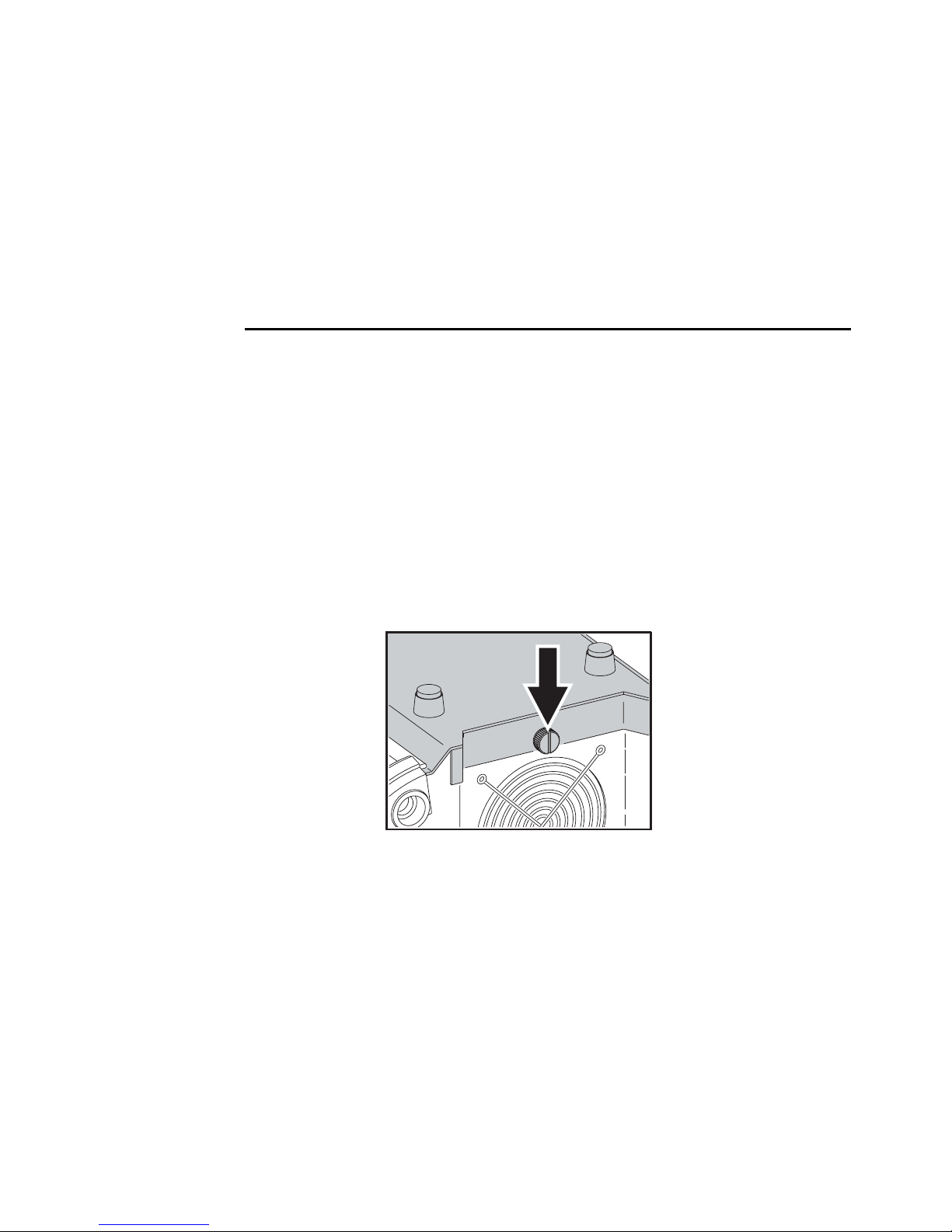

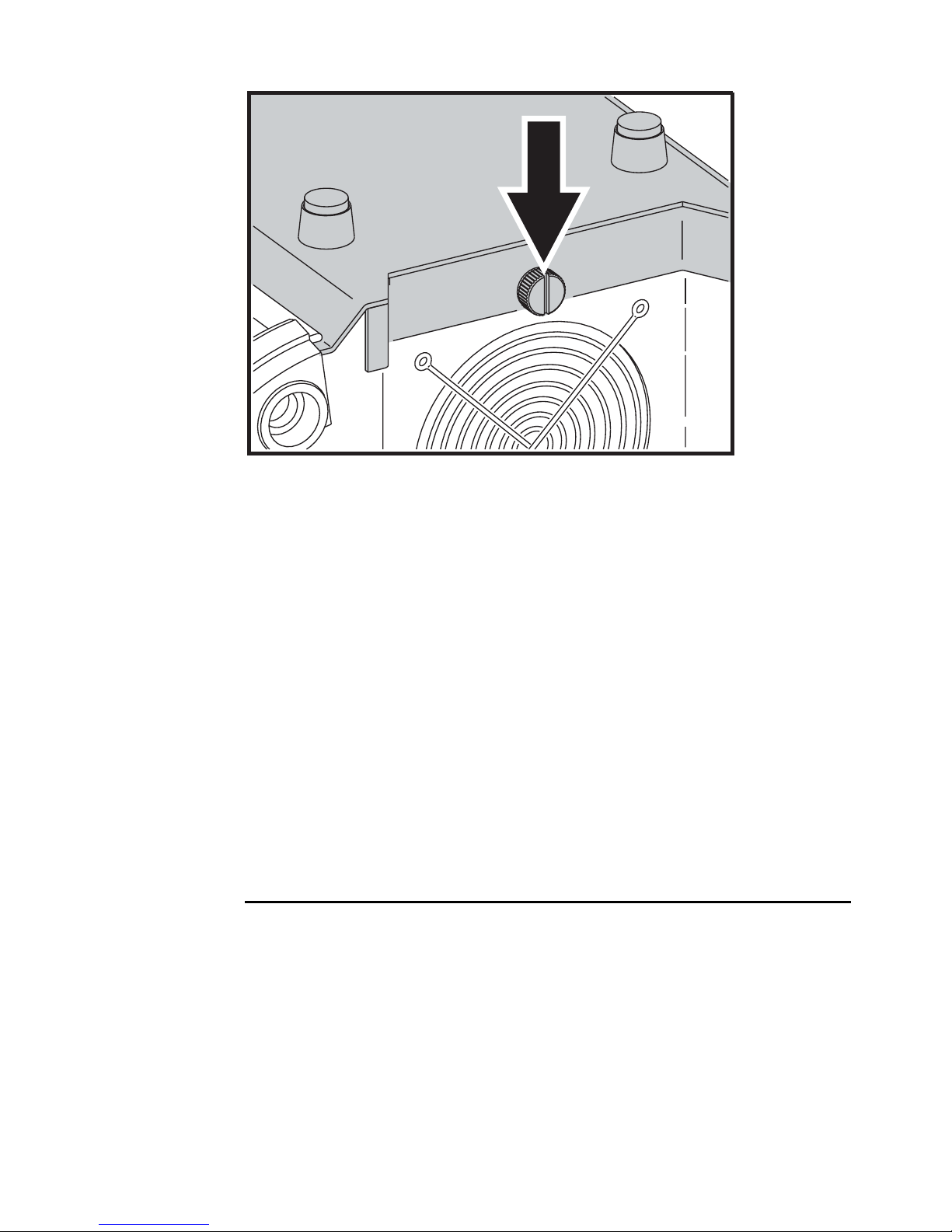

Thumb screw (cover lock)

8 Mania PR1 user manual

I

NSTALLATION

AC POWER

2

Before operation, ensure that factory setting of voltage and frequency
match local power supply.

Always ground (earth) the fixture electrically.
Use only a source of AC power that complies with local building and

electrical codes and has both overload and ground-fault protection.

Note: If the external power cord of this luminaire is damaged, it

must be replaced by a special cord exclusively available from
your Martin dealer.

Configuring for local mains power

The Mania PR1 has a switch-selectable power supply that can operate in
the following voltage ranges at 50-60 Hz:

• 115 - 120 volts (setting 115)

• 220 - 240 volts (setting 230)

Warning Do not operate the fixture on a power supply that falls outside

of these ranges.

Select the operating range using the red AC supply switch at the rear of
the fixture.

AC supply setting

Installation 9

Installing a plug on the mains lead

Warning! For protection from dangerous electric shock, the fixture must

be grounded (earthed). The AC mains supply must have
overload and ground-fault protection.

Important! Verify that the feed cables are undamaged and rated for the

current requirements of all connected devices before use.

The fixture’s mains lead may require a grounding-type cord cap that fits
your power distribution cable or outlet. Consult a qualified electrician if you
have any doubts about proper installation.

Following the cord cap manufacturer’s instructions, connect the
appropriate wires to ground (earth), live, and neutral. The following table
shows some common wire identification schemes.

Function Wire (EU) Wire (US)

live brown black
neutral blue white
ground yellow/green green

To apply power:

1 Connect the mains power cable.

2 Turn the power on using the mains switch.

Mains switch

Mains socket

OVERHEAD MOUNTING

The Mania PR1 is designed to be hung overhead with a clamp (not
included).

10 Mania PR1 user manual

Warning! Block access below the work area before proceeding.

Always use a secure means of secondary attachment.
For indoors use only.

To hang the Mania PR1 on an overhead support:

1 Verify that the structure can support at least 10 times the weight of all

installed fixtures, clamps, cables, auxiliary equipment, and other items.

2 If hanging the fixture with a rigging clamp, verify that the clamp is

undamaged and is designed for the fixture’s weight. Bolt the clamp
securely to the mounting bracket on the fixture with a grade 8.8
(minimum) M12 bolt and lock nut, or as recommended by the clamp
manufacturer, through the clamp hole in the mounting bracket.

3 If permanently installing the fixture, verify that the hardware (not included)

and mounting surface can bear at least 10 times the fixture’s weight.

4 Working from a stable platform, clamp or fasten the fixture to the

structure.

5 Install a safety cable that can hold at least 10 times the weight of the

fixture through the safety cable attachment point on the fixture.

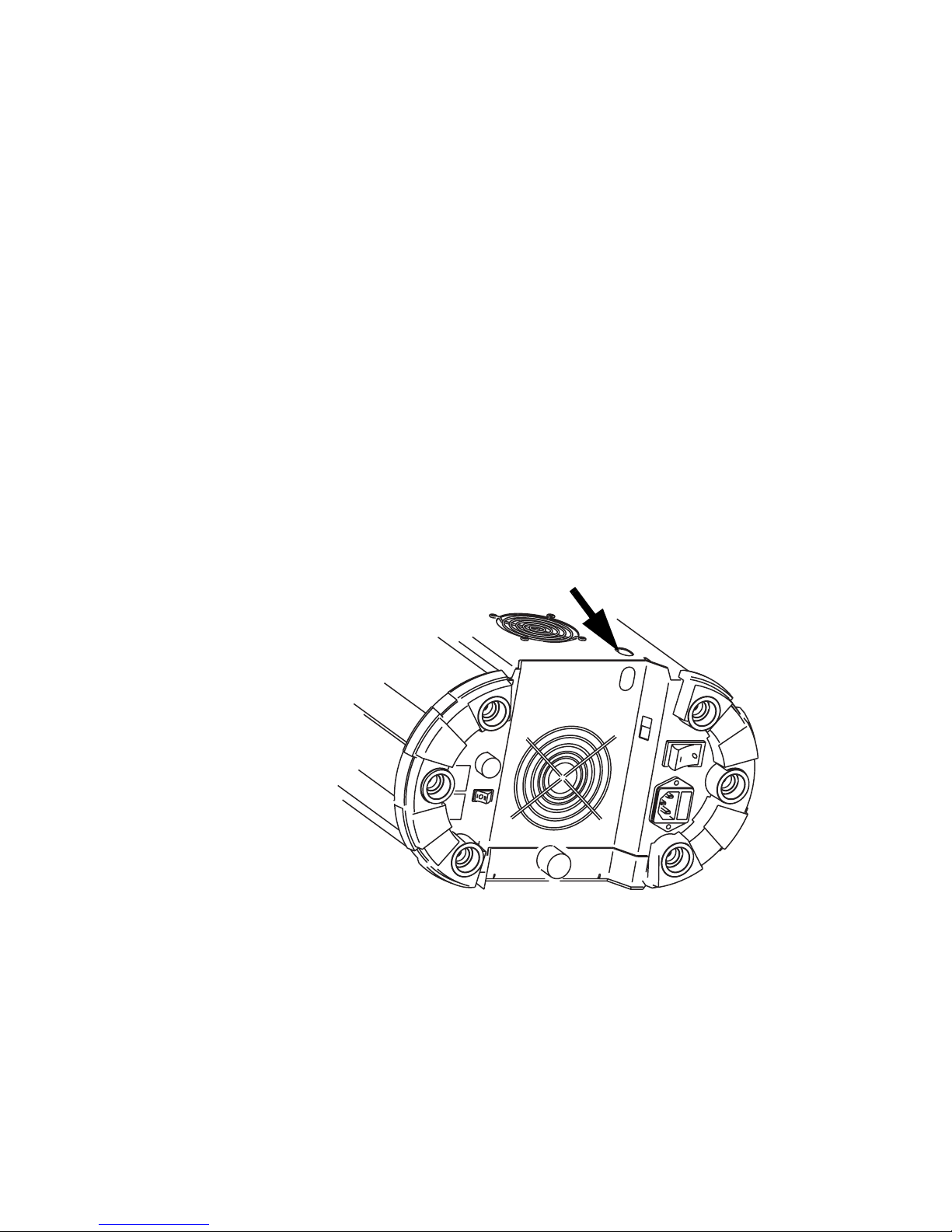

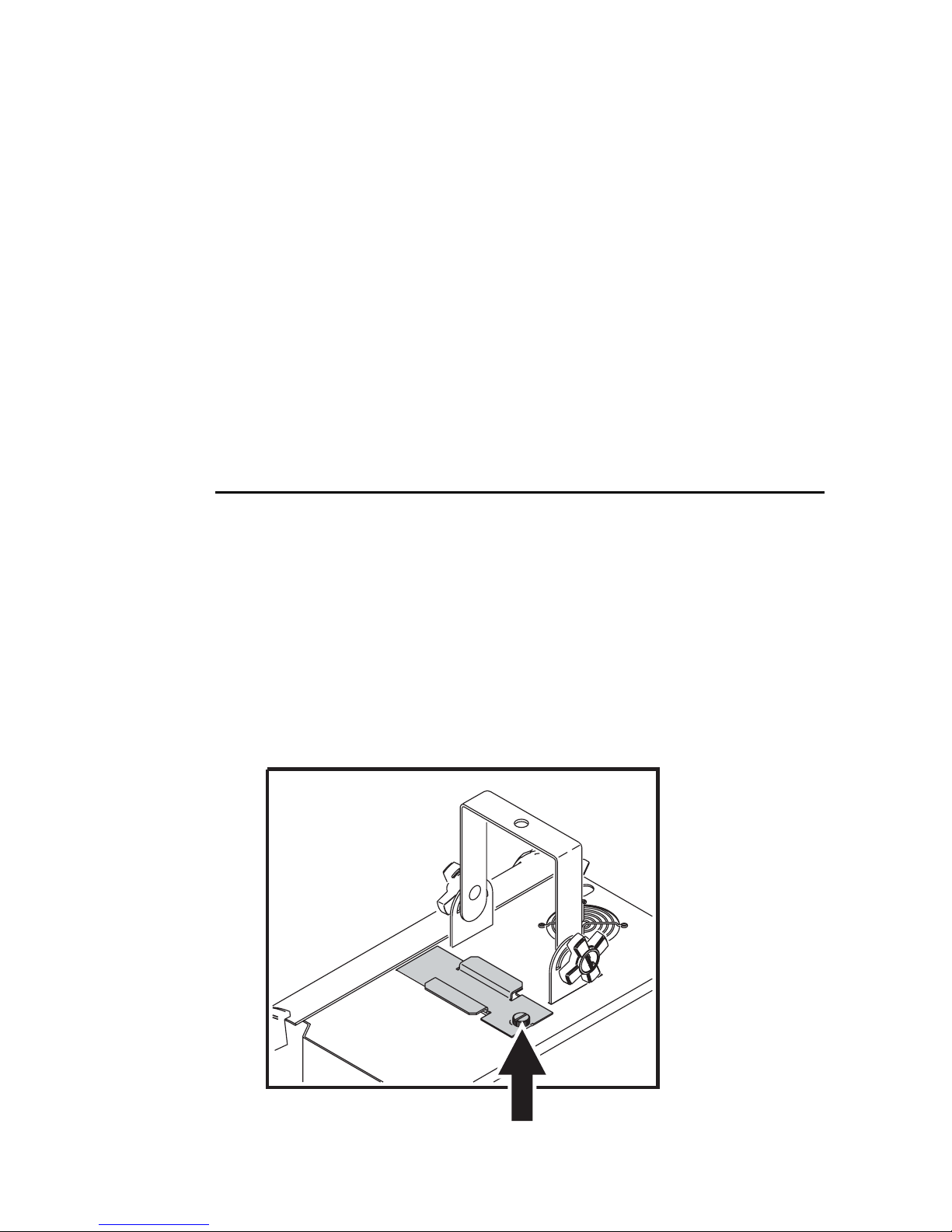

Safety cable attachment point

6 Loosen the swivel locks, tilt the fixture to the desired angle, and retighten.
7 Verify that the fixture is at least 1 meters (3.3 ft.) from the surface to be

illuminated and at least 0.3 meters (1 ft.) from any combustible materials.
Verify that the clearance around the air vents is at least 0.1 meters (4 in.).

Installation 11

O

PERATION

The lamp will light when the mains switch at the rear of the fixture is turned
on.

Important! This fixture is designed for use with a gobo and/or structured

glass filter. Do not use it without either a gobo or a filter
installed. Doing so may cause heat damage that is not covered
by the product warranty.

INSTALLING A GOBO/TEXTURE GLASS

3

The fixture comes with a:

• Red-hued texture glass (installed)

• Blue-hued texture glass
You can install standard size D gobos with a maximum image diameter of

40 mm (1.6 in.).
To change the gobo/texture glass:

1 Switch the mains power off and allow the fixture to cool for 20 minutes.

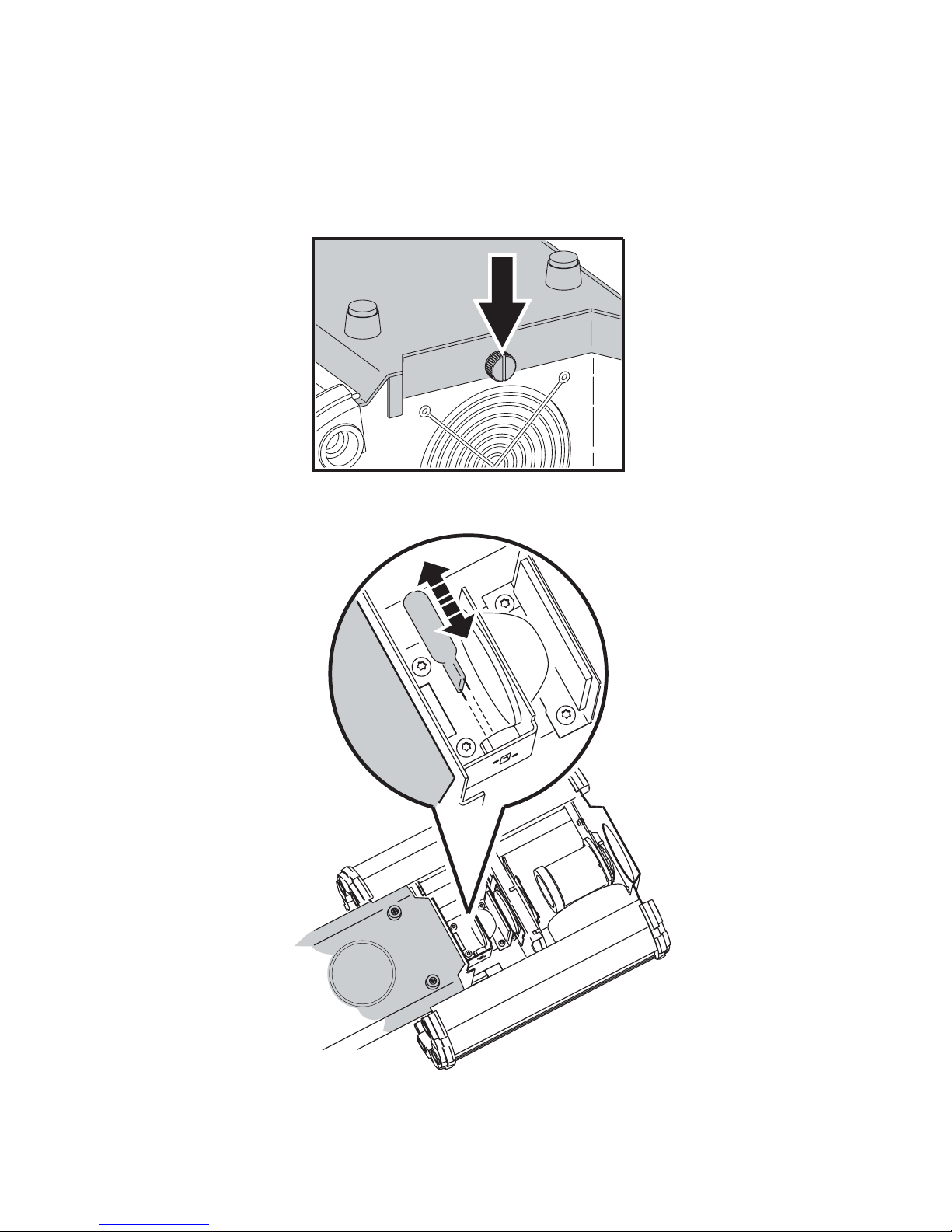

2 Unscrew the gobo access hatch on the top of the fixture.

12 Mania PR1 user manual

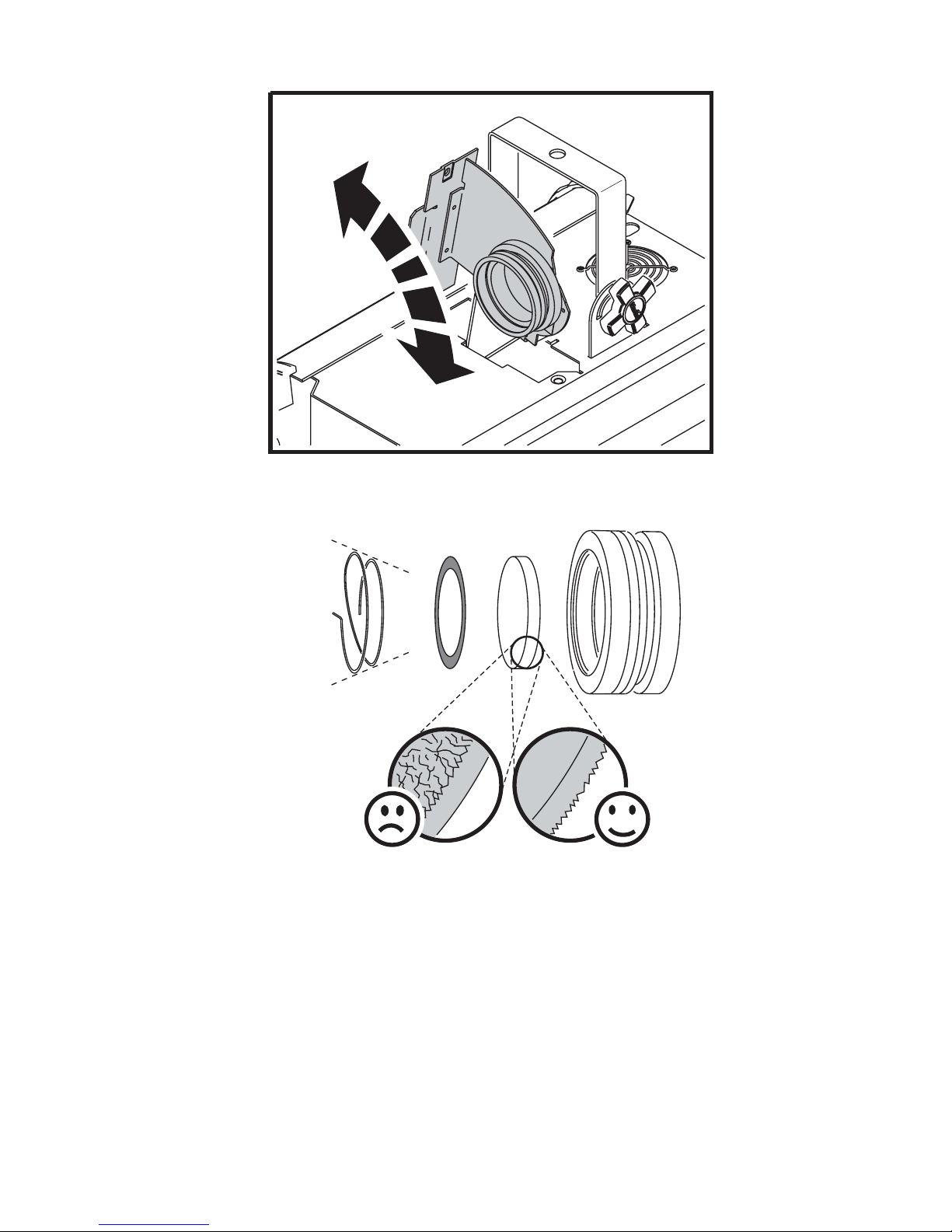

3 Lift the gobo holder out of the fixture.

4 The gobo/texture glass is held in place by a steel spring. Remove the

spring to remove the gobo/texture glass that is presently installed.

Front lens side

Lamp side

5 Install the replacement gobo or textured glass. Note that the coated or

textured side should face the lamp.

6 Replace the gobo holder, and screw the access hatch closed, before

applying power.

Operation 13

INSTALLING A COLOR FILTER

You can install a color filter in the slot that can be found on the lamp side
of the gobo holder. This slot can hold a 51 x 54 mm (2 x 2.1 in.) filter with a
thickness of between 1.1-2.0 mm (0.05-0.08 in.).

FOCUSING THE MANIA PR1

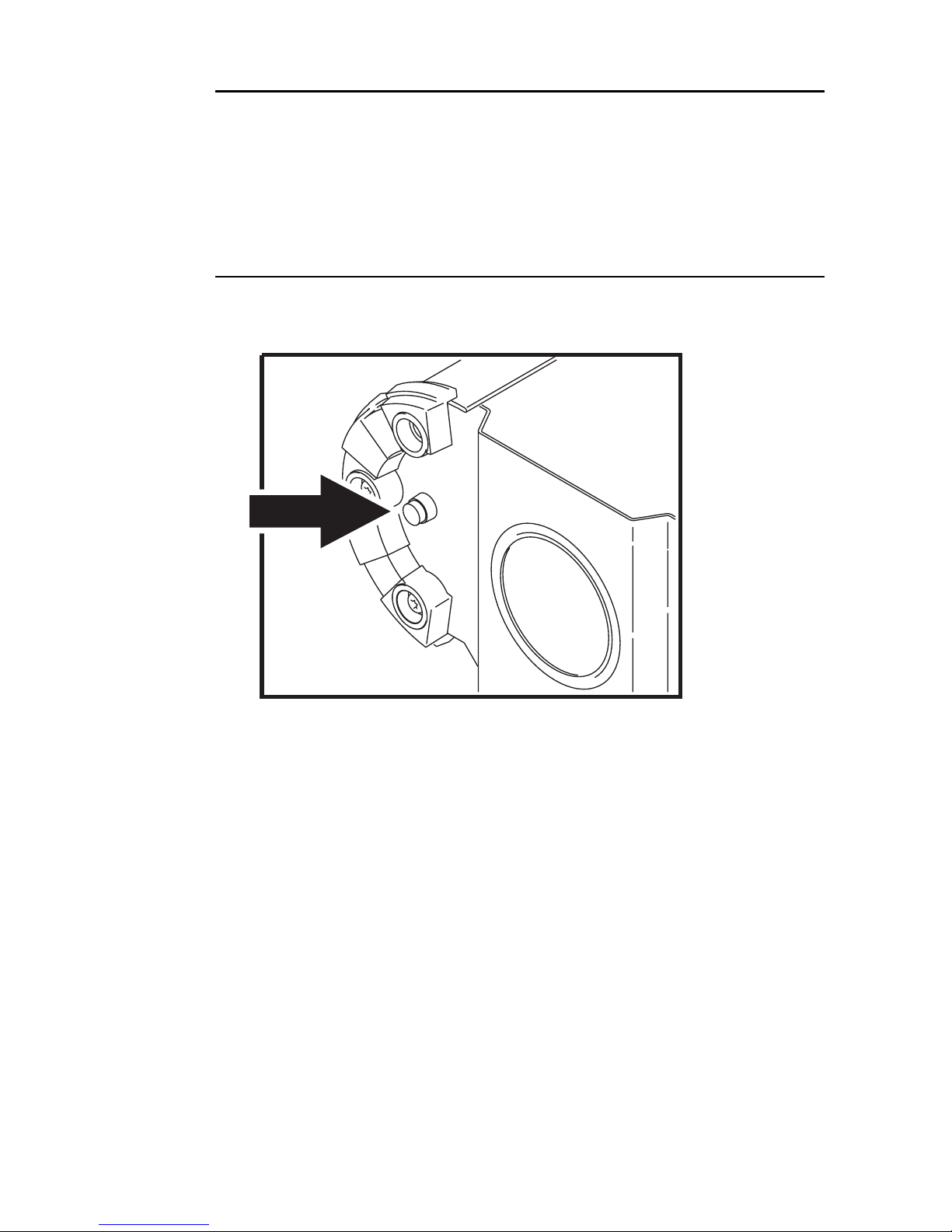

The focus is adjusted using the dial next to the lens. Twist the dial until a
sharp image is acquired.

14 Mania PR1 user manual

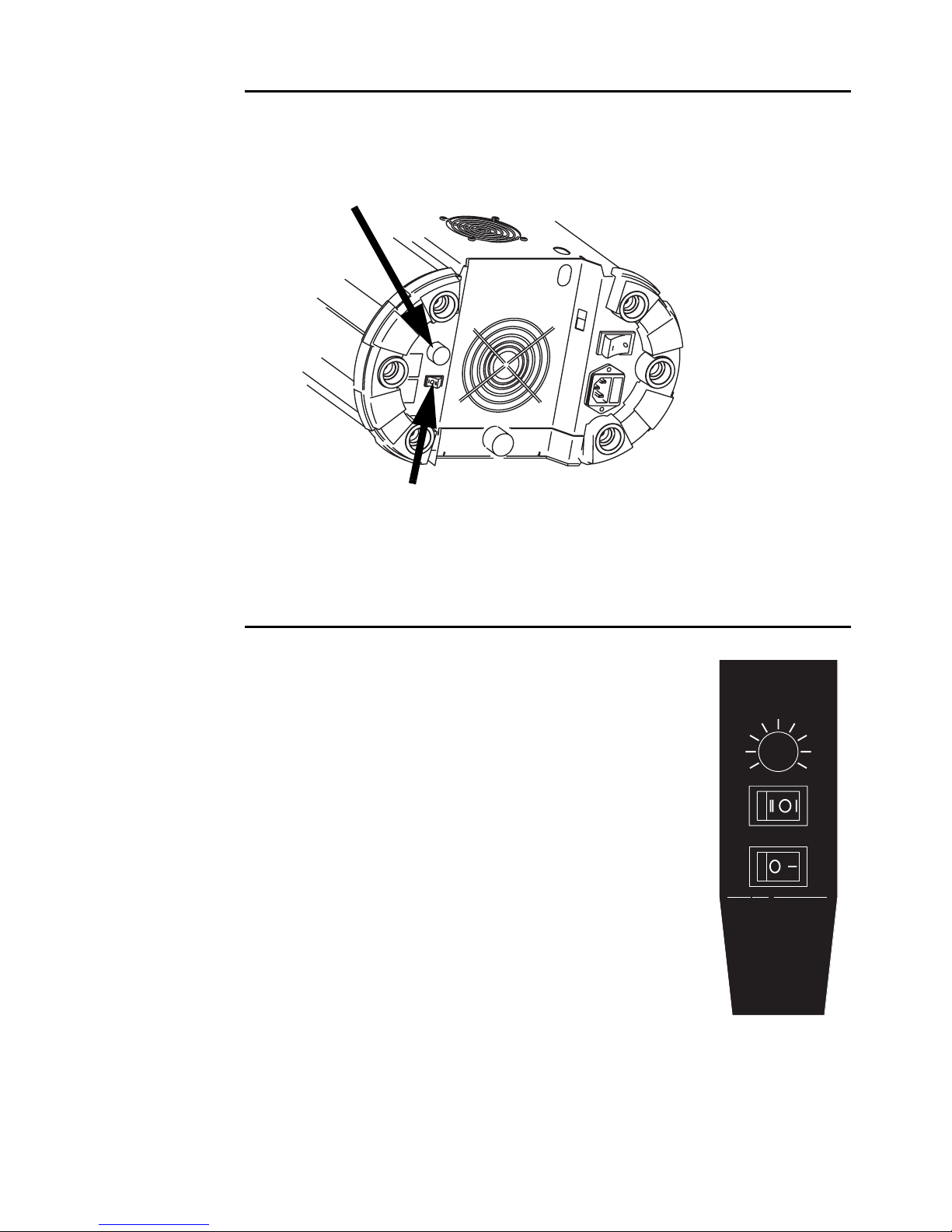

GOBO ROTATION

Rotation direction

Rotation speed

Mains switch

You can adjust the speed and direction of the gobo rotation using the
controls at the rear of the fixture.

Gobo rotation speed

Gobo rotation direction switch

REMOTE CONTROL OPERATION

The remote control unit can control up to four daisy­chained Mania PR1s. Connect the remote control to
the RJ-45 In connector on the first Mania PR1 fixture
and connect successive fixtures using the RJ-45 Out
connector.

The maximum cable length between daisy-chained
fixtures is 10 metres (33 ft).

Rotation speed

FastSlow

Rotation direction

Mains switch

Operation 15

B

ASIC SERVICE

This chapter describes the maintenance procedures that you can perform
yourself.

Warning The exterior of the fixture can become hot. Always disconnect

the fixture from AC power and allow to cool for at least 20
minutes before handling or opening.

CLEANING

4

Regular cleaning of the elements in the optical path, as well as the air
vents, is vital to maintaining the operational quality of the Mania PR1.

Important! Excessive dust, smoke fluid, and particulate buildup degrades

performance and causes overheating and damage to the
fixture that is not covered by the warranty.

Cleaning the air vents and fan

To maintain adequate cooling, dust must be cleaned from the air vents
periodically. Remove dust from the air vents with a soft brush, cotton
swab, vacuum, or compressed air.

Cleaning optical components

Clean the optical components regularly. The presence of smudges or dust
on optical surfaces can reduce the strength of the light output and the
quality of the effects.

Use care when cleaning optical components and work in a clean, well lit
area. The coated surfaces are fragile and easily scratched. Do not use
solvents that can damage plastic or painted surfaces.

1 Disconnect the fixture from power and allow it to cool for 20 minutes.

16 Mania PR1 user manual

2 Remove the thumb screw holding the cover in place.

3 Slide the fixture cover open.
4 Vacuum or gently blow away dust and loose particles with compressed

air.

5 Remove stuck particles with an unscented tissue or cotton swab

moistened with glass cleaner or distilled water. Do not rub the surface: lift
the particles off with a soft repeated press.

6 Remove smoke, and other, residues with cotton swabs or unscented

tissues moistened with isopropyl alcohol. A commercial glass cleaner may
be used, but residues must be removed with distilled water. Clean with a
slow circular motion from center to edge. Dry with a clean, soft and lint­free cloth or compressed air.

7 Close the fixture cover and tighten the thumb screw, taking care not to

trap any loose wires.

LAMP MAINTENANCE

Warning Isolate electrically before re-lamping. The lamp must be

changed if it becomes damaged or thermally deformed.
Caution Hot lamp.
Important The Mania PR1 is supplied with a Philips 6958 24V 250W 10H

lamp (Martin P/N 97000115) with an average life of 1000 hours.

The fixture must only be used with this lamp. Using any other

Basic service 17

lamp type may damage the fixture and will invalidate the
product warranty.

Installing a lamp in the Mania PR1

1 Disconnect the fixture from power and allow it to cool for 20 minutes.
2 Remove the thumb screw holding the cover in place.

3 Slide the fixture cover open.

4 Gently grasp the bulb as close to the base as possible and lever it out of

the bulb socket.

18 Mania PR1 user manual

5 Replace the bulb. Use only a Philips 6958 24V 250W 10H lamp (Martin

P/N 97000115).

Warning Installing any other lamp may damage the fixture!

6 Close the fixture cover and tighten the thumb screw, taking care not to

trap any loose wires.

7 Reapply power to the fixture.

RECONFIGURING THE BEAM

The Mania PR1 is supplied with an adjustable lens module allowing the

beam angle to be set to either 25° or 32°. A 43° beam angle converter is

also available from your Martin dealer as an accessory.

The lens is factory-set to 25°, but this can be changed to 32° as follows.

You will need a 2mm Allen key for this operation.

To reconfigure the lens:

1. Disconnect the fixture from power and allow it to cool for 20 minutes.

2. Turn the fixture over and remove the thumb screw holding the cover in
place.

3. Slide the fixture cover open.

4. Turn the focus knob clockwise as far as it will go. This will move the
lens module towards the front of the fixture, giving enough space to
remove the lens module.

Basic service 19

5. The lens module has a
bayonet-type fitting.
Working through the
front aperture of the
fixture, loosen – but do
not remove – the three
2mm Allen bolts around
the lens.

6. Working inside the fixture, grasp the lens module and twist it
counterclockwise so that it is released from the mounting screws. Lift
the lens module out of the fixture.

20 Mania PR1 user manual

7. Prepare a soft cloth or similar device to catch components if they fall
out of the lens module.

8. See illustration below. Open the lens module by unscrewing the
retaining ring (D). To obtain a 32° beam angle, remove the concave
lens (C) and thin spacer (B). Insert the thick spacer (E) supplied with
the fixture and retighten the retaining ring (D).

Remove B + C

25° beam angle

A
B

C

32° beam angle

A

Insert E

E

D

D

9. Retain components B and C for possible future use.

Basic service 21

LENS ASSEMBLY

When you open the Mania PR1 lens module,
you may find out the hard way that it is easy
to mix up the lenses. To reassemble the
lenses correctly, see the illustration on the
right and remember that:

• The flat surfaces must face towards the

lamp

• The concave lens (C) must be placed

closest to the lamp, and the convex lens
(A) furthest away from the lamp.

A
C

REPLACING THE MAINS FUSE

The Mania PR1 uses a time-delay fuse for protection against current
overload. An indication that the fuse may have blown is that when power
is applied and the lamp is switched on, no light is produced.

If the fuse blows repeatedly, there is a fault with the unit that requires
service by a Martin technician .

Never bypass the fuse or replace it with one of another size or rating.

1 Unplug the mains cable from the input socket.
2 Pry open the fuse holder (located next to the mains power connector) with

a flat-head screwdriver and remove the fuse.

Fuse holder

3 Replace the fuse with one of the same type. The fuse rating is listed on

the serial number label and in “Specifications” on page 24.

4 Replace the fuse holder.

22 Mania PR1 user manual

T

ROUBLESHOOTING

problem probable cause(s) suggested remedy

No light No power to the fixture Check connections

Blown fuse If power is applied and the

lamp is switched on, but
does not light, then check
and replace fuse if

necessary.
Burned out lamp Install new lamp
Fixture too hot Allow to cool

Improve air flow around

fixture

No action Electrical malfunction Refer to a Martin service

technician

5

Fuse blows repeatedly Electrical malfunction Refer to a Martin service

technician

Troubleshooting 23

S

PECIFICATIONS

PHYSICAL

Size without mounting bracket (LxWxH). . .340x290x158 mm (13.4x11.4x6.2 in.)

Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 kg (19.8 lbs)

CONSTRUCTION

Housing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . steel and aluminum

THERMAL

Exterior surface temperature under steady state condition . . . . . . .95°C (203°F)

Time required to cool before handling . . . . . . . . . . . . . . . . . . at least 20 minutes

Maximum ambient temperature (T

INSTALLATION

Minimum distance to flammable material . . . . . . . . . . . . . . . . . . . . . . . 0.3 m (1ft)

Minimum distance to illuminated surface . . . . . . . . . . . . . . . . . . . . . 1.0 m (3.3ft)

Minimum clearance around air vents . . . . . . . . . . . . . . . . . . . . . . . . . 0.1 m (4in)

A

). . . . . . . . . . . . . . . . . . . . . . . . 40° C (104°F)

a

CONTROL

Gobo rotation direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .manual switch

Gobo rotation speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dial

Remote control unit 4-fixture control with up to 10 m (33 ft) between each fixture

GOBO

Size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D

Maximum image diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 mm (1.6 in.)

COLOR FILTERS

Size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 x 54 mm (2 x 2.1 in.)

Thickness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.1-2 mm (0.05-0.08 in.)

PHOTOMETRICS

Beam angle. . . . . . . . . . . . . . . . . . . . . .25°, configurable to 32°. Also 43° option.

ELECTRICAL

Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-prong IEC male socket

AC Power switch selectable, operating ranges 115-120 V / 220-240 V, 50-60 Hz

Main fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.15 AT (time delay),

TYPICAL POWER AND CURRENT

115 V, 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255 W, 2.1 A

115 V, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255 W, 2.2 A

120 V, 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .263 W, 2.2 A

120 V, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .262 W, 2.2 A

220 V. 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229 W, 1 A

220 V, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228 W, 1 A

230 V, 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255 W, 1.1 A

230 V, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255 W, 1.1 A

240 V, 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .265 W, 1.1 A

240 V, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .261 W, 1.1 A

INCLUDED ITEMS - US VERSION

2 m (6.5 ft) US mains cable 18AWG with US male connector (UL approved)

Philips 6958 24V 250W 10H lamp (1000 hours average life) . . . .P/N 97000115

User manual
Blue-hued texture glass
Steel gobo with Martin logo
Red-hued texture glass (installed)
Remote control with 5 m (16.4 ft) RJ-45 cable
White glove with Martin logo

INCLUDED ITEMS - NON-US VERSION

3 m (9.8 ft) EU mains cable 3x1.0mm
3 m (9.8 ft) EU mains cable 3x1.0mm

2

with Schuko male connector

2

with no male connector

Philips 6958 24V 250W 10H lamp (1000 hours average life) . . . .P/N 97000115

User manual
Blue-hued texture glass
Steel gobo with Martin logo
Red-hued texture glass (installed)
Remote control with 5 m (16.4 ft) RJ-45 cable
White glove with Martin logo

ACCESSORIES

Philips 6958 24V 250W 10H lamp (1000 hours average life) . . . .P/N 97000115

Half-coupler clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P/N 91602005

3.15 AT fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P/N 05020013

UTP patch cable 5 m (16.4 ft) RJ-45 . . . . . . . . . . . . . . . . . . . . . . .P/N 11840095

White glove with Martin logo . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P/N 50590002

43° beam angle converter

ORDERING INFORMATION

Mania PR1 US version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P/N 90430031

Mania PR1 non-US version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P/N 90430030

Specifications 25

www.martin.com • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark

Tel: [phone] •

Fax [phone]
