MAC ALLURE

ONE BEAM. 7 SEGMENTS. LIMITLESS COLORS.

PROFILE

The MAC AllureTM Proﬁle features a novel RGBW light engine with unique 7-segmented beam control. With instant color control and pixelated beam, the MAC Allure Proﬁle enables dynamic projection and mid-air effects, previously not possible. The proprietary light engine sets new standards in compactness and efﬁciency, previously associated with larger, costlier ﬁxtures. To ease programming and content creation, this is also the ﬁrst lighting ﬁxture to incorporate Martin's P3 control. The pixelated beam can still be controlled or pixel-mapped via DMX and Art-Net protocols, however, switching or cross-fading to P3 or vice versa is now instantly possible. Designed to support rental and install clients, the MAC Allure Proﬁle is ideal for concert/touring, TV, corporate, houses of worship, concert venues, nightclubs, and cruise ships.

SPEC SHEET

KEY MESSAGES

FIRST PIXELATED SPOT

The light and color engine is divided into seven full color pixels. Pixels can be focused on projection as well as in the beam for aerial effects. You have full color and intensity control over each pixel via DMX, or you can create effects effortlessly via the fixture's effects engine.

P3 INCORPORATED

On top of DMX, Art-Net and sACN, the MAC Allure Profile can be controlled via P3. This allows a rig of multiple fixtures to deliver a cohesive look that blends with video content on panels or creative LED products. With this system, there is only a single data feed to the product and the operator can switch between normal lighting and P3 control and even cross fade between the two.

BUILT FOR PIXEL MAPPING

With an all solid state color mixing system, instant color and intensity response, 7-pixel beam technology, P3 control, and calibrated colors, the MAC Allure Profile is made for pixel mapping. The color palette can also be set to fully match the color space of any other P3-driven product in the rig, allowing the MAC Allure Profile to fit in seamlessly for perfect color matching looks. With P3 control on board you no longer have to worry about counting fixtures, DMX universes and channels and can spend your efforts on the exciting and creative side of the production.

BRIGHT VIBRANT COLORS

The calibrated RGBW system delivers very vibrant colors with a brightness only expected from much bigger fixtures. The color calibrated system excels on subtle pastels and white tones making any MAC Allure Profile in the rig match the color point when they must.

BROADCAST SAFE

The MAC Allure Profile LED drivers run the light engine at high and precise refresh rates securing that there is no flicker or banding on any broadcast application.

DOWNSIZED TECHNOLOGY IS OUR TRADEMARK

The Martin MAC family is renowned for compact moving lights. The MAC Allure Profile saves space in truck, transit and truss, fitting nicely into smaller sets and spaces. With its compact design at a weight of just

17.6 kg (38.8 lbs.), the MAC Allure Profile is extremely easy to handle and reduces the problem of truss loading constraints. The fixture typically fits into four unit flight cases.

HARMAN PROFESSIONAL INC. • 8500 BALBOA BOULEVARD • NORTHRIDGE • CA 91329 • USA • +1 818 893 8411

©2018 HARMAN Professional. All rights reserved. Martin® and Allure™ are trademarks of HARMAN Professional Inc. registered in the United States and/or other countries. Features, speciﬁcations, and appearance are subject to change without notice. Rev. C

1/5

Page 2

™

MAC ALLURE

ONE BEAM. 7 SEGMENTS. LIMITLESS COLORS.

FEATURES

• First pixelated spot with light and color engine divided into seven full color pixels

• Truly sustainable workhorse moving head

• Integrated Martin P3 visual control as well as DMX, Art-Net and

sACN incorporated onboard

• Built for pixel mapping with an all solid state color mixing system, instant color and intensity response, and seven pixel beam technology

• High and precise adjustable refresh rates ensure no flicker or banding on any broadcast application

PROFILE

ACCESSORIES

• SIP Packaging MAC AllureTM: P/N 91611860

• Power Input Cable, H07RN-F, 2.5 mm2, bare ends

to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797

• Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786

• Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173

• Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

• Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789

SPEC SHEET

• Color calibrated system excels on subtle pastels and white tones to ensure consistent colors across fixtures

• Boasts an extremely compact footprint in spite of its powerful performance features

ORDERING INFORMATION

MODELS

• MAC AllureTM Profile EPS (in cardboard box, polystyrene packaging): P/N 90250005HU

• MAC AllureTM Profile SIP (in cardboard box with SIP foam flight case insert): P/N 90250010HU

• MAC AllureTM Profile, white finish, EPS (in cardboard box, polystyrene packaging): P/N 90250000HU

INCLUDED ITEMS

Two omega brackets with 1/4 turn fasteners for rigging clamp attachment

INSTALLATION HARDWARE

• G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003

• Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007

• Half-coupler Clamp: P/N 91602005

• Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006

• Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

FLIGHT CASES

Three-unit flight case for MAC AllureTM: P/N 91515052

Please order SIP variant fixtures to obtain the required SIP foam flight case

inserts

RELATED ITEMS

• Martin® RDM 5.5 Splitter: P/N 90758150

• Martin Companion Cable USB/DMX

hardware interface: P/N 90758150

HARMAN PROFESSIONAL INC. • 8500 BALBOA BOULEVARD • NORTHRIDGE • CA 91329 • USA • +1 818 893 8411

2/5

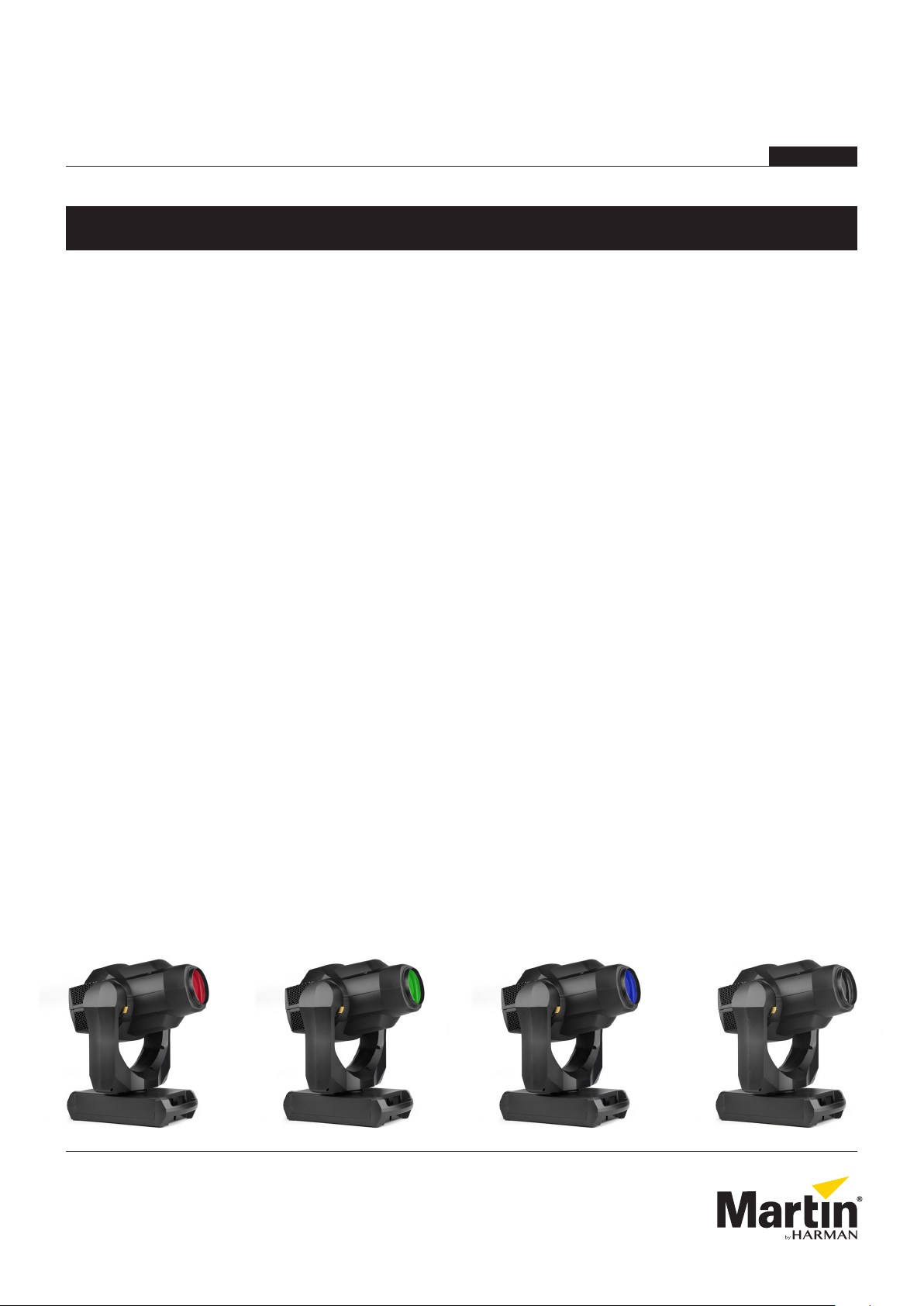

Page 3

™

MAC ALLURE

ONE BEAM. 7 SEGMENTS. LIMITLESS COLORS.

TECHNICAL SPECIFICATIONS

PROFILE

SPEC SHEET

DYNAMIC EFFECTS

Color mixing .......................................... RGB(W), independently variable 0 - 100%

Color temperature control .................... Variable 2000 - 8000 K

Color wheel ............................................ Virtual, multiple colors, split colors and

open, indexing, continuous rotation, random color

Rotating gobo wheel .............................. 6 x interchangeable texture/breakup

gobos + open, indexing, continuous rotation and shake

Prism...................................................... 4 facet, fully indexed

Iris .......................................................... Variable 0 - 100% including pulse

effects

Dimmer/shutter .................................... 0 - 100% continuous electronic

dimming, regular and random strobe and pulse effects, instant open and blackout

Dimming options ................................... Choice of four dimming curves

Pre-programmed effects ...................... Two ranges of FX, independent or

synchronized/combined

Focus ...................................................... Range varies with zoom angle, from

approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity

Zoom ...................................................... Motorized

Pan ......................................................... 540°

Tilt .......................................................... 268°

Position correction system ................... Absolute position monitoring

CONTROL AND PROGRAMMING

DMX channels ........................................ 32/68

Setting and addressing ......................... Control panel with backlit graphic

display and 4 buttons or via DMX

16-bit control ......................................... Dimming, color, rotating gobos, zoom,

focus, pan and tilt

Fixture identiﬁcation ............................. User-settable ID number

DMX compliance: ................................... USITT DMX512-A

RDM compliance .................................... ANSI/ESTA E1.20

Transceiver ............................................ Opto-isolated RS-485

Fixture software update ........................ USB memory device or over DMX link

OPTICS AND SOURCE

Light source ........................................... 7 x 60W RGBW LEDs

Total LED engine power ........................ ~420 W

Minimum LED lifetime...........................

Zoom range ............................................

Figure obtained under manufacturer's test conditions

50 000 hours (to >80% luminous output)* 12° - 36° one-tenth peak (1:3)

PHOTOMETRIC DATA

Light engine luminous output ............... 14 000 lumens

Fixture luminous output ........................ 6500 lumens

Calibrated default white ........................ 6500 K

CRI (Color Rendering Index) ................. >80

CQS (Color Quality Scale) ...................... 8 8

TM-30 Rf

(IES TM-30-15 Fidelity Index)................ 8 2

TM-30 Rg

(IES TM-30-15 Gamut Index .................. 109

TLCI (Television Lighting

Consistency Index) ................................ 8 2

CONSTRUCTION

Color....................................................... Black (white housing option available,

Housing .................................................. High-impact flame-retardant thermo-

Protection rating.................................... IP20

made to order)

plastic

INSTALLATION

Mounting points ..................................... 2 pairs of 1/4-turn locks

Location ................................................. Dry location only, must be fastened to

Orientation ............................................. Any

Minimum distance to

combustible materials .......................... 0.2 m (8 in.)

Minimum distance to

illuminated surfaces ............................. 1.0 m (3.3 ft.)

surface or structure

HARMAN PROFESSIONAL INC. • 8500 BALBOA BOULEVARD • NORTHRIDGE • CA 91329 • USA • +1 818 893 8411

3/5

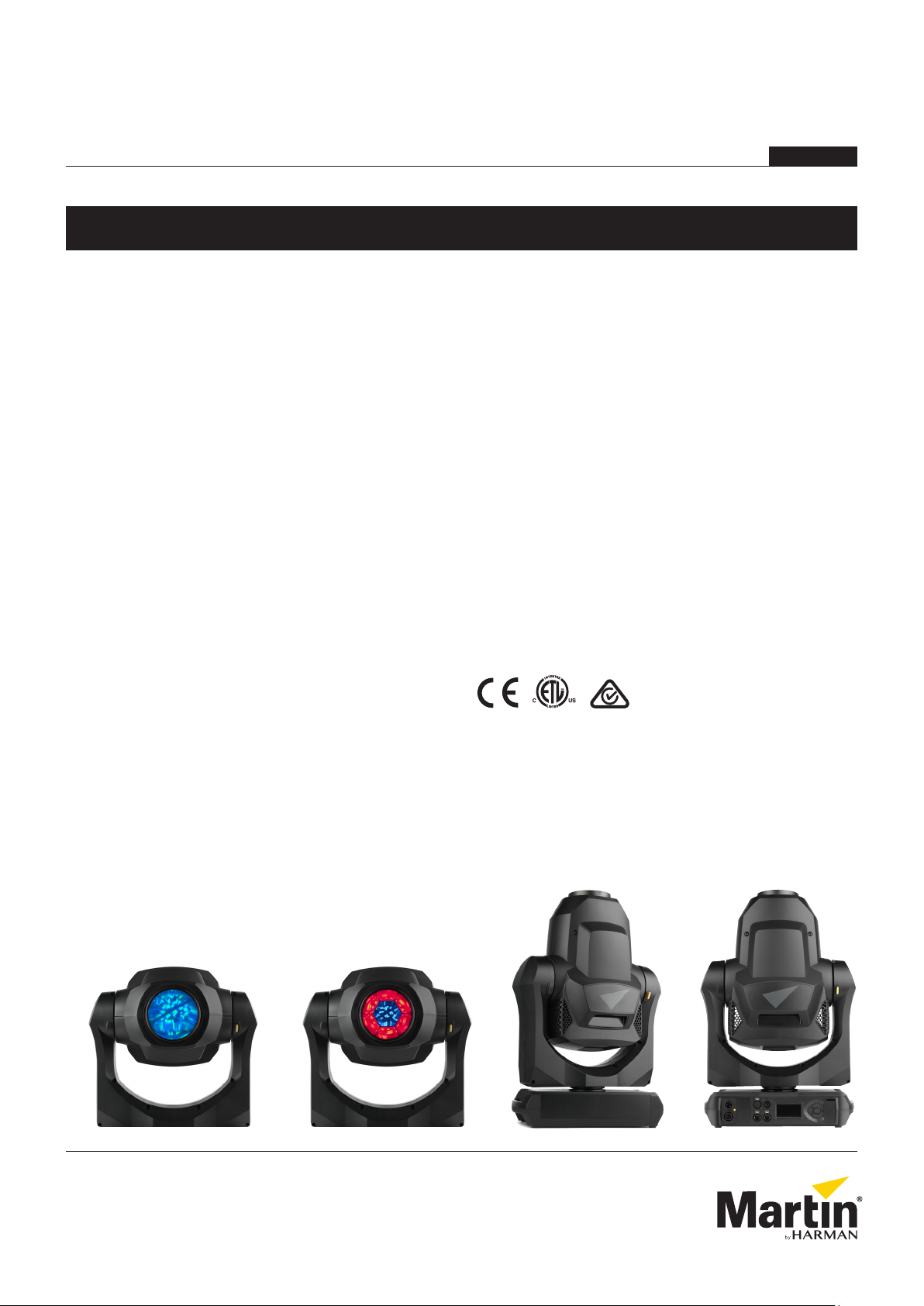

Page 4

™

MAC ALLURE

ONE BEAM. 7 SEGMENTS. LIMITLESS COLORS.

TECHNICAL SPECIFICATIONS

PROFILE

SPEC SHEET

CONNECTIONS

AC power input ...................................... Neutrik TRUE1 socket (accepts Neutrik

TRUE1 NAC3FX-W connector)

AC power output .................................... Neutrik TRUE1 socket (accepts Neutrik

TRUE1 NAC3FX-M connector)

DMX and RDM data in/out ..................... 5-pin locking XLR

Ethernet data ......................................... Neutrik EtherCon in/out

ELECTRICAL

AC power ................................................ 120-240 V nominal, 50/60 Hz

Power supply unit .................................. Auto-ranging electronic switch-mode

Power consumption, all effects

static, zero light output ......................... 73 W

Half-cycle RMS inrush current

at 230 V, 50 Hz........................................ 16.6 A

Typical Power And Current

120 V, 60 Hz ............................................ 4.0 A, 480 W, PF 0.99

208 V, 60 Hz ............................................ 2.4 A, 480 W, PF 0.97

230 V, 50 Hz ............................................ 2.2 A, 480 W, PF 0.97

240 V, 50 Hz ............................................ 2.1 A, 480 W, PF 0.97

Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

PF = power factor

THERMAL

Cooling ................................................... Combined convection and forced air

Maximum ambient temperature

(Ta max.) ................................................ 4 0 ° C (104° F)

Minimum ambient temperature

(Ta min.) ................................................. 5 ° C (41° F)

Maximum total heat dissipation

(calculated, +/- 10%) ............................. 1800 BTU/hr.

(temperature-regulated, low noise, user-definable levels)

Maximum surface temperature, steady state, Ta=40° C: 75° C (167° F)

APPROVALS

EU safety ................................................ EN 60598-2-17, EN 62471, EN62493

EU EMC ..................................................

US safety ................................................ UL 1573

US EMC .................................................. FCC Part 15 Class B

Canadian safety ..................................... CSA C22.2 No. E598-2-17

Canadian EMC ........................................ CAN ICES-003(B)/NMB-003(B);

Australia/NZ .......................................... RCM

EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547

CAN ICES-005 (B) / NMB-005 (B)

HARMAN PROFESSIONAL INC. • 8500 BALBOA BOULEVARD • NORTHRIDGE • CA 91329 • USA • +1 818 893 8411

4/5

Page 5

™

All measurements are given in millimeters

MAC ALLURE

ONE BEAM. 7 SEGMENTS. LIMITLESS COLORS.

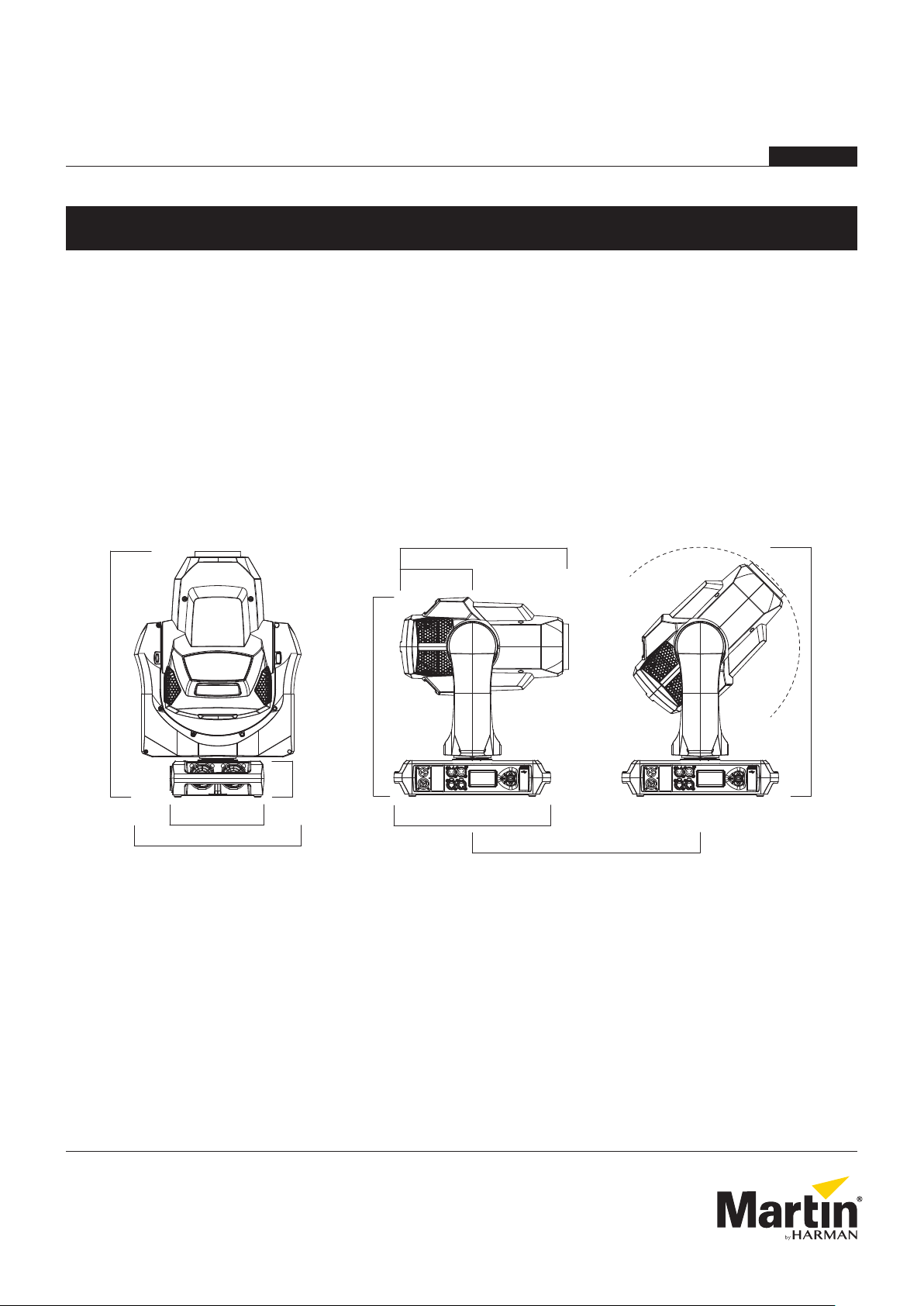

DIMENSIONS

PHYSICAL

Length (head) ......................................... 414 mm (16.3 in.)

Length (base) ......................................... 385 mm (15.2 in.)

Width (across yoke) ............................... 410 mm (16.2 in.)

Height (maximum) ................................. 609 mm (24.0 in.)

Height (head straight up) ...................... 603 mm (23.8 in.)

Weight .................................................... 17.6 kg (38.8 lbs.)

Minimum center-to-center

distance in side-by-side installation..... 510 mm (20.1 in.)

PROFILE

414

178

SPEC SHEET

603

232

410

609

487

385

510
