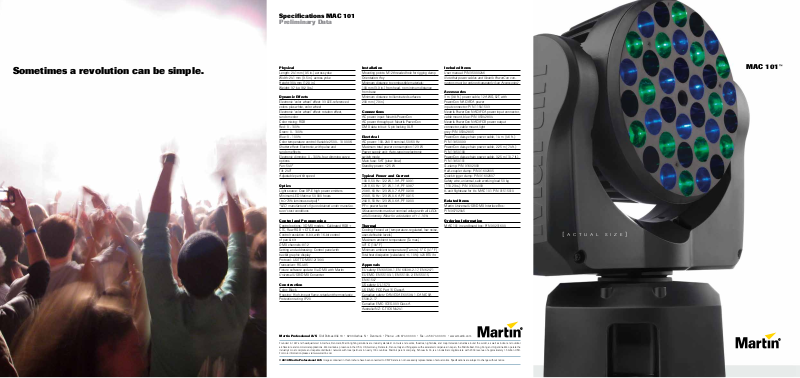

Martin MAC 101 specifications
Specifications MAC 101
Preliminary Data
Sometimes a revolution can be simple.
Physical
Length: 241 mm (9.5 in.) across yoke
Width: 241 mm (9.5 in.) across yoke
Height: 304 mm (12.0 in.)
Weight: 3.7 kg (8.2 lbs.)
Dynamic Effects
Electronic ‘color wheel’ effect: 33 LEE-referenced
colors plus white, color wheel
Electronic ‘color wheel’ effect: rotation effect,
random color
Color mixing: RGB
Red: 0 - 100%
Green: 0 - 100%
Blue: 0 - 100%
Color temperature control: Variable 2500 - 10 000 K
Shutter effect: Electronic, with pulse and
random effects
Electronic dimming: 0 - 100%, four dimming curve
options
Pan: 540°
Tilt: 240°
Adjustable pan/tilt speed
Optics
Light source: Cree XP-E high power emitters
Minimum LED lifetime: 50 000 hours
(to >70% luminous output)*
*LED manufacturer´s figure obtained under manufacturer’s test conditions
Control and Programming
Control options: 3 DMX modes - Calibrated RGB +
CTC, Raw RGB + CTC, Basic
Control resolution: 8-bit, with 16-bit control
of pan & tilt
DMX channels: 8/12
Setting and addressing: Control panel with
backlit graphic display
Protocol: USITT DMX512/1990
Transceiver: RS-485
Fixture software update: Via DMX with Martin
Universal USB/DMX Converter
Construction
Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection rating: IP20
Installation
Mounting points: M12 threaded hole for rigging clamp
Orientation: Any
Minimum distance to combustible materials:
100 mm (3.9 in.) from head, no minimum distance
from base
Minimum distance to illuminated surfaces:
200 mm (7.9 in.)
Connections
AC power input: Neutrik PowerCon
AC power throughput: Neutrik PowerCon
DMX data in/out: 5-pin locking XLR
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Maximum total power consumption: 123 W
Power supply unit: Auto-ranging electronic
switch mode
Main fuse: 5 AT (slow blow)
Standby power: <25 W
Typical Power and Current
100 V, 50 Hz: 122 W, 1.3 A, PF 0.991
120 V, 60 Hz: 121 W, 1.1 A, PF 0.987
208 V, 60 Hz: 123 W, 0.7 A, PF 0.938
230 V, 50 Hz: 123 W, 0.6 A, PF 0.915
240 V, 50 Hz: 123 W, 0.6 A, PF 0.900
PF = power factor
Measurements made at nominal voltage with all LEDs
at full intensity. Allow for a deviation of +/- 10%.
Thermal
Cooling: Forced air (temperature-regulated, low noise,
user-definable levels)
Maximum ambient temperature (Ta max.):
40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Total heat dissipation (calculated, +/- 10%): 420 BTU/hr.
Approvals
EU safety: EN 60598-1, EN 60598-2-17, EN 62471
EU EMC: EN 55103-1, EN 55103-2, EN 55015,
EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class A
Canadian safety: CAN/CSA E60598-1, CAN/CSA
E598-2-17
Canadian EMC: ICES-003 Class A
Australia/NZ: C-TICK N4241
Included Items
User manual: P/N 35000246
Note that power cables and Neutrik PowerCon connectors must be ordered separately (see Accessories)
Accessories
3 m (9.8 ft.) power cable, 12 AWG, SJT, with
PowerCon NAC3FCA power
input connector: P/N 11541503
Neutrik PowerCon NAC3FCA power input connector,
cable mount, blue: P/N 05342804
Neutrik PowerCon NAC3FCB power output
connector, cable mount, light
grey: P/N 05342805
PowerCon daisy-chain power cable, 1.4 m (4.6 ft.):
P/N 11850099
PowerCon daisy-chain power cable, 2.25 m (7.4 ft.):
P/N 11850100
PowerCon daisy-chain power cable, 3.25 m (10.7 ft.):
P/N 11850101
G-clamp: P/N 91602003
Half-coupler clamp: P/N 91602005
Quick trigger clamp: P/N 91602007
Safety wire, universal, safe working load 50 kg
(110.2 lbs.): P/N 91604003
8-unit flightcase for 8 x MAC 101: P/N 91515010
Related Items
Martin Universal USB/DMX Interface Box:
P/N 90702045
Ordering Information
MAC 101 in cardboard box: P/N 90231600
A C T U A L S I Z E
[ ]
MAC 101
™
Martin Professional A/S Olof Palmes Allé 18 • 8200 Aarhus N • Denmark • Phone: +45 87 40 00 00 • Fax: +45 87 40 00 10 • www.martin.com
Founded in 1987 and headquartered in Aarhus, Denmark, Martin lighting solutions are industry standard on tours and events, theatres, nightclubs, and major television studios around the world, as well as indoor and outdoor
architecture and commercial applications. We maintain a presence in the USA, UK, Germany, Denmark, France, Italy and Singapore with associated companies in Japan, the Middle East, Hong Kong and Argentina. We operate the
industry’s most complete and capable distributor network with local partners in nearly 100 countries. Martin’s parent company, Schouw & Co, is an industrial conglomerate with 2009 revenue of approximately 1.5 billion US D.
For more information please visit www.martin.com
©2010 Martin Professional A/S Images contained in this brochure have been converted to CMYK and are not necessarily representative of actual colors. Specifications are subject to change without notice
The Martin MAC 101 is a remarkably small
and simple LED moving head wash light that
pioneers all new possibilities in creative
lighting. It features a tight and very bright
beam, rapid movement and calibrated colors
with a low price tag that allows for revolutionary set, stage and decorative lighting
designs.
Utilizing cost-efficient, high-volume production and featuring an ultra-compact design that promotes use in larger
quantities, the MAC 101 is ideal for easy-to-produce, highimpact looks like large wall matrices or as a dynamic replacement for static PAR cans.
Even in smaller numbers the MAC 101 is a highly effective
and versatile wash light, useful for visual effect in a wide
variety of applications like concerts, events, exhibitions,
clubs, television studios, bars, restaurants and more.
Video wall of MACs
Imagine pixelmapping video content across a large video
wall of MACs – each MAC 101 essentially a pixel in a dynamic graphic.
PAR can replacement
Replace PAR cans with creativity and versatility - color,
movement and beam effects that are dynamic instead of
ordinary.
Line a stage, truss, or set piece with 101’s for more creative
looks, or supplant walls of PAR cans for more dynamic
washes of color that consume less power. Whatever imaginative look a designer comes up with, the MAC 101 gives
greater flexibility when creating organic designs.
Bang for the buck!
With superior power for such a small fixture (2000 lumens)
and an exceptional lumen to price ratio, the MAC 101 provides plenty of bang on a tight budget.
Tight and bright
The MAC 101 projects a tight beam with a soft yet defined
edge that is surprisingly bright for such a compact, energysaving fixture. Beam angle is 13.5° with a wide angle diffuser available as an option for greater design possibilities.
Color and effects
A calibrated RGB color mixing system plus color wheel
effect provides a full spectrum of color choices. The 101 is
capable of smooth dimming from 0-100% and strobe
effects such as pulse and random effects are possible.
Super fast
Helped by its small size and exceptionally low weight, the
MAC 101 is Martin’s fastest moving head ever, enabling it
to reposition quickly or even follow a song’s beats per minute tempo.
Light ‘n’ lovable
With an attractive design and weighing in at just 3.7 kg (8.1
lb), the 101 can be rigged virtually anywhere or can easily
be hidden away for more discreet looks.
Low power consumption
The MAC 101 consumes a low 125 watts of power (0.6 A
@ 230V / 1.2 A @ 110V), saving on energy and eliminating
the need to run thick cables for big rigs.
Easy set up
Exceptionally easy to rig, power can be daisy chained between fixtures with PowerCon cables for less cable mess
and hassle.
All the benefits of LED
The MAC 101 provides all the benefits of LED technology
like greater reliability, less maintenance and increased energy efficiency for a smaller carbon footprint and lower cost
of ownership.
Martin quality
Made of durable materials, the MAC 101 meets Martin’s
high standards for quality and reliability. A no nonsense
design with easy-to-access components makes for easy
service and maintenance.
Creative simplicity:
• Affordable – even smaller budgets can go big
• Compact – at 3.7 kg it fits anywhere
• Mighty MAC - tight, punchy beam
• Calibrated colors – superior uniformity across fixtures
• Speedy – Martin’s fastest moving head ever
• Uncomplicated - simple to use, easy to set up
• Versatile - rental and installation
A calibrated RGB color mixing system provides a full spectrum of color choices with more consistent
shades across fixtures. A color wheel function offers even greater flexibility in design.
Surprisingly small, super light, and exceptionally
simple to rig (power can easily be daisy chained
between fixtures), the MAC 101 can be placed
virtually anywhere.
Flightcase
For complete protection and convenient transport, the
MAC 101 is available in a durable, 8-unit flightcase.
