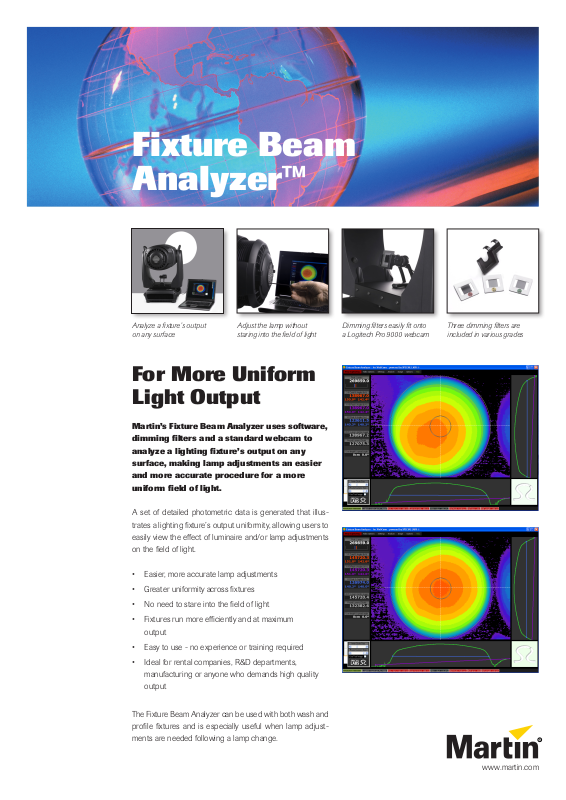

Martin FIXTURE BEAM ANALYZER specifications

Fixture Beam
Analyzer™

Analyze a fixture’s output
on any surface

Adjust the lamp without
staring into the field of light

For More Uniform
Light Output

Martin’s Fixture Beam Analyzer uses software,
dimming filters and a standard webcam to
analyze a lighting fixture’s output on any
surface, making lamp adjustments an easier
and more accurate procedure for a more
uniform field of light.

A set of detailed photometric data is generated that illus-

trates a lighting fixture’s output uniformity, allowing users to

easily view the effect of luminaire and/or lamp adjustments

on the field of light.

• Easier, more accurate lamp adjustments

• Greater uniformity across fixtures

• No need to stare into the field of light

• Fixtures run more efficiently and at maximum

output

• Easy to use - no experience or training required

• Ideal for rental companies, R&D departments,

manufacturing or anyone who demands high quality

output

Dimming filters easily fit onto
a Logitech Pro 9000 webcam

Three dimming filters are
included in various grades

The Fixture Beam Analyzer can be used with both wash and

profile fixtures and is especially useful when lamp adjust-

ments are needed following a lamp change.

www.martin.com
