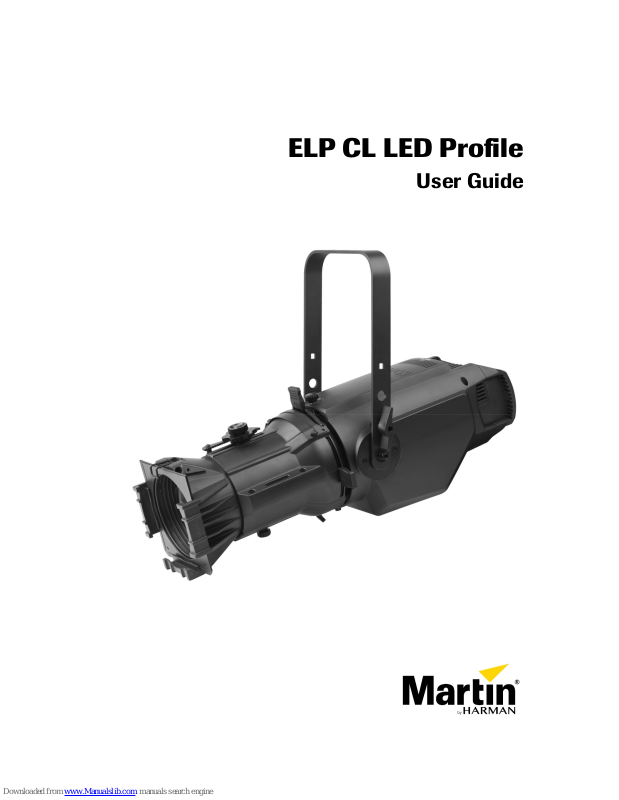

ELP CL LED Profile
User Guide
Dimensions
© 2018-2019 HARMAN® Professional Denmark ApS. Information subject to change without notice. HARMAN Professional
Denmark and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or
economic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this
manual. Martin®, HARMAN and all other trademarks in this document pertaining to services or products by Martin
Professional or its affiliates and subsidiaries are registered as the property of HARMAN Professional Denmark.
HARMAN PROFESSIONAL DENMARK ApS, Olof Palmes Alle 44, 8200 Aarhus N, Denmark
HARMAN PROFESSIONAL SOLUTIONS U.S., 8500 Balboa Blvd., Northridge CA 91329, USA
www.martin.com
Martin ELP-CL LED Profile User Guide Revision B
514 259
254
205
427
618
648
All dimensions are given in millimeters.
Table of contents
Dimensions ........................................................................................... 2
Safety information ................................................................................. 5
Introduction ........................................................................................... 8
Before using the product for the first time .................................. 8
Fixture overview .................................................................................... 9
Physical installation ............................................................................. 10
Fixture location ......................................................................... 10
Mounting the fixture .................................................................. 10
Fastening the fixture to a flat surface ....................................... 10
Mounting the fixture on a truss ................................................. 10
Securing with a safety cable ..................................................... 11
Changing the lens tube ............................................................. 12
AC power connection .......................................................................... 13
Linking fixtures to power in a chain .......................................... 13
Data network requirements ...................................................... 14
Tips for reliable data transmission ............................................ 14
Connecting the data link ........................................................... 14
Fixture Setup ....................................................................................... 15
Using the control menus ........................................................... 15
Fast focus mode ....................................................................... 15
Setting DMX address ................................................................ 15
Setting DMX personality ........................................................... 16
Other fixture settings ................................................................ 16
Display ...................................................................................... 17
Set all settings to factory default ............................................... 17
Fixture test ................................................................................ 17
Fixture information .................................................................... 18
Viewing live DMX values .......................................................... 18
Setting control values manually ................................................ 18
Reset ........................................................................................ 18
Setting values ........................................................................... 18
Setting a sequence of scenes .................................................. 18
Color calibration ........................................................................ 18
Setting options by RDM ...................................................................... 19
Scanning for RDM devices on the data link ............................. 19
Getting status and setting options by RDM .............................. 19
RDM .......................................................................................... 19
Effects ................................................................................................. 21
Dimming .................................................................................... 21
Strobe effects ............................................................................ 21
CTC .......................................................................................... 21
Color mix ................................................................................... 21
Color Scene .............................................................................. 21
Manual focus ............................................................................ 21
Manual beam shaping shutters ................................................ 21
Use of color filters ..................................................................... 21
Use of gobos and irises ............................................................ 22
Maintenance ........................................................................................ 23
Cleaning .................................................................................... 23
Fuse replacement ..................................................................... 23
DMX protocol ...................................................................................... 25
Control menus ..................................................................................... 27
Troubleshooting .................................................................................. 30
Specifications ...................................................................................... 31
Martin ELP CL Profile user guide 5
Safety information
WARNING!
Read the safety precautions in this manual before installing, operating or
servicing this product.
The following symbols are used to identify important safety information on the product and in this
manual:
Warning!
Safety
hazard. Risk
of severe
injury or
death.
Warning!
Powerful
light
emission.
Risk of eye
injury.
Warning!
See user
manual for
important
safety
information.
Warning!
Hazardous
voltage. Risk
of lethal or
severe
electric
shock.
Warning!
Fire hazard.
Warning!
Hot surfaces.
Warning! Risk Group 3 (high risk) product according to EN 62471 and IEC/TR
62778. Possibly hazardous radiation emitted from this product. May be harmful to
the eyes. Do not stare at operating lamp and do not view the light output with
optical instruments or any device that may concentrate the beam.
This lighting fixture is for professional use only and must be installed by a qualified
technician. It is not for household use. It presents risks of severe injury or death
due to fire hazards, electric shock and falls. It can create a fire hazard or a risk of
eye injury if the safety precautions below are not followed.
Install, operate and service Martin® products only as directed in their user
manuals, or you may create a safety hazard or cause damage that is not covered
by product warranties. Follow the safety precautions listed below and observe all
warnings in this manual and printed on the product. Keep this user manual for
future use.
For the latest user documentation and other information about this and all Martin®
products, please visit the Martin® website at http://www.martin.com
If you have any questions about how to install, operate or service the fixture safely,
please contact your Martin® distributor (see www.martin.com/distributors for
details) or in the USA on 1-844-776-4899.
Respect all locally applicable laws, codes and regulations when installing,
operating or servicing the fixture.
Protection from electric shock
Ensure that the fixture is electrically connected to ground (earth).
Disconnect the fixture from AC power when not in use.
Do not open the fixture or remove any cover. Refer any service operation not
described in this manual to an authorized Martin Service partner.
Shut down power to the entire installation at the main power distribution board and
lock out power before carrying out any installation or maintenance work.
6 Martin ELP CL Profile user guide
Use only a source of AC power that complies with local building and electrical
codes and has both overload and ground-fault (earth-fault) protection.
The 0.75 mm
2
/ 18 AWG mains power input cable supplied with the fixture is rated
6 A and can supply only one fixture with mains power. Do not connect any device
to the fixture’s MAINS OUT socket when using this input cable.
Before you can connect other devices to the fixture’s MAINS OUT socket, you
must use one of the 16 A rated power input cables available as optional
accessories from Martin to connect the fixture to power at the MAINS IN socket.
Use one of the 16 A rated power relay cables available as optional accessories
from Martin to relay power from the fixture’s MAINS OUT socket to the MAINS IN
socket of the next fixture. If you link fixtures to power in a chain in this way, do not
exceed the following limits:
• Connect a maximum of four (4) ELP PROFILE fixtures in total to power in a
chain at 100-120 V, or
• Connect a maximum of nine (9) ELP PROFILE fixtures in total to power in a
chain at 200-240 V.
Before using the fixture, check that all power distribution equipment and cables are
in perfect condition, are rated for the current requirements of all connected devices,
and are of suitable type for the location (including water, pollution, temperature and
UV resistance).
The voltage and AC frequency of the power at the MAINS OUT socket are the
same as those applied at the MAINS IN socket.
Isolate the fixture from power immediately if any seal, cover, cable, or other
component is damaged, defective, deformed or showing signs of overheating. Do
not reapply power until repairs have been completed
Do not immerse the fixture in water or any other fluid. Do not install the fixture in a
location where flooding may occur.
Protection from burns and fire
Do not operate the fixture if the ambient temperature (Ta) exceeds 45° C (113° F).
The surface of the fixture can reach up to 55° C (131° F) if the fixture is operated at
the maximum permitted ambient temperature. Allow the fixture to cool for at least 5
minutes before handling.
Install the fixture on a non-combustible surface (brick, concrete, plaster etc.) only.
Do not aim the fixture towards combustible materials (fabric, wood, paper etc.) that
are within 50 cm (19 in.) of the fixture.
Keep the fixture well away from flammable materials (volatile liquids etc.).
Ensure that there is free and unobstructed airflow around the fixture.
Allow at least 0.2 m (8 in.) free space around the fixture.
Do not attempt to bypass thermostatic switches or fuses.
Do not modify the fixture in any way not described in this manual or install other
than genuine Martin® parts. Do not stick filters, masks or other materials onto any
lens or other optical component. Use only accessories approved by Martin® to
modify the light beam.
Protection from eye injury
Warning! Risk Group 3 (high risk) product according to EN 62471 and IEC/TR
62778.
Do not look directly into the product’s light output.
Martin ELP CL Profile user guide 7
Do not look at operating lamp. Eye injury may result.
Do not look at the light output with magnifiers, telescopes, binoculars or similar
optical instruments that may concentrate the light output.
Ensure that persons are not looking directly into the front of the fixture when the
product lights up suddenly. This can happen when power is applied, when the
product receives a DMX signal, or when certain control menu items are selected.
To minimize the risk of eye irritation or injury, disconnect the fixture from power at
all times when the fixture is not in use and provide well-lit conditions to reduce the
pupil diameter of anyone working on or near the fixture.
The ELP CL fixture fixtures fall into the following risk groups according to EN
62471 and IEC/TR 62778 at the distances indicated below.
The luminaire shall be positioned so that prolonged staring into the luminaire at a
distance closer than 15.4 m is not expected.
Protection from injury
Fasten the fixture securely to a fixed surface or structure when in use. The fixture
is not portable when installed.
Ensure that all supporting structures, surfaces, fasteners and lifting equipment can
bear the weight of all the devices they are intended to support plus an adequate
safety margin, and that they conform to local building and safety regulations.
Ensure that any accessory such as gel frames, gobo holders are securely
fastened.
Block access below the work area and work from a stable platform whenever
installing, setting, adjusting, or cleaning the fixture.
Do not operate the fixture with missing or damaged covers, shields or any optical
component.
If an operating problem occurs, stop using the fixture immediately and disconnect it
from power. Do not attempt to use a fixture that is obviously damaged.
RISK GROUP
RISK GROUP
2
3
RISK GROUP
1
15.4 m
5.8 m
(50.5 ft.)
(19 ft.)
154.4m
(506.5 ft.)
RISK GROUP
EXEMPT
8 Martin ELP CL Profile user guide
Introduction
The ELP CL from Martin® is an ellipsoidal/profile lighting fixture with a 260W red, green, blue,
amber & lime LED engine that produces a sharp gobo projection with a flat field
The fixture provides a calibrated color mixing system that offers 2 modes of operation:
• high quality mode with a CRI of 90 and CCT of 5500 K at 5900 lumens output
• high performance mode with a CRI of 85 and CCT of 6000 K at 6900 lumens output.
The fixture has 16-bit dimming with 4 selectable curves. It includes innovative features including a
gear-based fine focus system which is still compatible with industry standard accessories. The
fixture is ideal for theatre, gobo projection, art lighting, architectural lighting and key lighting
applications.
The Martin® ELP CL can be controlled using any DMX-compliant controller and can be remotely
configured by RDM. It also features stand-alone operation with capacity for up to 20 scenes.
The fixture is supplied with this user manual, a 1.5 m (4.9 ft.) power cable ready for a local power
plug (not included) and a yoke for attachment of suitable user-supplied rigging clamps.
Before using the product for the first time
1. Read ‘Safety information’ on page 5 before installing, operating or servicing the fixture.
2. Unpack and ensure that there is no transportation damage before using the fixture. Do not
attempt to operate a damaged fixture.
3. Before operating, ensure that the voltage and frequency of the power supply match the power
requirements of the fixture.
4. If the fixture is not going to be hard-wired to a mains supply, install a local power plug (not
supplied) on the end of the supplied power cable.
5. If fixtures are exposed to a sudden temperature change, give them time to warm or cool to the
ambient temperature before applying power. This will help avoid damage due to condensation.
6. Check the support pages on the Martin® website at www.martin.com for the most recent user
documentation and technical information about the fixture. Martin® user manual revisions are
identified by the revision letter at the bottom of the inside cover.
Martin ELP CL Profile user guide 9
Fixture overview
1 – Filter frame retaining clip
2 – Filter frame
3 – Interchangeable optical lens tube
4 – Aluminum lens tube housing
5 – Fine Focus adjustment knob
6 – Shutter knobs for beam shaping
7 – Gobo / accessory gate with sliding
cover
8 – Mounting bracket / yoke
9 – Tilt locking knob for mounting bracket
10 – Heatsink vent
11 – Safety eye to attach safety bond
12 – Rear handles for positioning
13 – Control panel. The display flashes
when DMX is not present
14 – DMX input (5 pin XLR plug)
15 – DMX output (5 pin XLR socket)
16 – Mains fuse
17 – Mains power input (Neutrik
powerCON TRUE1 socket).
18 – Mains power output (Neutrik
powerCON TRUE1 socket)
8
10
6
5
11
12
9
4
3
2
14 15 161317
18
1
7
10 Martin ELP CL Profile user guide
Physical installation
Warning! Read ‘Safety information’ on page 5 before installing the fixture.
Warning! The safety and suitability of lifting equipment, installation location,
anchoring method, mounting hardware and electrical installation are the
responsibility of the installer. All local safety regulations and legal requirements
must be observed when installing and connecting the ELP Profile fixture.
Installation must be carried out by qualified professionals only.
Contact your Martin supplier for assistance if you have any questions about how to install this
product safely.
Fixture location
The ELP Profile fixture is intended for interior use only. Do not install outside or in damp or humid
locations. The fixture requires free and unobstructed airflow around it to ensure adequate cooling.
Observe the following limitations in selecting a location:
• Respect the limitations listed under Safety information’ on page 5.
• Do not locate the fixture in an unventilated space.
Mounting the fixture
Warning! All fasteners used to mount ELP Profile fixtures must be strong enough
to hold the fixture safely. Install a washer directly under the head of each fastener
when anchoring the mounting bracket to the installation surface.
Fastening the fixture to a flat surface
The fixture can be fastened to a hard, fixed, flat surface in any orientation. Ensure that the surface
and all fasteners used can support at least 10 times the weight of all fixtures and equipment they
will support.
Fasten the fixture securely. Do not free stand on a surface where it may fall over. If you install the
fixture in a location where it may cause injury or damage if it falls, secure it as directed below with
a securely anchored safety cable that will hold the fixture if the primary fastening method fails.
Mounting the fixture on a truss
The fixture can be clamped to a truss or similar rigging structure in any
orientation. Use a suitable rigging clamp such as a G-clamp or a half-coupler
clamp (see illustration on right) fastened to the mounting yoke.
To clamp the fixture to a truss:
1. Check that the rigging structure can support at least 10 times the weight
of all fixtures and equipment to be installed on it.
2. Block access under the work area.
3. Bolt a rigging clamp securely to the mounting yoke. The bolts used must be M12, grade 8.8
steel minimum, and fastened with a self-locking nut.
4. Working from a stable platform, mount the fixture on the truss and fasten the rigging clamp
onto the truss.
5. Secure the fixture with a safety cable through the rear safety eye as shown below.
Martin ELP CL Profile user guide 11
Securing with a safety cable
Secure the fixture with a safety cable (or other secondary attachment) that is approved for the
weight of the fixture so that the safety cable will hold the fixture if the primary attachment fails.
Loop the safety cable through the attachment eye at the rear of the fixture (see illustration above)
and around a secure anchoring point.
If a safety cable attachment point becomes damaged or deformed, do not use the fixture. Return it
to a Martin Service Centre for repair.
Loading...
