Martin EASYPIX specifications

Easypix

™

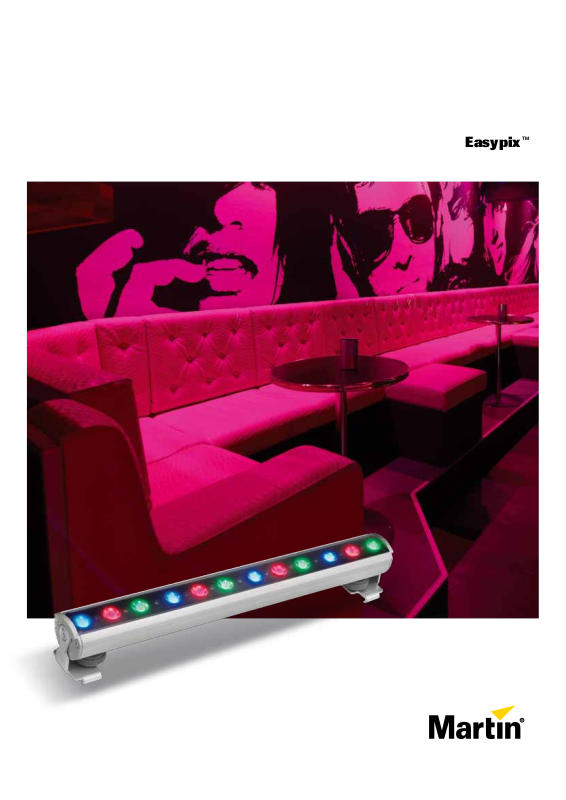

Easypix™
High output, high quality

Easypix is a simple yet highly capable plug­and-play LED striplight designed to enhance
interior spaces in a wide variety of applica­tions.

Built for ultimate ease-of-use with full spectrum RGB color
mixing, a choice of diffuser lenses and an exceptionally
easy means of installation, Easypix is ideal for color en­hancement in clubs, bars and restaurants or anywhere a
low maintenance, decorative color effect is required.

Specifications

Physical

Easypix 300

Length: 300 mm (11.8 in.)
Width: 40 mm (1.6 in.) including mounting bracket
Height: 45 mm (1.8 in.) including mounting bracket for DIN rail
Weight: 470 g (16.6 oz.)

Easypix1200

Length: 1200 mm (47.2 in.)
Width: 40 mm (1.6 in.) including mounting bracket
Height: 45 mm (1.8 in.) including mounting bracket for DIN rail
Weight: 1.8 kg (4.0 lbs.)

Easypix Power

Length: 325 mm (12.8 in.)
Width: 113 mm (4.4 in.)
Height: 94 mm (3.7 in.)
Weight: 1.2 kg (2.6 lbs.)

Dynamic Effects

Color mixing: RGB
Red: 0 - 100%
Green: 0 - 100%
Blue: 0 - 100%

Optics

Light source: Osram G6SP
Total LED power: Easypix 300 models approx. 6 W, Easypix 1200

models approx. 24 W

Control and Programming

Color control modes: RGB, HSI
Control options: DMX, stand-alone, synchronized (master/slave)
DMX channels: 3 per Easypix Power output used
Stand-alone memory: 64 pre-programmed static/dynamic scenes/

sequences
DMX address setting: DIP switch on Easypix Power
Protocol: USITT DMX512-A
Receiver: RS-485
Firmware update: Serial upload via DMX link

• Easy on the eyes – bright with superb color mixing and
an attractive Martin design

• Easy to install – simple to assemble and setup

• Easy to use - DMX controllable with 64 ready-to-go
stand-alone programs

• Easy on the pocketbook

-Martin Quality with no maintenance required

• Available in two lengths:
300 mm (1 ft) and 1200 mm (4 ft)

Photometric Data

Total output (max.): Easypix 300 models, narrow, 100 lm;
Easypix 1200 models, narrow, 400 lm

Construction

Easypix 300 / Easypix 1200

Housing: Aluminum
Finish: Clear anodized
Front cover: Flame-retardant PMMA
Protection rating: IP20

Easypix Power

Housing: Steel
Finish: Electrostatic powder-coated
Color: Black
Protection rating: IP20

Installation

Orientation: Any
Aiming: +/- 95°
Mounting: 35 mm (1.4 in.) DIN top-hat rail or mounting bracket
Max, cable length, Easypix Power unit to last luminaire: 100 m (328.1 ft.)
Max. number of fixtures connected to one EasypixPower:

20 x Easypix 300 or 5 x Easypix 1200

Connections

Power input: Male (C14) IEC chassis connector
Data connection: RJ-45
Fixture-to-fixture: Quick plug-in system

Electrical

AC power: Auto-ranging 100-120/200-240 VAC nominal, 50/60 Hz
Main fuse: 2.5 AT (slow blow)
Power factor: >90
