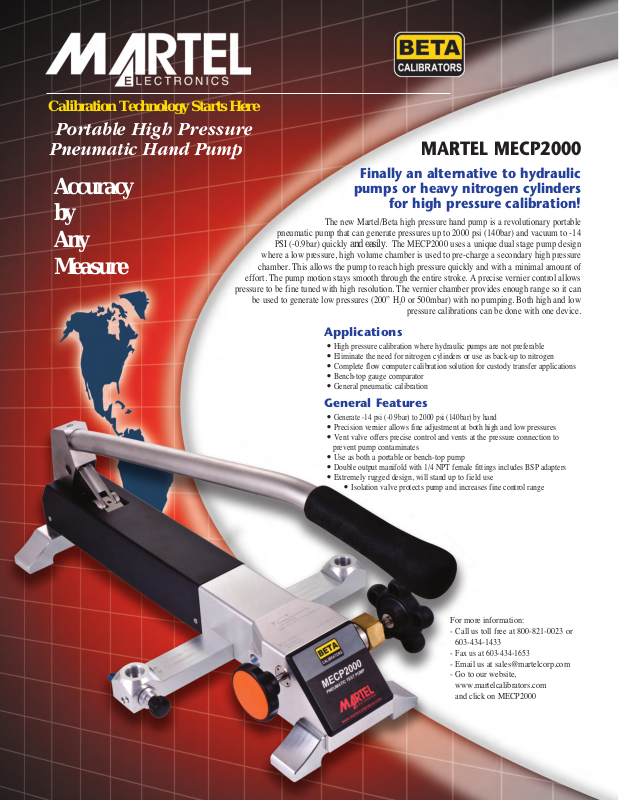

Martel Electronics MECP2000 Data sheet

Calibration Technology Starts Here

Portable High Pressure

Pneumatic Hand Pump

Accuracy
by
Any
Measure

pressure to be fine tuned with high resolution. The vernier chamber provides enough range so it can

MARTEL MECP2000

Finally an alternative to hydraulic

pumps or heavy nitrogen cylinders

for high pressure calibration!

The new Martel/Beta high pressure hand pump is a revolutionary portable

pneumatic pump that can generate pressures up to 2000 psi (140bar) and vacuum to -14

PSI (-0.9bar) quickly and easily. The MECP2000 uses a unique dual stage pump design

where a low pressure, high volume chamber is used to pre-charge a secondary high pressure

chamber. This allows the pump to reach high pressure quickly and with a minimal amount of

effort. The pump motion stays smooth through the entire stroke. A precise vernier control allows

be used to generate low pressures (200” H20 or 500mbar) with no pumping. Both high and low

pressure calibrations can be done with one device.

Applications

.

High pressure calibration where hydraulic pumps are not preferable

.

Eliminate the need for nitrogen cylinders or use as back-up to nitrogen

.

Complete flow computer calibration solution for custody transfer applications

.

Bench-top gauge comparator

.

General pneumatic calibration

General Features

.

Generate -14 psi (-0.9bar) to 2000 psi (140bar) by hand

.

Precision vernier allows fine adjustment at both high and low pressures

.

Vent valve offers precise control and vents at the pressure connection to

prevent pump contaminates

.

Use as both a portable or bench-top pump

.

Double output manifold with 1/4 NPT female fittings includes BSP adapters

.

Extremely rugged design, will stand up to field use

.

Isolation valve protects pump and increases fine control range

For more information:

- Call us toll free at 800-821-0023 or
603-434-1433
Fax us at 603-434-1653

-

- Email us at [e-mail]

- Go to our website,
www.martelcalibrators.com
and click on MECP2000

Specifications

Pressure range: -14 psi (-0.9bar) to 2000 psi (140bar)
Pressure Connections: 2 x ¼ FNPT (2 BSP adapters are included)

Size (without gauge):
Weight: 15 lbs (6.8 kg)

MECP2000 Ordering Information

Part Number Description

1919967 MECP2000 High Pressure Pneumatic Test

Optional Accessories:

1010074 High pressure hose kit
6161255 Rugged carrying case
TBD Quick test fitting (NPT style) ¼ MNPT to

TBD Quick-Test fitting (BSP style) ¼ MBSPP to

21.5” x10.6” x 4.5” / 55cm x 27cm x 11.5cm

Pump with (2) ¼” BSPP adapters and PTFE
thread sealant tape

¼ FNPT

¼ FBSPP

MARTEL MECP2000

MECP2000 with BetaGauge PI-PRO
setup as a guage comparator

Gauge shown as
part of kit option.

Martel Electronics Corporation Distributed by:

3 Corporate Park Drive, Unit 1
Derry, NH 03038
Phone: [phone]
Fax: [phone]
Copyright 2011 Martel Electronics
All trademarks are the property of
their respective owners. 1105R1CD-MECP2K

Specifications subject to change without notice.
