Open

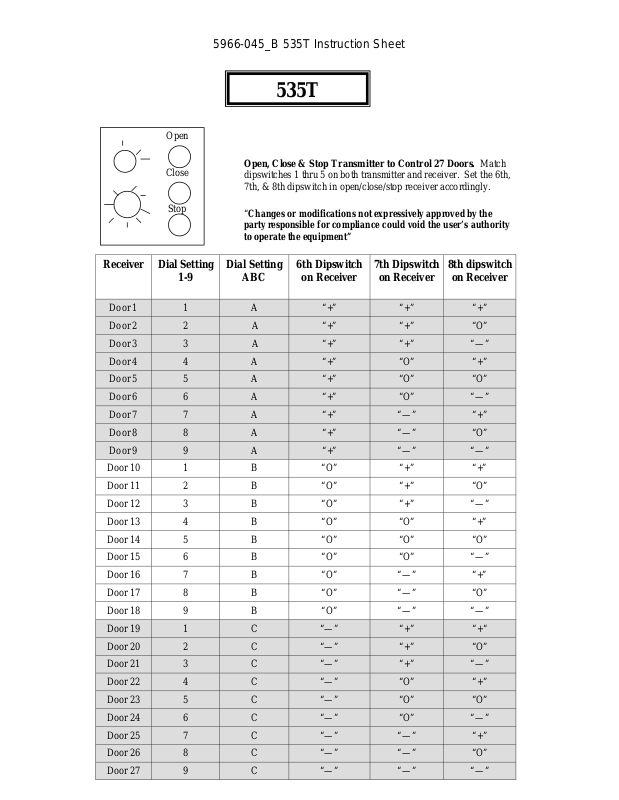

5966-045_B 535T Instruction Sheet
535T
Close
Stop
Receiver Dial Setting
1-9
Door 1 1 A “+” “+” “+”
Door 2 2 A “+” “+” “O”
Door 3 3 A “+” “+” “—”
Door 4 4 A “+” “O” “+”
Door 5 5 A “+” “O” “O”
Door 6 6 A “+” “O” “—”
Door 7 7 A “+” “—” “+”
Door 8 8 A “+” “—” “O”
Door 9 9 A “+” “—” “—”
Open, Close & Stop Transmitter to Control 27 Doors. Match
dipswitches 1 thru 5 on both transmitter and receiver. Set the 6th,
7th, & 8th dipswitch in open/close/stop receiver accordingly.
“Changes or modifications not expressively approved by the
party responsible
to operate the equipment”
Dial Setting
ABC
for compliance could void the user’s authority
6th Dipswitch
on Receiver
7th Dipswitch
on Receiver
8th dipswitch
on Receiver
Door 10 1 B “O” “+” “+”
Door 11 2 B “O” “+” “O”
Door 12 3 B “O” “+” “—”
Door 13 4 B “O” “O” “+”
Door 14 5 B “O” “O” “O”
Door 15 6 B “O” “O” “—”
Door 16 7 B “O” “—” “+”
Door 17 8 B “O” “—” “O”
Door 18 9 B “O” “—” “—”
Door 19 1 C “—” “+” “+“
Door 20 2 C “—” “+” “O”
Door 21 3 C “—” “+” “—”
Door 22 4 C “—” “O” “+”
Door 23 5 C “—” “O” “O”
Door 24 6 C “—” “O” “—”
Door 25 7 C “—” “—” “+”
Door 26 8 C “—” “—” “O”
Door 27 9 C “—” “—” “—”
639T
5966-054_B 639T Instruction Sheet
Open
Close
Stop
Open, Close & Stop Transmitter to Control 9 Doors.
Match dipswitches 1 thru 6 on both transmitter and receiver.
Set the 7th and 8th dipswitch in open/close/stop receivers
accordingly.
Receiver Dial Setting 7th Dipswitch
on Receiver
Door 1 1 “+” “+”
Door 2 2 “+” “O”
Door 3 3 “+” “—”
Door 4 4 “O” “+”
Door 5 5 “O” “O”
Door 6 6 “O” “—”
Door 7 7 “—” “+”
Door 8 8 “—” “O”
Door 9 9 “—” “—”
“Changes or modifications not expressively approved by the party responsible for compliance could
void the user’s authority to operate the equipment”
8th dipswitch
on Receiver
8833CT-O/C/S & 733T
5966-055_B 8833CT-OCS, 733T Instruction Sheet
8833CT-O/C/S
Open Close Stop
A B C
733T
Open
Close
Stop
Open, Close & Stop Transmitter to Control 3 Doors.
Match dipswitches 1, 2, 3, 4, 5, 7 & 8 on both transmitter and
receiver. Set the 6th dipswitch in open/close/stop receivers
accordingly.
Receiver Slide Switch 6th Dipswitch Receiver
Door 1 A “+”
Door 2 B “O”
Door 3 C “—”
“Changes or modifications not expressively approved by the party responsible for compliance could
void the user’s authority to operate the equipment”
8833T-O/C/S & 831T
5966-056_B 8833T- OCS, 831T Instruction Sheet
8833T-O/C/S
Open Close Stop
831T
Open
Close
Stop
Open, Close & Stop Transmitter to Control 1 Door.
Match dipswitches on both transmitter and open/close/stop
receiver.
“Changes or modifications not expressively approved by the party responsible for compliance could
void the user’s authority to operate the equipment”
