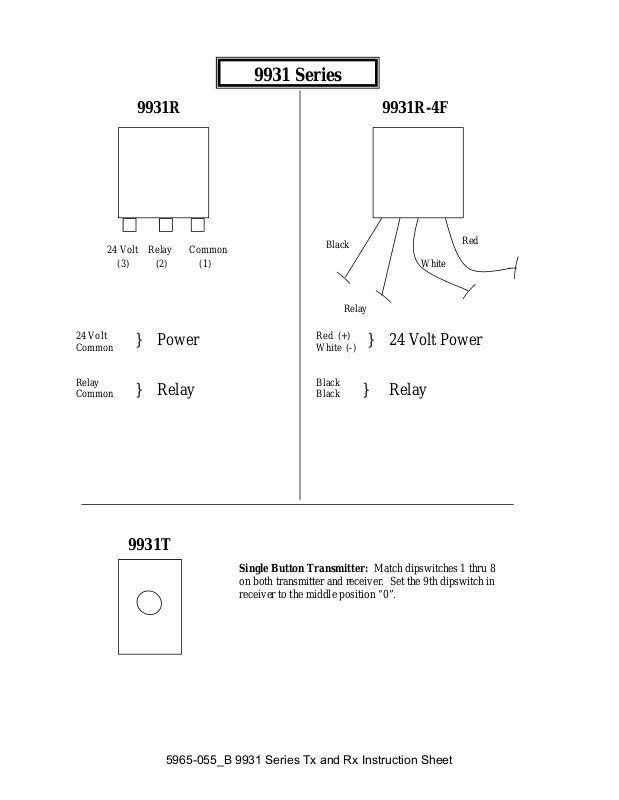

9931 Series
5965-055_B 9931 Series Tx and Rx Instruction Sheet
9931R 9931R-4F
24 Volt Relay Common
(3) (2) (1)
24 Volt
Common
Relay
Common
Black
White
Relay
}}Power 24 Volt Power
Red (+)
White (-)
Black
Black
}
} RelayRelay
Red
9931T
Single Button Transmitter: Match dipswitches 1 thru 8
on both transmitter and receiver. Set the 9th dipswitch in
receiver to the middle position “0”.
