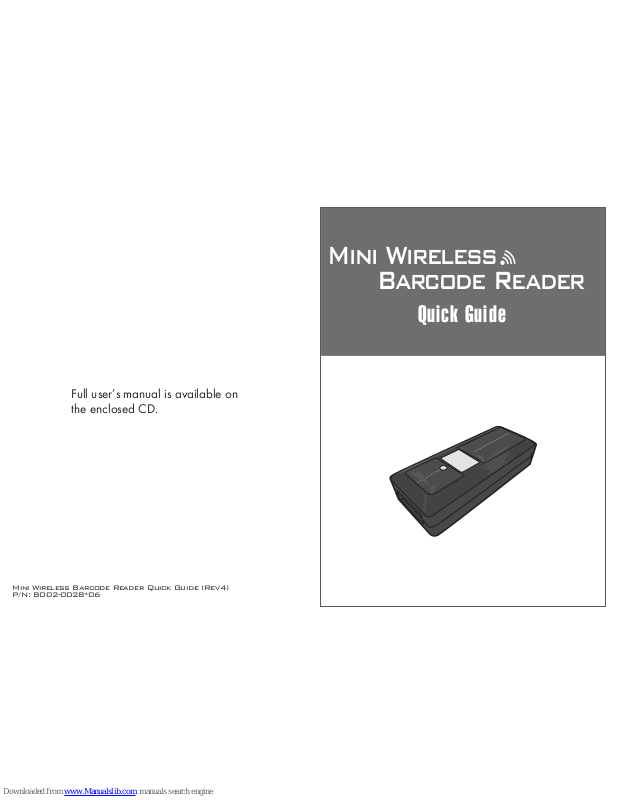

Marson MT 1097 Quick Manual

Mini Wireless Barcode Reader Quick Guide (Rev4)
P/N: 8002-0028*06

Mini Wireless
Barcode Reader

Quick Guide

Full user’s manual is available on
the enclosed CD.

FCC WARNING STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CANADIAN DOC STATEMENT

This digital apparatus does not exceed the Class B limits for radio noise for digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de las classe B prescrites dans le
Réglement sur le brouillage radioélectrique édicté par les ministère des Communica­tions du Canada.

CE MARKING AND EUROPEAN UNION COMPLIANCE

Testing for compliance to CE requirements was performed by an independent
laboratory. The unit under test was found compliant with all the applicable Directives,
2004/108/EC and 2006/95/EC.

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

The WEEE directive places an obligation on all EU-based manufacturers and
importers to take-back electronic products at the end of their useful life.

ROHS STATEMENT OF COMPLIANCE

This product is compliant to Directive 2002/95/EC.

NON-MODIFICATION STATEMENT

Changes or modifications not expressly approved by the party responsible for
compliance

RoHS

- 1 -

1. Take any metals into contact with the terminals in connectors.

2. Use the scanner where any inflammable gases.

If following condition occur, immediately power off the host computer,
disconnect the interface cable, and contact your nearest dealer.

1. Smoke, abnormal odors or noises come from the scanner.

2. Drop the scanner so as to affect the operation or damage its housing.

Do Not

Do not do behavior below.

1. Put the scanner in places excessively high temperatures such as expose
under direct sunlight.

2. Use the scanner in extremely humid area or drastic temperature
changes.

3. Place the scanner in oily smoke or steam environment such as cooking
range.

4. Be covered or wrapped up the scanner in bad-ventilated area such as
under cloth or blanket.

5. Insert or drop foreign materials or water into scanning window or vents.

6. Using the scanner while hand is wet or damp.

7. Use the scanner with anti-slip gloves containing plasticizer and
chemicals or organic solvents such as benzene, thinner, insecticide etc
to clean the housing. Otherwise, it could not result fire and electrical
shock but housing may be broken and injured.

8. Scratch or modify the scanner and bend, twist, pull or heat its interface
cable.

9. Put heavy objects on interface cable.

Do not stare the light source from the scanning window or do not point the

scanning window at other people’s eyes or eyesight may be damaged
by direct exposure under the light.

Do not put the scanner on an unstable or inclined plane.
The scanner may drop, creating injuries.

Once the interface cable is damaged such as exposed or broken copper
wires, stop using immediately and contact your dealer. Otherwise, it could
result fire or electrical shock.

WARNING AND CAUTION

- 2 -

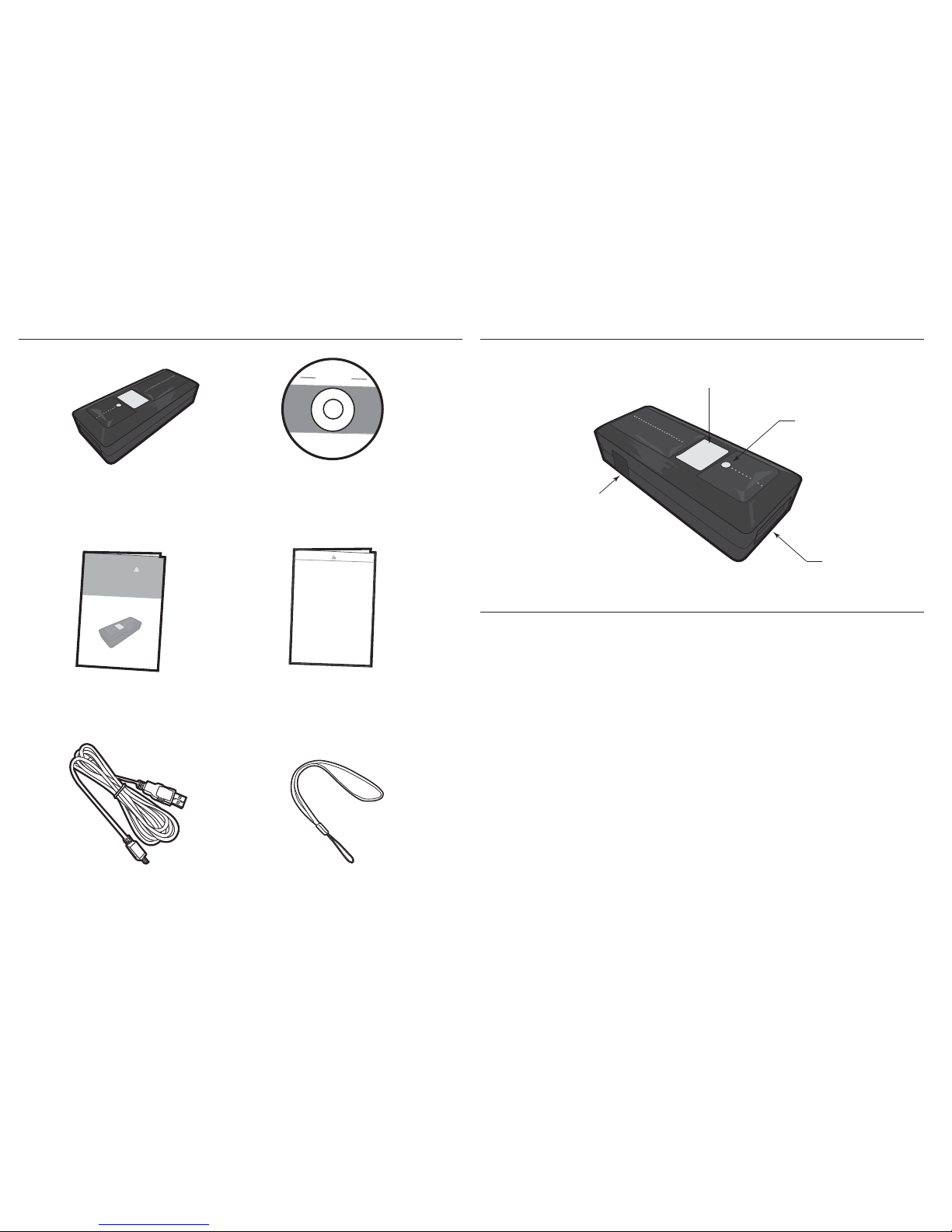

OUT OF THE BOX

Mini Wireless
Barcode Reader

CD

Quick Guide Quick Connection Card

USB Charger Cable Hand Strap

Scanner Tools

- 3 -

INTRODUCTION

SPECIFICATIONS

LED Indicator

Mini USB port

Exit Window

Trigger

(w/ Protective Cover)

Light source 625nm visible red LED
Scan rate 240 scans/sec
Sensor Linear CMOS sensor
Resolution 5mil/ 0.127mm
PCS 30%
Housing Plastic(ABS)
Profile SPP, HID

Working Hours 8 hours (1 scan/ 5 sec)

Charge Time 2 hours (fully charged)
Coverage 10M/33ft. (line of sight)

Operating Temp 0 to 50˚C (32˚F to 122˚F)

Symbologies All major 1D barcodes incl. GS1 Databar

- 4 -

Mini Wireless
Barcode Reader

Quick Guide

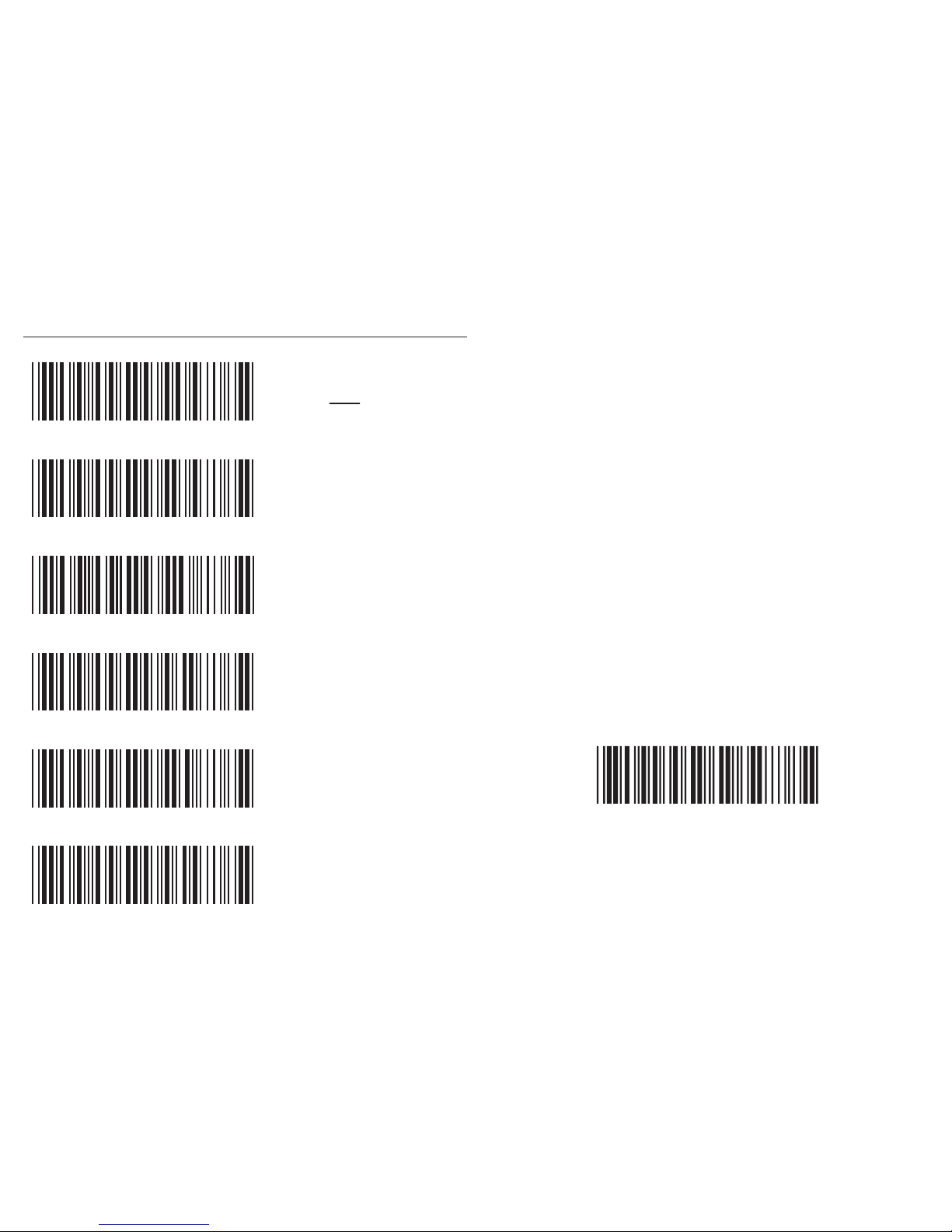

NUMERIC BARCODES

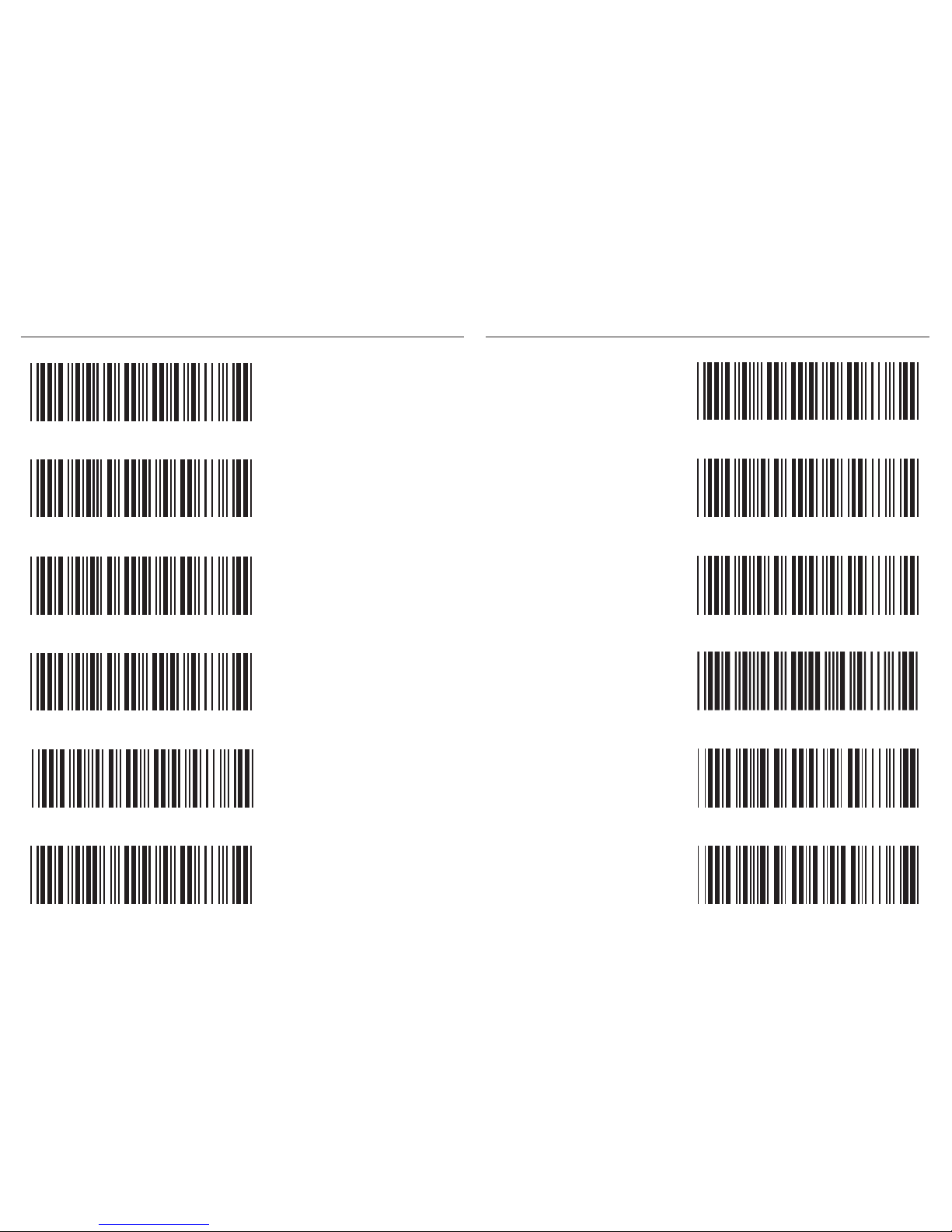

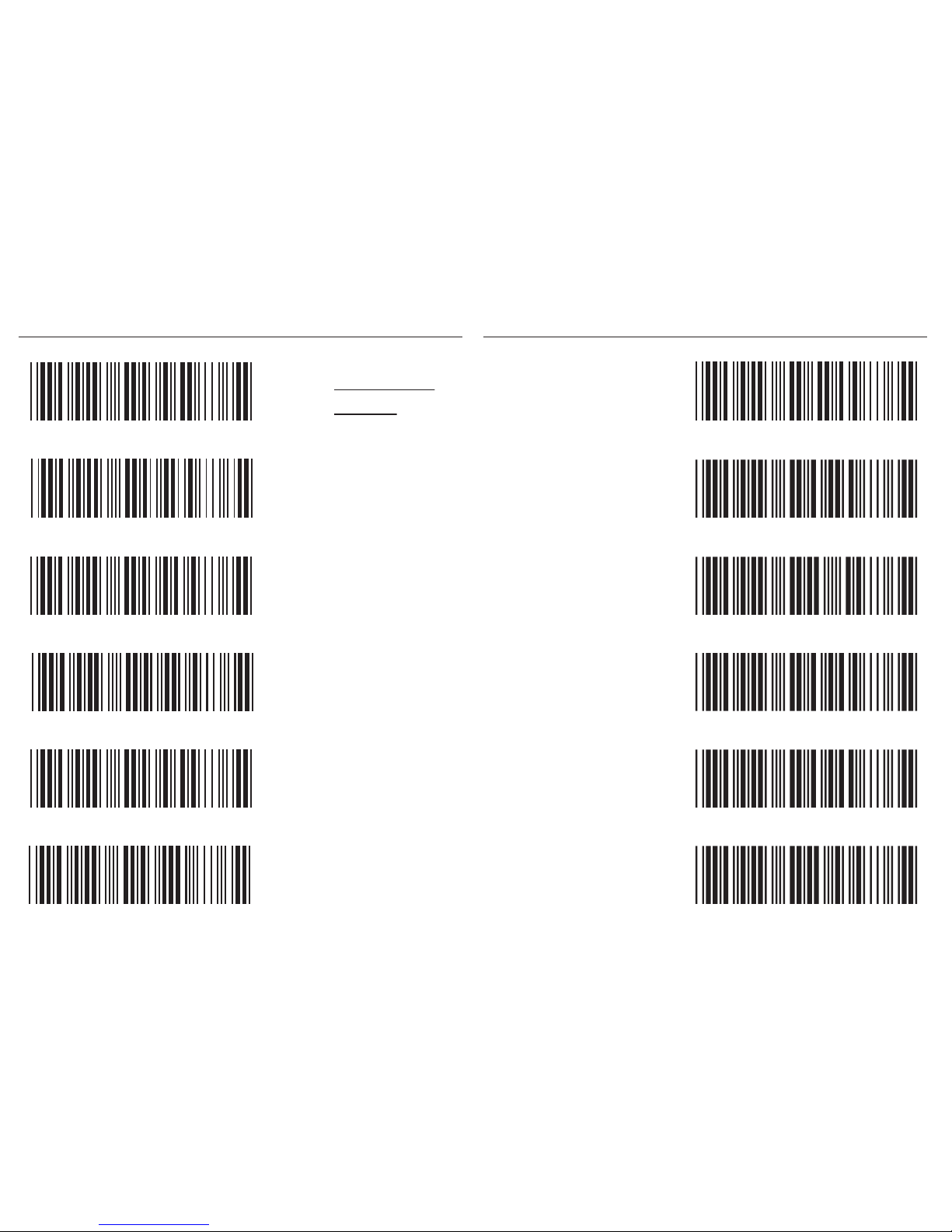

1

*1*

2

*2*

3

*3*

4

*4*

5

*5*

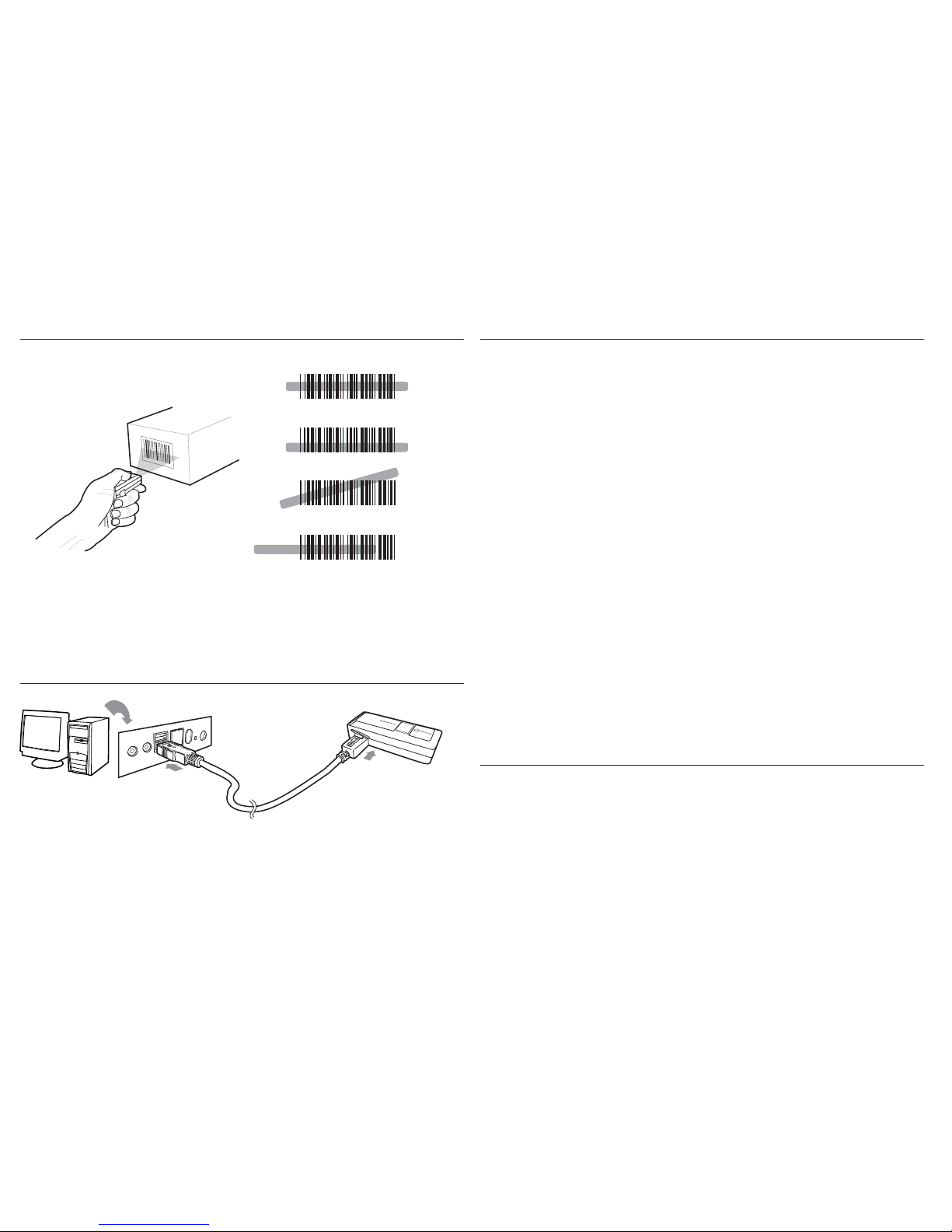

GETTING STARTED

CHARGING THE BATTERY

To scan a barcode, make sure the aiming beam crosses
every bar and space of the barcode.

1. Flip open the mini USB port on the scanner.

2. Insert the mini USB connector into the port on the
scanner and USB A connector into a USB port on
the host PC.









- 5 -

BEEPER INDICATION

LED INDICATION

Single long beep Power up
Single beep Good read
Single short beep The scanner reads a Code39 of

ASCII in configuration procedure
Two beeps Wireless connection
Two short beeps The scanner successfully reads

a configuration barcode
Five beeps Low power
Three beeps Wireless disconnection
Three short beeps i. The scanner reads a barcodes

while disconnected.
ii. The scanner reads an unexpected

barcode during configuration
procedure. (scan [RESET] to abort
and start over)

Eight short beeps The scanner switches from one
communication mode to another

Off
Flashing Green
Green for 2 sec
Flashing Red
Solid Red

Standby or Power off
Disconnected or Discoverable
Good Read
Low power
Charging

- 6 -

Scanner

Mini USB

USB A

Host

GETTING CONNECTED PINCODE SETUP

1. Press the trigger for 1 second to activate the scanner.

2. Scan [DISCONNECT]

3. Scan [BT mode - SPP]; the scanner will emit 8 beeps.

4. Select “Wireless Scanner” from discovered device list.
The default pincode is “1234”.

5. Open serial communication software with com port
(see Device Manager) properly set up.

6. The scanner will beep twice to verify the connection.

There are two modes of wireless communication:

- 7 -- 8 -

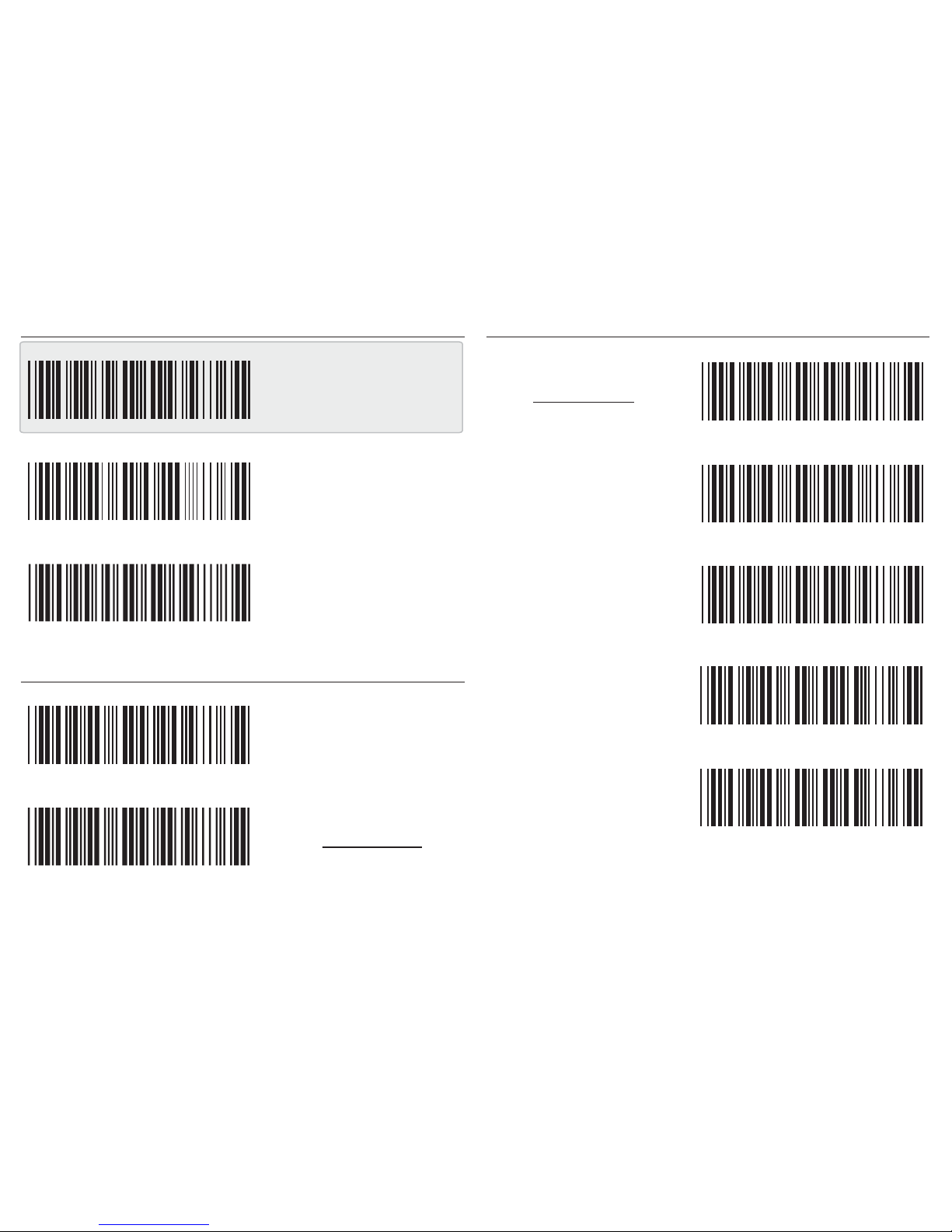

. E042$

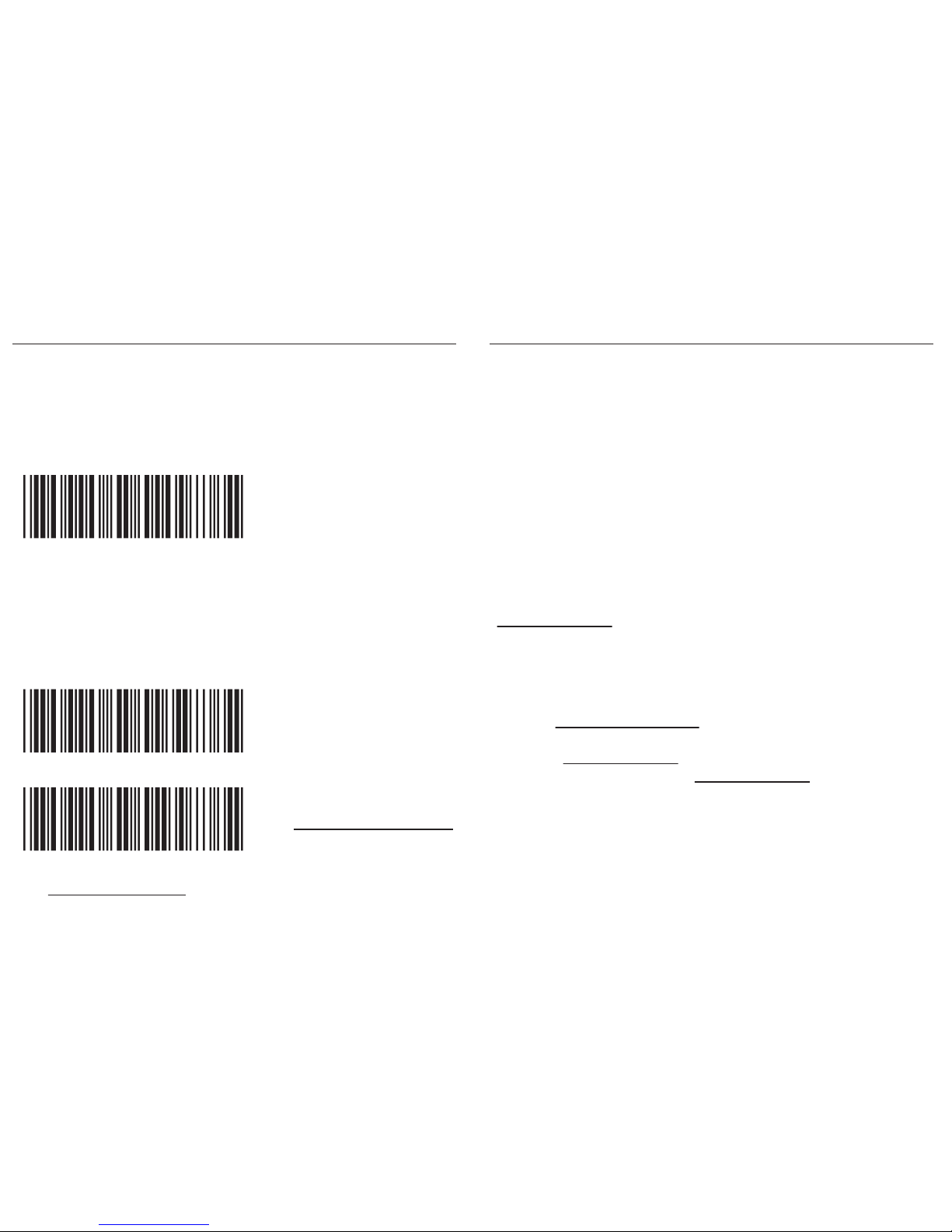

BT mode - SPP Pincode Start

*.E042$*

. E032$

*.E032$*

. E033$

*.E033$*

. E043$

BT mode - HID

*.E043$*

Disconnect

. E031$

*.E031$*

*$TX*

$TX

1. Press the trigger for 1 second to activate the scanner.

2. Scan [DISCONNECT]

3. Scan [BT mode - HID]; the scanner will emit 8 beeps.

4. Select “Wireless Scanner” from discovered device list.

5. The Bluetooth application may prompt you to scan
a pincode(see PINCODE SETUP section) it generated.

6. The scanner will beep twice to verify the connection.

Scan numeric barcodes (see NUMERIC BARCODES section

on the next pages)

based on the pincode generated

by the Bluetooth application.

STEP 1

Pincode Stop

Enter

STEP 4

STEP 3

STEP 2

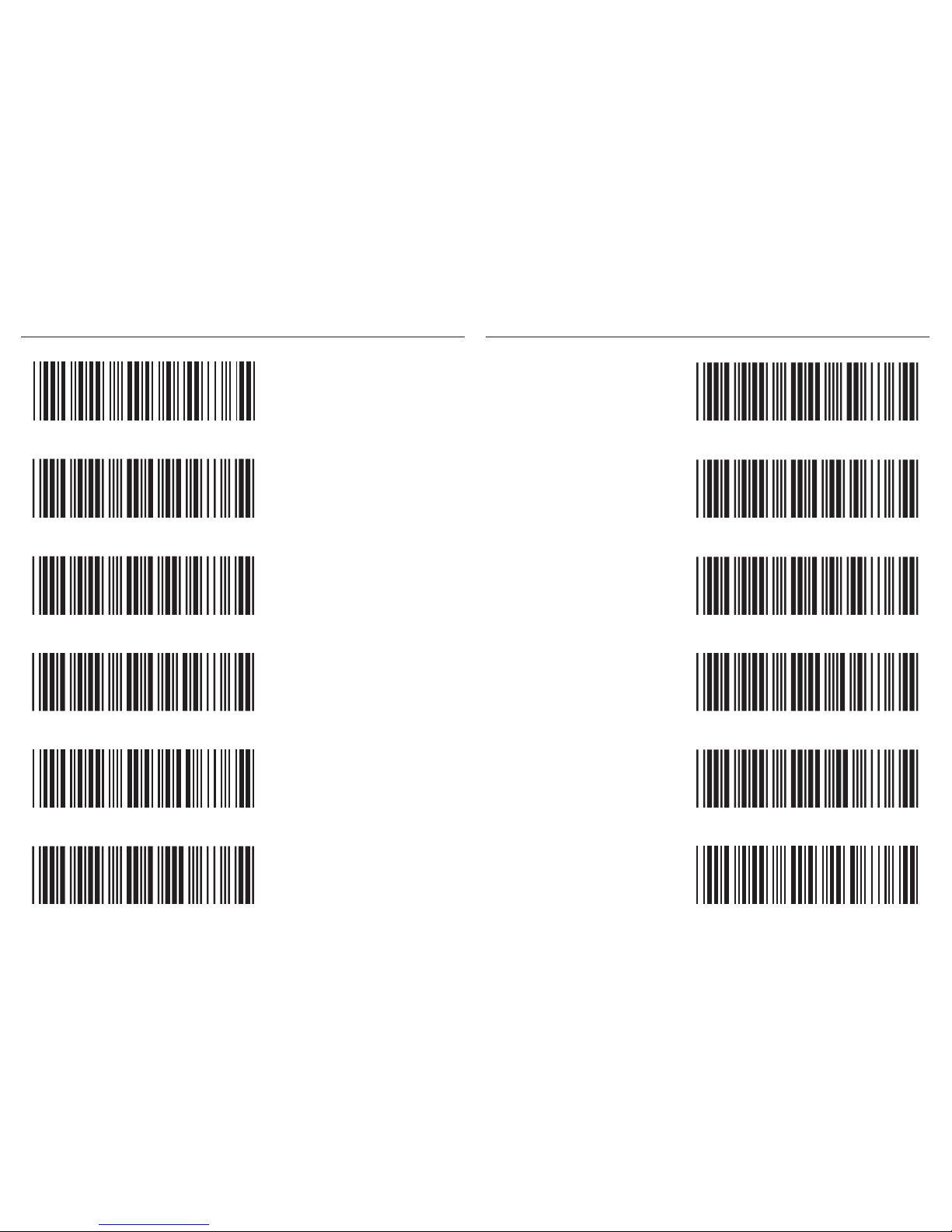

NUMERIC BARCODES

- 9 -- 10 -

1

*1*

2

*2*

3

*3*

4

*4*

5

*5*

6

*6*

7

*7*

8

*8*

9

*9*

0

*0*

- 11 -- 12 -

SMARTPHONE CONNECTION - iOS (Apple) SMARTPHONE CONNECTION - Android

Getting Connected

Getting Connected

Getting Connected without Pincode

Touch Keyboard

Please pair with the scanner via [BT mode - HID]. (page 7)

1. After enabling iOS Hotkey(disabled by default), you may simply
double-click the trigger to toggle the iPhone/iPad Touch Keyboard.

2. The function is supported by firmware 1.04 or higher.

Secure Simple Pairing (SSP), supported by Bluetooth 2.1 or
above, allows you to pair with iOS without pincode.
Please scan [Enable SSP] above before entering the pairing
procedure of [BT mode - HID]. (page 7)

Keyboard Wedge Software (BluetoothConnect)

1. Pair with the scanner via [BT mode - SPP]. (page 7)

2. Enable unknown resources in Android Authority.

3. Install BluetoothConnect.apk, which is available on CD,
and enter the program.

4. Enable BluetoothConnect in the Language & Keyboard
setting window and choose BluetoothConnect as Current
Input Method.

5. Click [Connect to Barcode Reader] on the menu and select
the paired wireless scanner.

6. The scanner will beep twice to verify a successful connection.

*Note: Please contact with your sales representative for detailed
information on BluetoothConnect.

BluetoothConnect is a free keyboard wedge software that
can convert SPP data into virtual key-strokes on any Android
applications. Please follow below steps:

To get connected to Android, please follow the instruction
in [BT mode - SPP] (page 7)

*Note:

1. Android 3.0 or higher version may also support
Bluetooth HID profile.

2. If you operate in SPP mode but your application
does not support direct external device connections,
please refer to below section.

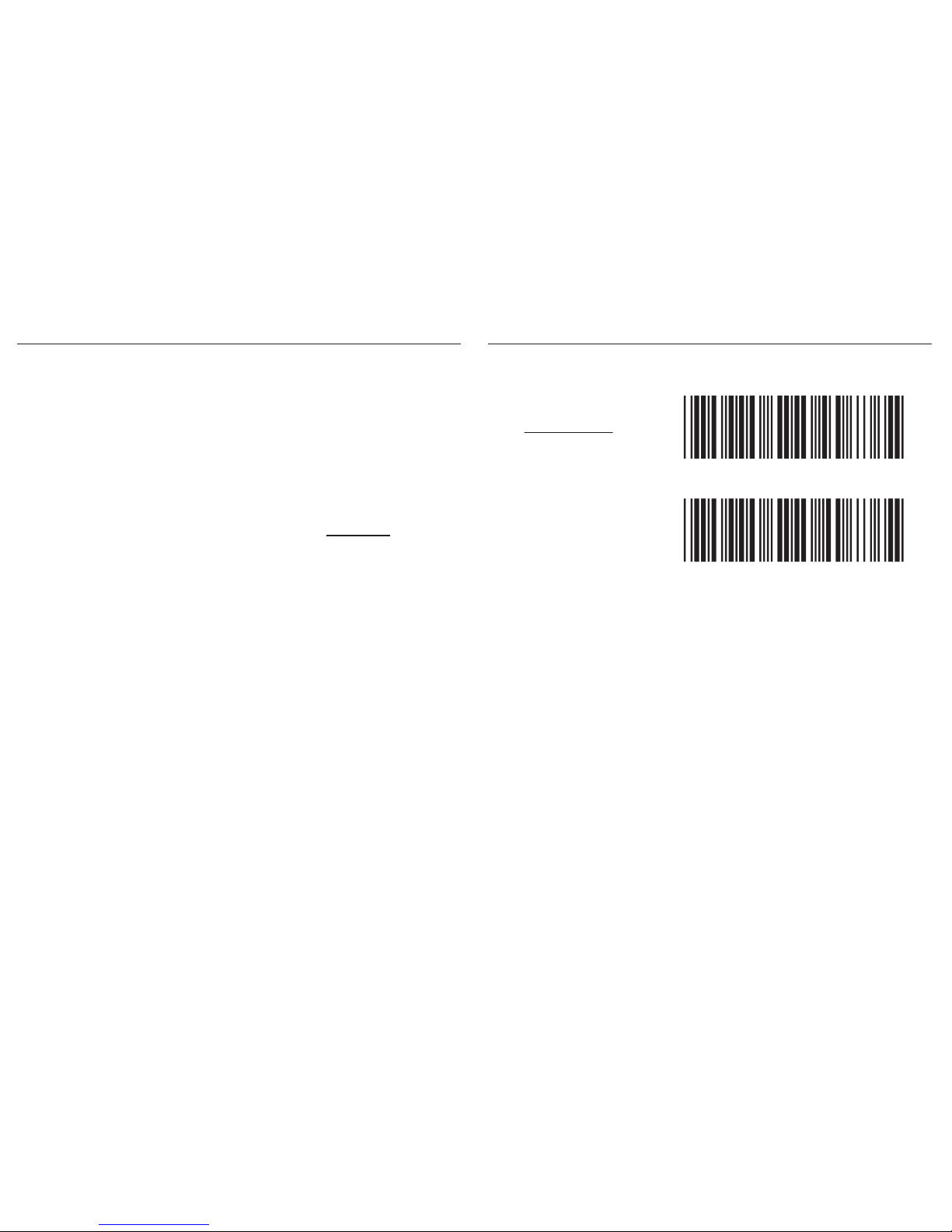

. E049$

ENABLE SSP

. E047$

ENABLE iOS HOTKEY

. E048$

DISABLE iOS HOTKEY

- 13 -- 14 -

POWER OFF TIMEOUT

The timeout before automatic power-off to save power.

*.B017$*

. B017$

1 MIN

*.B019$*

. B019$

5 MIN

*.B020$*

. B020$

10 MIN

*.B021$*

. B021$

DISABLE
(NO POWER-OFF)

3 MIN

*.B018$*

. B018$

Link Quality (enabled by default) ensures a more secure data
transmission from the scanner to the cradle/host. To make the
transmission range wider, you may disable Link Quality, but the
data transmission security will become less reliable.

LINK QUALITY

. E035$

. E036$

ENABLE

DISABLE

GENERAL SETTINGS

BEEPER

. P023$

. A007$

. F012$

RESET

CHECK
VERSION

BEEP OFF

. F018$

- 15 -

READING MODE

. F002$

TRIGGER

TOGGLE

FLASH

CONTINUOUS

CONTINUOUS
AUTO OFF

. F003$

. F001$

. F005$

. F006$

- 16 -

. A001$

DEFAULT

BEEP ON

KEYBOARD LAYOUT

. C010$

ENGLISH
(USA)

. C018$

ENGLISH
(UK)

. C011$

GERMAN

. C012$

FRENCH

. C013$

SPANISH

- 17 -

. C014$

ITALIAN

. C009$

JAPAN
(106 key)

- 18 -

CANADIAN
(TRADITIONAL)

. C034$

NORWEGIAN

. C029$

SWEDISH

. C026$

PORTUGUESE

. C031$

CANADIAN
(FRENCH)

. C025$

HUNGARIAN
(101 KEY)

BRAZILIAN
(PORTUGUESE)

SLOVAK

SWISS
(FRENCH)

DUTCH

DANISH

BELGIAN
(AZERTY)

. C016$

SWISS
(GERMAN)

KEYBOARD LAYOUT

. C017$

CZECH
(QWERTY)

. C022$

CZECH
(QWERTZ)

HUNGARIAN
(QWERTZ)

. C021$

. C015$

ALT CODE

- 19 -- 20 -

. C024$

. C023$

. C033$

. C032$

. C027$

. C028$

. C030$

ENABLE SYMBOLOGIES

ENABLE
ALL CODE

. A002$

. K010$

CODE 32

. L010$

. N001$

. M010$

. L001$

UK PLESSEY

MSI

INDUSTRIAL
2 OF 5

MATRIX
2 OF 5

- 21 -

CODE 93

. L014$

. G010$

. N017$

. N032$

. N010$

. N026$

IATA

TELEPEN

GS1 DATABAR

GS1 DATABAR
LIMITED

GS1 DATABAR
EXPANDED

- 22 -

TERMINATOR

LF

CR + LF

NONE

SPACE

TAB

. D012$

CR

. D011$

. D013$

. D010$

. D015$

. D014$

- 23 -- 24 -

The firmware version with suffix “MEM”
supports memory function.
e.g. SM3-c-X.XX.BTA.MEM

The firmware version can be found either
on the scanner box or by scanning below
barcode.

The following pages only apply to the
memory version mini wireless scanner.

. A007$

CHECK VERSION

- 25 -- 26 -

MEMORY MODE

Data Output Method

Once enabled, the scanner will stop sending data via Bluetooth
and start storing data into the internal flash disk.

You may output data ONLY when memory is enabled (page 15).

To output stored data via Wireless, please do the following:

1. Scan [WIRELESS]

2. Scan [OUTPUT DATA]

To output stored data via USB-VCP, please do the following:

1. Install VCP driver (available on CD)

2. Connect the scanner & host with USB cable

3. Scan [USB-VCP]

4. Save data as .csv by “Covert to CSV.exe” (available on CD)

*

For memory version only

. R001$

*.R001$*

ENABLE MEMORY

. R002$

*.R002$*

DISABLE MEMORY

. R013$

*.R013$*

USB-VCP

. R014$

*.R014$*

WIRELESS

. R005$

*.R005$*

DELETE LAST RECORD

. R004$

*.R004$*

CLEAR ALL RECORD

OUTPUT DATA

For memory version only

. R003$

*.R003$*

OUTPUT DATA

Delete Last Record/ Clear All Record

- 27 -- 28 -

DATA FORMAT

Example: To set Date to 2012-08-01 (Year-Month-Day):

1. Scan [

Set Date

]

2. Scan [1], [2], [0], [8], [0], [1] on page 9 & 10.

3. Scan [

Set Date

]

Example:
To change Data Format to

<Item No.>, <Barcode Data>, <Date>, <Time>

1. Scan [

Data Format

]

2. Scan [1], [4], [2], [3] on page 9.

3. Scan [

Data Format

]

The default Data Format is

<Item No.>, <Date>, <Time>, <Barcode Data>

below are items and their setup codes:

Example: To set Time to 08:10:30 am (Hr:Min:Sec)

1. Scan [

Set Time

]

2. Scan [0], [8], [1], [0], [3], [0] on page 9 & 10.

3. Scan [

Set Time

]

For memory version only

. R006$

*.R006$*

SET DATE

. R007$

*.R007$*

SET TIME

Default is comma ( , ) . You may replace it with any alphanumeric

characters from the full ASCII table in User’s Manual (on CD).

Example: To change Field Separator to Semicolon ( ; )

1. Scan [

Field Separator

]

2. Scan [ ; ] from the full ASCII table.

3. Scan [

Field Separator

]

. R010$

*.R010$*

FIELD SEPARATOR

. R011$

*.R011$*

DATA FORMAT

DATE & TIME SETUP

For memory version only

1
2

Item No.
Date

Code Item Code Item

3
4

Time
Barcode Data

* To avoid Time and Date being reset to factory default due
to running out of battery, please fully charge the scanner for
at least 3 hours before use.

- 29 -- 30 -

The default Date Format is DD/MM/YYYY (Code = 09), below
is full list of available formats and their setup codes:

The default Time Format is HH:MM:SS (Code = 01), below
are available formats and their setup codes:

Example:
To set Date Format to MM/DD/YY (Code =12)

1. Scan [

Date Format

]

2. Scan [1], [2] on page 9.

3. Scan [

Date Format

]

Example:
To set Time Format to HH:MM (Code = 02)

1. Scan [

Time Format

]

2. Scan [0], [2] on page 9 & 10.

3. Scan [

TimeFormat

]

. R008$

*.R008$*

DATE FORMAT

. R009$

*.R009$*

TIME FORMAT

DATE FORMAT

For memory version only

TIME FORMAT

For memory version only

01
02
03
04
05
06
07
08

DD-MM-YYYY
MM-DD-YYYY
DD-MM-YY
MM-DD-YY
YYYY-MM-DD
YY-MM-DD
DD-MM
MM-DD

Code Format Code Format

09
10
11
12
13
14
15
16

DD/MM/YYYY
MM/DD/YYYY
DD/MM/YY
MM/DD/YY
YYYY/MM/DD
YY/MM/DD
DD/MM
MM/DD

01 HH:MM:SS

Code Format Code Format

02

HH:MM
