Marson MT1095 Quick Manual

Mini Barcode Reader Quick Guide
P/N: 8002-0027*00

Mini Barcode Reader

Quick Guide

FCC WARNING STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CANADIAN DOC STATEMENT

This digital apparatus does not exceed the Class B limits for radio noise for digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de las classe B prescrites dans le
Réglement sur le brouillage radioélectrique édicté par les ministère des Communica­tions du Canada.

CE MARKING AND EUROPEAN UNION COMPLIANCE

Testing for compliance to CE requirements was performed by an independent
laboratory. The unit under test was found compliant with all the applicable Directives,
2004/108/EC and 2006/95/EC.

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

The WEEE directive places an obligation on all EU-based manufacturers and
importers to take-back electronic products at the end of their useful life.

ROHS STATEMENT OF COMPLIANCE

This product is compliant to Directive 2002/95/EC.

RoHS

- 1 -

1. Take any metals into contact with the terminals in connectors.

2. Use the scanner where any inflammable gases.

If following condition occur, immediately power off the host computer,
disconnect the interface cable, and contact your nearest dealer.

1. Smoke, abnormal odors or noises come from the scanner.

2. Drop the scanner so as to affect the operation or damage its housing.

Do Not

Do not do behavior below.

1. Put the scanner in places excessively high temperatures such as expose
under direct sunlight.

2. Use the scanner in extremely humid area or drastic temperature
changes.

3. Place the scanner in oily smoke or steam environment such as cooking
range.

4. Be covered or wrapped up the scanner in bad-ventilated area such as
under cloth or blanket.

5. Insert or drop foreign materials or water into scanning window or vents.

6. Using the scanner while hand is wet or damp.

7. Use the scanner with anti-slip gloves containing plasticizer and
chemicals or organic solvents such as benzene, thinner, insecticide etc
to clean the housing. Otherwise, it could not result fire and electrical
shock but housing may be broken and injured.

8. Scratch or modify the scanner and bend, twist, pull or heat its interface
cable.

9. Put heavy objects on interface cable.

Do not stare the light source from the scanning window or do not point the

scanning window at other people’s eyes or eyesight may be damaged
by direct exposure under the light.

Do not put the scanner on an unstable or inclined plane.
The scanner may drop, creating injuries.

Once the interface cable is damaged such as exposed or broken copper
wires, stop using immediately and contact your dealer. Otherwise, it could
result fire or electrical shock.

WARNING AND CAUTION

- 2 -

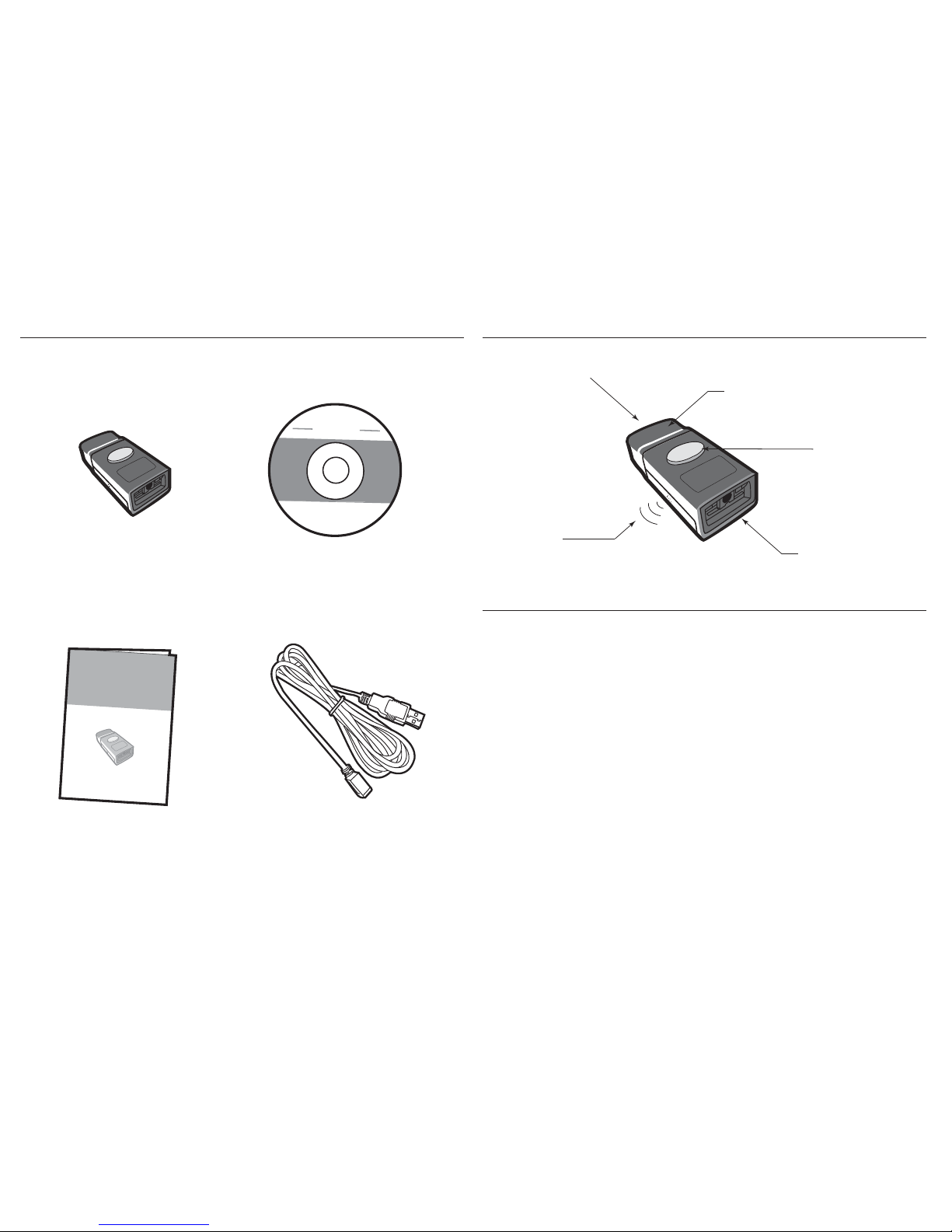

OUT OF THE BOX

Mini Barcode Reader CD

Quick Guide

USB Extension Cable
(Optional)

Scanner Tools

Mini Barcode Reader

Quick Guide

- 3 -

INTRODUCTION

SPECIFICATIONS

Trigger

Beeper

Exit Window

USB Connector

Protective Cover

Light source 625nm visible red LED
Scan rate 240 scans/sec
Sensor Linear CMOS sensor
Resolution 5mil/ 0.127mm
PCS 30%
Housing Plastic(Polycarbonate)
Interface USB
Voltage 5 VDC ± 5%
Current < 115 mA(Working); < 60 mA(Standby)

Operating Temp 0 to 50˚C (32˚F to 122˚F)
Storage Temp -20 to 60˚C (-4˚F to 140˚F)

Symbologies All major 1D barcodes incl. GS1 Databar

- 4 -

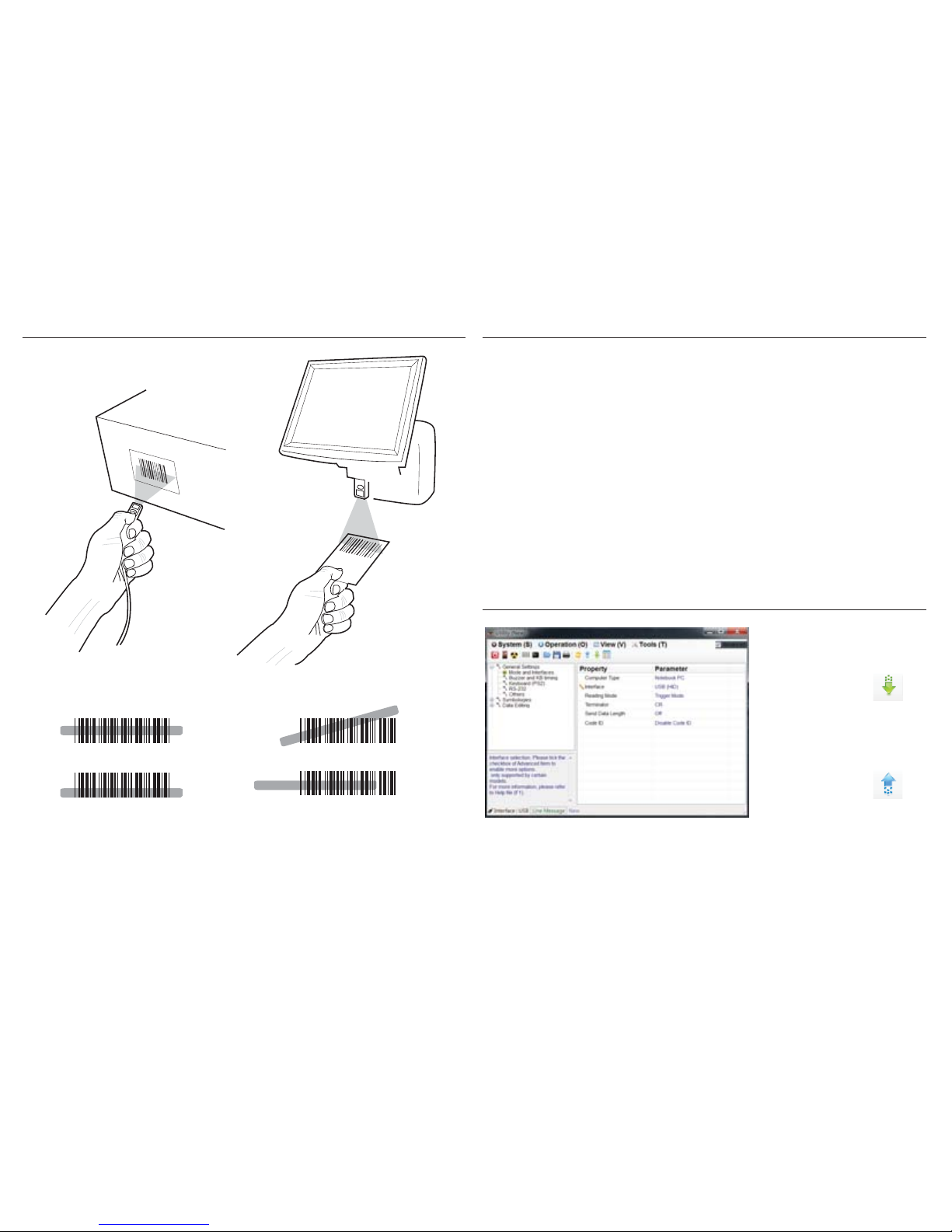

GETTING STARTED

To scan a barcode, make sure the aiming beam crosses
every bar and space of the barcode. For fixed mounted
scanning, Continuous Mode(see READING MODE) is
recommanded.









- 5 -

BEEPER INDICATION

EZU CONFIGURATION UTILITY

Single long beep Power up
Single beep Good read
Single fast beep The scanner reads a Code39 of

ASCII in configuration procedure
Two beeps The scanner successfully reads

a configuration barcode
Three fast beeps The scanner reads an unexpected

barcode during configuration
procedure. (scan [RESET] to abort
and start over)

1. Install EzU

2. Retrieve scanner
parameters

3. Edit the parameters
on the widow

4. Update scanner
parameters

EzU (available on CD and website) enables you to
configure the scanner with your PC/Laptop via USB
two-way communication. Please refer to EzU Help file
for detailed information.

- 6 -

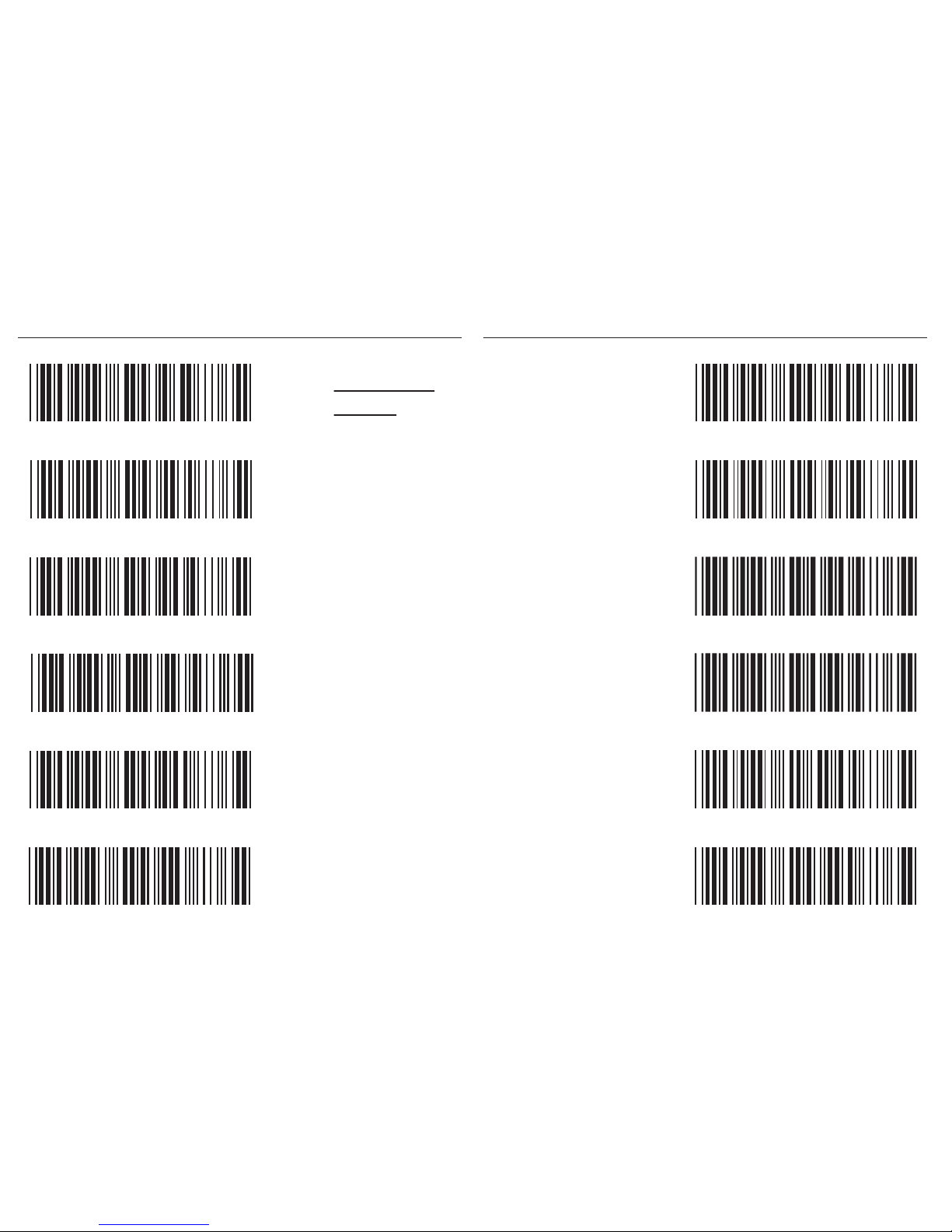

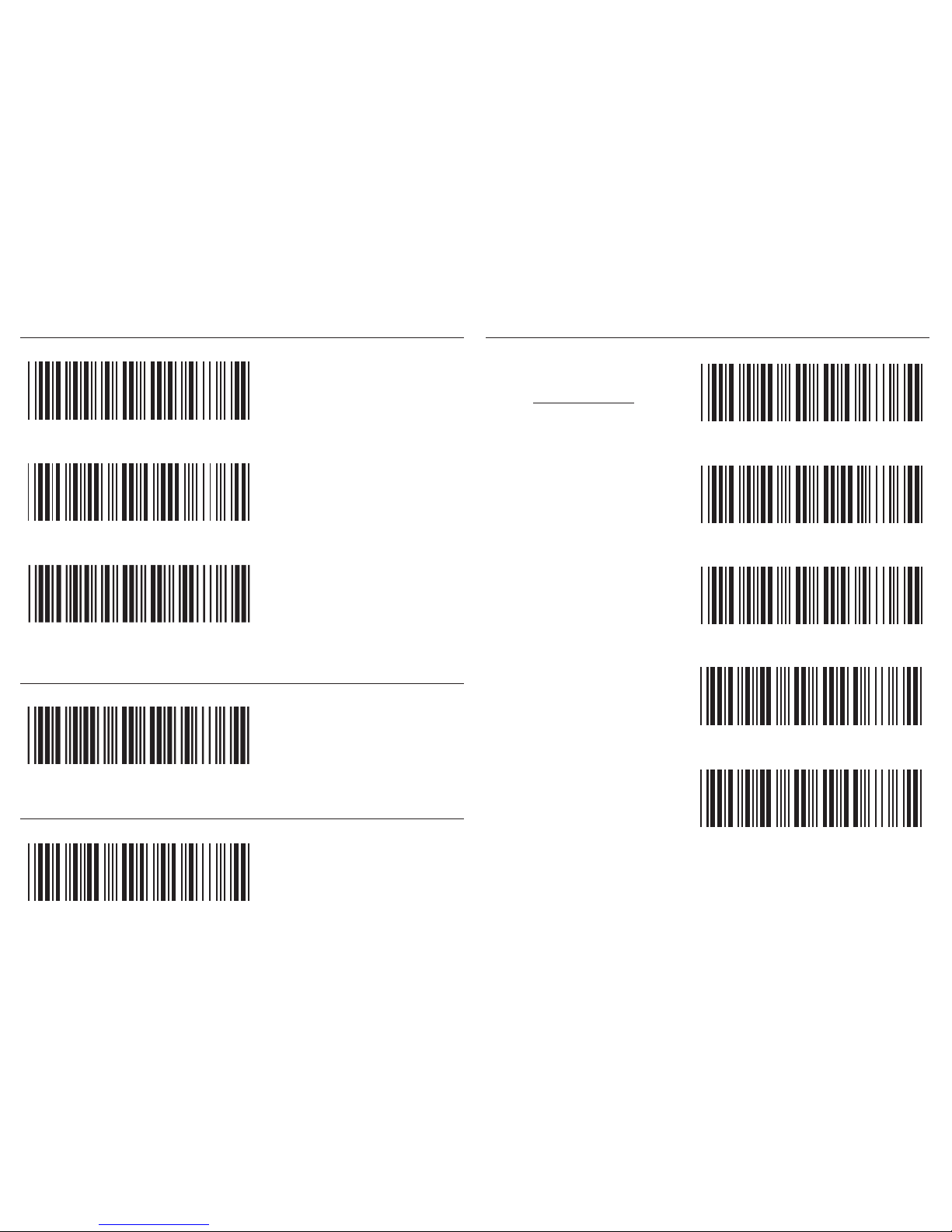

GENERAL SETTINGS

INTERFACE

BEEPER

. A001$

. P023$

. A007$

. C008$

. F012$

DEFAULT

RESET

CHECK
VERSION

USB HID

BEEP OFF

- 7 -

READING MODE

. F002$

TRIGGER

TOGGLE

FLASH

CONTINUOUS

CONTINUOUS
AUTO OFF

. F003$

. F001$

. F005$

. F006$

- 8 -

KEYBOARD LAYOUT

. C010$

ENGLISH
(USA)

. C018$

ENGLISH
(UK)

. C011$

GERMAN

. C012$

FRENCH

. C016$

SWISS

. C013$

SPANISH

- 9 -

. C014$

ITALIAN

. C017$

. C022$

CZECH
(QWERTY)

CZECH
(QWERTZ)

HUNGARIAN

. C021$

. C009$

JAPAN
(106 key)

. C015$

ALT CODE

- 10 -

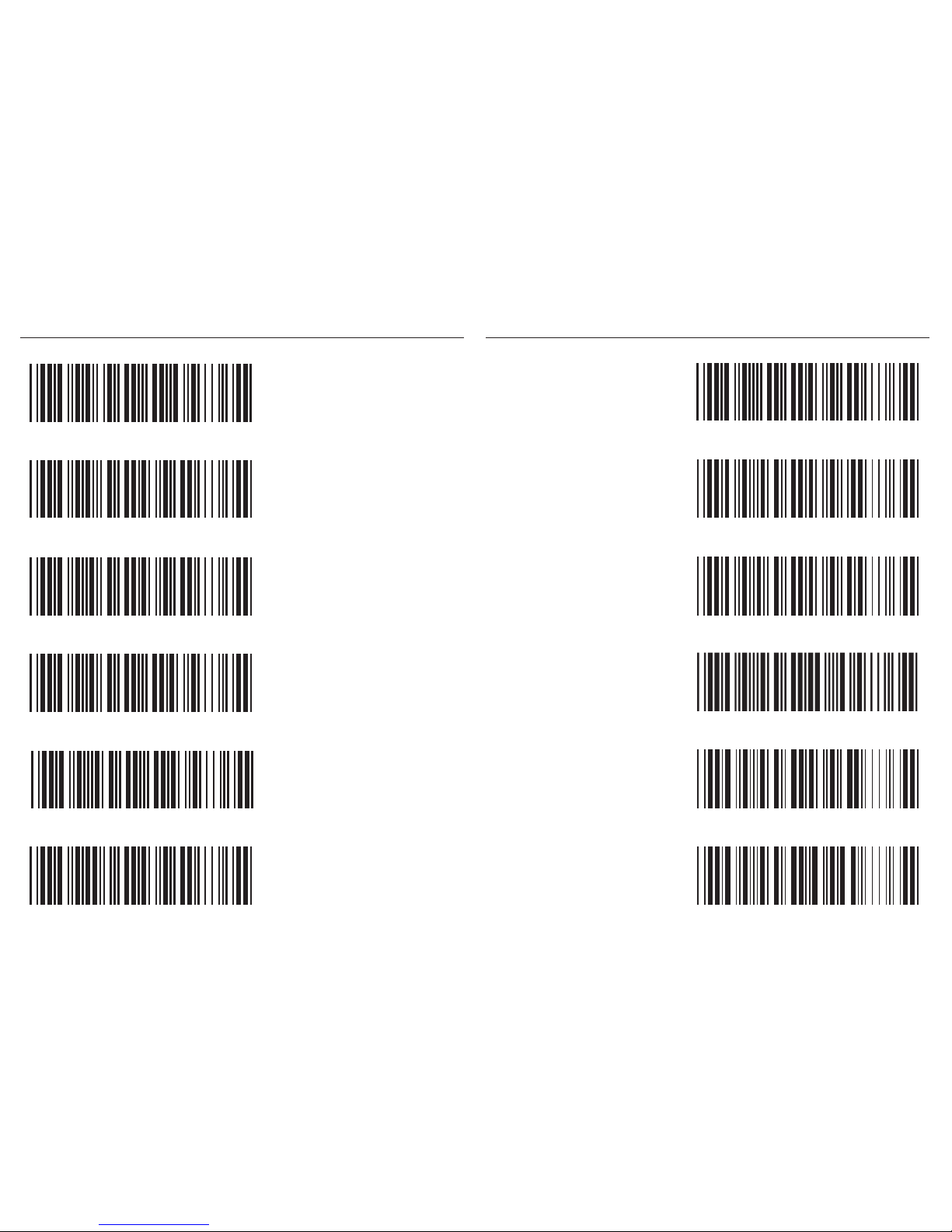

ENABLE SYMBOLOGIES

ENABLE
ALL CODE

. A002$

. K010$

CODE 32

. L010$

. N001$

. M010$

. L001$

UK PLESSEY

MSI

INDUSTRIAL
2 OF 5

MATRIX
2 OF 5

- 11 -

CODE 93

. L014$

. G010$

. N017$

. N032$

. N010$

. N026$

IATA

TELEPEN

GS1 DATABAR

GS1 DATABAR
LIMITED

GS1 DATABAR
EXPANDED

- 12 -

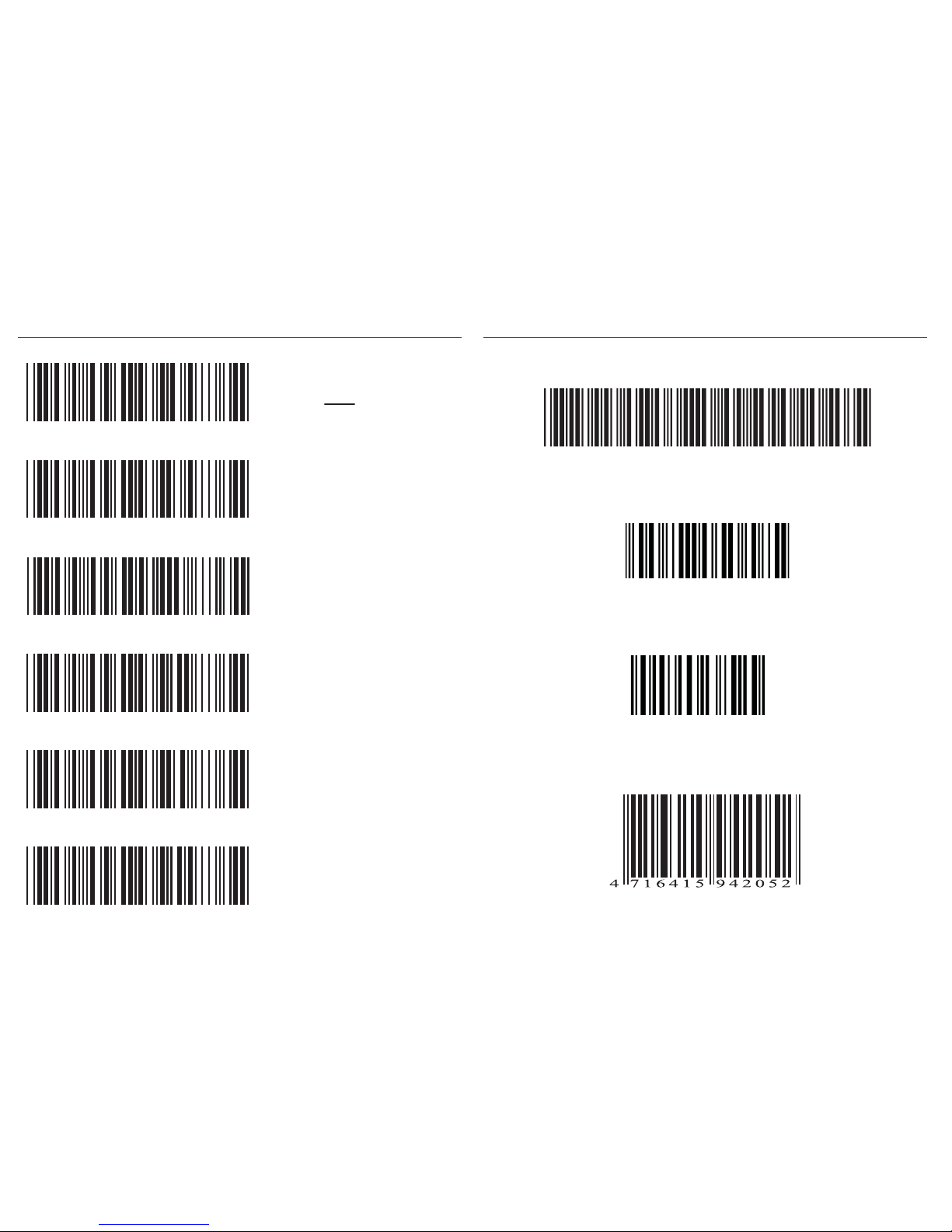

TERMINATOR

LF

CR + LF

NONE

SPACE

TAB

. D012$

CR

. D011$

. D013$

. D010$

. D015$

. D014$

- 13 -

TEST BARCODES

EAN

Code 128

12345678

Code 39

CODE-39 TEST

Interleaved 2 of 5

9876543210

- 14 -
