Page 1
Marshall Electronics
Gigabit Ethernet Switch with PoE+
10/100/1000Mbps with LED Display
VS-SW-100
User Manual
Firmware Version v0.2
Copyright ©2016, Marshall Electronics, Inc.
All Rights Reserved. This document may not be copied.
Page 2
FCC Warning
This device has been tested and found to comply with limits for a Class A digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates and radiates radio frequency energy and, if not
installed and used in accordance with the user’s manual, it may cause interference in
which case users will be required to correct interference at their own expenses.
CE Warning
This is a Class A product. In a domestic environment, this product may cause radio
interference in which case the user may be required to take adequate measures.
Page 3
1. Connectivity
1. Introduction .......................................................................................................................... 4
1.1 Package Contents ........................................................................................................ 4
1.2 Product Features .......................................................................................................... 5
2. Connectivity ................................................................ ................................ ......................... 6
2.1 Front Panel (LEDs) ....................................................................................................... 6
2.2 Connecting Power Device ............................................................................................ 6
2.2 Rear Panel Power ........................................................................................................ 7
2.3 Connections ................................................................................................................. 7
3. Data Sheet ............................................................................................................................ 8
3.1 Data Sheet: Features ................................................................................................... 8
3.2 Data Sheet: Technical Specifications ................................ ................................ ............ 9
User Manual VS-SW-100– V0.2 Page 3 of 11 2/2016
Page 4
2. Connectivity
This switch provides 24 10/100/1000M switching ports RJ45 and 2 port SFP. It was
designed for easy installation and high performance in an environment where traffic is on
the network and the number of users increases continuously.
It consists of 24 PSE/PoE ports that can solve the limitation of the power outlet location
and offer the system designer a flexible solution to locate the network device
everywhere.
The 19” chassis size is specifically designed for small to medium work groups. It can be
installed where space is limited and provide smooth network migration and an easy
upgrade to the network capacity.
1.1 Package Contents
Before you start to install this switch, please verify that your package that contains the
following items:
One Gigabit PoE Switch
One Power Cord
One User’s Manual
User Manual VS-SW-100– V0.2 Page 4 of 11 2/2016
Page 5
2. Connectivity
1.2 Product Features
24 Port PSE/ PoE function, compliant with IEEE-802.3af class3 /class 2 /
class 1 and IEEE802.3at
Supports the power up to 30 watts for each PSE/PoE port
Provides 24 ports 10/100/1000Mbps switching ports
Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE-802.3af
PoE and IEEE802.3at
Supports the flow control: back pressure for half-duplex and IEEE 802.3x for full-
duplex mode
All ports support Auto-MDIX function
Provides 2000Mbps Full-duplex bandwidth to the each port
Broadcast storm control and supporting store & forward operation
Non-blocking & non-head-of-line blocking full-wire speed forwarding
Auto-learning networking configurations
Built-in 8K MAC learning table, 1.25M bits buffer memory
Filtering/Forwarding Rate:1000Mbps/1,488,000pps; 100Mbps/148,800pps;
10Mbps/14,880pps
Supports packet length 1600 bytes
Status LEDs: System Power, Link/Activity, and PoE/PSE on line
PoE LED Display: total power (P); Less power (L) per port/ power consumption
(port 1~16) / power consumption
Network Transmission Media: 10Base-T Cat. 3, 4, 5 UTP/STP; 100Base-TX Cat. 5,
5e UTP/STP; 1000BASE-T Cat. 5e, 6 UTP/STP.
Internal Power supply: AC input (90~260V/AC, 50~60Hz)
Operating Temperature: 0° ~ 40°C
Storing Temperature: -20° ~ 90°C
Humidity: 10% ~90% RH (non-condensing)
Dimension (L x W x H): 440 x 326 x 44mm (19”, 1U high)
Power consumption: 20 watt
PoE power supply: 800 watt
Power supply: 960 watt
Weight: 5.5 kg
Certificates: CE & FCC
Smart plug & play
User Manual VS-SW-100– V0.2 Page 5 of 11 2/2016
Page 6
2. Connectivity
LED
Status
Description
Power
Yellow
Power is on.
Nil
Power is off.
LINK/ACT
Green
Port is for connection.
Off
No connection.
Green and Flashing
Data is transmitting or receiving.
PoE
Yellow
Port is linked to power device.
Off
No power device is connected.

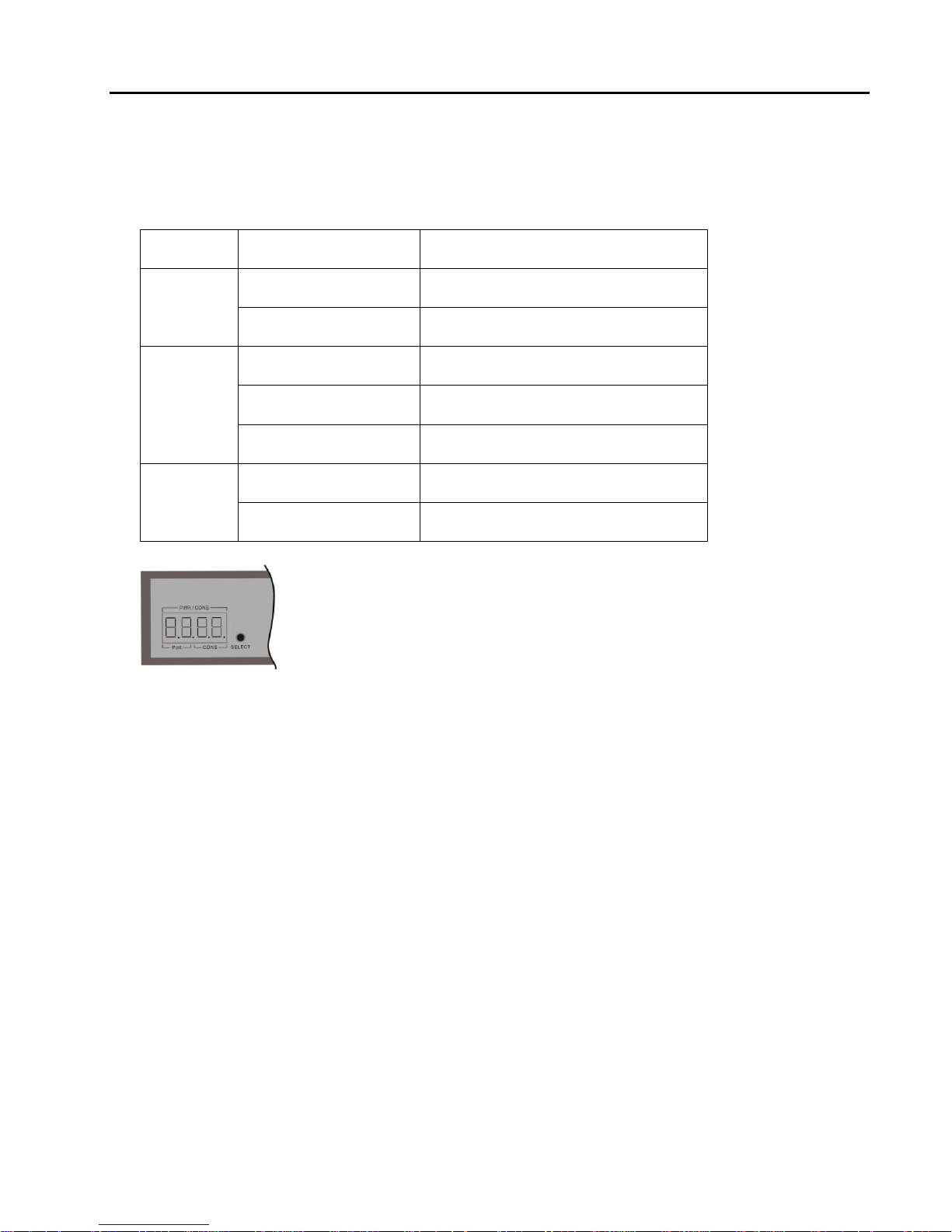

2.1 Front Panel (LEDs)
LED Indicators: 16 Ports with 16 Port PoE 10/100/1000M
4-Digit Seven-Segment-Display
Press “select” button once to show “P” (1 digit) for total PoE power (3 digits)
Press “select” button twice to show “L” (1 digit) for remaining PoE power (3 digits)
Press “select” button three times to show port number (2 digits) and power
consumption per port (2 digits)
2.2 Connecting Power Device
.
Connect Power Device to the 16 Port PoE 10/100/1000M Switch to receive 48V
power source through Cat. 5 cables
Use a Cat. 5 twisted-pair cable to connect a Power Device to the port 1~16 of this
switch. This switch will supply 48V power to a Power Device over Cat. 5 twisted-pair
cable. Please Note: Power Device should also comply with IEEE 802.3af.
User Manual VS-SW-100– V0.2 Page 6 of 11 2/2016
Page 7
2. Connectivity

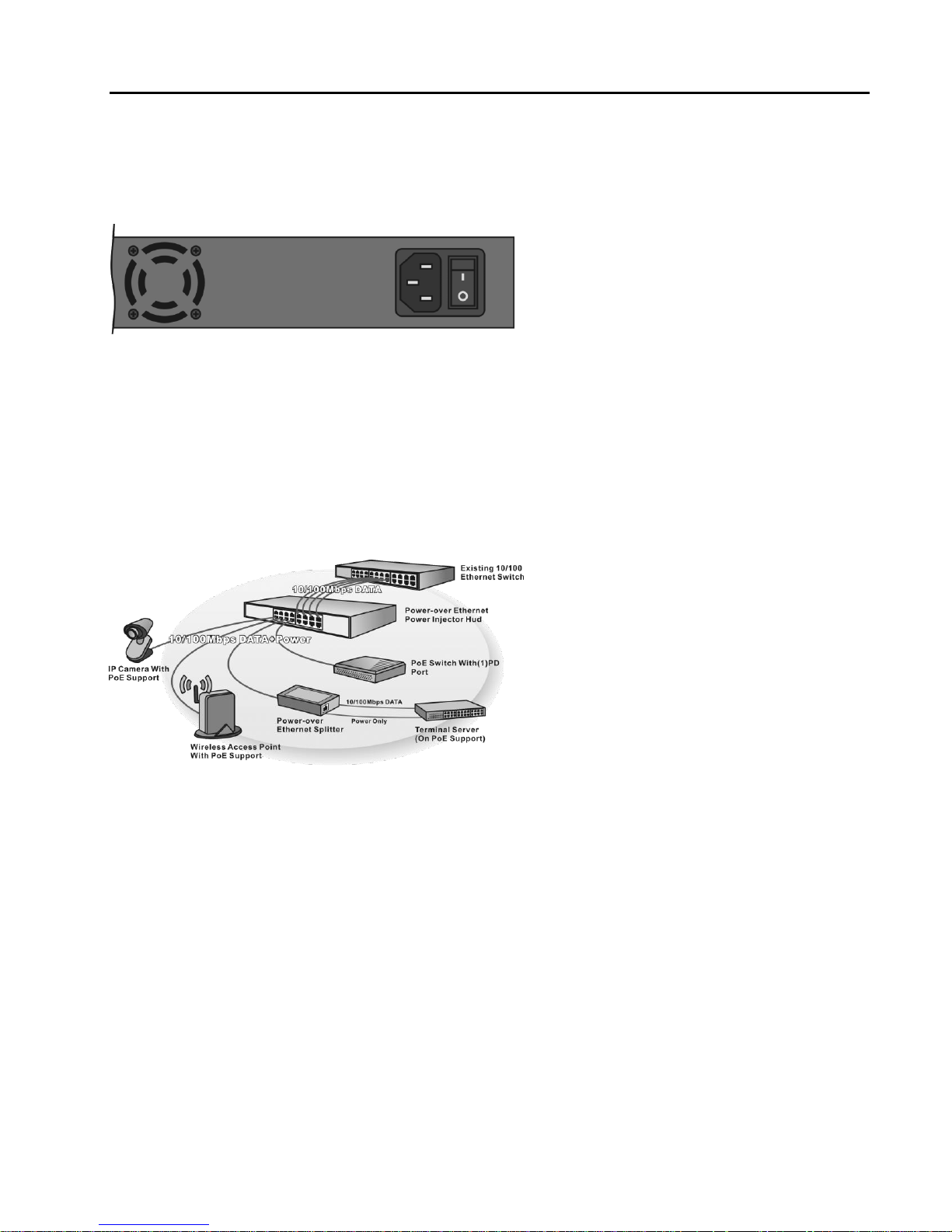

2.3 Rear Panel (Power)
AC Input
AC input (100~240V/AC, 50~60Hz)
2.4 Connections
1) Switch/Hub: Connection to PoE 10/100/1000M Switch
This switch provides automatic crossover detection functionality for any port. It is simple
and friendly to link to another switch without a crossover cable.
2) PC/Other Devices: Connection to 16 Port PoE 10/100/1000M Switch
This switch can be connected to PCs, servers and other network devices via a twisted
pair cable.
User Manual VS-SW-100– V0.2 Page 7 of 11 2/2016
Page 8
2. Data Sheet

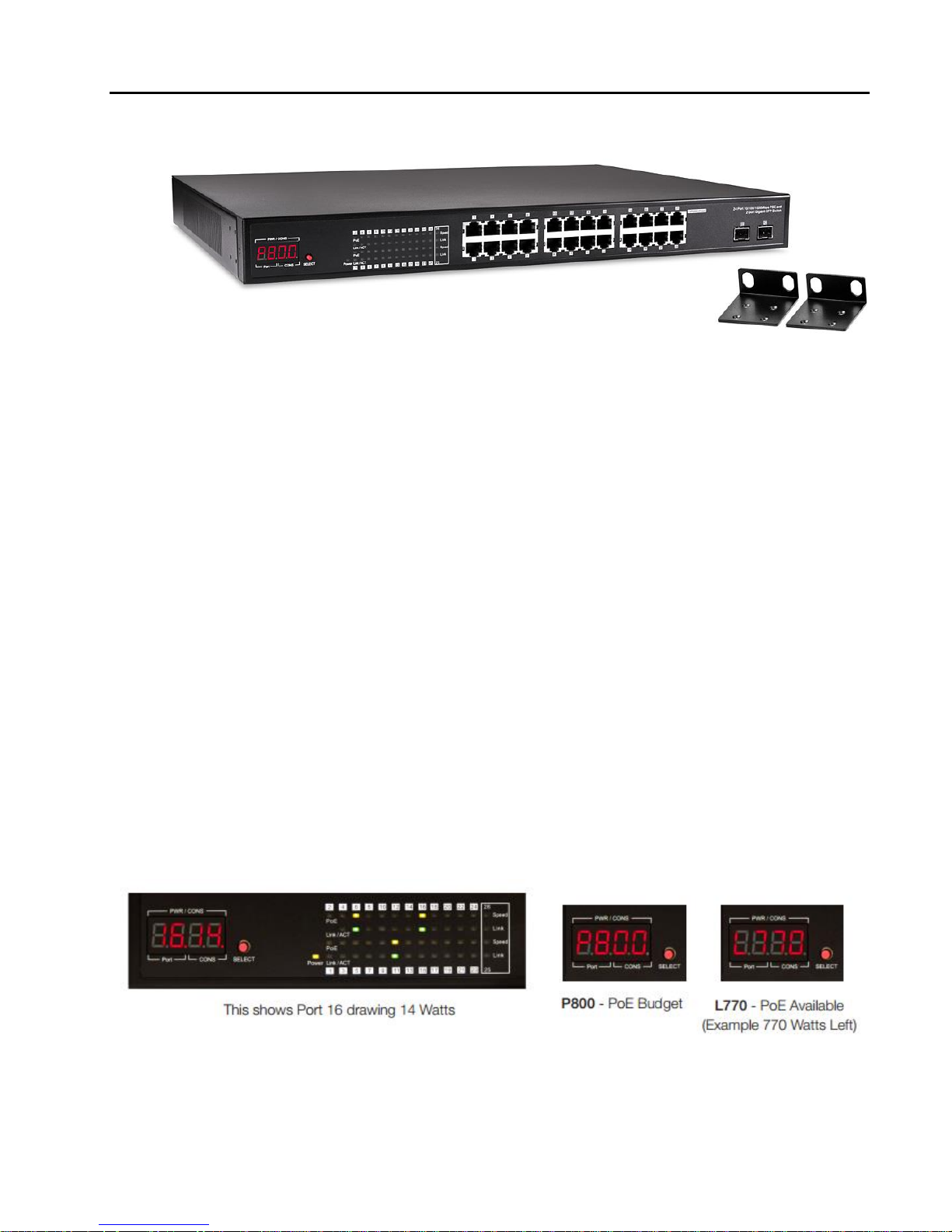

Rackmount Ears Included
3.1 Data Sheet: Features
The VS-SW-100 is a 26-port 10/100/1000Mbps Power over Ethernet switch
which consists of 24 PSE/PoE ports with an additional 2 SFP uplink port.
The VS-SW-100 has been designed specifically for use with IP Cameras, Encoders and Decoders.
It is compliant with PoE IEEE 802.3af/802.3at. Each 24 PSE/PoE ports can concurrently supply up
to 30 Watts of Power per Port (PoE+). This avoids the use of Multiple Power Supplies and makes
System Installation a snap. Supporting 24 PTZ IP Cameras from One Power Outlet makes this an
Efficient and Environmentally Friendly Solution.
• Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Flow
control, IEEE-802.3af/at
• Supports power of up to 30 watt for each PSE/PoE port
• Provides 24 10/100/1000Mbps switching ports and 2* Gigabit SFP ports
• All ports support Auto-MDIX function
• Dedicated 2000Mbps full-duplex bandwidth to the each port
• Broadcast storm control supporting store & forward operation
• Non-blocking & non-head-of-line blocking full-wire speed forwarding
• Auto-learning networking configurations
• Built-in 8K MAC learning table, 1.25M bits buffer memory
• Supports packet length up to 1536Bytes
• Filtering/Forwarding Rate: 1000Mbps/1,488,000pps; 100Mbps/148,800pps; 10Mbps/14,880pps
• Status LEDs: System Power, Link/Activity, and PoE/PSE on line
• Transmission Media: 10Base-T Cat.3, 4, 5 UTP/STP; 100Base-TX Cat.5, 5e UTP/STP; 1000BASE-T Cat.5e,
6 UTP/STP
VS-SW-100 Advanced PoE Management and Measurement
By pressing the “Select” Button you can scroll through the PoE Power Consumption of each Port as
well as see the PoE Budget (P) and the PoE Available Power (L).
User Manual VS-SW-100– V0.2 Page 8 of 11 2/2016
Page 9
3. Data Sheet

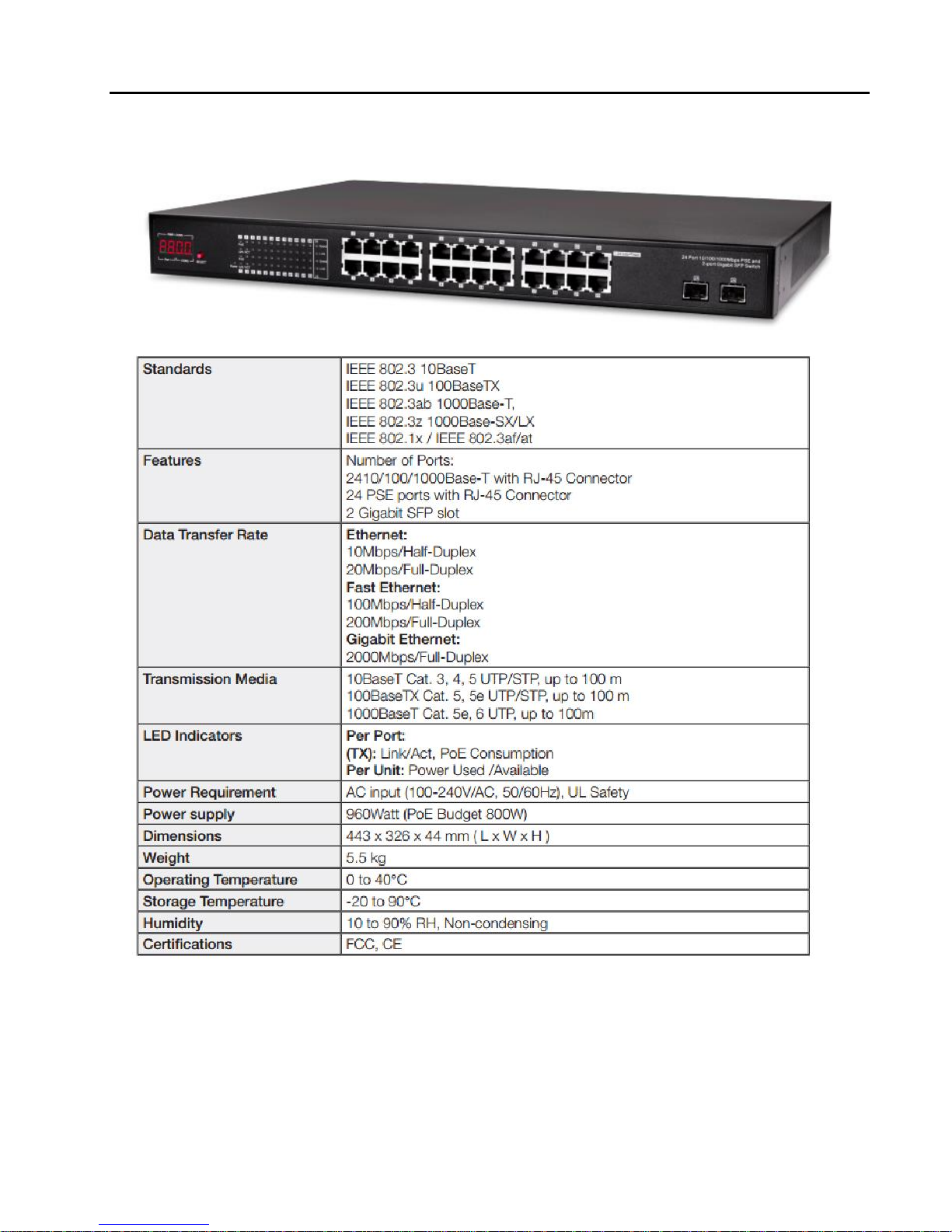

3.2 Data Sheet: Technical Specifications
User Manual VS-SW-100– V0.2 Page 9 of 11 2/2016
Page 10
User Manual VS-SW-100– V0.2 Page 10 of 11 2/2016
Page 11
Marshall Electronics, Inc.
1910 East Maple Ave. El Segundo, CA 90245
Tel: (800) 800-6608 / (310) 333-0606 Fax (310) 333-0688
www.LCDRacks.com sales@lcdracks.com
User Manual VS-SW-100 – V0.2 Page 11 of 11 2/2016
