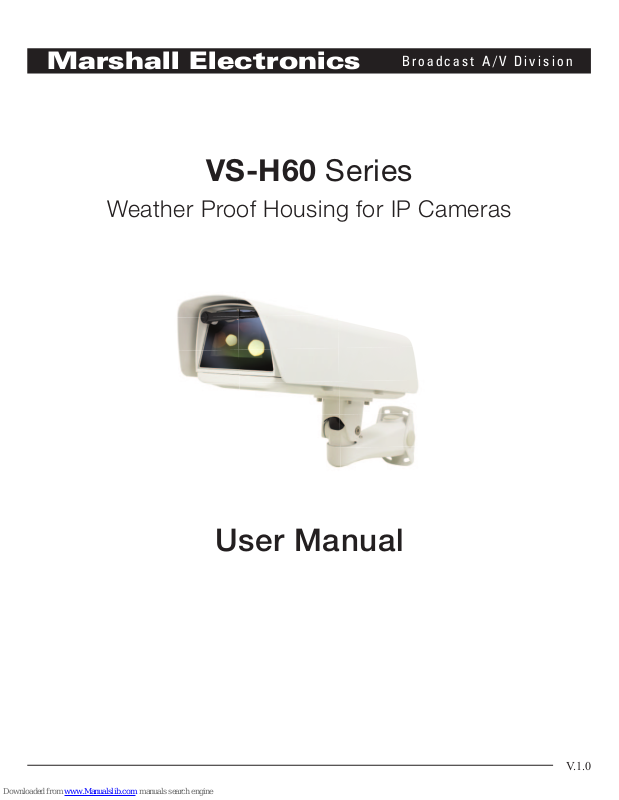

Page 1
Marshall Electronics
VS-H60 Series
Weather Proof Housing for IP Cameras
Broadcast A/V Division
User Manual
V.1.0
Page 2
Using Condition Indoor / Outdoor
Input Power AC24V
Power Consumption
VS-H60-SHB 24VAC:22W
VS-H60-SHBD 24VAC:30W
VS-H60-SHBDW 24VAC:35W
Weather Resistant
VS-H60/VS-H60-S Temperature: -15°~+50° / Humidity: 100%
VS-H60-SHB Temperature: -35°~+55° / Humidity: 100%
VS-H60-SHBD Temperature: -40°~+55° / Humidity: 100%
Thermostat
Heater: ON 4°C±3°C
Blower: ON 45°C±5°C
Dimension
External Size Internal Size
VS-H60 173(W)x116(H)x428(D)m/m 132(W)x78.4(H)x383.8(D) m/m
VS-H60-S 184.6(W)x127.3(H)x460(D)m/m 132(W)x78.4(H)x383.8(D) m/m
VS-H60-SHB 184.6(W)x127.3(H)x460(D) m/m 132(W)x78.4(H)x294(D) m/m
VS-H60-SHBD
VS-H60-SHBDW
Weight VS-H60: 2.3kg, VS-H60-S: 3kg, VS-6H0-SHB / VS -H60-SHBDW: 3.6kg
Material Aluminum, Glass, Plastic
IP grade IP66
Accessory 1/4-20UNC Screws (3ea). Spring Washer (1ea). Flat Washer (1ea)
VS-H60 Specifi cations VS-H60 Safety Instructions / Installation
VS-H60 Series Confi guration Options
Camera Installation
Important safety instructions
1. Safety check - Safety checks should be performed upon completion of service or repairs to the
unit to ensure proper operating condition.
2. Installation - Install in accordance with the manufacturer’s instructions and in accordance with
applicable local codes.
3. Attachments, changes or modifi cations - Only use attachments/accessories speci ed by the
manufacturer. Any change or modi cation of the equipment, not expressly approved by Marshall,
could void the warranty or, in the case of an authorization agreement, authority to operate the
equipment.
· Use 5MM wrench, open the housing top part
· Remove the camera plate, Install the camera on the camera plate and screw up
· Check the lens and focus
· Close the housing top part and screw up tightly
* Camera Not Included
* Shown with optional Wiper
Available Options:
• S - Sunshield
• H - Heater
• B - Blower
• D - Defroster
• W - Wiper
• P - PoE+
• VS -H60 Basic Housing
• VS -H60-S With Sunshield
• VS -H60-SH With Sunshield and Heater
• VS -H60-SHB With Sunshield Heater and Blower
• VS -H60-SHBD With Sunshield Heater, Blower and Defroster
• VS -H60-SHBDW With Sunshield Heater, Blower, Defroster and Wiper
• VS -H60-HSBDWP With Sunshield Heater, Blower, Defroster, Wiper and PoE+
2 3
Drawings
Use 5MM wrench, open the housing top part.
Remove the camera plate, Install the camera on the camera plate and screw up.
Check the lens and focus.
Close the housing top part and screw up tightly.
Drawings
Important safety instructions
1. Safety check - Safety checks should be performed upon completion of service or
repairs to the unit to ensure proper operating condition.
2. Installation - Install in accordance with the manufacturer's instructions and in
accordance with applicable local codes.
3. Attachments, changes or modifications - Only use attachments/accessories specified
by the manufacturer. Any change or modification of the equipment, not expressly
approved by KEVIS, could void the warranty or, in the case of an authorization
agreement, authority to operate the equipment.
Camera Installation
Technical Drawings
VS-H60 Series Specs
Page 3
Wall Mount Bracket Installation
NPT1/2 Fitting：
Cable φ6~φ10MM
NPT3/8 Fitting：Cable
φ
4.5~φ7.5MM
CAUTION: If you don’t
need to use fittings,
please tight up to
prevent the water
ingress.
NPT1/2 Fitting：
Cable φ6~φ10MM
NPT3/8 Fitting：
Cable
φ
4.5~φ7.5MM
CAUTION: If you don’t
need to use fittings,
please tight up to
prevent the water
ingress.
4 5
VS-H60 Installation VS-H60 Safety Installation
Supplied Bracket
Wall Mount Bracket Installation Wire Connection
Wire Connection
BLOWER
DEF-HEATER
INPUT
LOW-HEATER
LOW-
HEATER
DEFHEATER
BLOWER
AC24V
AC24V
WIPER
CONTROL
P1
P2
1
1
2
2
3
3
4
4
5
5
INPUT
AC230V
CAMERA
POWER
WIPER
CONTROL
AC24V
FUSE
G
NHN
H
G
Terminal block
P
o
w
e
r in
pu
t
Please connect the Wiper Control Terminals 1 & 2
with wire to the Main Power Board as shown
User Manual-Page4.pdf 1 11/14/2014 4:34:46 PM
Marshall Mounting Bracket
VS-H60 BRK (Included)
Top part of the bracket can
be rotated 180º horizontally
(Front, Left-to-Right),
and 90º Vertically down
Page 4
Warranty
Marshall Electronics warranties to the rst consumer that this VS-H60, weather-proof housing
will, under normal use, be free from defects in workmanship and materials, when received in its
original container, for a period of one year from the purchase date. This warranty is extended to
the rst consumer only, and proof of purchase is necessary to honor the warranty. If there is no
proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to
honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer.
This warranty does not apply to the product exterior or cosmetics. Misuse, abnormal handling,
alterations or modications in design or construction void this warranty.
No sales personnel of the seller or any other person is authorized to make any warranties other
than those described above, or to extend the duration of any warranties on behalf of Marshall
Electronics, beyond the time period described above.
Due to constant effort to improve products and product features, specications may change
without notice.
Marshall Electronics, Inc.
1910 East Maple Ave. El Segundo, CA 90245
Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688
www.Marshall-usa.com • support@marshall-usa.com
