Page 1
VS-7300
5.0 MP IP Box Camera
User Manual
Firmware Version v1.0
Copyright ©2016, Marshall Electronics, Inc.
All Rights Reserved. This document may not be copied.
Page 2
We appreciate your IP camera purchase.
Before installing the product, please read the following with care.
Trademarks
Other trademarks used in this document are registered trademarks or manufacturer or vendor
trademarks associated with the products.
Disclaimer
Product options and specifications can be changed without notice. The information in this manual is
furnished for informational use only and should not be construed as a commitment by Marshall
Electronics, Inc. Marshall Electronics, Inc. assumes no responsibility or liability for any errors or
inaccuracies that may appear in this publication.
Safety Precaution
Make sure to turn off the power before installing IP camera.
Do not install under direct sunlight or in dusty areas.
Make sure to use the product within the temperature and humidity specified.
Do not operate the product in presence of vibrations or strong magnetic fields.
Do not put electrically conducting materials in the ventilation hole.
Do not open the top cover of the products. It may cause a failure or electric shock on the
components.
Make sure to leave a space of at least 10 cm from the ventilation hole in order to prevent
overheating.
Check voltage and current requirements before connecting a power supply.
Page 3
1. Introduction .......................................................................................................................... 4
1.1 About this Manual ......................................................................................................... 4
1.2 Features ....................................................................................................................... 4
1.3 Product and Accessories ................................ ................................ .............................. 5
1.4 System Connections ..................................................................................................... 6
2. Installation ............................................................................................................................ 8
2.1 Connecting Power ........................................................................................................ 8
2.2 Connecting Network ..................................................................................................... 8
2.3 Connecting Audio ......................................................................................................... 8
2.4 Connecting Serial Port .................................................................................................. 8
2.5 Connecting Sensor & Alarm ......................................................................................... 8
2.6 Check If It Works .......................................................................................................... 8
3. System Operation ................................................................................................................ 9
3.1 Remote Video Monitoring ............................................................................................. 9
3.2 Initialization of IP Address................................ ................................ ........................... 11
4. Remote Configuration ....................................................................................................... 12
4.1 Using Web Browser ................................................................................................ .... 12
4.2 System Configuration ................................................................................................. 13
4.3 Video Configuration .................................................................................................... 21
4.4 Network Configuration ................................................................................................ 22
4.5 Serial Configuration .................................................................................................... 28
4.6 Event Configuration .................................................................................................... 30
4.7 User Configuration ...................................................................................................... 36
4.8 Camera Configuration ................................................................................................ 38
5. VS Manager ................................................................................................ ........................ 42
7. Data Sheet .......................................................................................................................... 43
8. Appendix ............................................................................................................................ 45
Page 4
1. Introduction
1.1 About this Manual
This User Manual provides information on installation setup, operation of the IP
Camera, as well as troubleshooting tips.
1.2 Features
This product is a network-based box camera with live remote monitoring, audio
monitoring and control via an IP network such as LAN, ADSL/VDSL, and wireless
LAN.
Video
Highly Efficient Compression Algorithm; H.264 & MJPEG support
Wide range of Transmission Rates: 32kbps - 16mbps
Various Transmission Modes: CBR, VBR, Hybrid

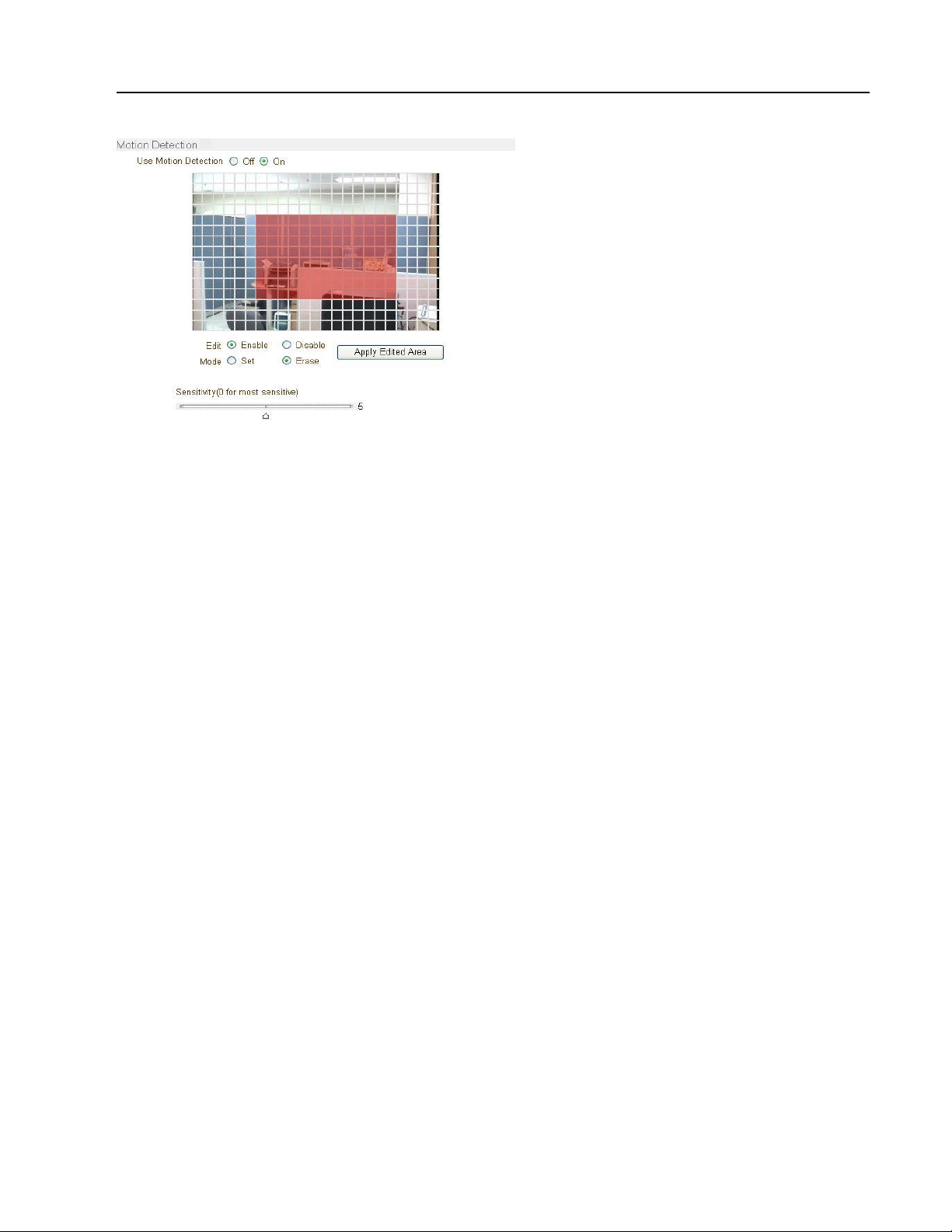

Motion Detection
Audio
Multi-Transmission Mode: Simplex (IP Camera to Client PC or Decoder/ Client PC
or Decoder to IP Camera), Full Duplex
Network
Fixed IP & Dynamic IP (DHCP) support
1:1, 1:N support
Multicasting
Various types of Protocol support : TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP,
SNMP, RTP, RTSP
OnVIF, PSIA compliant
Serial Data
RS-485 support
Data Pass-Through Mode: Serial Data Communication between IP Camera and
Decoder
Sensor and Alarm
Supports direct connections of External Sensor and Alarm Devices
Event Alarm
User Interface
Diagnose and upgrade through dedicated program called VS Manager
System configuration using Internet Explorer
High Reliability
Reliable Embedded System
System recovery by dual watch-dog functions
User Manual VS-7300 – V1.0 Page 4 of 47 5/2016
Page 5
1. Introduction

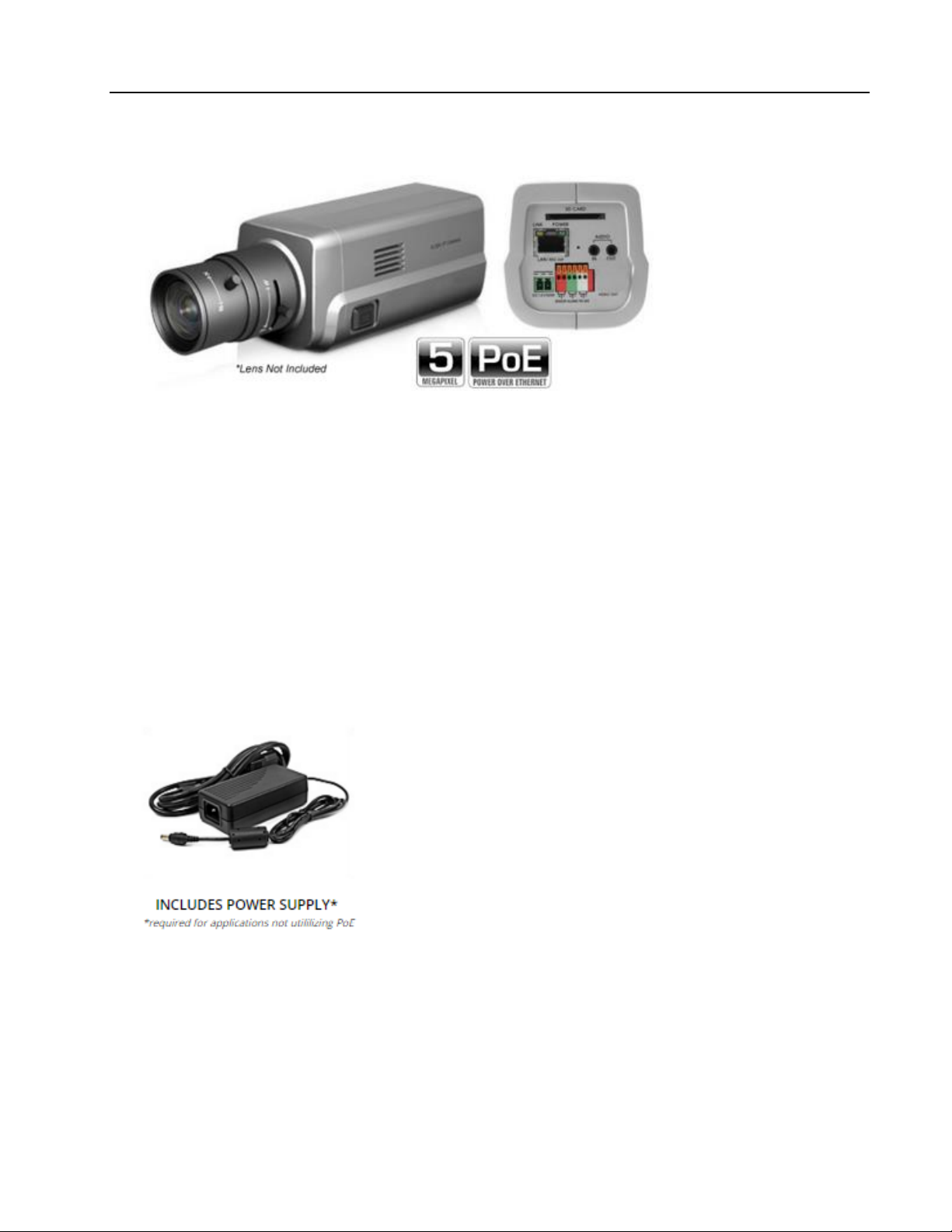

1.3 Products and Accessories
Part Names and Functions
Rear View
User Manual VS-7300 – V1.0 Page 5 of 47 5/2016
Page 6
1. Introduction
1.4 System Connections
The IP Camera can be connected in one of two ways:
1) 1 to 1 connection where one camera is connected to one PC client or a decoder
system, or 2) 1 to many connections where one system can be connected to several
PCs and decoder systems (the video server can work as a video decoder which takes
the data from a video server or IP camera, decodes and outputs analog video).
Topology
Generally, the IP Camera and PC or a Decoder is connected in a 1-to-1 mode or a 1-to
many configuration:
1:1 Connection
One camera is installed at a site where video images are transmitted. A PC or a
decoder is installed at a central location to receive and view the video images on an
analog monitor. Audio and serial data are transferred in either direction.
1:N Connection
In this configuration, a site can be monitored from many remote central locations.
Maximum connections would be limited by network bandwidth connection. Functionally,
the VMS (Video Management System) software provided can replace the decoder.
User Manual VS-7300 – V1.0 Page 6 of 47 5/2016
Page 7
1. Introduction
Multicast Mode
If the network supports Multicasting, a large number of decoders can be used to
receive video effectively using a single video and audio streaming. However, Multicast
Mode is possible only when the network environment supports Multicast.
Relaying
In this arrangement, video and audio can be re-transmitted from one center to another
center. The arrangement is useful when the network bandwidth at the site is limited
while there is more than one center wanting to monitor the site.
VMS (Video Management System)
VMS (Video Management System) is a Windows based remote monitoring program to
access multiple encoders for real-time monitoring or control of the encoders and
connected cameras. Please refer to the VMS User Manual for more information on
VMS.
User Manual VS-7300 – V1.0 Page 7 of 47 5/2016
Page 8
2. Installation
2.1 Connecting Power
After confirming power source, connect power adaptor and 12VDC connector to the
IP camera.
2.2 Connecting Network (LAN)
Connect power to the IP camera
Connect network cable into the ethernet port.
To display video through the composite port, connect to a monitor and set
preview option to ON.
2.3 Connecting Audio
Audio is Full-Duplex. It is possible to set the mode as Tx-only, Rx-only, or Tx-Rx.
Connect audio input and output ports to audio devices accordingly.
The audio signal required is line level, so audio equipment with an amp, mixer or
other amplifier should be used.

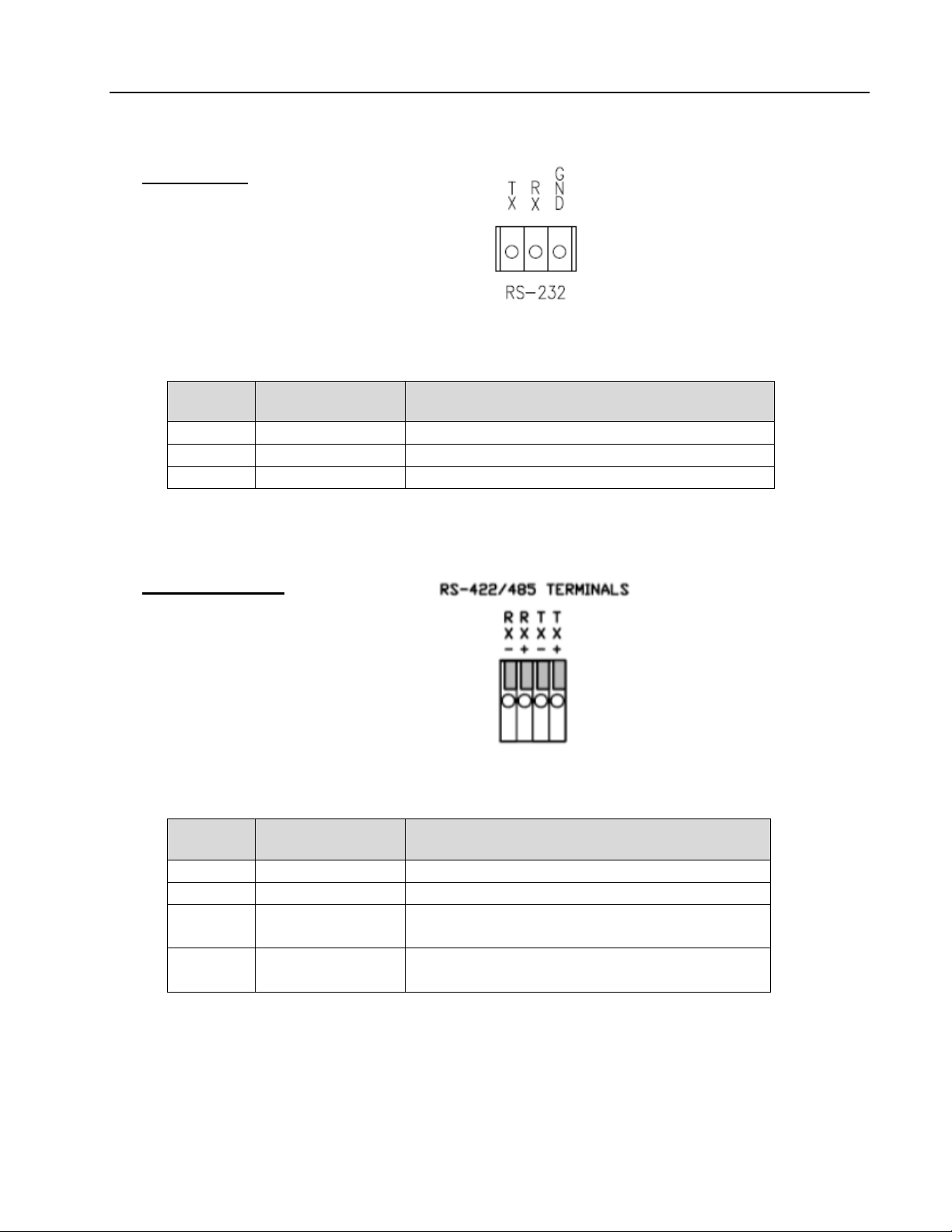

2.4 Connecting Serial Port (RS-485 Communication)
This IP Box Camera can be connected to external equipment such as a PT receiver,
etc. The camera can send PT commands via the Serial Ports.
When a Decoder System is used to connect the IP Box Camera to the Serial Port,
the Decoder System works in Pass-Through Mode (data from one port is delivered
to the other port.

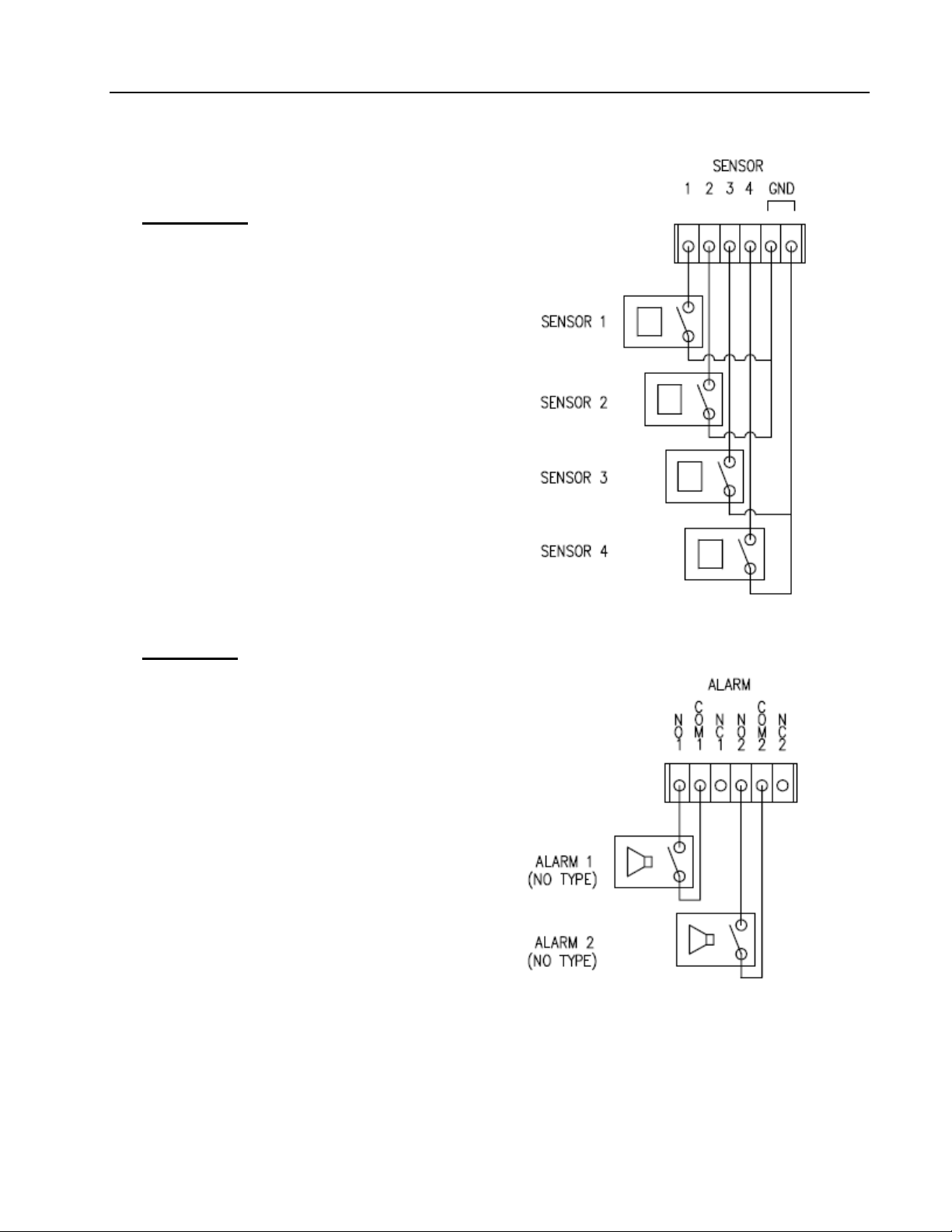

2.5 Connecting Sensor and Alarm
Connect Sensor and Alarm Devices to corresponding terminals accordingly.
2.6 Check If It Works
Once the power is supplied to the camera, it will start booting. The system will boot
up to operation mode after approximately 40-60 seconds. The green LED on the
Ethernet Port will flash indicating the system is ready.
Software provided on the disc called VS Manager allows you to check the IP
address and other network details of the camera. Please refer to the VS Manager
manual for instructions on how to find the IP address of the camera and to make
necessary changes.
User Manual VS-7300 – V1.0 Page 8 of 47 5/2016
Page 9
3. System Operation
Default ID: admin
Default Password: 1234
Default IP Address : http://192.168.10.100
3.1 Remote Video Monitoring
There are two ways to monitor video when the VMS (Video Management System) and
IP Camera are connected. In order for a proper operation, an IP Address must be set
accordingly. Please refer to the VS Manager Manual enclosed with product for further
details.

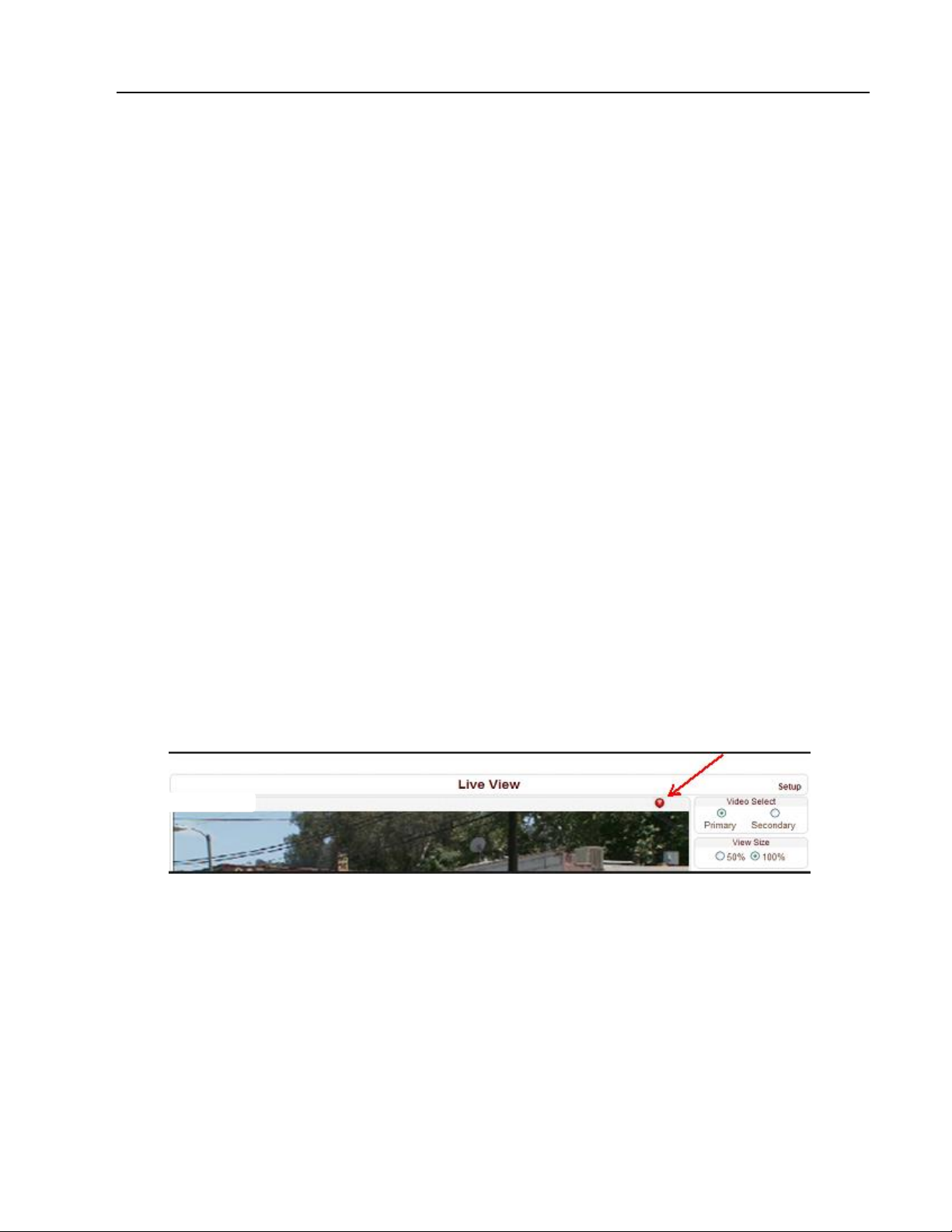

Video Monitoring using Internet Explorer
Open Internet Explorer and enter the Camera’s IP Address. The system will ask for
confirmation to install Active-X Control. Once authorized, Internet Explorer will begin to
display video images from the Encoder as shown below:
User Manual VS-7300 – V1.0 Page 9 of 47 5/2016
Page 10
3. System Operation
Video Select
Select the Video Stream to be viewed: Primary or Secondary.
This camera is capable of Dual Streaming; Primary Streaming and Secondary
Streaming. Video will be displayed according to the resolution set on video
configuration. If Dual Streaming (“Use Dual Encode” Menu in Video page) is not
activated, Secondary Video is not available.
View Size
Adjust the Screen Size. Screen size is initially adjusted according to the Compression
Resolution. If you click 50% icon, the whole screen size will be reduced to half size.
Digital Zoom
Control the Digital Zoom on the screen.
The more the camera zooms in, the smaller the square of control panel is.
Position of the image can be changed by moving position of the square. If
you press “1x”, the screen will return to the normal size.
PTZ Control (Optical Zoom & Digital Zoom Built-In Camera)
PTZ Control Panel is used for controlling External PTZ devices when the
External PTZ devices are connected through a special Serial Port. It is
possible to control zooming by using the Zoom In/Out buttons of PTZ
Control Panel. In order to use Digital Zoom, select Digital Zoom “ON” in
the Camera Tab)
- “Stop”
Stop on-going action.
- “Focus Near”, “Focus Far”, “Auto Focus”
Adjust the focus of the lens.
Select Preset
Set preset position and move to the specific preset position.
- GoTo: After set up, move to the selected preset entry.
- Set: Set the current position to the selected preset entry.
- Clear: Delete the selected preset entry.
Sensor Input
Displays the status of the sensor in real time. This camera supports One Sensor
Input. When the sensor of the camera is working, the sensor light turns red.
Alarm Output
Operate the Alarm Device by pressing the number icon. This encoder supports One
Alarm Output. A number icon indicates the status of the alarm device.
User Manual VS-7300 – V1.0 Page 10 of 47 5/2016
Page 11
3. System Operation

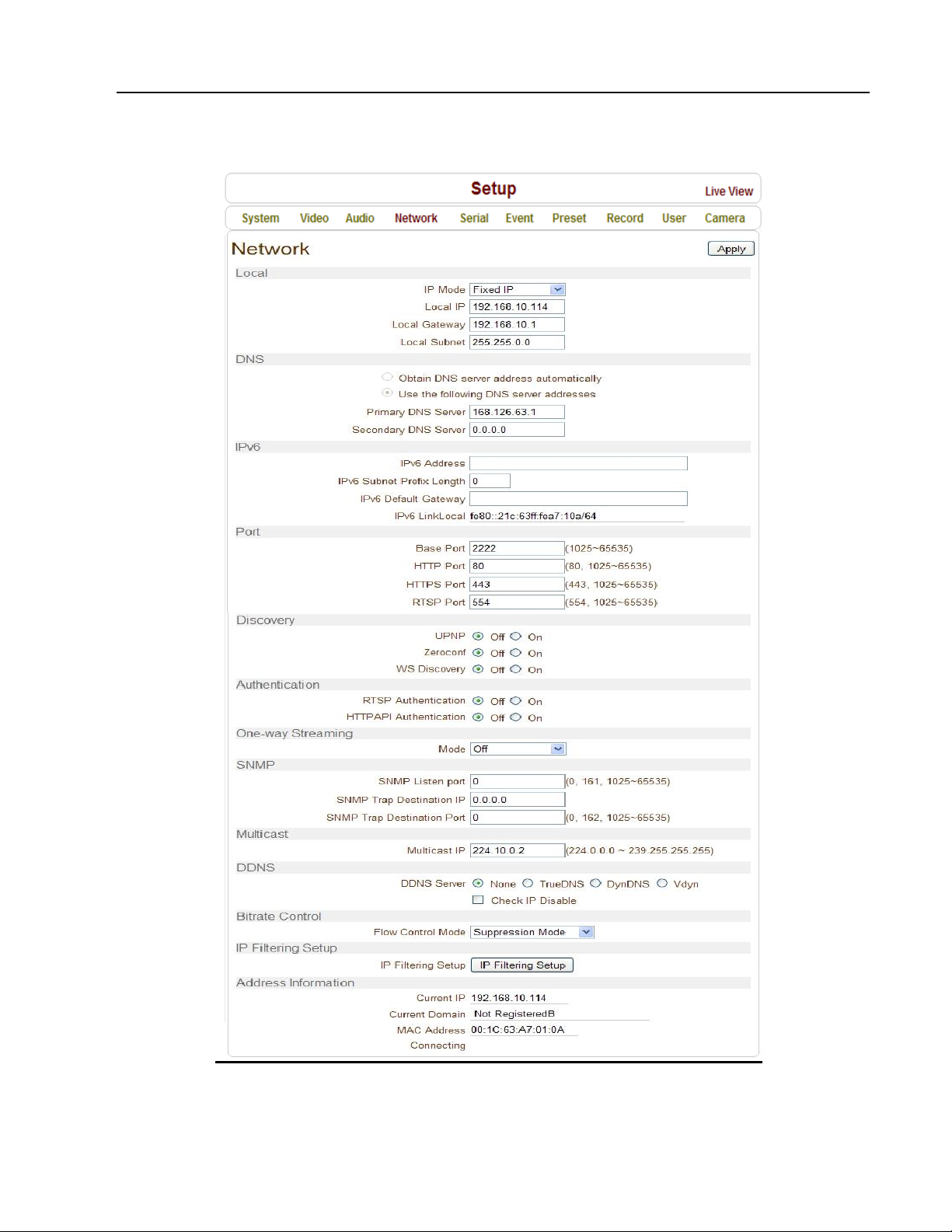

IP Mode
Fixed IP
IP Address
192.168.10.100
Subnet Mask
255.255.255.0
Gateway
192.168.10.1
Base Port
2222
HTTP Port
80
Snapshot
Capture video images and save them as BMP or JPEG files.
Talk
Transfer audio from the PC microphone to the camera.
File Record
Recording to an AVI file on Live View page is available. AVI files are generated in the
specified folder or in specified file name on the PC where the web browser is running.
1. Press “Set” button to select folder or create a new folder. Enter the file name on
Filename field.
2. Press “Start” button to start recording.
3. Press “Stop” button to end recording.
4. AVI file named “IP address_hh_mm_ss” or
“File name_IP address_hh_mm_ss” will be generated in the
specified folder depending on whether the path specified a folder
or a prefix of the file name.
Display Buffer
Set the number of video frames to be buffered before being displayed on web browser.
Larger values result in smoother video by sacrificing the latency. A setting of 10 -15
frames can be generally used for most situations.
Video Monitoring with Decoder System
When the Camera’s IP Address is set in the Remote IP Address section of the Decoder,
the Decoder System will connect to the Encoder and start receiving the video images.
Normally, a monitor connected to the decoder will display video images.
3.2 Initialization of IP address
If a System IP Address is lost, the system can be reset to the System Default IP
Address using the Reset Button to the left of the LED lights.
1. While system is in operation, press the reset button for more than 5 seconds.
2. The system will reboot automatically.
3. Once the system reboots, IP Address will be set to the System Default as below:
User Manual VS-7300 – V1.0 Page 11 of 47 5/2016
Page 12
4. Remote Configuration
4.1 Using Web Browser
Remote Setting is available by using web browser. Enter IP Address of the Camera
and a Live View screen appears (see below). Press the Setup button located in the
upper right area of the monitoring screen for Server Setup. For Remote Setting, the
user should have manager-level authority or higher.
The configurations are grouped into 9 categories: Video & Audio, Image, Network,
Event, Record, Device, PTZ, System, and User. To save configuration changes,
click “Apply”. Leaving the page without clicking “Apply” will discard any new
changes.
User Manual VS-7300 – V1.0 Page 12 of 47 5/2016
Page 13
4. Remote Configuration
4.2 System Configuration
User Manual VS-7300 – V1.0 Page 13 of 47 5/2016
Page 14
4. Remote Configuration
General
System ID
Enter System ID for the camera. The System ID is displayed on the video image
and is transferred to the remote software, such as VMS.
Language
Select the language to be used for web-based configuration.
Firmware
Firmware Version
Firmware version will be displayed here.
Board ID
The Network Camera Board ID will be displayed here.
Upgrade
To upgrade firmware, Browse local drive and select firmware file. Press Firmware
Upgrade to begin upgrade. Status messages (downloading / upgrading) will be
displayed. The camera will reboot automatically after completing upgrade. Do not
turn off the camera during upgrading.
Config Backup & Restore
Backup
All configuration settings can be saved.
Restore
Browse configuration settings and select to restore. The server is rebooted when
Config Restore is selected.
Time
Start Time
Camera’s most recent booting date and time.
Current Time
Enter the date and time and select Set Current Time to update.
User Manual VS-7300 – V1.0 Page 14 of 47 5/2016
Page 15
4. Remote Configuration
A time zone is a region of the earth that has uniform standard time, usually referred to
as the local time. By convention, time zones compute their local time as an offset
from UTC (Coordinated Universal Time). In casual use, GMT (Greenwich Mean Time)
can be considered equivalent to UTC. Local time is UTC plus the current time zone
offset for the considered location
The Network Time Protocol (NTP) is a protocol for synchronizing the clocks of
computer systems over packet-switched, variable-latency data networks. It is designed
particularly to resist the effects of variable latency by using a jitter buffer.
Time Format
Select the time and date format:
- YYYY/MM/DD hh:mm:ss (Ex. 2010-4-11 18:18:42)
- DD/MM/YYYY hh:mm:ss (Ex. 11-4-2010 18:18:42)
- MM/DD/YYYY hh:mm:ss (Ex. 4-11-2010 18:18:42)
Time Zone
Select the time zone of where the camera is installed. Depending on the time zone,
Daylight Saving Time will work automatically.
Automatically synchronize with NTP server
Synchronize the camera time with the NTP server time (network time protocol).
NTP server name should be registered.
Reboot
Reboot the camera. Only reboot when server needs a reboot.
Factory Reset
Clear all settings including user accounts and logs.
Factory Reset except network settings
All the settings except for current network settings are changed to default values.
User Manual VS-7300 – V1.0 Page 15 of 47 5/2016
Page 16
4. Remote Configuration

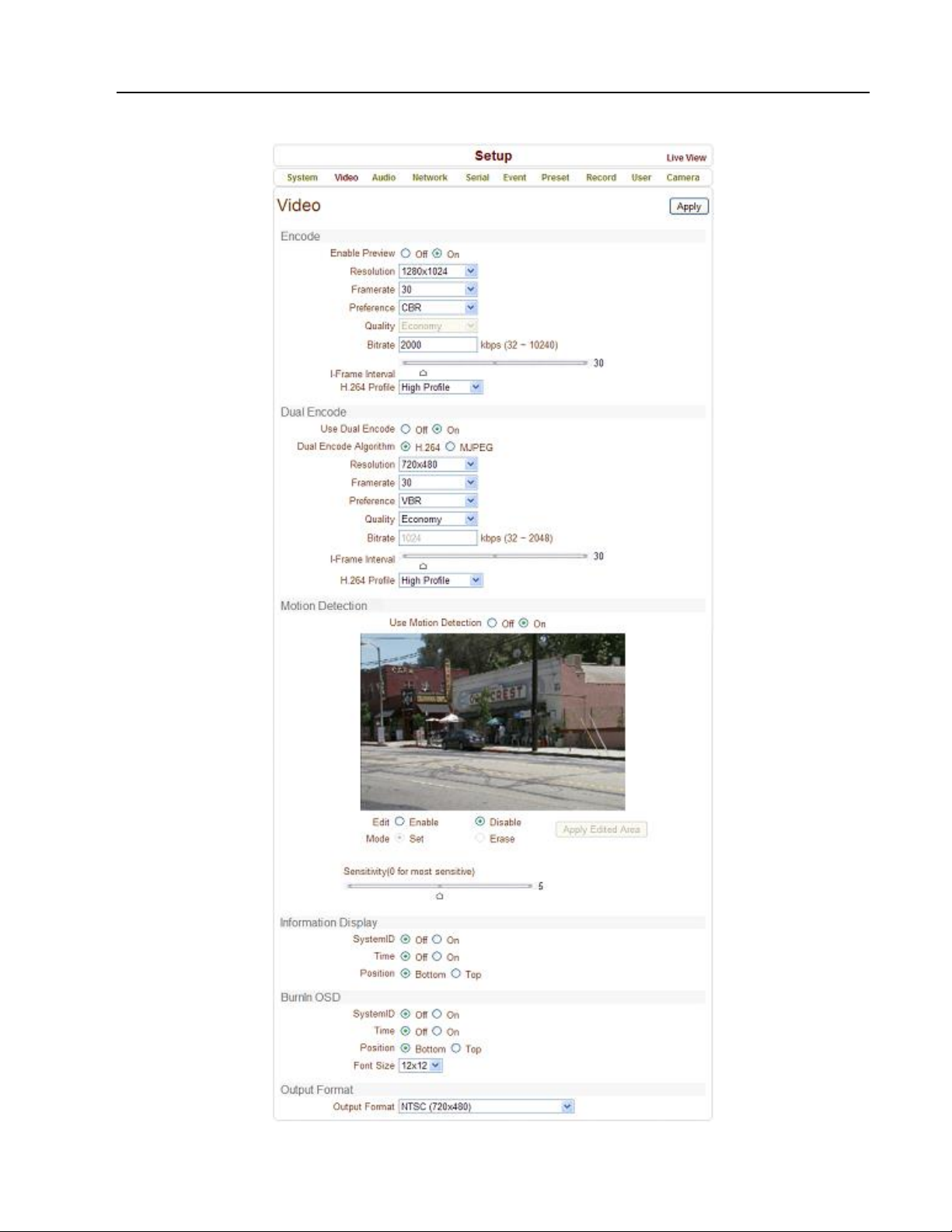

4.3 Video Configuration
User Manual VS-7300 – V1.0 Page 16 of 47 5/2016
Page 17
4. Remote Configuration
Encode
Enable Preview
1. Select ON to enable the video display preview on the monitor.
2. Select the Output Format based on the video preview. Note: when Enable
Preview is ON, dual streaming is not available. When the video is transmitted
directly to the monitor through the BNC cable, the video is not sent through the
network. Therefore, video has less delay and no network limitations.
Resolution
Select video encoding resolution.
Framerate
Determine the maximum number of frames per second for the video stream.
1, 2, 3, 4, 5, 6, 8, 10, 15, 20, 25 and 30 frame rate can be selected. The actual frame
rate of video can be less than the maximum frame rate set due to the network
bandwidth limitation.
Preference
Select Encoding Mode to control the Video Quality or Bitrate: Quality (VBR) or Bit
Rate (CBR). If ‘Bitrate’ is selected, the video encoding will be effected by the
‘Bitrate’ value entered. Therefore, the “Bitrate” mode corresponds to CBR (Constant
Bit Rate) encoding. If ‘Quality’ is selected, the video encoding will be effected by the
quality of image selected. Therefore, the “Quality” mode corresponds to VBR
(Variable Bit Rate) encoding.
Quality
Select Quality Level: 7 Levels of Quality are available. Quality Mode (VBR
Encoding) encodes every frame in a constant quality. Therefore, resulting bitrate
may vary a lot depending on the complexity or activity changes in the input video.
Quality Mode is preferred when constant video quality is required and the network
bandwidth is enough for delivering the stream of highly varying bitrate.
Bit Rate
Bitrate value ranges between 32 and 16Mbps. Bitrate Mode (CBR Encoding)
allows you to set a fixed target bitrate that consumes a predictable amount of
bandwidth. In order to stay within the bitrate limit, video quality is controlled
dynamically according to the complexity or activity changes in the input video.
I-Frame Interval
Determine I-Frame Interval between 1 and 255.
H.264 Profile
Select the H.264 Profile: High Profile or Baseline Profile.
A profile defines the various capabilities which target specific applications.
User Manual VS-7300 – V1.0 Page 17 of 47 5/2016
Page 18
4. Remote Configuration
1. High Profile
High Profile is the primary profile for broadcast and disc storage applications;
particularly for high-definition television application (for example: Blu-Ray Disc
storage format and DVB HDTV broadcast service).
2. Baseline Profile
Baseline Profile is for low-cost applications that require additional data loss
robustness used in some videoconferencing and mobile application. This
profile includes all the features that are supported in the constrained baseline
profile, plus three additional features that can be used for loss robustness.
Dual Encode
Use Dual Encode
1. Enable Preview should be OFF.
2. Select ON to enable Dual Encoding.
The secondary video can be viewed on the Live View window by selecting
Secondary on Video Selection.
Dual Encode Algorithm
Select H.264 or MJPEG for the secondary streaming.
H.264 supports either Bitrate Mode or Quality Mode. However, MJPEG supports
Quality Mode only.
Motion Detection
Use Motion Detection
Turn ON Motion Detection function.
Motion Detection Area Editing
Configure regions for motion detection. Regions of arbitrary shape can be
configured by the following steps:
1. Select Enable on Edit tab.
2. Select Editing Options: Set includes cells to motion detection region and
Erase is for excluding.
3. Select cells by using the right button of the mouse. Multiple cells can be
selected by holding and dragging.
4. Select Apply Edited Area to save edits.
User Manual VS-7300 – V1.0 Page 18 of 47 5/2016
Page 19
4. Remote Configuration
Sensitivity
Sensitivity will trigger a motion detection event.
This value determines the sensitivity of the motion detection within a block. This is
selectable from 0-10; the smaller the number, the more sensitive the motion
detection becomes.
Information Display
System ID and/or Time can be displayed within the video in Internet Explorer. Each
item can be turned on/off separately. The position for each item can be configured
individually as well. This information is displayed after the video is decompressed.
BurnIn OSD
Insert System ID and Date/Time in the compressed video. Each item can be turned
on/off separately in the video. Position and Font Size can be configured as well.
System ID for BurnIn OSD exists independently from normal System ID.
Note: BurnIn OSD Display Size varies according to the encoding resolution setting.
This is inevitable because BurnIn OSD is inserted to the frames before encoding is
performed. The following table describes the rule for BurnIn OSD display:
User Manual VS-7300 – V1.0 Page 19 of 47 5/2016
Page 20
4. Remote Configuration
Resolution
Small (8x8)
Middle
(16x16)
Large
(32x32)
352x480 / 352x240 / 352x576 / 352x288
2 1 0
720x480 / 720x240 / 720x576 / 720x288 /
640x480 / 800x600
2 2 1
1024 x 768 / 1280x720 / 1280 x 960 /
1280x1024 / 1440x900 / 1600x900 /
1680x1050 / 1920x1056 / 1920x1080 /
2048x1536 / 2560x1600 / 2592x1936
2 2 2
2: Both System ID and Time are displayed.
1: When both System ID and Time are enabled, only System ID is displayed.
0: No items are displayed. Video area is too small to display OSD in large text.
Output Format
Output Format menu appears only when Enable Preview is turned on. Select the
appropriate monitor output format based on the video output and monitor specification.
User Manual VS-7300 – V1.0 Page 20 of 47 5/2016
Page 21
4. Remote Configuration
Mode
Action
Off
No Operation
Tx-Only
Transmit Only
Rx-Only
Receive Only
Tx & Rx
Transmit and Receive
4.4 Audio Configuration
Algorithm
Algorithm
Select the Audio Algorithm: G.711 or AAC. G.711 and AAC is supported from
client to camera direction. However, bi-directional audio communication is
supported.
Bitrate
Bitrate ranges from 64Kbps and 128kbps when AAC is selected. The sample rate is
fixed to 8KHz and 32KHz for G.711 and AAC respectively. Note: when the camera
is connected to a decoder, the decoder’s audio algorithm should be set identically
to transmit the audio properly.
Mode
Select the Audio Operation Mode:
Input Gain
Audio Input Gain ranges from 0 to 31.
User Manual VS-7300 – V1.0 Page 21 of 47 5/2016
Page 22
4. Remote Configuration
4.4 Network IP & Port Configuration
User Manual VS-7300 – V1.0 Page 22 of 47 5/2016
Page 23
4. Remote Configuration
Domain Name System (DNS) is a database system that translates a computer's fully qualified
domain name into an IP address. Networked computers use IP addresses to locate and connect to
each other, but IP addresses can be difficult for people to remember. For example, on the web, it's
much easier to remember the domain name www.amazon.com than it is to remember its
corresponding IP address (207.171.166.48). Each organization that maintains a computer network
will have at least one server handling DNS queries. That server, called a name server, will hold a
list of all the IP addresses within its network, plus a cache of IP addresses for recently accessed
computers outside the network.
IP Mode
Selection
Description
Fixed IP
Local IP
Fixed IP Address
Local Gateway
Gateway IP Address
Local Subnet
Subnet Mask
DHCP
N/A
Local
IP Mode
Select the IP Mode: Fixed IP or DHCP
Depending on the selected mode, the following configuration applies:
Contact your ISP provider or network manager for IP address information.
DNS
Obtain DNS Encoder Address automatically
Find DNS Encoder Address automatically when IP Mode is set to DHCP.
Use the following DNS Encoder Address
Enter the DNS Encoder IP Address: Primary or Secondary DNS Encoder
IPv6
IPv6 Address: Enter the designated Ipv6 address.
IPv6 Subnet Prefix Length: Enter the bit number for the Ipv6 subnet.
IPv6 Default Gateway: Enter the designated Ipv6 gateway.
IPv6 Link Local: Display the Ipv6 link local.
Port
Base Port (1025 - 65535)
Enter the Base Port Number: Network Base Port is used for communication with
remote clients. In order for the IP Camera and remote systems to be connected, the
port number must be identically configured for the IP Camera side and client side.
HTTP Port (80, 1025 - 65535)
Enter HTTP port used for a web-based connection.
HTTPS Port (443, 1025 - 65535)
Enter HTTPS port used for a secured HTTP connection.
RTSP Port (554, 1025 - 65535)
Enter RTSP port used for RTSP-based connection. The default TRSP port is 554.
User Manual VS-7300 – V1.0 Page 23 of 47 5/2016
RTSP (Real Time Streaming Protocol) is a standard for media streaming
between encoder and client.
Page 24
4. Remote Configuration
Discovery
UPNP
When UPNP is ON, it allows the discovery of the client according to UPNP
(Universal Plug and Play) Protocol.
Zeroconf
When Zeroconf is ON, it allows the discovery of the client according to Zeroconf
Protocol.
WS Discovery
Discovery function based on web service is enabled. It allows the discovery by the
client SW which is supporting Onvif.
Authentication
RTSP Authentication
If RTSP Authentication is ON, the client side user will need to User ID and
Password.
HTTP API Authentication
When HTTP API Authentication is ON, HTTP Authentication is verified for all clients
with HTTP API.
One-Way Streaming
This IP Camera provides two kinds of one-way (unidirectional) streaming based
on UTP to clients: RTSP and MPEG-TS. Both are types of broadcasting where traffic
from clients to an encoder is not generated at all.
RTP (Real-Time Transport Protocol) is an Internet Protocol used for transmitting
single real-time multimedia data such as audio and video to a select group of
connected clients. Normally RTSP uses RTP to format packets of multimedia
content. The RTP menu is used when the RTP only is streaming without an RTSP
connection. RTP stream will be transmitted to the destination set. The SDP (Session
Description Protocol) file can be found in the encoder and a client can retrieve it
using the http connection.

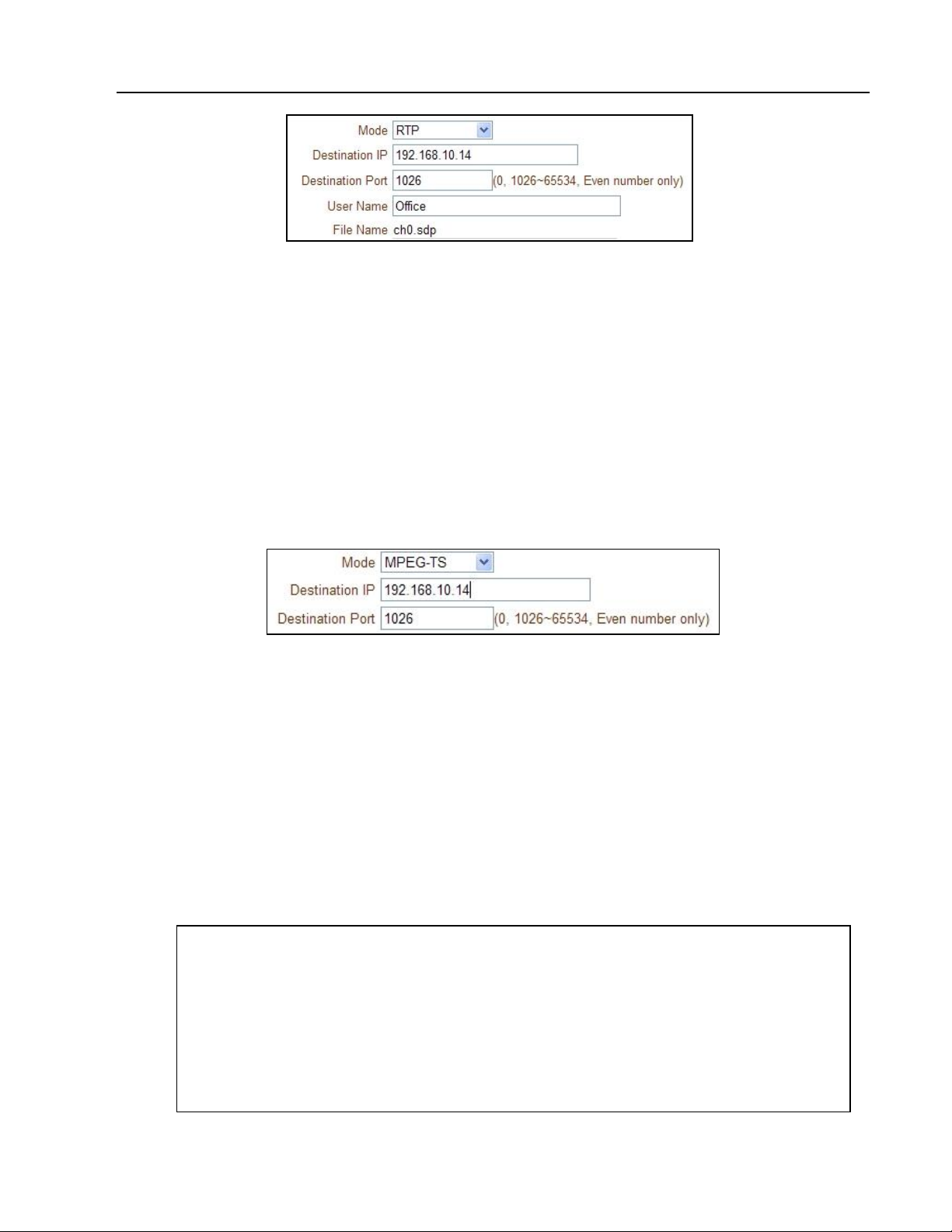

Destination IP: Set the IP Address of the destination system receiving the RTP
Stream. If the system is a decoder, RTSP authentication information can be found
in the middle of the RTSP URL: rtsp://admin:1234@192.168.10.100:554/video1
Destination Port: Set the port of the destination system receiving the
TRP stream.
User Name: Enter the user name that will be used as a session name in
the SDP file.
File Name: Enter the file name that will be used as the name of the SDP
file. When this is entered, it can be accessed through
http://ServerAddress/filename
User Manual VS-7300 – V1.0 Page 24 of 47 5/2016
Page 25
4. Remote Configuration
Simple Network Management Protocol (SNMP) is used by Network Management
Systems to communicate with network elements. SNMP lets TCP/IP-Based
Network Management clients use a TCP/IP-Based internetwork to exchange
information about the configuration and status of nodes. SNMP can also generate
trap messages used to report significant TCP/IP events asynchronously to
interested clients. For Example: a router could send a message if one of its
redundant power supplies fails or a printer could send an SNMP trap when it is out
of paper.
MPEG-TS is the standard format for the transmission and storage of audio, video,
and data, and is used in broadcast systems such as DVB and ATSC. Transport
Stream is specified in MPEG-2 Part 1 Systems (formally known as ISO/IEC
standard 13818-1 or ITU-T Rec. H.222.0). Transport Stream specifies a container
format encapsulating packetized elementary streams with error correction and
stream synchronization features for maintaining transmission integrity when the
signal is degraded. Although MPEG-TS supports AAC as the audio algorithm, only
video is streamed when audio algorithm is set to G.711.
Destination IP: Set the IP Address of the Destination System which will receive MPEG-
TS stream.
Destination Port: Set the Port of the Destination System which will receive MPEG-TS
stream.
SNMP
SNMP (Simple Network Management Protocol) is compatible with both SNMPv1
and SNMPvec. Settings for using SNMP are as follows:
SNMP Listen Port (0, 161, 1025 - 65535)
This port is for connecting an external device as an SNMP client. SNMP is not
used when the value is 0.
SNMP Trap Destination IP
Set the SNMP Trap Destination IP.
SNMP Trap Destination Port (0, 162, 1025 - 65535)
Set the SNMP Trap Destination Port. SNMP is not used when the value is 0.
User Manual VS-7300 – V1.0 Page 25 of 47 5/2016
M
Page 26
4. Remote Configuration
Dynamic DNS is a method, protocol, or network service that provides the capability for a
networked device, such as a router or computer system using the Internet Protocol Suite, to
notify a domain name server to change, in real time (ad-hoc) the active DNS configuration of its
configured hostnames, addresses or other information stored in DNS.
Multicast
Multicast IP
The Multicast menu is used for configuring the Multicast IP Address where the
media stream is delivered when a Decoder, VMS or NVR software is connected in
the Multicast Mode. The Multicast IP Address selection range is between 224.0.0.0
and 239.255.255.255. The selection can be used only when the media protocol is
set to Multicast.
DDNS
Select DDNS (Dynamic DNS) Encoder to use. One of the two can be selected:
DynDNS
DynDNS service is used in this mode. Refer to www.dyndns.org for details.
ID, Password and Domain name are needed when DynDNS is set.
Vdyn
Vdyn is a DDNS service provided by Visionica (http://visionica.com). No further
configuration is required for using this service. It internally uses the MAC address
for the registration. When it succeeds, the domain name of the form
001C63A607EC.visionica.info is displayed on Current Domain entry of the
Network page. Email setting is not mandatory.
Check IP Disable
If “Check IP Disable” is selected, it will skip to check it’s own IP. In Fixed IP Mode,
the set IP will be registered on the DDNS Encoder. In DHCP Mode, a dynamically
assigned IP will be registered on the DDNS Encoder. Normally Check IP Disable
should be unchecked in order to obtain the public IP in the network.
Bitrate Control
When more than one device is connected to the camera, due to the bandwidth
differences, some do not have enough bandwidth to receive the encoded stream
completely. In this case, it is possible to select the video options:
Frame Drop Mode: Encoding is performed strictly according to video settings.
When a device is connected through a network with less bandwidth, some frames
may be dropped.
Suppression Mode: Encoding bitrate and frame rate are adjusted so frames are
not dropped even when the network bandwidths are limited on some devices. In this
case, all devices can be affected by the averaged bitrate and frame rate.
User Manual VS-7300 – V1.0 Page 26 of 47 5/2016
Page 27
4. Remote Configuration
Address Information
Network information is displayed (read only):
IP Address: Camera IP address is displayed. This information is useful when
the camera’s IP mode is set to DHCP.
Domain Name: If the camera is registered to the DDNS server, the registered
domain name is displayed.
MAC Address: Displays the MAC address of the camera. If the camera is
registered to the DDNS server, the MAC address is used for DDNS registration.
Connecting: Device IP Addresses that are currently connected to system are
displayed.
User Manual VS-7300 – V1.0 Page 27 of 47 5/2016
Page 28
4. Remote Configuration

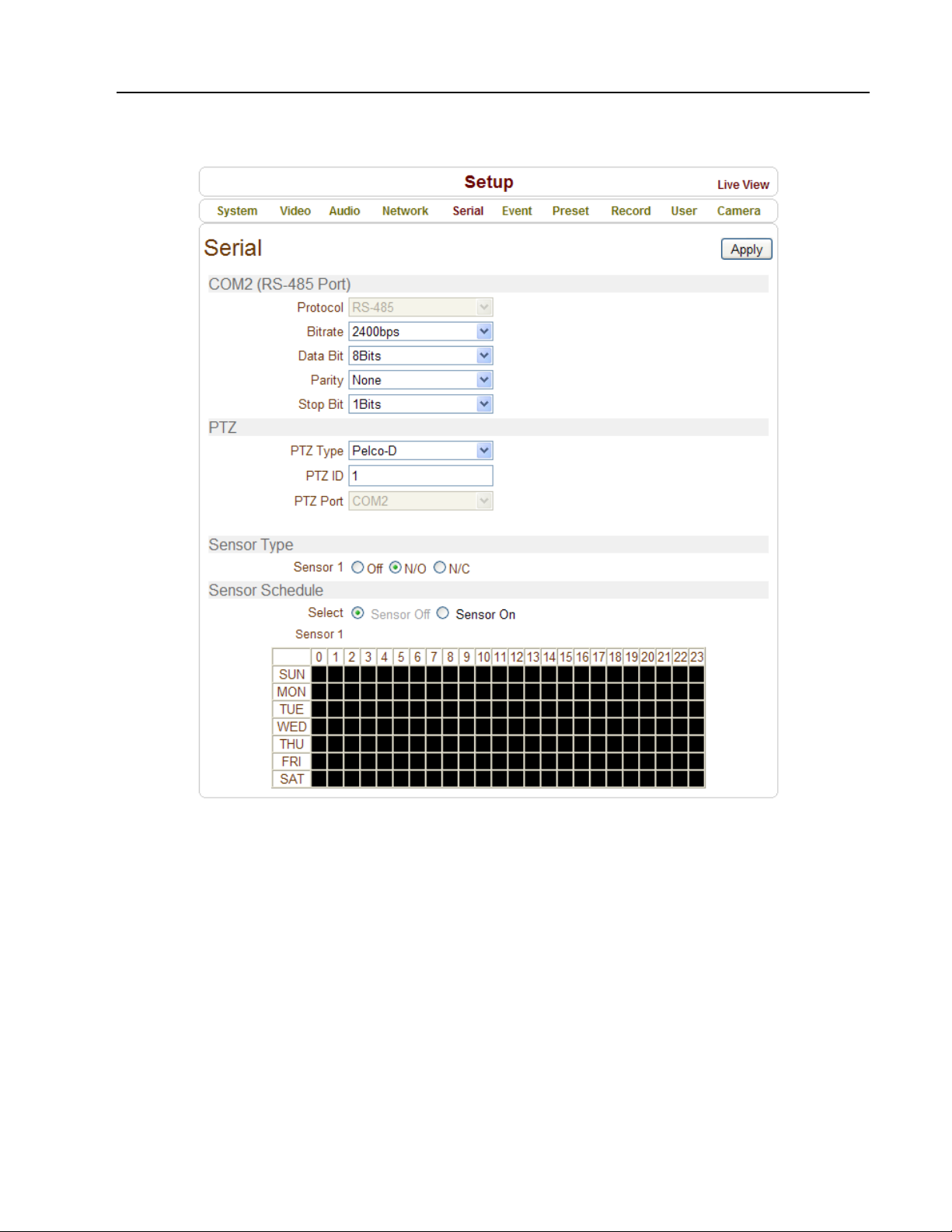

4.5 Serial Configuration
Serial Port Configuration
Serial Port Information
This camera supports one RS-485 serial port. By default, Pelco-D protocol is used
with 2400bps.
User Manual VS-7300 – V1.0 Page 28 of 47 5/2016
Page 29
4. Remote Configuration
Function
Operation
OFF
Not used
NO (Normally Open)
The port is normally open and activated when closed.
NC (Normally Closed)
The port is normally closed and activated when opened.
Sensor Type
There is one sensor input port on this IP camera. The sensor port can be configured
as follows:
The function of the sensor port is set based on type of the sensor connected.

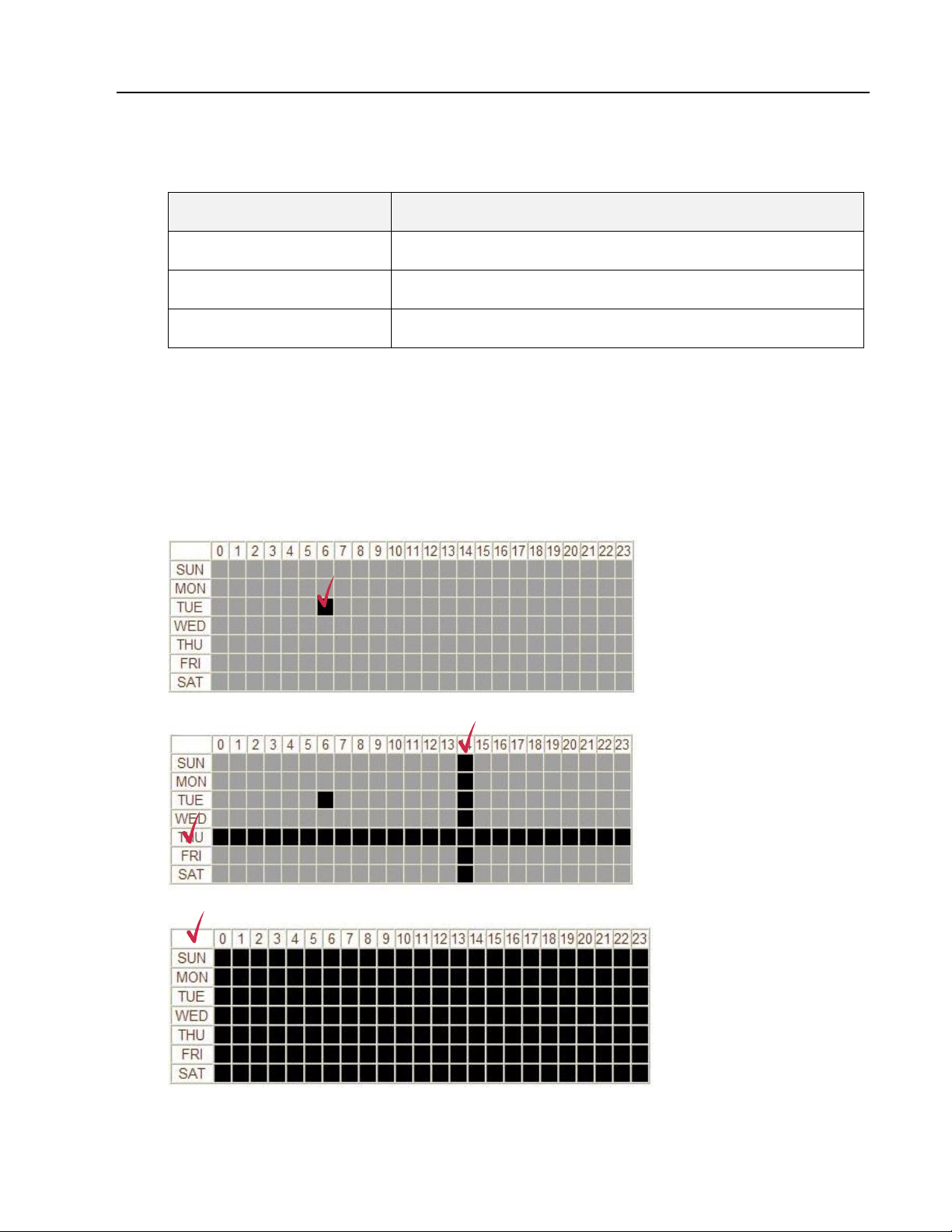

Sensor Schedule
Choose Sensor OFF or Sensor ON and select cells to set Sensor Schedule for the
day and hour.
Click desired “Cell” to set schedule.
Click desired “Time Line or Date Line” to set schedule.
To set all cells in the schedule, click below “Empty Cell”.
User Manual VS-7300 – V1.0 Page 29 of 47 5/2016
Page 30
4. Remote Configuration

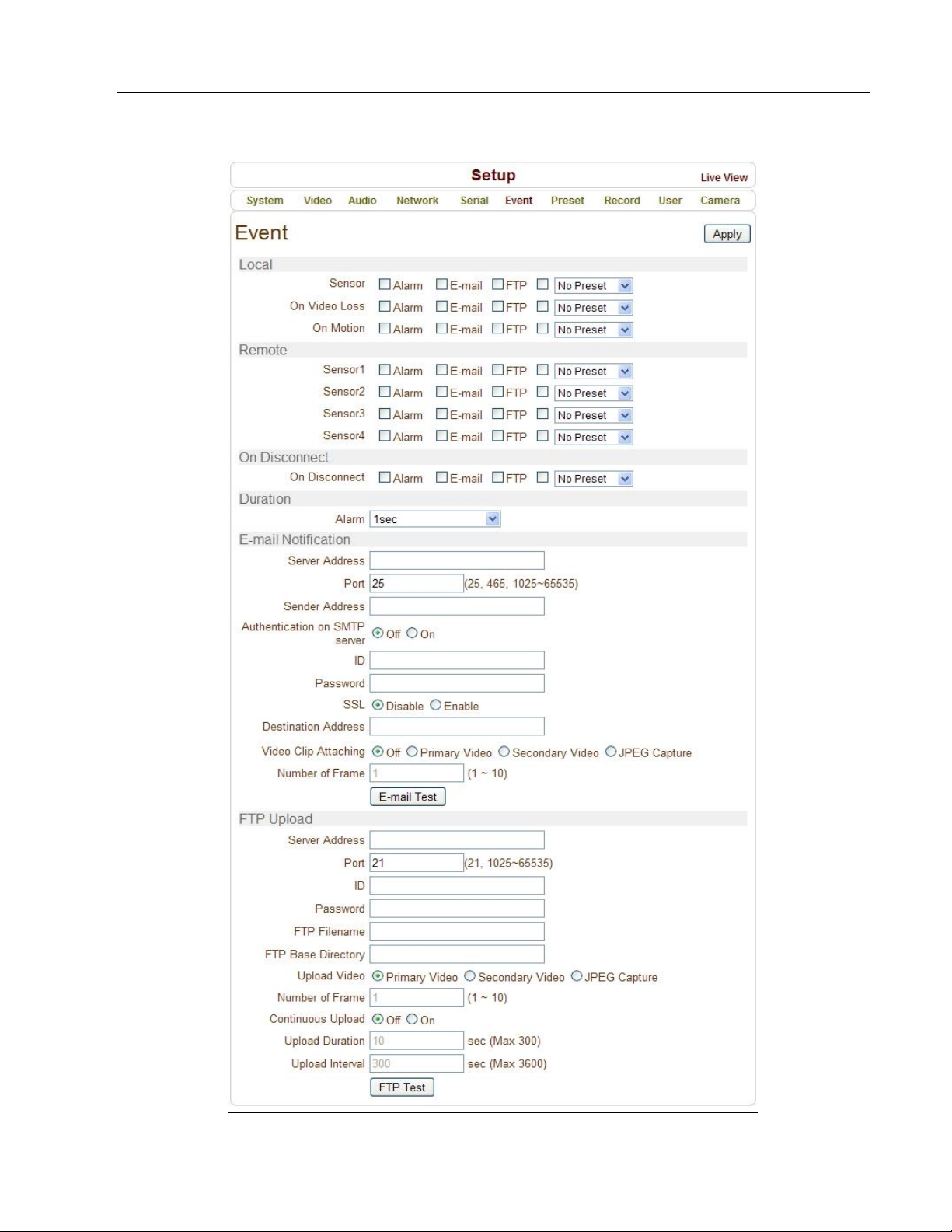

4.6 Event Configuration
User Manual VS-7300 – V1.0 Page 30 of 47 5/2016
Page 31
4. Remote Configuration
Disk Status
Description
Disk Error Detected
Error
No Disk
Disk is not connected to the system.
Searching Disk
Information
Checking for disk status. Refresh the page and wait
until status is changed.
Mounting and
Recovering Disk
Performing recovery process when disk is damaged.
This could take seconds to minutes to recover.
Disk Format Needed
Disk is attached but the file type is unknown or
damaged.
Unknown Disk Type
Detected
Disk is attached but the file type is unknown or
damaged.
USB Disk Available
Available to be used for recording.
Disk removed
or in abnormal state
Disk is detached during operation or damage is
found on the file system. If detected while disk is
connected, formatting the disk is recommended.
DISK
At least 1GB SD memory is recommended. Either EXT3 or FAT32 file system can be
used. A disk with either EXT3 or FAT32 file system can be read in Linux PC.
However, only FAT32 file system can be read in Windows PC.
Less than 4Mbps bitrate is recommended when you record and monitor video
simultaneously since frame dropping may happen due to performance limitation.

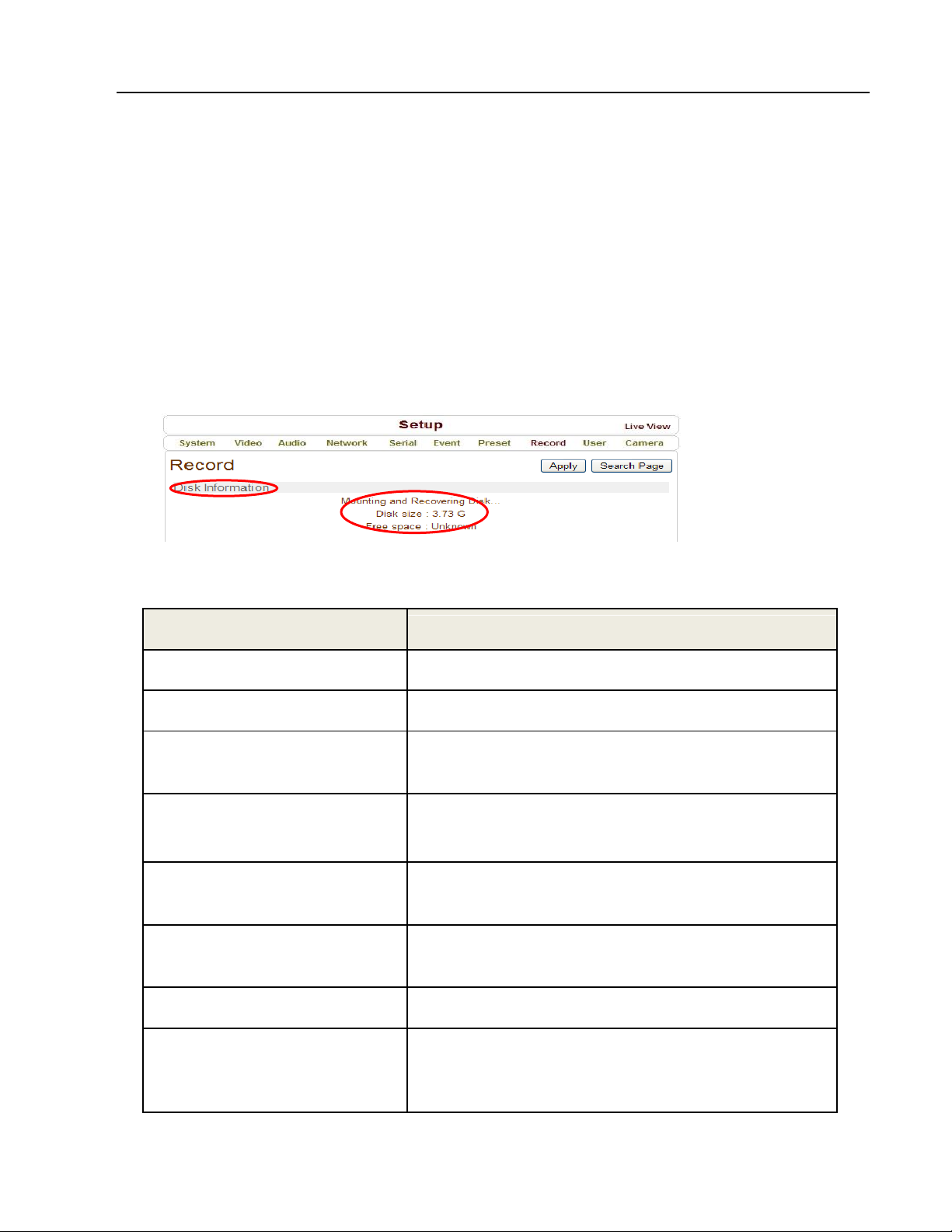

Disk Information
Restart the system after connecting an SD card. During rebooting, the system reads
& initializes the status of disk. Once the initialization is finished, the status is shown
on the Record page of the web-based setup.
Refer to the chart below for Disk Status:
User Manual VS-7300 – V1.0 Page 31 of 47 5/2016
Page 32
4. Remote Configuration
General
Use Record
Off: Recording function is not used when OFF is selected.
Use Disk: Recording is enabled and data will be written to a disk.
Use FTP: Recording is enabled and data will be uploaded to an FTP server. In
this mode, FTP upload by event is automatically disabled.
Select Video
Select video stream to record.
Manual Record
When ON is selected, recording is on regardless of schedule.
Overwrite
When the disk becomes full, the oldest data is deleted automatically. This only
applies when Use Record is set to Use Disk.
Max File Size/ Max File Length
Max File Size option is for limiting the size of AVI file. If a small file size is set,
small files will be generated but the number of files will be increased. Max File
Length option is for limiting the time of the AVI file. If the size of a file reaches the
Max File Size or the duration of the recording reaches the Max File Length, a new
file is created.
Automatically Backup to FTP
Recorded disk data can be uploaded to an FTP server automatically for backup.
FTP server is configured on the Event page. This only applies when Use Record is
set to Use Disk.
Erase After Backup
Data is deleted in the disk automatically after being uploaded to the FTP server.
This only applies when Automatically Backup to FTP is used.
Start Time of Backup Data
Specify the time when Backup to FTP Disk should begin. This time can change
based on the current schedule. This function only applies when Automatically
Backup to FTP is selected.
FTP Base Directory
Specify the name of the directory to be created in the FTP server. This only
applies when Use Record is set to Use FTP.
User Manual VS-7300 – V1.0 Page 32 of 47 5/2016
Page 33
4. Remote Configuration
Event Type
Three Recording Modes are supported: Continuous, Event, and Disconnect.
Event Recording options allow event types to be selected for several events.
Selected event type is used for configuring the schedule table. Up to 4 event types
can be configured and each event type can be a combination of sensor, video loss
and motion event.
Pre-Event Time
Specify the recording duration before an event happens.
Post-Event Time
Specify the duration after the event is cleared.
Schedule Table
Actual recording mode is determined by the Schedule Table where recording
mode is configured by the day and hour.
Recording Mode options:
Record Off: No recording.
Continuous: Records continuously.
Disconnect: Recording is started when the system loses connection to the last
device (Decoder, VMS/NVR, etc). When multiple devices are used and only one is
disconnected, the others will continue to record.
Event Type: Records when Event Type configuration is applied.
Checking Recording Status
Recording status can be checked on the main view page.
Search and Playback
Recorded video and audio data can be saved as an AVI file on the disk. In general,
one AVI file is created per event recording. However, it is possible to merge a series
of recorded data to a single AVI file depending on pre/post event time settings. The
size of the file is limited to 10-200MB or 10 minutes.
User Manual VS-7300 – V1.0 Page 33 of 47 5/2016
Page 34
4. Remote Configuration

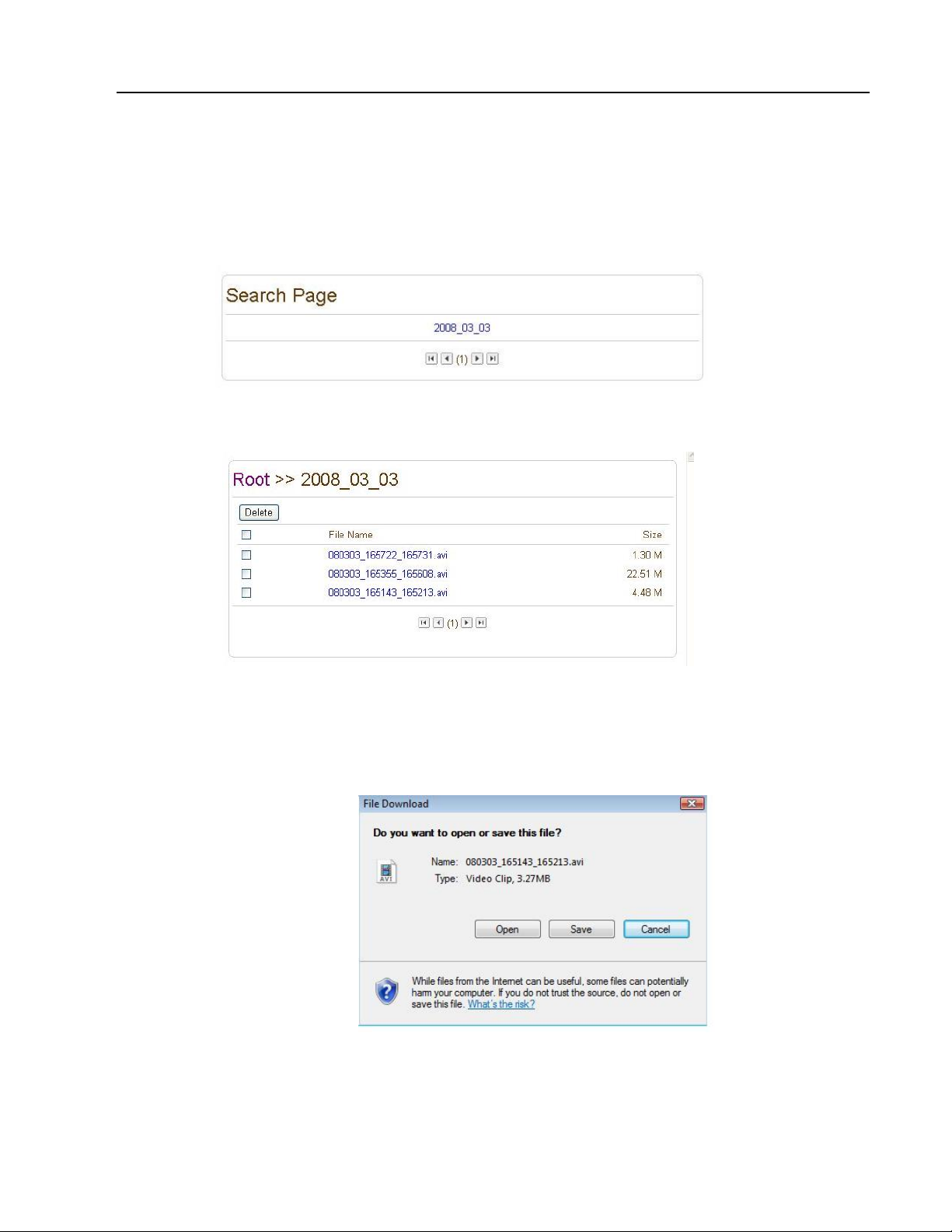

Search
An actual recording doesn’t appear until the recording is completed. With
Continuous Recording, a file will be shown after 10 minutes and a new file is
generated every 10 minutes after that.
1. Press Search Page button on the Record setup page. The data will be
displayed with recorded dates as shown below:
2. Chose the appropriate date and the list of AVI files will be shown.
3. The files are named as: “Date Begin Time End Time.avi”.
4. Press Root to move back to the page with the date list.
Playback
1. Selecting an AVI file will show a dialog for opening or saving the file.
User Manual VS-7300 – V1.0 Page 34 of 47 5/2016
Page 35
4. Remote Configuration

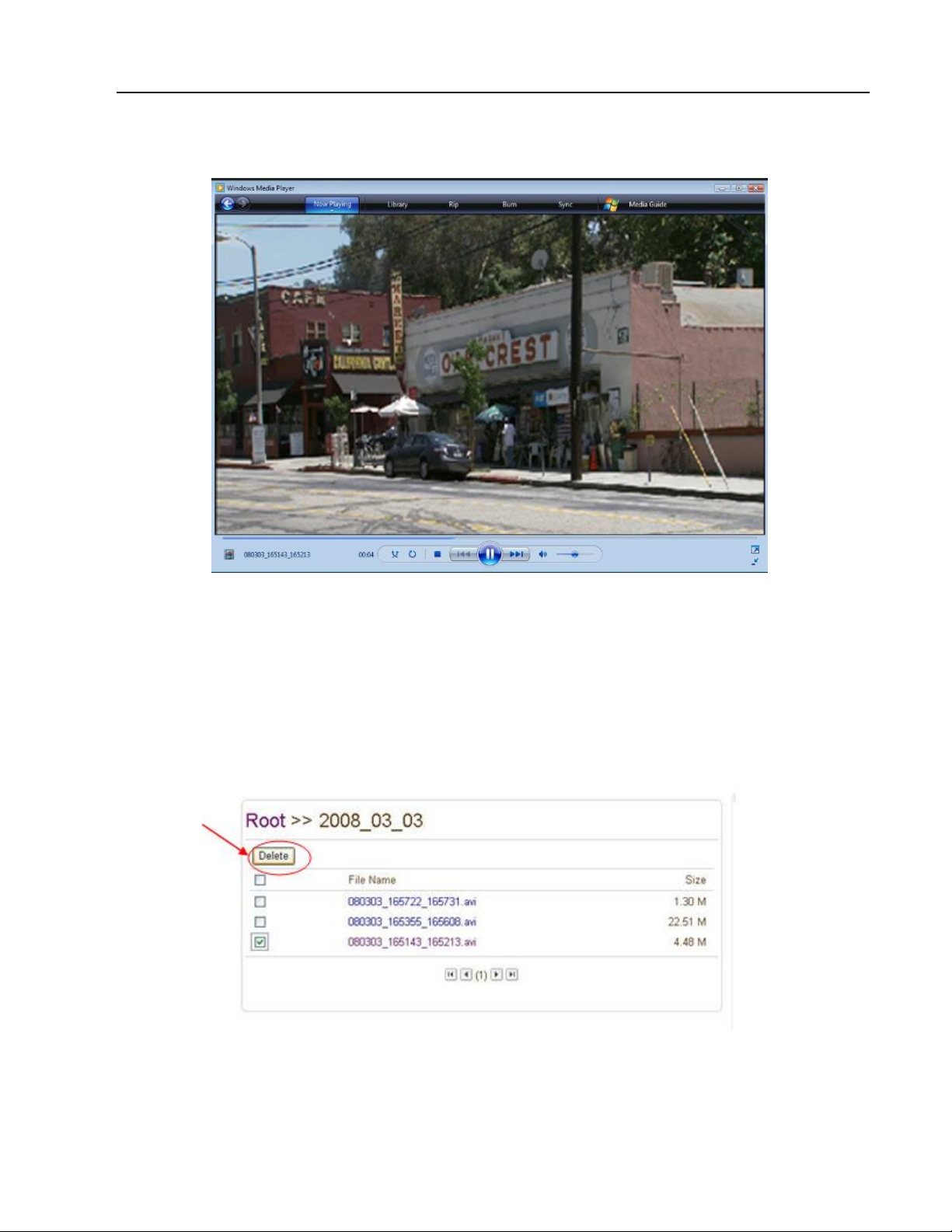

2. The Save button will store the file. The AVI file can be played with Windows
Media Player.
3. The Open button will download and automatically play with the file with
Windows Media Player.
4. Another connection through web is disabled during downloading and it is
also not allowed to download two AVI files at the same time.
Deletion of Data
1. To delete recorded files, select appropriate files and press Delete button.
2. It is possible to delete multiple files at once.
User Manual VS-7300 – V1.0 Page 35 of 47 5/2016
Page 36
4. Remote Configuration
Privilege
Allowed Operations
Remarks
Admin
All Operations
User ID = Admin
Manager
All Operations except for User
Configuration
User
Live Viewing and PTZ Control
Guest
Live Viewing Only
4.7 User Configuration
User List
User can be registered and privilege level of a user can be specified. User configuration
is allowed only to admin user. Max 16 users can be registered and each user can have
one of four privileges.
Add User
Press Add button and this window will appear:
Enter User ID and password (Up to 15 characters) and select Privilege Level.
User Manual VS-7300 – V1.0 Page 36 of 47 5/2016
Page 37
4. Remote Configuration
Delete User
Select the User to be deleted and press Delete button.

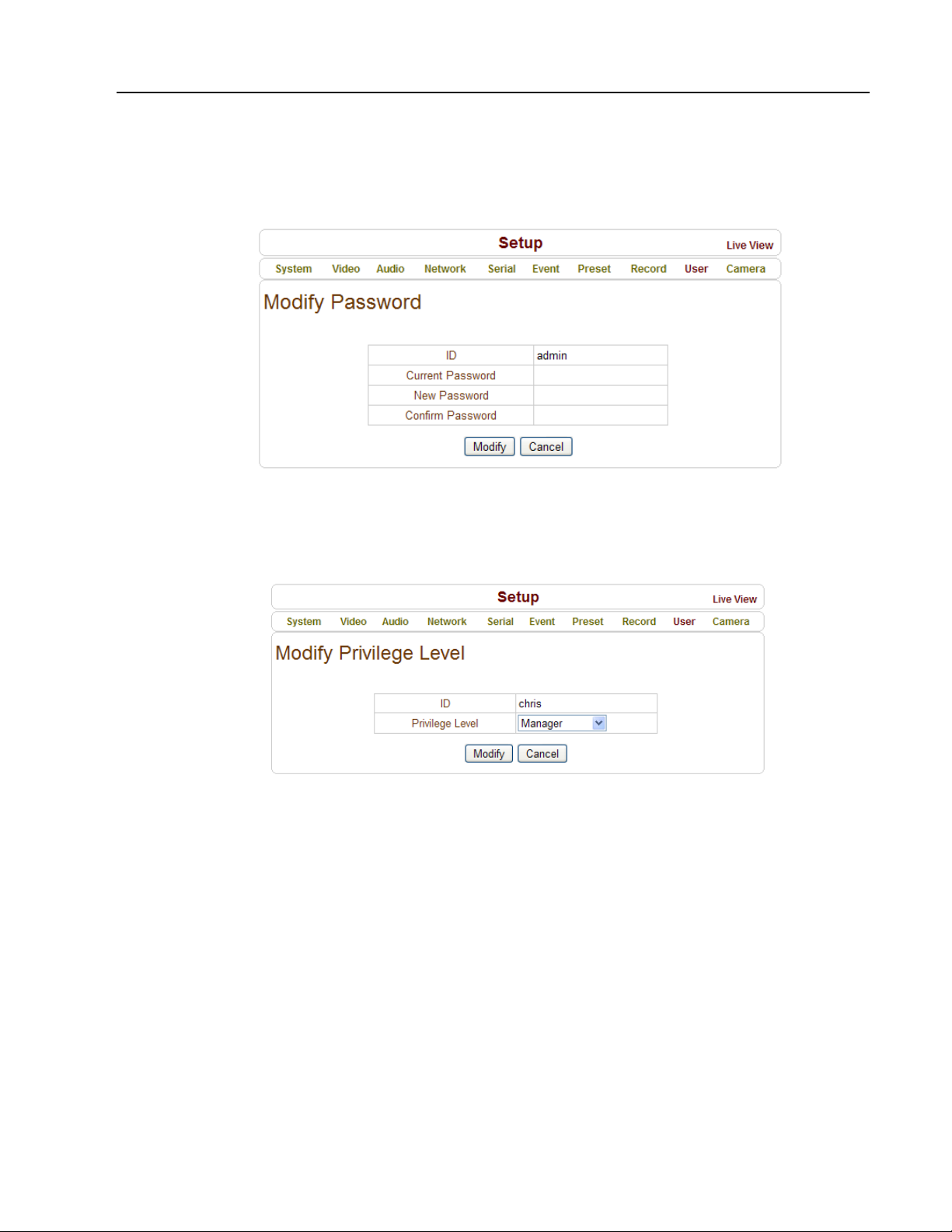

Change Password
Press Modify Password button and this window will appear:
Enter the current password and then set a new password.
Modify Privilege Level
Press Modify Privilege button to change User level. Privilege level can’t be
changed for Admin User.
Login Policy
Authentication
HTTP authentication based on RFC 2617(HTTP Authentication: Basic and Digest
Access Authentication) is supported.
Login Policy
Skip Login provides for convenient access to the encoder when authentication is
not required. When Skip Login is set to Enable, login step is skipped. The privilege
level after login in this way is determined by the setting of Privilege Level After
Login Skipped.
User Manual VS-7300 – V1.0 Page 37 of 47 5/2016
Page 38
4. Remote Configuration

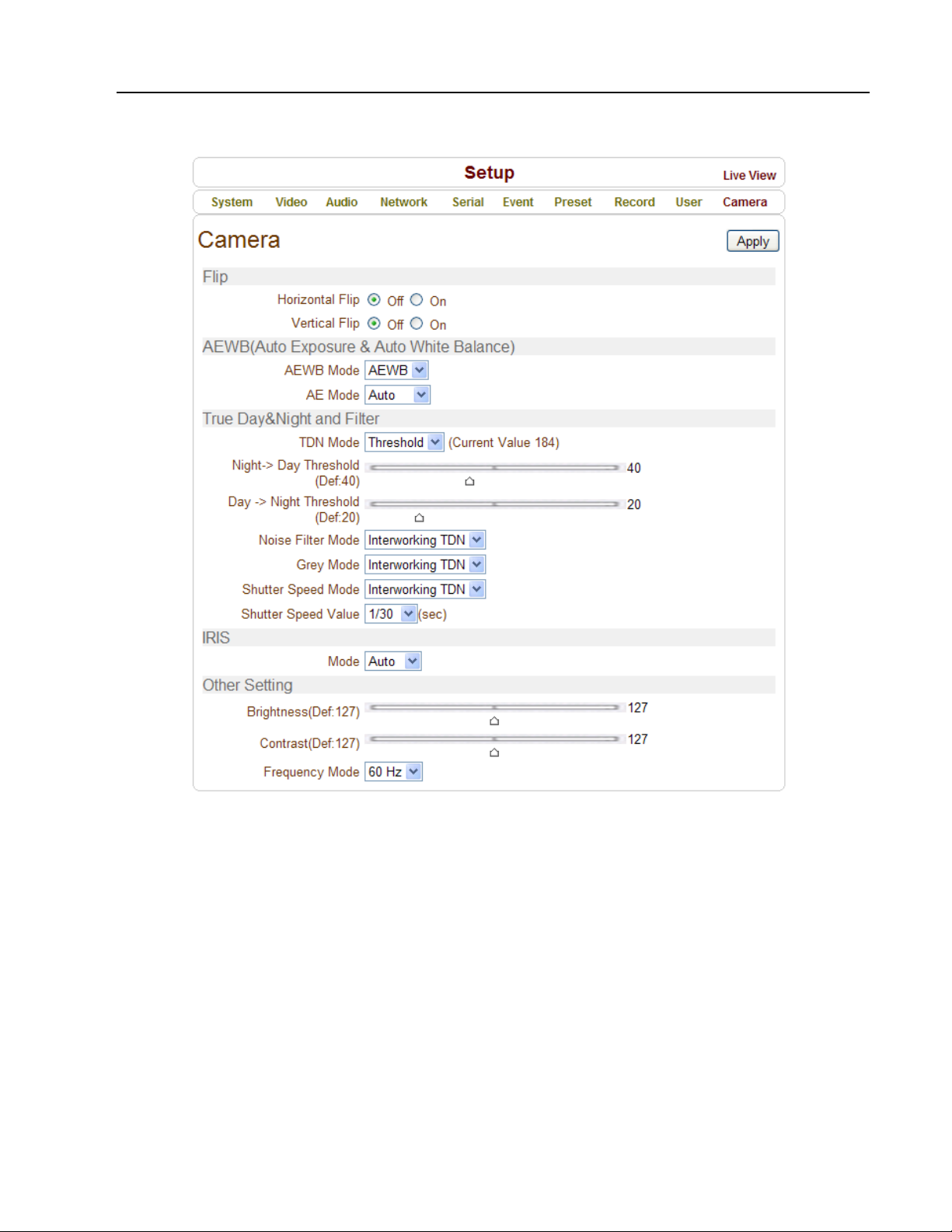

4.8 Camera Configuration
User Manual VS-7300 – V1.0 Page 38 of 47 5/2016
Page 39
4. Remote Configuration

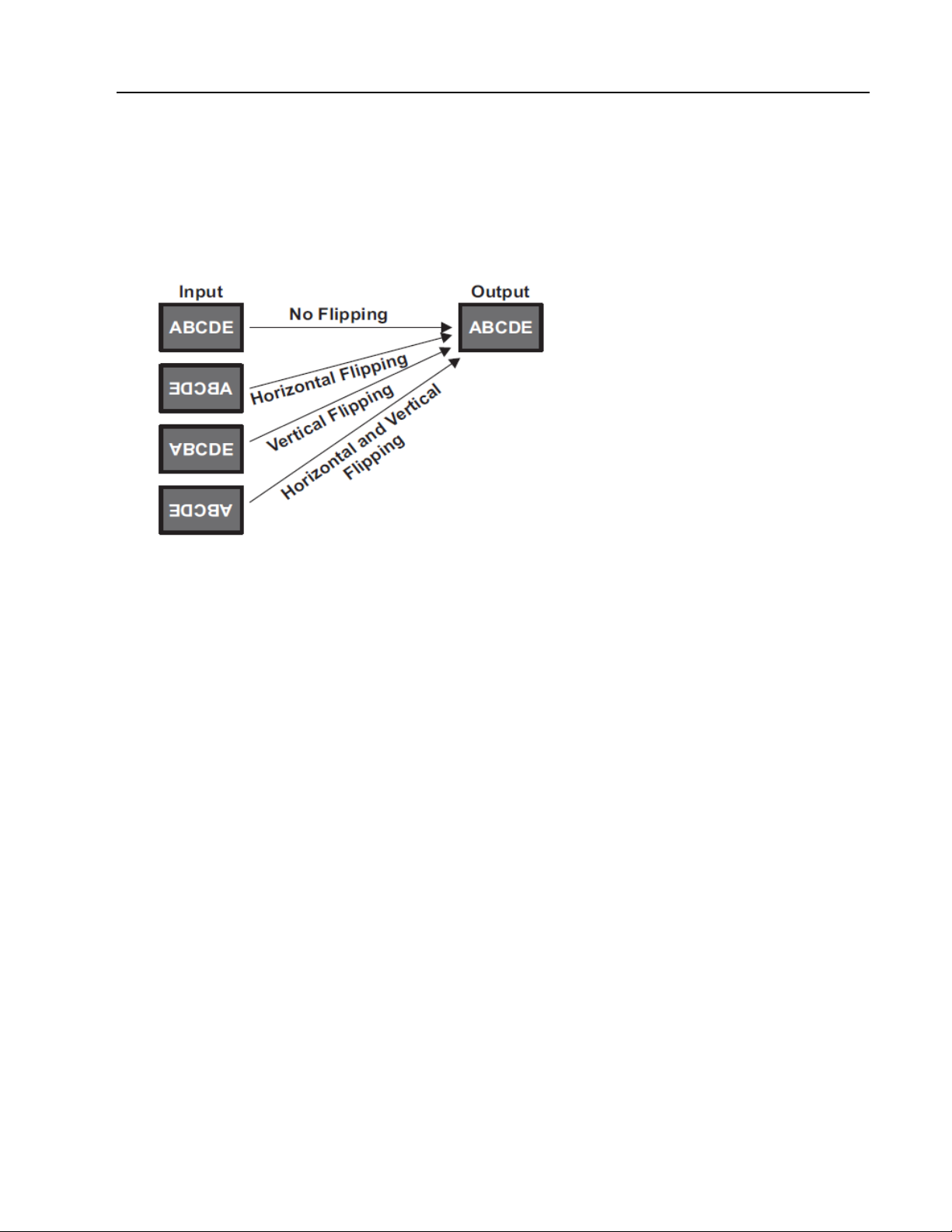

Flip
Horizontal Flip
The image will be flipped horizontally when Horizontal Flip is ON.
Vertical Flip
The image will be flipped vertically when Vertical Flip is ON.
Auto Exposure & Auto White Balance (AE & AWB)
AE: Control gain, iris, and exposure is automatically adjusted.
AWB: Control RGB gain for color balance is automatically adjusted.
AEWB Mode
AEWB: AE & AWB function is enabled.
AE: Only AE function is enabled.
AWB: Only AWB function is enabled.
None: AE & AWB function is disabled.
AWB Index
Indoor: Select this option when camera is installed indoors.
Outdoor: Select this option when camera is installed at outdoors.
AE Index
Day: Select this option for a better quality image.
Night: Select this option for a brighter image.
AE Mode
Auto: AE will adjust brightness values automatically.
Manual: AE adjusts brightness values individually - AE Target, AE MAX and AE MIN.
User Manual VS-7300 – V1.0 Page 39 of 47 5/2016
Page 40
4. Remote Configuration
AE Target
AE Target can be adjusted from 0-40 on AE Mode. Lower value equals darker image.
AE MAX
AE MAX can be adjusted from 0-45.
AE MIN
AE MIN can be adjusted from 0-35.
The image becomes insensitive if the value is lower and sensitive if the value is larger
with both AE MAX and AE MIN.
True Day & Night (TDN)
IP Camera will use the IR filter for image quality. IR filter is on during the day and off
during night.
TDN Mode
Threshold: TDN is controlled by day & night threshold value.
Auto: TDN is controlled by internal value.
Day: TDN is forced to day mode.
Night: TDN is forced to night mode.
Day Threshold
The Day Threshold can be adjusted from 0-40. TDN is automatically set to Day but the
IR Filter is turned on when the brightness is higher than the value.
Night Threshold
The Night Threshold can be adjusted from 0-20. TDN is automatically set to Night but
the IR Filter is turned on when the brightness is lower than the value.
Noise Filter Mode
The Noise Filter Mode works in conjunction with TDN. The noise filter mode is on
during the night and off during day.
On: Noise filter is always ON.
Off: Noise filter is always OFF.
Grey Mode
The Grey Mode works in conjunction with TDN. The grey filter will remove color based
on TDN at night and add color based on TDN during the day.
On: Color is always removed (gray image).
Off: Color is always added (color image).
User Manual VS-7300 – V1.0 Page 40 of 47 5/2016
Page 41
4. Remote Configuration
Shutter Speed Mode
Shutter Speed Mode is configured based on Shutter Speed Value. Enabling Shutter
Speed Mode will produce a brighter video in a low illumination environment by
sacrificing the framerate.
On: Shutter Speed setting is applied.
Off: Shutter Speed setting is not applied.
Shutter Speed Value
Shutter Speed is selected from 1/30 sec to 1 sec. For Example: When 1/6 sec is
selected, the image sensor is exposed for 1/6 sec and a max of 6 frames can be
obtained for one second.
IRIS
IP Camera will support Auto IRIS Lens.
Mode
Auto: IRIS is controlled by AE.
Open: IRIS forces max opening.
Close: IRIS forces closing.
Back Light Compensation (BLC)
If the background is bright, the subject will become dark on the monitor. This function
allows the subject to still be identifiable.
Mode
Off: BLC is disabled.
On: BLC is enabled.
Value
Select the Value from 1-6.
Other Settings
Brightness
The image brightness can be adjusted from 0-255; a higher value produces a brighter
image. (127: default, 0: the darkest, 255: the brightest)
Contrast
Adjust the image contrast by raising or lowering the value.
(127: default, 0: the weakest, 255: the strongest)
Frequency Mode
Operation frequency can be selected to avoid a flickering under fluorescent light. The
value can be either 50Hz or 60Hz. (127: default, 0: the weakest, 255: the strongest).
User Manual VS-7300 – V1.0 Page 41 of 47 5/2016
Page 42
5. VS Manager
VS Manager is a program used for basic configuration, diagnostics and firmware
upgrade of video encoders or IP encoders. VS Manager provides the following
features:
Finding Encoders on the LAN and assigning IP Addresses.
Monitoring Server Status: Encoding/Decoding, Serial, Sensor, etc.
Diagnostic Function: PING, Network Bandwidth Measurement, Video/Audio Output,
Port Check, Serial Port Check.
Firmware Upgrade.
VS Manager Software Download:
http://www.lcdracks.com/servers-cameras/software/software.php
1. Create a folder on your 'C' drive and download the file into that folder using the link above.
2. Copy and paste the link above into an Internet Explorer address window.
3. Right mouse click on the file and make a shortcut on your desktop (using "send to command")
4. Launch the application by double clicking on the desktop icon.
5. Login = admin, Password = 1234.
_____________________________________________________________________

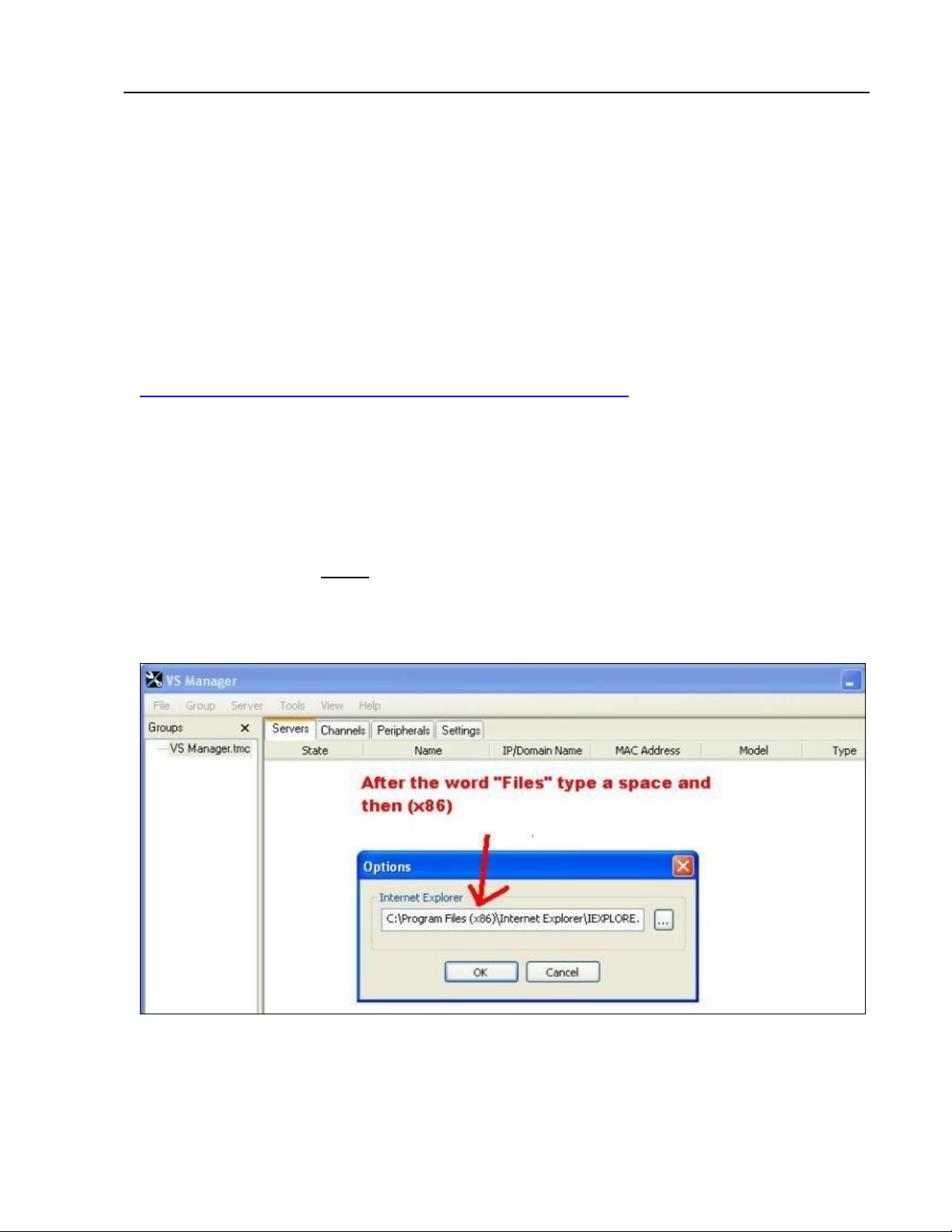

For Windows 7, 64 bit ONLY:
Once VS Manager installed, select IP Discovery, create servers.
On main page go to Tools, Options and change to this path below.
In the address window, after the word "Files" type a space then (x86).
User Manual VS-7300 – V1.0 Page 42 of 47 5/2016
Page 43
6. Data Sheet
VS-7300
5 MP IP Box Camera
5 MP 1/2.5" 2592 x 1944 CMOS Image Sensor
High Resolution Video streaming 2592 x 1944 @ 15fps
H.264 & H.264 MJPEG Dual Streaming
C/CS Lens Mount*
True Day & Night (Motorized IR Cut Filter)
Auto Iris (DC) lens control
Integrated Video Motion Detection
Built-in PoE (Power Over Ethernet: 802af)
SD™ card recording
Two-way Audio Communication (G.711/AAC)
Motion Sensor Input & Alarm Output
______________________________________________________________________
User Manual VS-7300 – V1.0 Page 43 of 47 5/2016
Page 44
6. Data Sheet

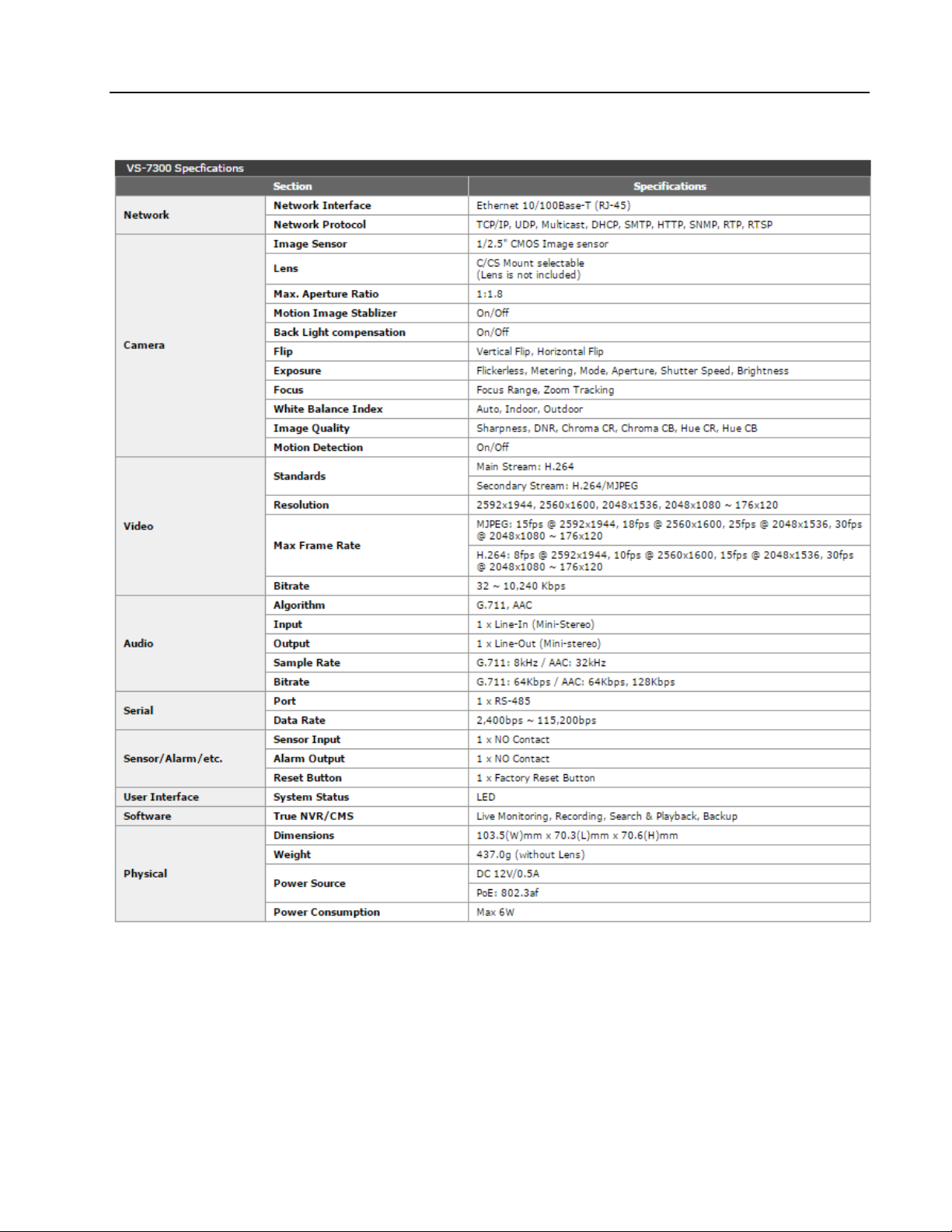

Specification Sheet
User Manual VS-7300 – V1.0 Page 44 of 47 5/2016
Page 45
7. Appendix
Appendix A: Sensor and Alarm Port
Sensor Port
Terminal Type
- Voltage Rating: 150VAC
- Current Rating : 2A
- Color : Red
Sensor Signal Input Type
- NO Contact Signals
Connection to External Device
Alarm Port
Terminal Type
- Voltage Rating: 150VAC
- Current Rating : 2A
Relay Type
- Contact Rating : 1A 30VDC
- Switching Power : Max 30W 62.5VA
- Switching Voltage : Max 60VDC
Alarm Signal Output Type
- NO/NC Contact Signals
Connection to External Device
User Manual VS-7300 – V1.0 Page 45 of 47 5/2016
Page 46
7. Appendix
Pin NO
Pin Name
Description
1
TX
RS232 TX(Transmit)
2
RX
RS232 RX(Receive)
3
GND
Ground
Pin No.
Pin Name
Description
1
RX-
RS422 RX-
2
RX+
RS422 RX+
3
TX-
RS422 TX- or RS485 TRX-
It is selectable by S/W Setup
4
TX+
RS422 TX+ or RS485 TRX+
It is selectable by S/W Setup
Appendix B: Serial Port
RS-232 Port
Terminal Type
- 3 PIN
- Pin Arrangement
Pin Description:
RS-422/485 Port
Port Type
- 4 PIN
- Pin Diagram
Pin Description:
User Manual VS-7300 – V1.0 Page 46 of 47 5/2016
Page 47
Marshall Electronics, Inc.
1910 East Maple Ave. El Segundo, CA 90245
Tel: (800) 800-6608 / (310) 333-0606 Fax (310) 333-0688
www.LCDRacks.com sales@lcdracks.com
User Manual VS-7300 – V1.0 Page 47 of 47 5/2016
Loading...
