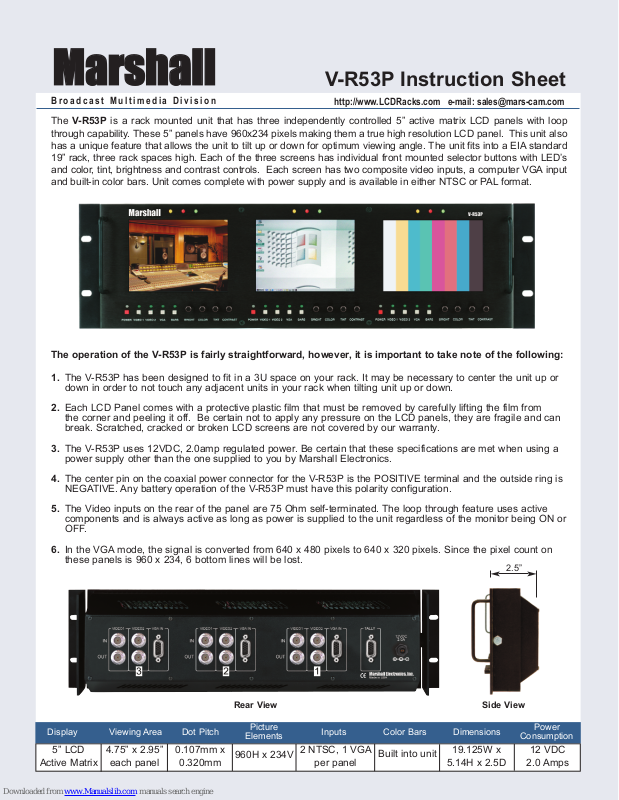

V-R53P Instruction Sheet
Marshall
http://www.LCDRacks.com e-mail: sales@mars-cam.com
The V-R53P is a rack mounted unit that has three independently controlled 5” active matrix LCD panels with loop
through capability. These 5” panels have 960x234 pixels making them a true high resolution LCD panel. This unit also
has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits into a EIA standard
19” rack, three rack spaces high. Each of the three screens has individual front mounted selector buttons with LED’s
and color, tint, brightness and contrast controls. Each screen has two composite video inputs, a computer VGA input
and built-in color bars. Unit comes complete with power supply and is available in either NTSC or PAL format.
The operation of the V-R53P is fairly straightforward, however, it is important to take note of the following:
1. The V-R53P has been designed to fit in a 3U space on your rack. It may be necessary to center the unit up or
down in order to not touch any adjacent units in your rack when tilting unit up or down.
2. Each LCD Panel comes with a protective plastic film that must be removed by carefully lifting the film from
the corner and peeling it off. Be certain not to apply any pressure on the LCD panels, they are fragile and can
break. Scratched, cracked or broken LCD screens are not covered by our warranty.
3. The V-R53P uses 12VDC, 2.0amp regulated power. Be certain that these specifications are met when using a
power supply other than the one supplied to you by Marshall Electronics.
4. The center pin on the coaxial power connector for the V-R53P is the POSITIVE terminal and the outside ring is
NEGATIVE. Any battery operation of the V-R53P must have this polarity configuration.
5. The Video inputs on the rear of the panel are 75 Ohm self-terminated. The loop through feature uses active
components and is always active as long as power is supplied to the unit regardless of the monitor being ON or
OFF.
6. In the VGA mode, the signal is converted from 640 x 480 pixels to 640 x 320 pixels. Since the pixel count on
these panels is 960 x 234, 6 bottom lines will be lost.
Broadcast Multimedia Division
Side View
2.5”
5” LCD
Active Matrix
4.75” x 2.95”
each panel
0.107mm x
0.320mm
960H x 234V
2 NTSC, 1 VGA
per panel
Built into unit
19.125W x
5.14H x 2.5D
12 VDC
2.0 Amps
Display Viewing Area Dot Pitch Inputs Color Bars Dimensions
Elements
Power
Consumption
Rear View
Warranty
Marshall Electronics warranties to the first consumer, that this V-R53P rackmount monitor will,
under normal use, be free from defects in workmanship and materials, when received in its
original container, for a period of one year from the purchase date.
This warranty is extended to the first consumer only and proof of purchase is necessary to
honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall
Electronics reserves the right, not to honor the warranty set forth above. Therefore, labor and
parts may be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or
handling, improper alterations or modifications in design or construction, voids this warranty.
No sales personnel of the seller, nor any other person is authorized to make any warranties
other than those described above, or to extend the duration of any warranties on behalf of
Marshall Electronics, beyond the time period described above.
Due to constant effort to improve products and product features, specifications may change
without notice.
MMaarrsshhaallll
5. Tally - The tally system on the V-R53P is accessed via the DB-15 connector on the back of the unit. The
system works by closing the contacts between the ground pin and the corresponding LED pin. The system
is self powered, DO NOT GIVE POWER TO THE PINS. The pinout is as follows:
Monitor 1
Monitor 2
Monitor 3
Green
Pin 1
Pin 6
Pin 11
Red
Pin 2
Pin 7
Pin 12
Yellow
Pin 3
Pin 8
Pin 13
PINS 4, 5, 9, 10, 14 and 15
ARE COMMON GROUNDS
