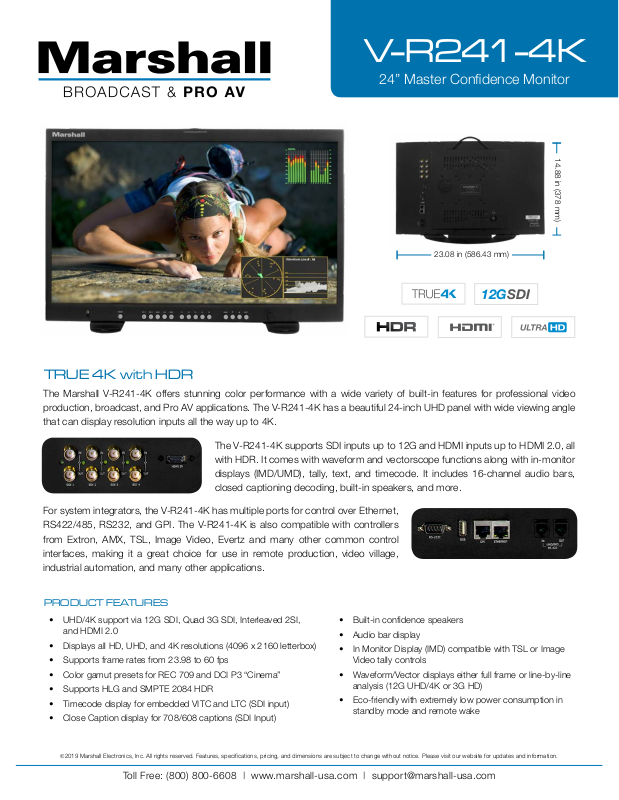

Marshall Electronics V-R241-4K Data Sheet

V-R241-4K

24” Master Conﬁdence Monitor

14.88 in (378 mm)

23.08 in (586.43 mm)

12GSDI

TRUE 4K with HDR

The Marshall V-R241-4K offers stunning color performance with a wide variety of built-in features for professional video production, broadcast, and Pro AV applications. The V-R241-4K has a beautiful 24-inch UHD panel with wide viewing angle that can display resolution inputs all the way up to 4K.

The V-R241-4K supports SDI inputs up to 12G and HDMI inputs up to HDMI 2.0, all with HDR. It comes with waveform and vectorscope functions along with in-monitor displays (IMD/UMD), tally, text, and timecode. It includes 16-channel audio bars, closed captioning decoding, built-in speakers, and more.

For system integrators, the V-R241-4K has multiple ports for control over Ethernet, RS422/485, RS232, and GPI. The V-R241-4K is also compatible with controllers from Extron, AMX, TSL, Image Video, Evertz and many other common control interfaces, making it a great choice for use in remote production, video village, industrial automation, and many other applications.

PRODUCT FEATURES

• UHD/4K support via 12G SDI, Quad 3G SDI, Interleaved 2SI, and HDMI 2.0

• Displays all HD, UHD, and 4K resolutions (4096 x 2160 letterbox)

• Supports frame rates from 23.98 to 60 fps

• Color gamut presets for REC 709 and DCI P3 “Cinema”

• Supports HLG and SMPTE 2084 HDR

• Timecode display for embedded VITC and LTC (SDI input)

• Close Caption display for 708/608 captions (SDI Input)

• Built-in confidence speakers

• Audio bar display

• In Monitor Display (IMD) compatible with TSL or Image Video tally controls

• Waveform/Vector displays either full frame or line-by-line analysis (12G UHD/4K or 3G HD)

• Eco-friendly with extremely low power consumption in standby mode and remote wake
