Marshall Electronics
18 LCD Racks

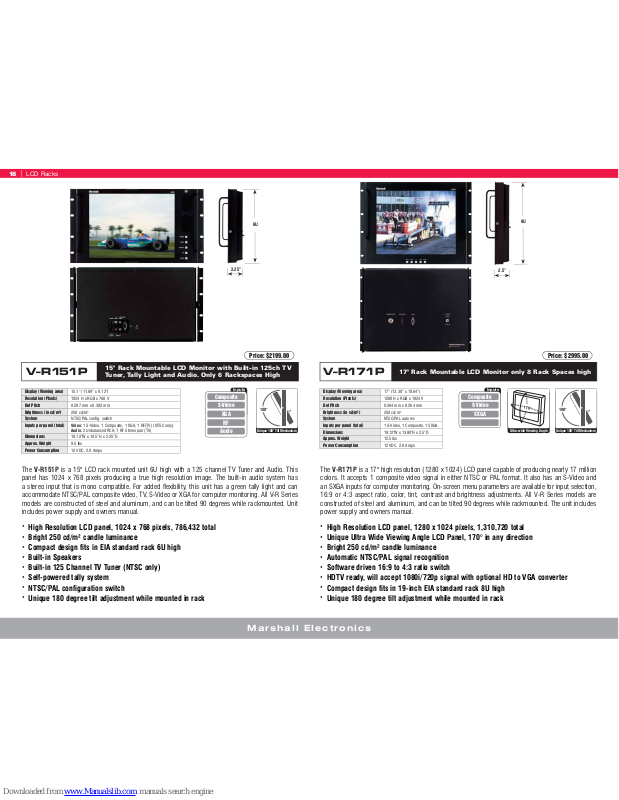

The V-R151P is a 15" LCD rack mounted unit 6U high with a 125 channel TV Tuner and Audio. This
panel has 1024 x 768 pixels producing a true high resolution image. The built-in audio system has
a stereo input that is mono compatible. For added flexibility, this unit has a green tally light and can
accommodate NTSC/PAL composite video, TV, S-Video or XGA for computer monitoring. All V-R Series
models are constructed of steel and aluminum, and can be tilted 90 degrees while rackmounted. Unit
includes power supply and owners manual.
·
High Resolution LCD panel, 1024 x 768 pixels, 786,432 total
·
Bright 250 cd/m² candle luminance
·
Compact design fits in EIA standard rack 6U high
·
Built-in Speakers
·
Built-in 125 Channel TV Tuner (NTSC only)
·
Self-powered tally system
·
NTSC/PAL configuration switch
·
Unique 180 degree tilt adjustment while mounted in rack
Display (Viewing area) 15.1” (11.69” x 9.12”)
Resolution (Pixels) 1024 H x RGB x 768 V
Dot Pitch 0.297 mm x 0.302 mm
Brightness (in cd/m²) 250 cd/m²
System NTSC/PAL config. switch
Inputs per panel (total) Video: 1 S-Video, 1 Composite, 1 XGA, 1 RF(TV) (NTSC only).
Audio: 2 Unbalanced RCA, 1 RF Stereo pair (TV)
Dimensions 19.12”W x 10.5”H x 2.25”D
Approx. Weight 9.5 lbs
Power Consumption 12 VDC, 2.0 Amps
6U
2.25”
The V-R171P is a 17" high resolution (1280 x 1024) LCD panel capable of producing nearly 17 million
colors. It accepts 1 composite video signal in either NTSC or PAL format. It also has an S-Video and
an SXGA inputs for computer monitoring. On-screen menu parameters are available for input selection,
16:9 or 4:3 aspect ratio, color, tint, contrast and brightness adjustments. All V-R Series models are
constructed of steel and aluminum, and can be tilted 90 degrees while rackmounted. The unit includes
power supply and owners manual.
·
High Resolution LCD panel, 1280 x 1024 pixels, 1,310,720 total
·
Unique Ultra Wide Viewing Angle LCD Panel, 170° in any direction
·
Bright 250 cd/m² candle luminance
·
Automatic NTSC/PAL signal recognition
·
Software driven 16:9 to 4:3 ratio switch
·
HDTV ready, will accept 1080i/720p signal with optional HD to VGA converter
·
Compact design fits in 19-inch EIA standard rack 8U high
·
Unique 180 degree tilt adjustment while mounted in rack
Unique 180° Tilt Mechanism
180°
8U
2.5”
Display (Viewing area) 17” (13.30” x 10.64”)
Resolution (Pixels) 1280 H x RGB x 1024 V
Dot Pitch 0.264 mm x 0.264 mm
Brightness (in cd/m²) 250 cd/m²
System NTSC/PAL auto rec
Inputs per panel (total) 1 S-Video, 1 Composite, 1 SXGA
Dimensions 19.12”W x 13.80”H x 2.5”D
Approx. Weight 12. 5 lbs
Power Consumption 12 VDC, 2.0 Amps
Ultra-wide Viewing Angle
Inputs
Price: $2995.00
15" Rack Mountable LCD Monitor with Built-in 125ch TV
Tuner, Tally Light and Audio. Only 6 Rackspaces High
V-R 1 51P
17" Rack Mountable LCD Monitor only 8 Rack Spaces high
V-R 1 71P
Unique 180° Tilt Mechanism
180°
Composite
S-Video
SXGA
Inputs
Price: $2199.00
Composite
S-Video
XGA
RF
Audio
