Marshall Electronics V-MD702-3GSDI, V-MD72-3GSDI User manual

Marshall Electronics

Model No.

Dual 7” Rack Mount Monitor

V-MD702

Operating Instructions

Product Overview

Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to system integration. These new rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the need to upgrade or replace equipment when a different input or application is required. This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

Table of Contents

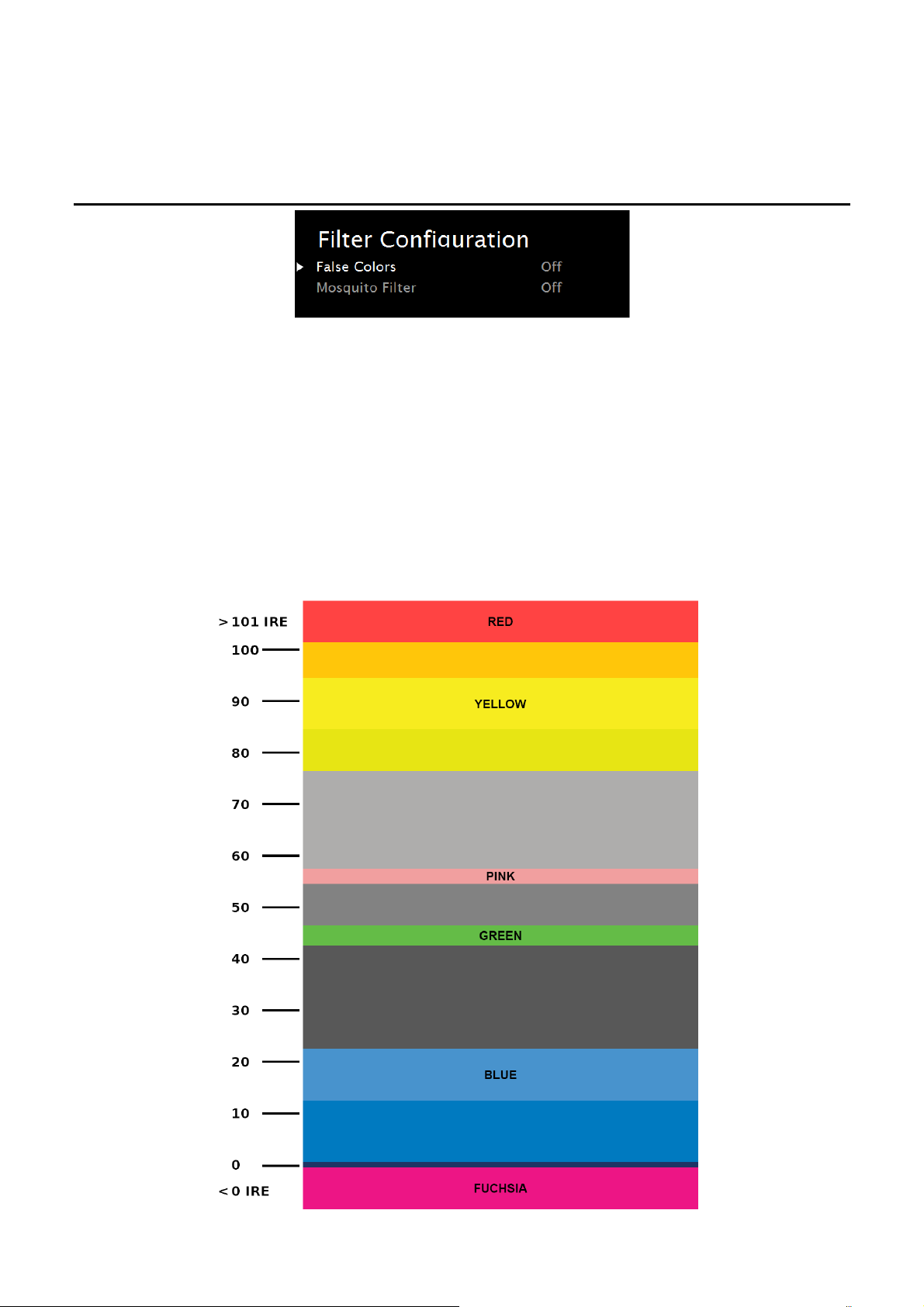

Product Overview 2 Installation and Accessories 3 Dimensions 3 Monitor Rear 6 Compatible Input Formats 7 Menu and Navigation 8 Video Configuration Submenu 8 Marker Configuration Submenu 11 Filter Configuration Submenu 14 System Configuration Submenu 15 Function Presets Submenu 16

IMD & Tally Configuration 17 System Information Submenu 18 Network Configuration Submenu 18 Network Control Page 20

Status Tab 20

Menu 21

Network Configuration 29

Specifications 33 Maintenance 34 Warranty 34

V-MD702 Operating Instructions

Installation and Accessories

Carefully unpack the V-MD702 monitor and verify that the following items are included:

• V-MD702 Monitor

• V-PS12-5V-1 Twist Lock Connector

• Operating Instructions Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage,

immediately call Marshall Electronics Customer Service at (800) 800-6608. If you are not located within the continental United States, call +1 (310) 333-0606.

Dimensions

V-MD702 Operating Instructions

V-MD702 Monitor

Modular / Video

Tally / Ethernet /

Tally LED

Power

Monitor Keypad

Inputs

V-MD702 Operating Instructions

Monitor Front

F1 – F2

F3 – F4

Monitor

LED Tally

Buttons

Number

POWER

Input Select

 [Power]

Turn the monitor off or on by pressing the power button. The LED on the power button is at full illumination when the monitor is OFF.

 [Input Select]

Use the Input Select buttons to change the video input to display. The S1 slot is reserved for any of the available MD Series modules.

 [F1 – F2 – F3 – F4]

Four user-definable function buttons can be used for direct access to various settings. Functions are assigned using the on-screen menu

BRIGHT - COLOR – TINT – CONTRAST

 Menu Buttons

Use the Menu, ▲, ▼, and Select buttons to display and navigate the on-screen menu.

 [BRIGHT, COLOR , TINT

CONTRAST]

The BRIGHT, COLOR, TINT and CONTRAST buttons function as Image Adjustment buttons. The status of each image adjustment parameter is shown on the top left of the screen, with values ranging from 0 to 100. Note: The TINT function is only available for NTSC VIDEO signals.

 Monitor Number

This silkscreened number will indicate the panel number on the V-MD system.

V-MD702 Operating Instructions

Monitor Rear

Module

YPbPr /

Tally Connector

Network Port

 The LED tally can be activated via the HD-15 connector by connecting the corresponding pin to ground. A variety of external devices can be used to perform the contact closure. No additional power should be supplied to the HD-15 port.

 The Network Port is used to access the Network Control Page for the V-MD702 monitor. Use a regular RJ45 Ethernet cable to connect the V-MD monitor to your network. Please see the Network Configuration Submenu section of this manual for further connection details.

 This is for factory and Upgrade use ONLY. Please contact Marshall Electronics for further information on upgrading the V-MD monitor. This, along with the Monitor 1 / Monitor 2 selector allow you to control which monitor to service. Please contact Marshall Electronics before any attempted service to this monitor.

Tally Connector

Network Port

Service Connector

Power Input

Slot

VIDEO Inputs



Power Input

Connect the 12 VDC input to the Twist-Lock power input connector. Power can be supplied from the included power supply or from a variety of DC sources supplying at least 2.5 Amps at 12 Volts. IMPORTANT: If using a power source other than the included power supply, be sure that the polarity of the DC input is correct: Pin 1: +12 VDC Pin 2: GND



Module Slot

The V-MD monitor comes with Module Slots for Marshall Electronics’ line of future proof Input Modules. Please contact Marshall Electronics for a list of compatible Input Modules.



YPbPr / VIDEO Inputs

The V-MD monitor comes standard with VIDEO and YPbPr analog inputs for each monitor display.

V-MD702 Operating Instructions

Compatible Input Formats

The following standards are supported by the V-MD702 monitors and available input modules:

MD-3GSDI-A – 3G/HD/SDI Input Module

1080i (60 / 59.94 / 50)

MD-HDSDIx2-A – Two-channel HDSDI Input Module with Switched Output

1080i (60 / 59.94 / 50)

SD-SDI – 480i 59.94, 576i 50 HD-SDI – 720p (60 / 59.94 / 50 / 30 / 29.97 / 25)

1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)

3G-SDI – YCbCr (4:2:2) 10 Bit – Level A and B 1080p (60 / 59.94 / 50)

YCbCr/RGB (4:4:4) 10 Bit – Level A and B 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 29.97sF / 25 / 25sF / 24 / 24sF / 23.98 / 23.98sF)

SD-SDI – 480i 59.94, 576i 50 HD-SDI – 720p (60 / 59.94 / 50 / 30 / 29.97 / 25)

1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)

V-MD702 Operating Instructions

Menu and Navigation

Access the main menu by pushing and holding the MENU button on the front panel of the monitor.

•Step through menu items using the ▲ and ▼ buttons.

•Choose a submenu or select a menu item by pressing SELECT.

•Return to the previous menu by pressing MENU.

•Exit the main menu by pressing MENU. The menu will automatically time out after 15 seconds.

Only unit screen 1 will have the Network Configuration option available. All network settings can be configured from unit screen 1.

Video Configuration Submenu

V-MD702 Operating Instructions

■

RGB Bias and Gain

Color Temperature

Use this setting to choose one of three color temperature presets:

• D55 (5500K)

• D65 (6500K)

• D93 (9300K)

• USER (Adjustable Color Bias and Gain)

• Linear (No processing is applied to the panel) Use this setting to enable monochrome mode. Only the luminance of the image will be displayed as a grayscale

picture.

■

RGB Bias and Gain

Select this submenu to fine-tune the monitor’s color balance (R, G, B). This should only be done by someone experienced with video engineering, as this will alter the overall color shading of the screen. The purpose is to allow color matching to other types of monitors and/or displays. Note: The Color Temperature preset will automatically switch to USER when Color Bias settings are adjusted. It is normal for color bias adjustments to be very subtle.

When selecting the RGB Bias and Gain submenu, gain adjustment indicators will appear at the top of the screen, and bias adjustment indicators will appear at the bottom of the screen:

Use the ▲ and ▼ buttons to select each individual bias or gain control. Press SELECT to begin adjusting the control. Use the ▲ and ▼ buttons to increase or decrease the value.

Alternately, the image adjustment buttons (Brightness, Color, Tint, Contrast) can be used to easily adjust the bias and gain settings as shown below. The buttons affect whichever row of controls (gain or bias) is currently selected.

■

Check Field

Use the check field modes for monitor calibration or to analyze individual color components of an image. In Monochrome mode, all color is disabled and only a grayscale image is shown. In Blue, Green, and Red check field modes, only the selected color will be shown.

Use the following procedure when calibrating the monitor to SMPTE color bars with the following procedure:

1. Allow the monitor to warm up for at least 5-10 minutes.

2. Display SMPTE split-field color bars on the monitor using an external source.

3. Enable Monochrome mode.

4. Locate the pluge pattern (super black, black, and gray bars) at the lower-right corner of the screen. Adjust the Brightness button until there is no visible difference between the super black and black bars, but the gray bar is still visible.

V-MD702 Operating Instructions

5. Adjust the Contrast button until an even grayscale appears along the top bars.

6. Disable Monochrome mode.

7. Enable Blue Check Field mode and adjust the Color button so that the outermost bars (white and blue) appear to match in brightness.

8. Composite NTSC only: Adjust the Tint button until the third bar from the left (cyan) and the third bar from the right (magenta) appear to match in brightness.

9. Disable Blue Check Field mode.

■

Ratio Settings

Use to switch between Full Screen, 4:3 and 16:9 aspect ratios.

As the V-MD702 monitor has a native resolution of 800 x 480 RGB pixels, incoming images are automatically scaled to fit the screen:

• In Full Screen mode, images are scaled to fill the entire screen (800 x 480).

• In 4:3 mode, images are scaled to fill the center 4:3 portion of the screen (640 x 480). With a 16:9 source, images will be centered with a black letter-box added on the left and right sides.

• In 16:9 mode, images are scaled to a 16:9 portion of the screen (800 x 450), with a black letter-box added top and bottom.

Note: The aspect ratio setting is ignored when Pixel-to-Pixel mode is enabled.

■

Pixel-to-Pixel

Use this setting to enable Pixel-to-Pixel mode. This Pixel-to-Pixel mode bypasses the monitor’s internal scaling function and displays incoming images in their native resolution and aspect ratio, with a one-to-one mapping:

V-MD702 Operating Instructions

• For incoming formats smaller than the native resolution of the LCD panel (800 x 480), the image will be displayed in the center of the screen using only the necessary LCD pixels. For example, NTSC images will occupy exactly 720 x 480 pixels. The surrounding pixels will be black.

• For incoming formats exceeding 800 x 480 pixels, only the center 800 x 480 of the incoming image will displayed occupying the whole screen, with the remainder of the picture cropped. For example, 1080i formats will both be cropped to 800 x 480 and displayed full-screen.

Note: Pixel-to-Pixel mode disables aspect ratio control and H/V Delay.

Marker Configuration Submenu

■

Markers

Use this setting to enable or disable all on-screen markers. This setting affects the center marker, full screen markers, 16:9 markers and 4:3 markers.

■

Center Marker

Use this setting to display a center marker on the screen.

■

16:9 Markers

Use these settings to superimpose one of 12 markers on the screen when in 16:9 mode.

• 4:3

• 13:9

• 14:9

• 1.85:1

• 2.35:1

• 95% Safe

• 93% Safe

• 90%Safe

• 88% Safe

• 85% Safe

• 80% Safe

V-MD702 Operating Instructions

16:9 Marker Examples:

OFF (No Marker)

2.35:1 Aspect Ratio

4:3 Aspect Ratio Marker

■

Full Screen Markers

Use these settings to superimpose one of 6 markers on the screen when in Full Screen mode.

• 95% Safe

• 93% Safe

• 90%Safe

• 88% Safe

• 85% Safe

• 80% Safe

■

4:3 Markers

Use this setting to superimpose one of 5 markers on the screen when in 4:3 mode.

• 95% Safe Area

• 93% Safe Area

• 90% Safe Area

• 88% Safe Area

• 85% Safe Area

• 80% Safe Area

4:3 Marker Examples:

OFF (No Marker)

90% Safe Area

■

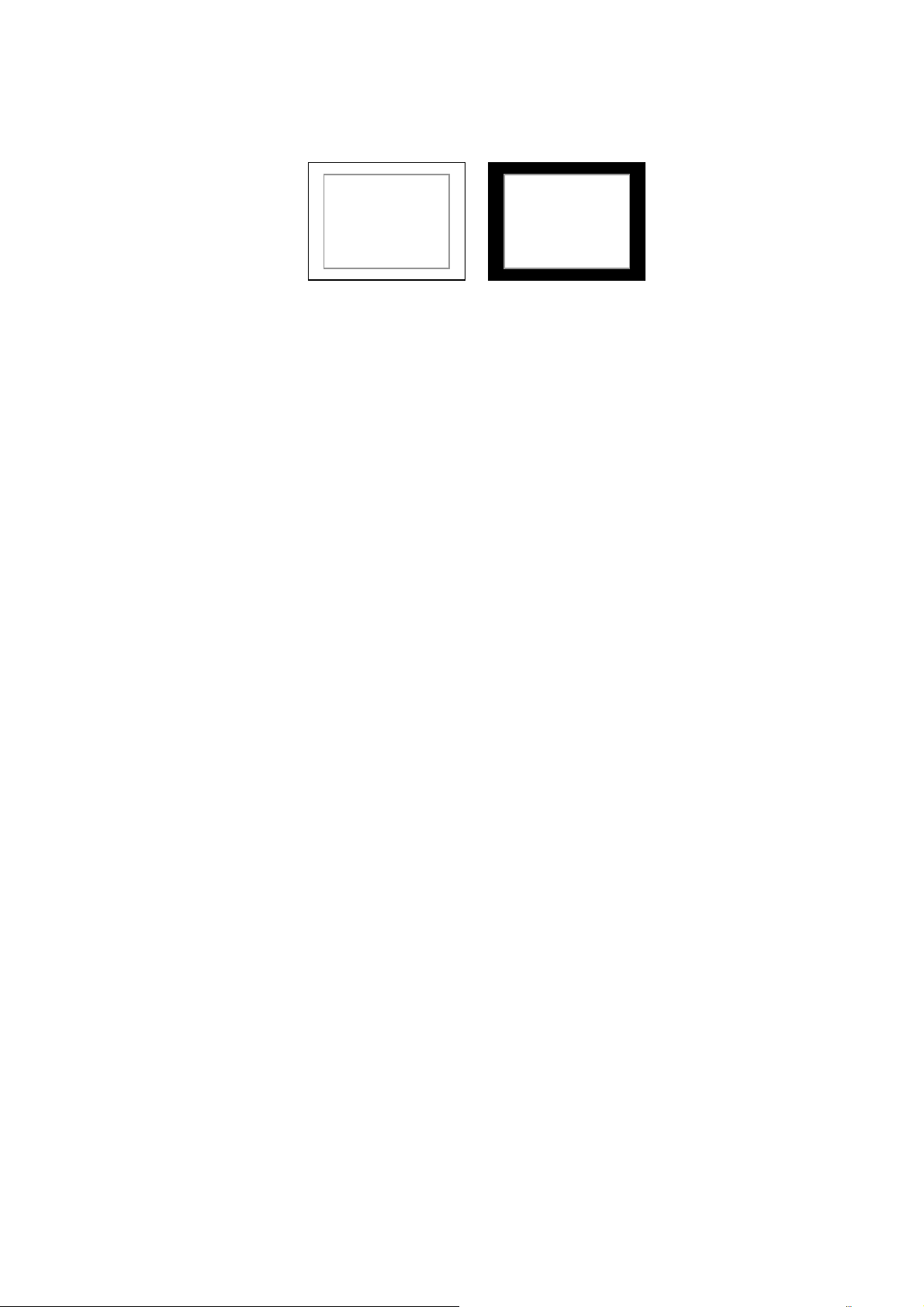

Marker Background

Use this setting to choose how selected markers are displayed on the screen. :

• 0% The marker is superimposed on the complete image.

• 25% Image area beyond the marker is shown at 25% intensity.

• 50% Image area beyond the marker is shown at 50% intensity.

• 75% Image area beyond the marker is shown at 75% intensity.

• 100% Image area beyond the marker is shown at 100% intensity (black).

Example (80% Marker in 4:3 Mode):

V-MD702 Operating Instructions

90% Safe Area
