Marshall Electronics
Model No.
Model No.
Triple 5” Rack Mount Monitor
Quad 4.3” Rack Mount Monitor
V-MD503
V-MD434
Operating Instructions
2
Table of Contents
Product Overview .........................................................................................................................5
Features....................................................................................................................................5
Installation and Accessories.........................................................................................................6
Monitor Front................................................................................................................................7
Monitor Rear.................................................................................................................................8
Compatible Input Formats ............................................................................................................9
Menu and Navigation..................................................................................................................10
Video Configuration Submenu....................................................................................................10
Marker Configuration Submenu..................................................................................................13
Filter Configuration Submenu.....................................................................................................16
System Configuration Submenu.................................................................................................17
Function Presets Submenu ........................................................................................................18
IMD & Tally Configuration...........................................................................................................19
System Information Submenu ....................................................................................................20
Network Configuration Submenu................................................................................................20
Network Control Page.................................................................................................................22
Status Tab...............................................................................................................................22
Menu Tab................................................................................................................................23
Display Tab.............................................................................................................................29
Keypad Tab.............................................................................................................................30
Network Tab............................................................................................................................31
Global Tab ..............................................................................................................................34
Specifications .............................................................................................................................35

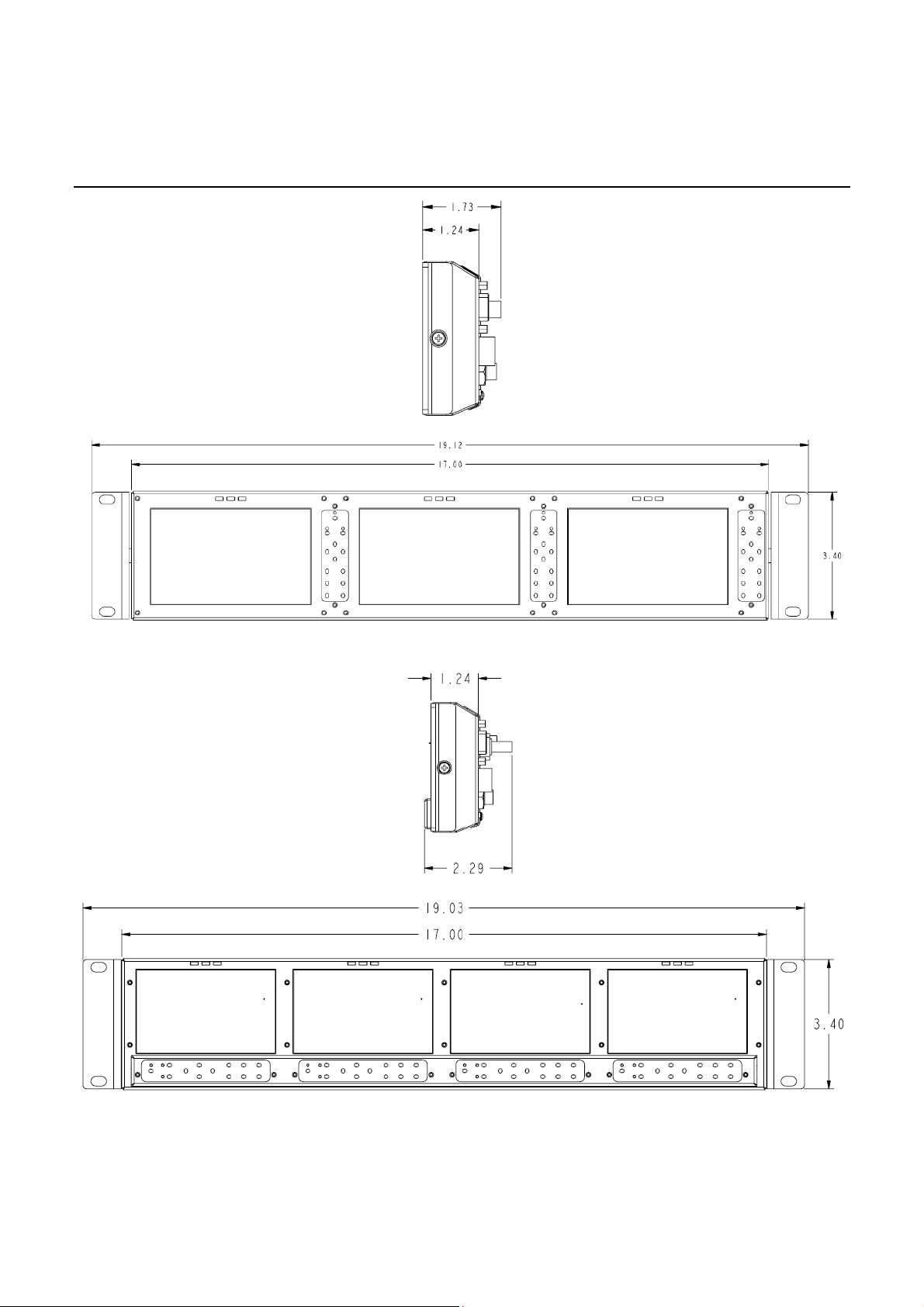

Dimensions.................................................................................................................................36
Maintenance...............................................................................................................................37
Warranty.....................................................................................................................................37
3
This page intentionally left blank
4
Product Overview
Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to
system integration. These new rack-mountable monitors can be configured with a variety of video inputs that can
be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the
need to upgrade or replace equipment when a different input or application is required. This "future proof" solution
provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.
Features
■
High-Resolution 5” and 4.3” Panel
The V-MD503 and V-MD434 feature an all-digital
TFT-MegaPixel active matrix LCD system with
1.15 million pixels. The LCD panels feature a
brightness of 300 cd/m2 and 200 cd/m2 and
contrast ratios of 6000:1 and 400:1, respectively
making the display ideal in a variety of
environments and lighting conditions.
■
Modular Input Design
Each monitor has rear slots to support various
Digital, Optical and Analog video input modules.
■
Multi-Format Compatibility
Accepted formats include 480i, 576i, 720p, 1035i,
1080i. 3G/HD/SDI, HDMI, DVI-I, Optical inputs
available as optional Input Modules. Please
contact Marshall Electronics for availability.
■
ColorMatch Conversion with Color
Temperature Adjustment
Emulation of SMPTE-C/EBU color space allows
these monitors to replace any broadcast CRT
monitor. Presets include D65, D55 and D93. Bias
and Gain adjustment for each color enables
precise color matching and white balance.
■

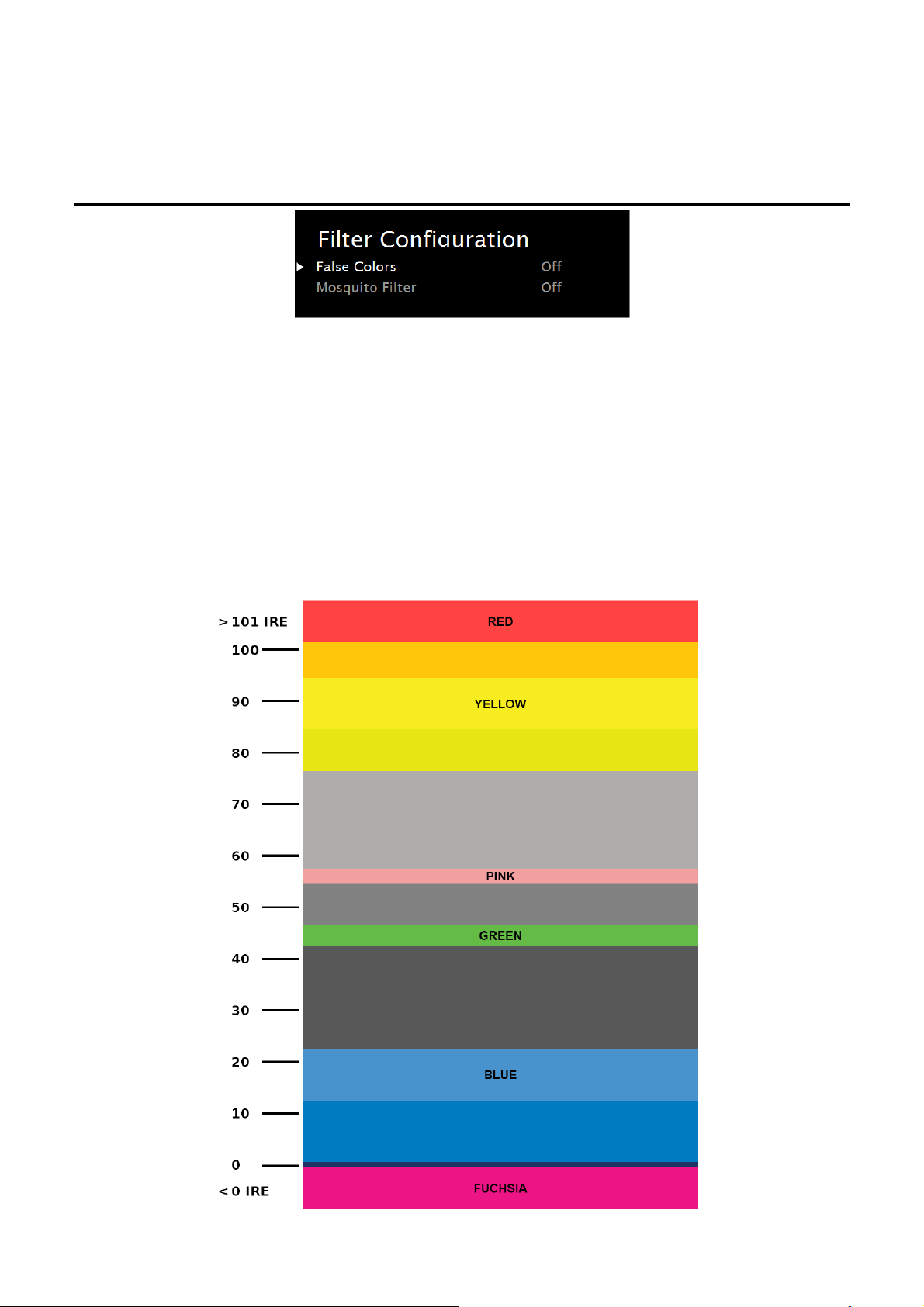

False Color Filter, and other Advanced
Features
False Color filter, Aspect ratio settings, blue-only
mode, and monochrome mode are a few of the
advanced features which make the V-MD503 and
V-MD434 at home in any broadcast environment.
Pixel-to-Pixel mode also allows native display of
any incoming image format.
■
Flexible Screen Markers
A variety of screen markers in 4:3, 16:9, and full
screen modes allow accurate monitoring of the
different aspect ratios used in broadcast
environments.
■
User-Definable Function Buttons
Two user-definable function buttons on the frontpanel allow quick access to numerous settings
and features including false color filter, aspect
ratio, screen markers, monochrome mode, color
temperature and more.
.
5
Installation and Accessories
Carefully unpack the V-MD503 / V-MD434 monitor and verify that the following items are included:
• V-MD503 / V-MD434 Monitor
• V-PS12-5V-1 Twist Lock Connector
• Operating Instructions
Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage,
immediately call Marshall Electronics Customer Service at (800) 800-6608. If you are not located within the
continental United States, call +1 (310) 333-0606.
6
Monitor Front
Menu
Monitor
F1-F2
Number
POWER
[Power]
Turn the monitor off or on by pressing the power
button. The LED on the power button is at full
illumination when the monitor is OFF.
[F1 - F2]
Two user-definable function buttons can be used
for direct access to various settings. Functions
are assigned using the on-screen menu
Menu Access
Use the Menu, ▲, ▼, and Select buttons to
display and navigate the on-screen menu.
[BRIGHT, COLOR , CONTRAST]
The BRIGHT, COLOR and CONTRAST buttons
function as Image Adjustment buttons. The
status of each image adjustment parameter is
shown on the top left of the screen, with values
ranging from 0 to 100. Pressing a button once
displays the current value. Pressing a button
twice resets the corresponding adjustment to the
default setting.
LED Tally
Access
Note: This image is specific
to the V-MD434 monitor.
The V-MD503 keypad is
turned 90° clockwise.
BRIGHT - COLOR - CONTRAST
Monitor Number
This silkscreened number will indicate the panel
number on the V-MD503 system.
LED Tally
Three LED tally lights (yellow, red, green) are
available above the screen. Each tally light is
controlled by the Tally Connector on the back of
the monitor.
7
Monitor Rear
Module
Monitor Service
Tally Connector
Network Port
Service Connector
Tally Connector
The LED tally can be activated via the HD-15
connector by connecting the corresponding pin to
ground. A variety of external devices can be
used to perform the contact closure. No
additional power should be supplied to the HD-15
port.
Network Port
The Network Port is used to access the Network
Control Page for the V-MD434 or V-MD503
monitor. Use a regular RJ45 Ethernet cable to
connect the V-MD monitor to your network.
Please see the Network Configuration
Submenu section of this manual for further
connection details.
Service Connector
This is for factory and Upgrade use ONLY.
Please contact Marshall Electronics for further
information on upgrading the V-MD monitor.
Monitor Service Selector
This, in conjunction with the Service Connector,
serves to control which monitor to Service.
Please contact Marshall Electronics before any
attempted service to this monitor.
Power Input
Note: This image is
specific to the VMD434 monitor.
Please refer to the
Specifications
portion of the
manual for Tally
and Power details.
Slot
Power Input
Connect the 12 VDC input to the Twist-Lock
power input connector. Power can be supplied
from the included power supply or from a variety
of DC sources supplying at least 5.0 Amps at 12
Volts.
IMPORTANT: If using a power source other than
the included power supply, be sure that the
polarity of the DC input is correct:
Pin 1: +12 VDC
Pin 2: GND
Module Slot
The V-MD monitor comes with Module Slots for
Marshall Electronics’ line of future proof Input
Modules. Please contact Marshall Electronics for
a list of compatible Input Modules.
8
Compatible Input Formats
The following standards are supported by the V-MD434 or V-MD503 monitors and available input modules:
MD-3GSDI-B – 3G/HD/SDI Input Module
1080i (60 / 59.94 / 50)
MD-HDSDIx2-B – Two-channel HDSDI Input Module with Switched Output
1080i (60 / 59.94 / 50)
SD-SDI –
480i 59.94, 576i 50
HD-SDI –
720p (60 / 59.94 / 50 / 30 / 29.97 / 25)
1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)
3G-SDI – YCbCr (4:2:2) 10 Bit – Level A and B
1080p (60 / 59.94 / 50)
YCbCr/RGB (4:4:4) 10 Bit – Level A and B
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 29.97sF / 25 / 25sF / 24 / 24sF / 23.98 / 23.98sF)
SD-SDI –
480i 59.94, 576i 50
HD-SDI –
720p (60 / 59.94 / 50 / 30 / 29.97 / 25)
1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)
9
Menu and Navigation
Access the main menu by pushing and holding the MENU button on the front panel of the monitor.
•Step through menu items using the ▲ and ▼ buttons.
•Choose a submenu or select a menu item by pressing SELECT.
•Return to the previous menu by pressing MENU.
•Exit the main menu by pressing MENU. The menu will automatically time out after 15 seconds.
Only unit screen 1 will have the Network Configuration option available. All network settings can be configured
from unit screen 1.
Video Configuration Submenu
Video Configuration Submenu
10
■
RGB Bias and Gain
Color Temperature
Use this setting to choose one of three color temperature presets:
• D55 (5500K)
• D65 (6500K)
• D93 (9300K)
• USER (Adjustable Color Bias and Gain)
• Linear (No processing is applied to the panel)
Use this setting to enable monochrome mode. Only the luminance of the image will be displayed as a grayscale
picture.
■
RGB Bias and Gain
Select this submenu to fine-tune the monitor’s color balance (R, G, B). This should only be done by someone
experienced with video engineering, as this will alter the overall color shading of the screen. The purpose is to
allow color matching to other types of monitors and/or displays. Note: The Color Temperature preset will
automatically switch to USER when Color Bias settings are adjusted. It is normal for color bias adjustments to
be very subtle.
When selecting the RGB Bias and Gain submenu, gain adjustment indicators will appear at the top of the
screen, and bias adjustment indicators will appear at the bottom of the screen:
Use the ▲ and ▼ buttons to select each individual bias or gain control. Press SELECT to begin adjusting the
control. Use the ▲ and ▼ buttons to increase or decrease the value.
Alternately, the image adjustment buttons (Brightness, Color, Tint, Contrast) can be used to easily adjust the bias
and gain settings as shown below. The buttons affect whichever row of controls (gain or bias) is currently selected.
■
Check Field
Use the check field modes for monitor calibration or to analyze individual color components of an image. In
Monochrome mode, all color is disabled and only a grayscale image is shown. In Blue, Green, and Red check
field modes, only the selected color will be shown.
Use the following procedure when calibrating the monitor to SMPTE color bars with the following procedure:
1. Allow the monitor to warm up for at least 5-10 minutes.
2. Display SMPTE split-field color bars on the monitor using an external source.
3. Enable Monochrome mode.
4. Locate the pluge pattern (super black, black, and gray bars) at the lower-right corner of the screen. Adjust the Brightness
button until there is no visible difference between the super black and black bars, but the gray bar is still visible.
11
5. Adjust the Contrast button until an even grayscale appears along the top bars.
6. Disable Monochrome mode.
7. Enable Blue Check Field mode and adjust the Color button so that the outermost bars (white and blue) appear to match in
brightness.
8. Composite NTSC only: Adjust the Tint button until the third bar from the left (cyan) and the third bar from the right (magenta)
appear to match in brightness.
9. Disable Blue Check Field mode.
■
Ratio Settings
Use to switch between Full Screen, 4:3 and 16:9 aspect ratios.
As the V-MD434 and V-MD503 monitors have a native resolution of 800 x 480 RGB pixels, incoming images are
automatically scaled to fit the screen:
• In Full Screen mode, images are scaled to fill the entire screen (800 x 480).
• In 4:3 mode, images are scaled to fill the center 4:3 portion of the screen (640 x 480). With a 16:9 source,
images will be centered with a black letter-box added on the left and right sides.
• In 16:9 mode, images are scaled to a 16:9 portion of the screen (800 x 450), with a black letter-box added
top and bottom.
Note: The aspect ratio setting is ignored when Pixel-to-Pixel mode is enabled.
■
Pixel-to-Pixel
Use this setting to enable Pixel-to-Pixel mode.
This Pixel-to-Pixel mode bypasses the monitor’s internal scaling function and displays incoming images in their
native resolution and aspect ratio, with a one-to-one mapping:
12
• For incoming formats smaller than the native resolution of the LCD panel (800 x 480), the image will be
displayed in the center of the screen using only the necessary LCD pixels. For example, NTSC images will
occupy exactly 720 x 480 pixels. The surrounding pixels will be black.
• For incoming formats exceeding 800 x 480 pixels, only the center 800 x 480 of the incoming image will
displayed occupying the whole screen, with the remainder of the picture cropped. For example, 1080i
formats will both be cropped to 800 x 480 and displayed full-screen.
Note: Pixel-to-Pixel mode disables aspect ratio control and H/V Delay.
Marker Configuration Submenu
Marker Configuration Submenu
■
Markers
Use this setting to enable or disable all on-screen markers. This setting affects the center marker, full screen
markers, 16:9 markers and 4:3 markers.
■
Center Marker
Use this setting to display a center marker on the screen.
■
16:9 Markers
Use these settings to superimpose one of 12 markers on the screen when in 16:9 mode.
• 4:3
• 13:9
• 14:9
• 1.85:1
• 2.35:1
• 95% Safe
• 93% Safe
• 90%Safe
• 88% Safe
• 85% Safe
• 80% Safe
13
16:9 Marker Examples:
OFF (No Marker)
2.35:1 Aspect Ratio
4:3 Aspect Ratio Marker
■
Full Screen Markers
Use these settings to superimpose one of 6 markers on the screen when in Full Screen mode.
• 95% Safe
• 93% Safe
• 90%Safe
• 88% Safe
• 85% Safe
• 80% Safe
■
4:3 Markers
Use this setting to superimpose one of 5 markers on the screen when in 4:3 mode.
• 95% Safe Area
• 93% Safe Area
• 90% Safe Area
• 88% Safe Area
• 85% Safe Area
• 80% Safe Area
4:3 Marker Examples:
OFF (No Marker)
90% Safe Area
■
Marker Background
Use this setting to choose how selected markers are displayed on the screen. :
• 0% The marker is superimposed on the complete image.
• 25% Image area beyond the marker is shown at 25% intensity.
• 50% Image area beyond the marker is shown at 50% intensity.
• 75% Image area beyond the marker is shown at 75% intensity.
• 100% Image area beyond the marker is shown at 100% intensity (black).
Example (80% Marker in 4:3 Mode):
14
90% Safe Area
0% Background
100% Background
15
Filter Configuration Submenu
■
False Colors
The V-MD434 and V-MD503 have a false color filter to aid in the setting of camera exposure. As the camera Iris
is adjusted, elements of the image will change color based on the luminance or brightness values. This enables
proper exposure to be achieved without the use of costly, complicated external equipment. To best utilize this
feature, you must understand the color chart below and have a basic understanding of camera exposure.
Normally, when shooting subjects like people, it is common practice to set exposure of faces to the equivalent of
approximately 56 IRE. The false color filter will show this area as the color PINK on the monitor. Therefore, as
you increase exposure (open the IRIS), your subject will change color as indicated on the chart: PINK, then
GREY, then a few shades of YELLOW. Over exposed subjects (above 101 IRE) on the monitor will be shown as
RED. In addition, underexposed subjects will show as DEEP-BLUE to DARK–BLUE, with clipped-blacks
indicated with a FUCHSIA-like color. Lastly, the color GREEN is used to indicate elements of the image that are
approximately 45 IRE. This represents a ‘neutral’ or ‘mid-level’ exposure commonly used for objects (not
people).
16
False Color Key
■
Mosquito Filter
Use this setting to filter out “Mosquito Noise” – an artifact that appears as specs around edges of objects. This
artifact is the result of video that has been compressed at some point. Video sources from DVD-Players, PDA’s,
Digital Cable Boxes, Camcorders, etc. often have this artifact.
System Configuration Submenu
■
Input Format OSD
Use this option to enable on-screen display of input/format status in the upper-left corner of the screen.
■
Curtain Color
Use this option to change the curtain color on the monitor. This curtain color is what you see when there is no
signal input to the monitor.
■
Splash Screen
Use this option to enable or disable the Marshall Electronics Inc. splash screen seen when the monitor is first
powered on.
■
Freeze
Use the Freeze function to “freeze” the current image on the screen. Select this menu item again (Unfreeze) to
return to the real-time video input.
■
Contrast / Backlight
Use this feature to choose between controlling the Contrast of the image or the intensity of the panel’s Backlight
with the CONTRAST button on your monitor. Note: While the Contrast control moves up and down at intervals
of 1, the Backlight control will move up and down at intervals of 2, from 0-100.
■
Load Setup
System Configuration Submenu
17
Select this menu item to reset all adjustments and menu settings to the factory default configuration.
■
Save Setup
Select this menu item to reset all adjustments and menu settings to the factory default configuration.
Function Presets Submenu
■
User-Definable Function Buttons
Use the Function on F1, F2 menu items to define each function button on the front panel of the monitor. The
following options are available for each button:
• Ratio
• Check Field
• Mosquito Filter
• False Colors
• Freeze Input
• Aspect Markers
• Center Marker
• Marker Enable
• Pixel-to-Pixel
18
IMD & Tally Configuration
■
Text Enable
Use the Text Enable function to turn the MD Text feature ON. This will cause the Text String to appear on the
lower portion of the screen.
■
Text String
Use this field to enter your own 16 character string on the screen.
■
Text Color
Use this field to change the color of the text in the Text String field.
■
Text Background
Use this field to change the opacity of the background behind the text in the Text String field. A value of 0% will
cause the background to appear black. A value of 100% will make the background invisible.
■
Text Alignment
Use this field to change the alignment of the text string mentioned above.
■
Tally Source
Use this setting to change the source of the LED tally lights. Choosing the HD-15 (Contact Closure) option will
render the LAN Tally interface disabled. Choosing the LAN 100 option will also render the HD-15 (Contact
Closure) connector inoperable.
■
LED Tally
Use the LED Tally option to turn the physical LED tally lights ON or OFF.
■
On-Screen Tally
19
Use the On-Screen Tally option to turn the On-Screen tally ON or OFF.
■
Text Tally
Use the Text Tally option to lock the Text String color to the same color as the current Tally color. When there is
no specific tally color enabled, the text string will default to the Text Color selection made in the IMD & Tally
Configuration menu option.
System Information Submenu
■
System
This shows the System firmware version of your monitor.
■
Power Module
This shows the Power Module firmware version of your monitor.
■
Input Module
This shows your module version and the firmware version of your module. If no module is present, the words
MODULE NOT INSTALLED will appear in parentheses.
Network Configuration Submenu
The Network Configuration Submenu only appears on the first display of each V-MD434 or V-MD503 monitor. This
Submenu is responsible for the network settings of the entire monitor.
20
■
Configuration Mode
Use this setting to choose between a DHCP IP address retrieval or Manual IP address selection.
■
IP Address
When using a Manual Configuration Mode, use this field to assign a specific IP address for your monitor. When
in DHCP Configuration Mode, this field will automatically be filled by the IP address assigned by your network.
■
Subnet Mask
When using a Manual Configuration Mode, use this field to assign a specific Subnet Mask for your monitor.
When in DHCP Configuration Mode, this field will automatically be filled by the Subnet Mask assigned by your
network.
■
Default Gateway
When using a Manual Configuration Mode, use this field to assign a specific Default Gateway for your monitor.
When in DHCP Configuration Mode, this field will automatically be filled by the Default Gateway assigned by
your network.
■
Host Name
Use this field to enter a Host Name for your monitor. You may choose up to 16 alphanumeric characters for the
host name.
■
Web Authentication
Use this field to turn Web Authentication ON or OFF. If turned on, you will be asked to select a Username and
Password in the subsequent fields.
Username:16 Alphanumeric character string
Password: 16 Alphanumeric character string
■
MAC Address
This field will show the MAC address associated with the particular monitor in question.
21
Network Control Page
The V-MD434 and V-MD503 monitors allows you to fully control all settings via the standard
Lan100 ethernet port on the rear of the monitor. Simply connect the V-MD503 or V-MD434
monitor to your network with an Ethernet patch cable and access the monitor’s host name or IP
Address via any web browser on your computer and take control.
Status Tab
Power / Input Page
■
Power
Use this row to determine the Power status for each of the screens on the unit. A green ON box indicates that
the screen is currently on. A red OFF box indicates that the unit is off. Press the box to toggle the screen ON or
OFF. The last element, ALL, controls all screens on the monitor.
■
Input
The input field allows you to identify the module type currently in your monitor’s slot. The ALL column in this row
does not apply.
■
Format
This text field determines the input format currently being displayed on a particular monitor screen. A No Signal
string indicates that there is no signal present.
22
System Information
■
System
This shows the System firmware version of each individual screen on your monitor.
■
Power Module
This shows the Power Module firmware version of your monitor.
■
Input Module
This text field determines the input format currently being displayed on a particular monitor screen. A No Signal
string indicates that there is no signal present.
Menu Tab
23
Video Config
■
Color Temperature
Use this row to determine the current Color Temperature preset being used on each screen. This row can also
be used to change the Color Temperature preset used on an individual screen level or the global level under the
GLOBAL column.
■
RGB Bias and Gain
Click the Adjust button in this row to move into the RGB Bias and Gain controls. This is covered in depth later in
this manual, in the Image Adjust submenu.
■
Check Field
Use this row to determine the current Check Field mode being used on an individual screen. The drop down
menu in this row can also be used to enable a Check Field color type on the individual screen level or the global
level under the GLOBAL column.
■
Aspect Ratio
Use this row to determine the current Aspect Ratio mode being used on an individual screen. The drop down
menu in this row can also be used to enable a particular Aspect Ratio on the individual screen level or the global
level under the GLOBAL column.
■
Pixel-to-Pixel
Use this row to determine the current state of the Pixel-to-Pixel feature of the monitor. Pressing one of the
boxes under each Screen type will either turn Pixel-to-Pixel mode OFF or ON. This can also be changed on the
global level under the GLOBAL column.
24
Marker Config
■
Marker Enable
Use this row to turn the screen markers on an individual screen ON or OFF. This can also be changed on the
global level under the GLOBAL column.
■
Center Marker
Use this row to turn the Center Marker on an individual screen ON or OFF. This can also be changed on the
global level under the GLOBAL column.
■
16:9 Markers
Use this row to determine the current status of the 16:9 markers on each individual panel. The drop down
menus in this row can also be used to select 16:9 screen markers on the individual screen level or the global
level under the GLOBAL column.
■
Full Screen Markers
Use this row to determine the current status of the Full Screen markers on each individual panel. The drop
down menus in this row can also be used to select Full Screen markers on the individual screen level or the
global level under the GLOBAL column.
■
4:3 Markers
Use this row to determine the current status of the 4:3 markers on each individual panel. The drop down menus
in this row can also be used to select 4:3 screen markers on the individual screen level or the global level under
the GLOBAL column.
■
Marker Background
Use this row to determine the current status of the transparency settings of the screen markers on each
individual panel. The drop down menus in this row can also be used to change your transparency values. This
can also be done on the global level under the GLOBAL column.
25

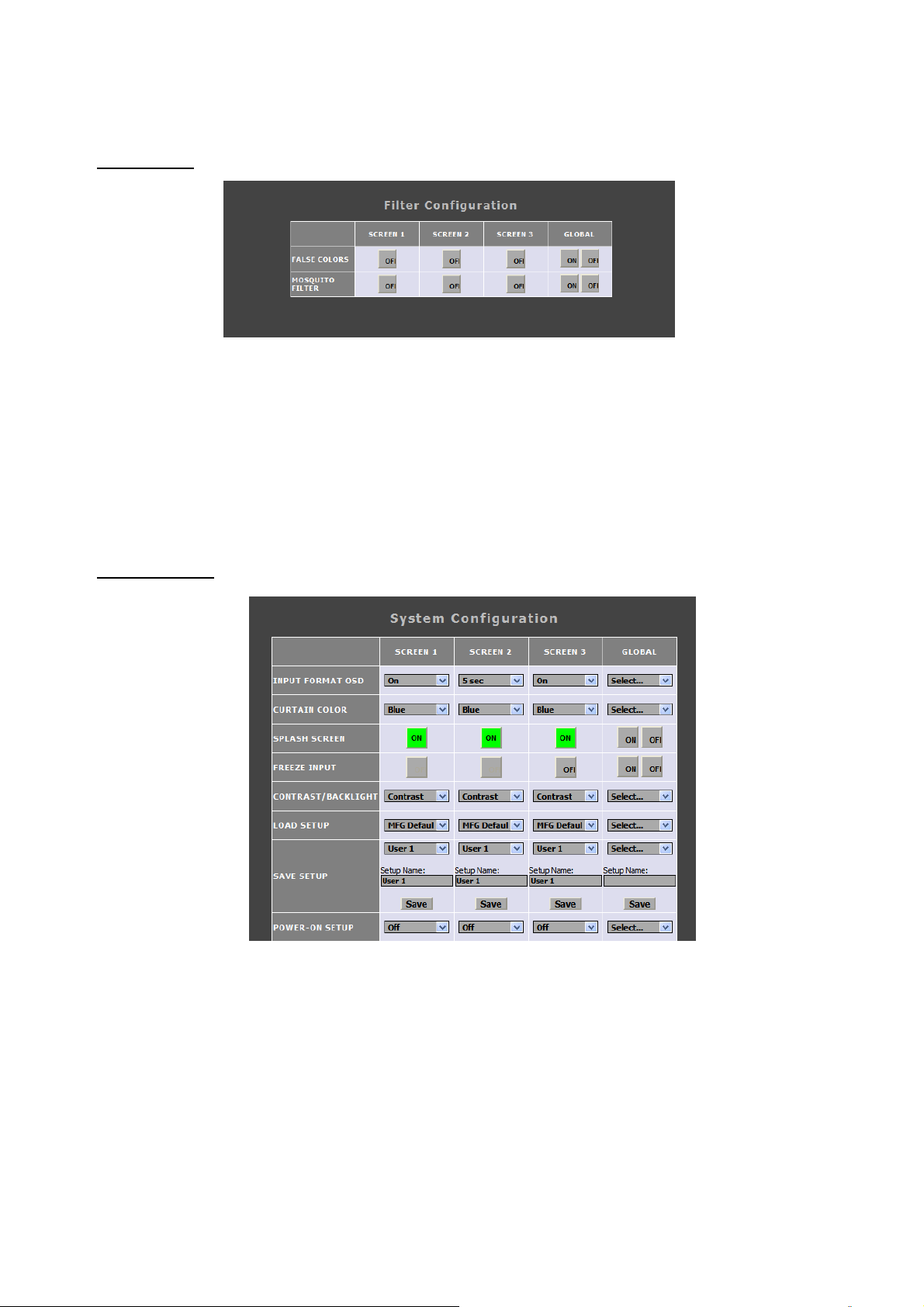

Filter Config
■
False Colors
Use this row to turn the False Color filter on an individual screen ON or OFF. This can also be changed on the
global level under the GLOBAL column.
■
Mosquito Filter
Use this row to turn the Mosquito Filter on an individual screen ON or OFF. This can also be changed on the
global level under the GLOBAL column.
System Config
■
Input Format OSD
Use this row to turn determine the Input Format OSD state. Use the drop down menu to choose from the
available options. This can also be changed on the global level under the GLOBAL column.
■
Curtain Color
Use this row to turn determine the current Curtain Color state. Use the drop down menu to choose from the
available options. This can also be changed on the global level under the GLOBAL column.
■
Splash Screen
Use this row to turn the splash screen on each individual panel ON or OFF. This can also be changed on the
global level under the GLOBAL column.
26
■
Freeze Input
Use this row to turn the freeze input function on each individual panel ON or OFF. This can also be changed on
the global level under the GLOBAL column.
■
Contrast/Backlight
Use this row to select what function should be controlled by the CONTRAST buttons on the physical unit or on
the Network Control Page. This can be changed for each individual panel, or on the global level under the
GLOBAL column.
■
Load Setup
Use this row to load any of the Setup configuration files available on the monitor. This can be selected for each
individual panel, or on the global level under the GLOBAL column. When selecting from the GLOBAL column,
each individual panel will load its own individual settings. For example, if you select User 3 from the GLOBAL
column, each panel will load a separate User 3 setting, not a single file.
■
Save Setup
Use this row to Save the current configuration on each individual panel or on the global level. When selecting
from the GLOBAL column, each individual panel will save its own individual settings. For example, if you select
User 3 from the GLOBAL column, each panel will save a separate User 3 setting, not a single file.
■
Setup Name
Use this dialogue box to rename the User configuration files available. Choose up to 16 characters to
customize the names of the User configuration files. You can also assign each User configuration file a
name globally. The name you select in this dialogue box will be stored and available from the Load and
Save setup options previously mentioned.
■
Power-On Setup
Use this row to select the settings to be loaded when power is applied to the V-MD monitor. This can be
selected for each individual panel or globally in the GLOBAL column.
Function Presets
■
Function on F1 / F2
Use these rows to select the functions set to be controlled by the F1 and F2 buttons on the physical unit or on
the Network Control page. These functions can be set individually per panel or on the global scale using the
GLOBAL column.
27
IMD / Tally Config
■
Text Enable
Use this row to turn the monitor’s IMD text ON or OFF. This can also be changed on the global level under the
GLOBAL column.
■
Text String
Use the dialogue box in this row to enter a text string that will be displayed on the monitors. You may enter up
to 16 characters in this dialogue box. To confirm your text entry, press the Set button below the dialogue box.
Text can be entered for each individual panel or globally in the GLOBAL column.
■
Text Color
Use this row to change the color of the text for each individual panel, or globally under the GLOBAL column.
■
Text Background
Use this row to toggle between different settings for the IMD Text String’s background transparency. This can
be changed for each individual panel or globally in the GLOBAL column.
■
Text Alignment
Use this row to select the alignment of the IMD text. This can be changed individually or globally in the GLOBAL
column.
■
Tally Source
Use this row to determine the current source for the LED tally lights on each individual panel. Use the drop
down menu to select between the different tally sources. This can be changed individually or globally.
■
LED Tally
Use this to turn the LED Tally lights ON or OFF. This can be changed individually or globally and overrides any
of the Tally Source selections.
■
On-Screen Tally
Use this to turn the On-Screen Tally lights ON or OFF. This can be changed individually or globally.
■
Text Tally
Use this to turn the Text Tally function ON or OFF. This can be changed individually or globally.
28
Display Tab
Image Adjustment
■
BRIGHTNESS, COLOR, CONTRAST
Use this section to adjust the Brightness, Color and Contrast of each individual panel, or to adjust these values
globally. To enter a value manually, type in a number from 0-100 in the dialogue box and press Set. The value
selected on this page will show up on the monitor screen in real time.
RGB Gain / Bias
29
■
RGB Gain and Bias
Use this section to adjust the Gain and Bias for the Red, Green and Blue components of the video signal. This
can be done for each individual screen or globally. To enter a value manually, type in a number from 0-100 in
the dialogue box and press Set.
Backlight
■
Backlight
Use this section to adjust the Backlight value for each panel. This can be done for each individual screen or
globally. To enter a value manually, type in a number from 0-100 in the dialogue box and press Set.
Keypad Tab
Use the keypad portion of the Network Control page to access all aspects of the physical keypad from the Network
Control page. The GLOBAL column allows you to control a virtual Global Keypad that is like using all three
keypads at the same time.
30
Tally Tab
Use the Tally page, in conjunction with the LAN100 tally source, to control the LED and soft tally on the V-MD434
and V-Md503 monitors. The Tally can be controlled individually for each tally set above each panel.
The radio buttons allow for customization of tally lights to be used by the monitor. You can select between using all
possible colors, one color per screen or one color per unit.
Network Tab
31
Network Configuration
■
Remote Enable
Select whether you would like to be able to access a particular monitor’s web page or web functions from
another monitor on the same network.
■
Configuration Mode
Use this drop down menu to select between the different IP configuration modes available for the monitor.
■
IP Address
If you have selected the Manual configuration mode for the IP configuration mode, you will be able to enter an IP
address manually in this field. If you have selected DHCP, the box will have an IP address already entered.
This is not changeable when in DHCP mode.
■
Subnet Mask
If you have selected the Manual configuration mode for the IP configuration mode, you will be able to enter
Subnet Mask address manually in this field. If you have selected DHCP, the box will have Subnet Mask already
entered. This is not changeable when in DHCP mode.
■
Default Gateway
If you have selected the Manual configuration mode for the IP configuration mode, you will be able to enter
Default Gateway address manually in this field. If you have selected DHCP, the box will have Default Gateway
already entered. This is not changeable when in DHCP mode.
■
Host Name
Use this field to enter a Host Name for the V-MD434 or V-MD503 monitor. You may choose up to 16
alphanumeric characters for the Host Name.
■
Web Authentication
Fill in the Web Authentication box to protect the V-MD434 or V-MD503 monitor from being accessed by a user
without a User Name and Password. Filling this box in will enable the Username and Password fields below.
■
Username
32
Enter a 15 alphanumeric character string Username in this field. This will only work if the Web
Authentication option has been turned ON.
■
■
Enter Password / Re-enter Password
Enter a 15 alphanumeric character string Password in this field. You will need to Re-enter the password in
the box below the Enter Password box for additional security.
MAC Address
This is the unique MAC address for this V-MD434 and V-MD503 monitor. This cannot be changed.
To save all changes, press the Apply Changes button. You may also cancel out of the changes you have made by
pressing the Cancel button.
Navigator
The Network Control page’s Navigator allows you to scan your network for other V-MD434 or V-MD503 monitors or
any other Marshall Electronics Web Enabled MD monitors. From the navigator, you can find and sort all monitors
by their Host Name, IP Address or Model number. You can also access each monitor’s Network Control page.
Press the Scan Network button once to scan your network for other MD monitors. The navigator will not detect any
monitors added to the network if the scan was performed prior to their installation.
The information field at the bottom will indicate the Host Name, IP Address and model number of the origin of the
Navigator pop up page. It will also give a count of how many monitors have been found on the network.
33
Global Tab
Use the Global tab to control multiple Marshall Electronics MD monitors simultaneously. To control a monitor,
highlight an MD monitor by clicking on its Host Name, IP Address or Model. Monitors being controlled will be
highlighted in blue.
Global
Function
Scan
Network
Control
Panel
Scan Network
Use the Scan Network button to scan for any other
Marshall Electronics MD monitor connected on your
network. The results will show up in the Control
Panel box.
Control Panel
The control panel is located in the lower portion of the
screen and lists all Marshall Electronics MD monitors
available on your network, along with their Host
Name, IP Address and Model type. This information
can also be sorted by category by pressing the Host
Name, IP Address or Model bar at the top of the
control panel box. The Identify button next to each
monitor allows you to identify any monitor listed in the
Control Panel. Pressing this button will cause the
Monitor
Count
LED Tally lights on the monitor to flash once. These
lights will flash regardless of the monitor’s Tally
Source or LED Tally status in the IMD & Tally
Configuration menu.
Monitor Count
Use this count to quickly identify the number of
Marshall Electronics MD monitors on your network.
Global Function
The function controlled in this field is selectable
through the Network Control page’s GLOBAL tab on
the top right. Choose between Power / Input, Image
Adjust, Backlight, Video Config, Marker Config, Filter
Config, System Config, Function Presets and
IMD/Tally Config.
34
Specifications
■
PANEL
V-MD503
Screen Size 5” Diagonal
Display Area (h x v) 108.0 x 64.8 mm
Aspect Ratio 15:9 Native
Pixels 800 x RGB x 480
Color Depth 8-bit
Viewing Angle (h x v) 85° x 85°
Brightness 300 cd/m
Contrast Ratio 600:1
Pixel Pitch (h x v) 0.135 mm x 0.135mm
V-MD434
Screen Size 4.3” Diagonal
Display Area (h x v) 93.0 x 55.8 mm
Aspect Ratio 15:9 Native
Pixels 800 x RGB x 480
Color Depth 6-bit
Viewing Angle (h x v) 65° x 65°
Brightness 200 cd/m
Contrast Ratio 400:1
Pixel Pitch (h x v) 0.116 mm x 0.116mm
Burn-In Warning
The V-MD503 and V-MD434 uses a high quality TFT
LCD panels. However, if a static image is left on the
screen for 48 hours, there may be a 10 to 20 minute
recovery period for the panel. During recovery, a very
faint image may be retained on the display. Put up a
white image for 30 minutes to eliminate the retained
image.
■
Modular Inputs
Marshall Electronics Type B Input Modules
■
CONNECTORS
Power Input
2-Pin Twist-Lock Connector
Tally Hardware Interface
HD-15 Female
RJ45 Ethernet Port
8P8C Female RJ45 Port
2
2
■
TALLY HARDWARE INTERFACE (HD-15)
Activation requires contact closure of pin to ground on
the HD-15 connector:
Note: The table above is specific to the V-MD434. For the VMD503, pins 5, 10 and 15 are N/C (No Contact) and should not
be used.
■
ELECTRICAL
V-MD503
Power Consumption 21 W
Voltage Requirement 12 VDC
V-MD434
Power Consumption 24 W
Voltage Requirement 12 VDC
V-PS12-5V-1 Power Supply:
Input 100V-240V, 1.5A, 50-60Hz
Output 12VDC, 5A, 60W Max
■
MECHANICAL
V-MD503
Dimensions (w x h x d): 19.12” x 3.4” x 1.73”
Weight (Without Modules): 2.52 lbs
V-MD434
Dimensions (w x h x d): 19.12” x 3.4” x 1.73”
Weight (Without Modules): 2.68 lbs
V-MD503 and V-MD434
Operating Temperature 32°F to 120°F (0°C to 40 °C)
Storage Temperature -4°F to120°F (-20°C to 50°C)
RoHs Do not dispose. Return to
Manufacturer or Authorized
Recycle Facility.
Dimensions
V-MD503
V-MD434
36
Maintenance
■
Screen Cleaning
Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean
micro-fiber cloth can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use
paper towels. Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave
streaks on the surface. Antistatic and fingerprint resistant cleaning agents are recommended. Do not apply
excessive pressure to the screen to avoid damaging the LCD.
■
Faceplate Dusting
Dust the unit with a soft, damp cloth or chamois. Dry or abrasive cloths may cause electrostatic charge on the
surface, attracting dust particles. Neutralize static electricity effects by using the recommended cleaning and
polishing practice.
Warranty
Marshall Electronics warranties to the first consumer that this V-MD503 or V-MD434 LCD monitor will, under
normal use, be free from defects in workmanship and materials, when received in its original container, for a period
of one year from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is
necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall
Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and parts may be charged
to the consumer. This warranty does not apply to the product exterior or cosmetics. Misuse, abnormal handling,
alterations or modifications in design or construction void this warranty. It is considered normal for a minimal
amount of pixels, not to exceed three, to fail on the periphery of the display active viewing area. Marshall
Electronics reserves the option to refuse service for display pixel failure if deemed unobtrusive to effective use of
the monitor by our technicians. No sales personnel of the seller or any other person is authorized to make any
warranties other than those described above, or to extend the duration of any warranties on behalf of Marshall
Electronics, beyond the time period described above. Due to constant effort to improve products and product
features, specifications may change without notice.
37
This page intentionally left blank
38
This page intentionally left blank
39
Marshall Electronics
, Inc.
40
1910 East Maple Ave.
El Segundo, CA 90245
Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688
www.LCDRacks.com • sales@lcdracks.com
2010-1122
Loading...
