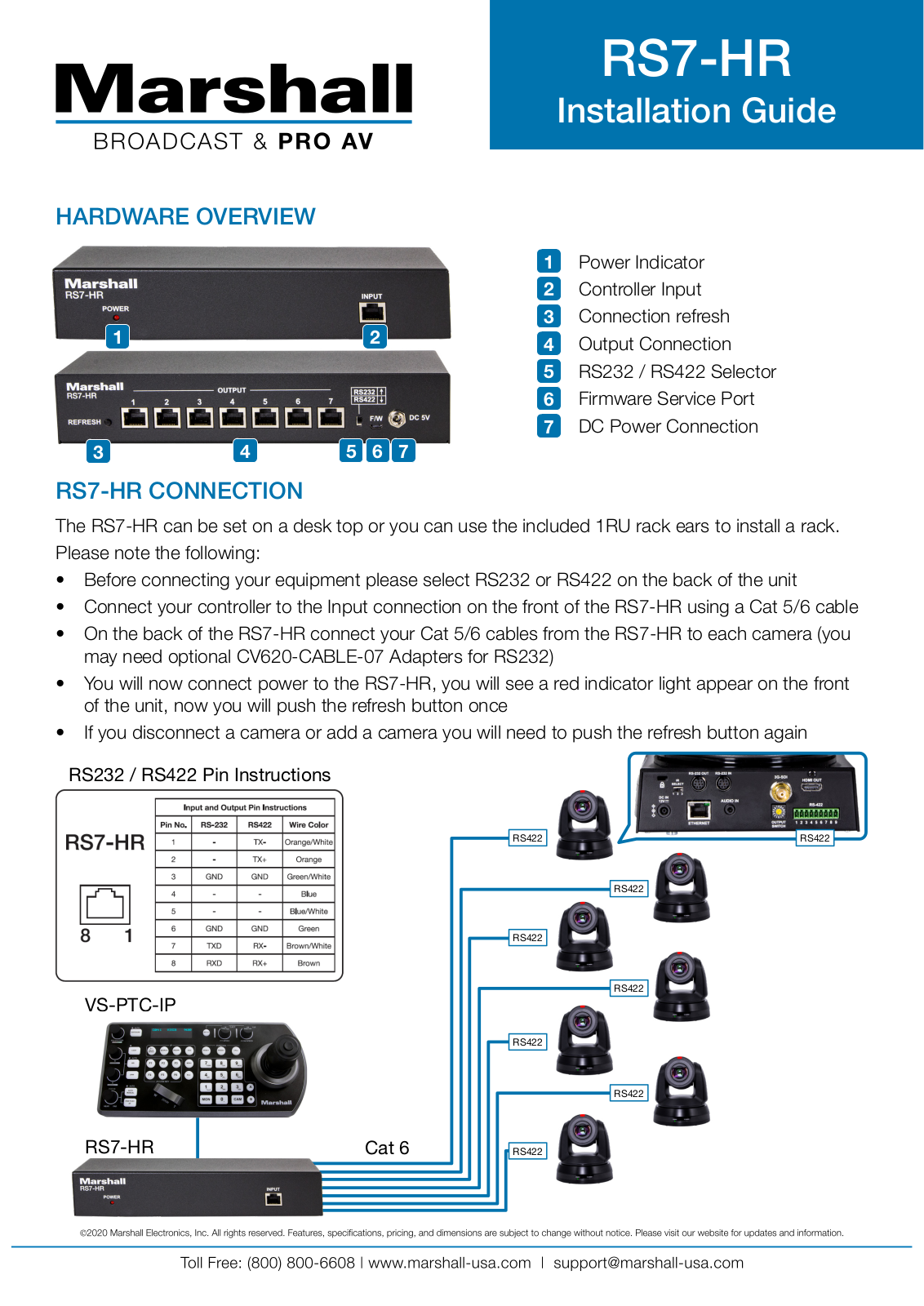

HARDWARE OVERVIEW
1
3
4 5 6 7
RS7-HR CONNECTION
RS7-HR
Installation Guide
Power Indicator
1
Controller Input
2
Connection refresh
3
2
Output Connection
4
RS232 / RS422 Selector
5
Firmware Service Port
6
DC Power Connection
7
The RS7-HR can be set on a desk top or you can use the included 1RU rack ears to install a rack.
Please note the following:
• Before connecting your equipment please select RS232 or RS422 on the back of the unit
• Connect your controller to the Input connection on the front of the RS7-HR using a Cat 5/6 cable
• On the back of the RS7-HR connect your Cat 5/6 cables from the RS7-HR to each camera (you
may need optional CV620-CABLE-07 Adapters for RS232)
• You will now connect power to the RS7-HR, you will see a red indicator light appear on the front
of the unit, now you will push the refresh button once
• If you disconnect a camera or add a camera you will need to push the refresh button again
RS232 / RS422 Pin Instructions
RS422
RS422
RS422
RS422
VS-PTC-IP
RS7-HR
Cat 6
RS422
RS422
RS422
RS422

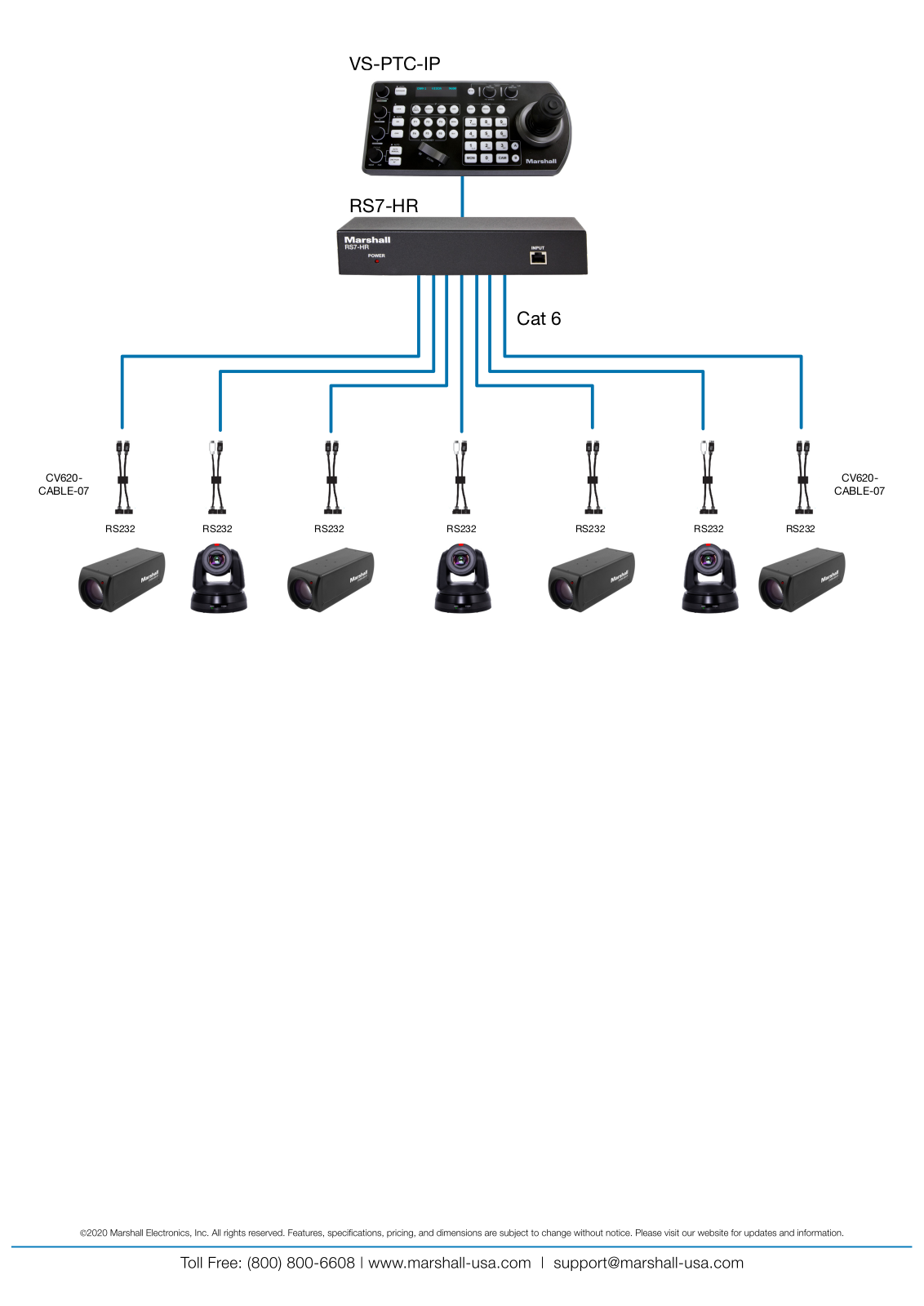

Page 2
VS-PTC-IP
RS7-HR
Cat 6
CV620-
CABLE-07
RS232 RS232 RS232 RS232
RS232 RS232 RS232
CV620-
CABLE-07
