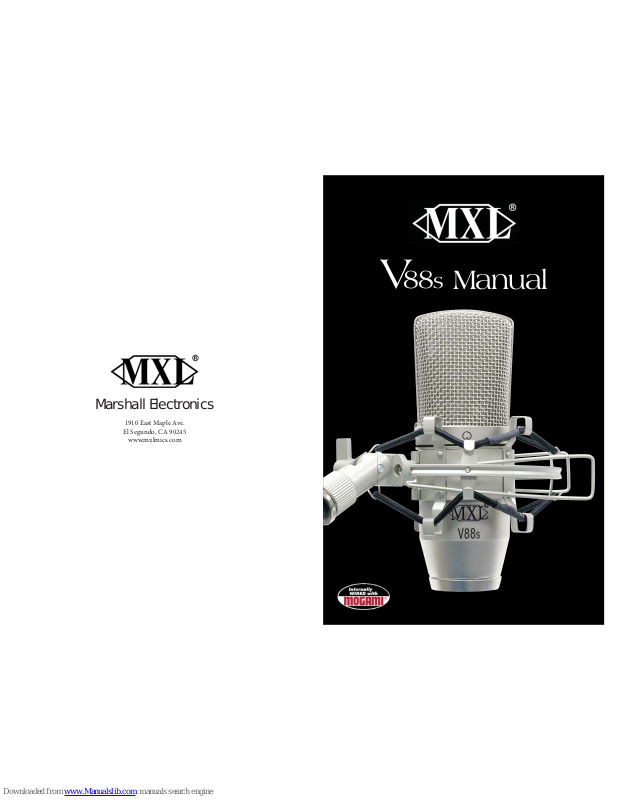

Marshall Electronics
1910 East Maple Ave.
El Segundo, CA 90245
www.mxlmics.com
Manual
V
88s
ank you for purchasing the MXL
V88s studio-recording microphone.
MXL microphones are the result of world-class engineering and manufacturing capabilities. ey are designed to provide you with outstanding
performance and exceptional value. For best results, please take a few
moments to review this literature.
General Characteristics
e MXL V88s is a small pro le multi-purpose microphone with a xed
cardoid pattern. It features a 32mm large diaphragm capsule, and a low
noise FET preamp with fully balanced transformerless output. In addition it has a 3 position pad (pre attenuation) switch with settings of 0dB,
-10dB and -20 dB. e addition of the pad switch enables the use of the
microphone with sound sources producing very high sound pressure
levels, without overloading the microphones internal circuitry. e MXL
V88s is suitable for a wide range of applications, delivering power and
depth to vocals, as well as capturing the clarity and smoothness of instrumental performances. Wired with Mogami cable, the MXL V88s’s delity
and versatility will ensure it is a favorite in your studio.
Power Requirements
IMPORTANT – is microphone requires phantom power at 48 volts,
+/- 4 volts. Each unit has been thoroughly checked before
shipping, so if you hear no sound, check that the phantom power on your
preamp, mixer or seperate power supply is switched on!
Microphone Cables
e microphone cable can have a profound e ect on the sound of any
microphone. Even the nest microphones will sound poor if the interconnect cable allows noise to enter, or causes distortion and loss of information. We recommend the use of Mogami Gold Studio microphone cables.
Care
Dust and foreign material can degrade the performance of a microphone
over time so always store the unit in its case. For vocals closer than 3”, use
www.MXLmics.com
a “popper stopper” or a foam windscreen to avoid getting moisture on
the diaphragm as this can substantially degrade the microphone’s performance.
Technical Speci cations
Type: Condenser pressure gradient mic
with large 32mm capsule
Diaphragm: Gold-sputtered, 6 micron diaphragm
Frequency Range: 20Hz-20kHz
Polar Pattern: Cardioid
Switch: (Pad/Pre attenuation) -10dB, -20dB
Impedance: 150ohms
Sensitivity: 25mV/Pa
S/N Ratio: 80dB (Ref. 1Pa A-weighted)
Equivalent Noise Level: 14dBA (A-weighted IEC 651)
Max SPL for 0.5% THD: 158dB (with pad set to -20 dB)
Max Output 1K Load: +13dBu
Power Requirements: Phantom Power 48V ± 4V
Current Consumption: 5.4mA
Size: 76mm x 152mm
Weight: 1 lb
Metal Finish: Nickel plated
Frequency Chart
Wa rr a n t y
Marshall microphones are guaranteed against defects in material and workmanship for
three years from date of purchase. Should you encounter any problem with this unit,
promptly contact the company you purchased it from for assistance. e original dated
sales receipt will be necessary for any warranty claim. Do not send any unit directly to us
without prior authorization from our service department! Warranty coverage is limited
to repair or replacement (at our option) of the microphone, and does not cover incidental
damages due to use of this unit, nor damage caused by accidental misuse of this product.
www.MXLmics.com
0
90270
180
Polar Pattern
