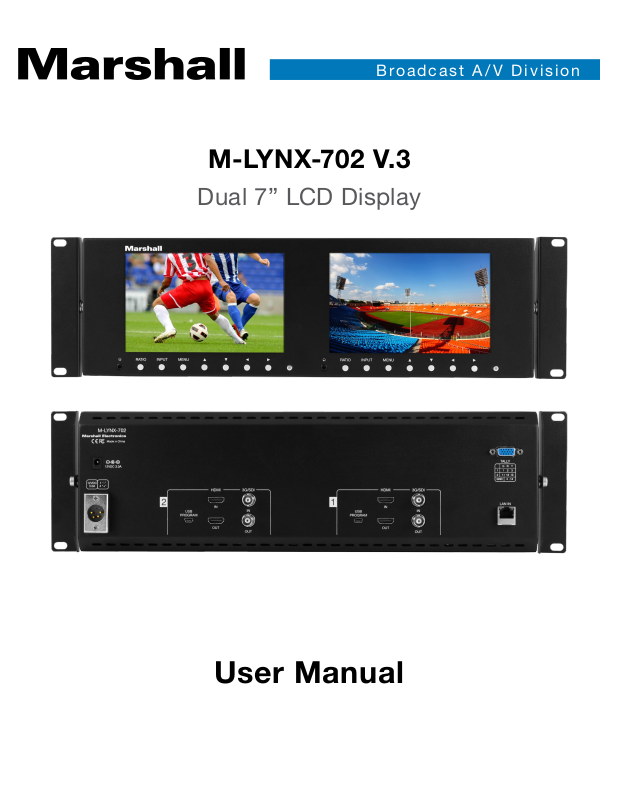

Marshall Electronics M-LYNX-702-V3 Users Manual

Broadcast A/V Division
M-LYNX-702 V.3
Dual 7” LCD Display
User Manual
Table of Contents
1. Package Includes
Table of Contents
M-LYNX-702 V.3 Manual
1. Package Includes
• One M-LYNX-702 Monitor
• One universal AC power adapter
• One AC power cord
• Information card
2. Product Description
01
2.1 Front Panel
02
2. Product Description
2.1 Front Panel
2.2 Rear Panel Connections
3. On-Screen Menu
3.1 Main Menu Categories
3.2 Sub-Menu Descriptions
3.2.1 Video
3.2.2 Audio
3.2.3 Setting
3.2.4 OSD (On-Screen Display)
4. Dimensions
02
02
03
04
04
04
06
07
07
08
09
Headphone jack (one per screen). Monitor channels 1 and 2 of embedded audio from HDMI or SDI source.
RATIO: Aspect ratio button provides quick selection of Full Screen, 16:9, and 4:3. INPUT: HDMI/SDI button switches between HDMI or SDI inputs. MENU: Accesses the on-screen menus. Press the menu button a second time to clear the screen
or wait 10 seconds and it will clear itself.
: Short cut key to change Brightness. When menu is on screen, moves selection up.
: Short cut key to change Contrast. When menu is on screen, moves selection down.
: Short cut key to decrease Volume. Use after or short cuts to decrease brightness or
5. Parameters
6. Network Controls
Warranty
1 2
10
11
End
contrast.
When menu is on screen, use to change selected parameter.
: Short cut key to increase the Volume. Use after or short cuts to increase brightness or contrast. When menu is on screen, use to change selected parameter.
Power button. Press to turn screen on or off.
M-LYNX-702 V.3 Manual
2.2 Rear Panel Connections
Power Input
The M-LYNX-702 V.3 monitor can be powered using either the included 12-Volt power supply plugged into the small coaxial connector or standard 12-Volt camera-type power supply connected to the 4-pin XLR connector. It is recommended to connect only one type of power supply at one time.
USB Port
The USB port is used for service functions only.
LAN Port
Ethernet LAN “RJ-45” Connector. The monitor can be operated from a PC using the application provided with the unit.
3. On Screen Menu
Access the main menu by pressing the Menu button on the front panel.
Use the / keys to move within the main menu.
Use the key to access a sub-menu.
Once in a sub-menu, use the / keys to select an item to adjust and use the / keys to
change values or choices within their range.
Use the “Menu” key to return to main menu from the sub-menus.
To exit from the on-screen menus, press the “Menu” key again.
3.1 Main Menu Categories
Video – Contrast, Brightness, Saturation, Sharpness, Color Temp., Picture Mode, Aspect Ratio, Check Field (selection of individual color), H/V delay (Only available on SDI signal), Scan Mode.
HDMI Input and Loop Out
Connect a standard HDMI source here. For details, see the Compatible Input Formats section below. Active loop out allows “daisy-chaining” to other devices. (Loop out continues to function when the screen is turned off.)
3G/SDI Input and Loop Out
Connect a serial digital source here. It is compatible with SDI, HD SDI, or 3G SDI sources. Active loop out allows “daisy-chaining” to other devices. (Loop out continues to function when the screen is turned off.)
TA LLY
The 15-pin D-Sub connector on the back panel is used to control the on-screen colored tally indicators. The Red, Green, or Yellow border color can be turned on by connecting the appropriate pin on this connector to the ground pin via “dry contact” or “open collector” type source. Refer to the table printed next to the connector for wiring information. Note: External power should not be applied to this connector.
Continued on Next Page
3 4
