Marshall Electronics
MD-0512 Distribution Amplifier Users Guide
Marshall Electronics
1910 East Maple Avenue
El Segundo, California 90245
Tel 800-800-6608
Fax 310-333-0688
WWW.LCDRacks.com
Email sales@lcdracks.com
TABLE OF CONTENTS
Product Overview .................................................................................................................................2
Features...............................................................................................................................................2
Electrical Specifications .........................................................................................................................2
Operational Setup .................................................................................................................................2
Connectors ...........................................................................................................................................4
Mechanical Specification ........................................................................................................................2
Warranty..............................................................................................................................................1
Warranty
Marshall Electronics warranties to the first consumer, that this MD-0512 Distribution Amplifier will, under
normal use, be free from defects in workmanship and materials, when received in its original container, for a
period of one year from the purchase date.
This warranty is extended to the first consumer only and proof of purchase is necessary to honor the
warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the
right, not to honor the warranty set forth above. Therefore, labor and parts may be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling,
improper alterations or modifications in design or construction, voids this warranty. No sales personnel of the
seller, nor any other person is authorized to make any warranties other than those described above, or to
extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described
above.
Due to constant effort to improve products and product features, specifications may change without notice
.
Page
1
Page 2
Marshall Electronics
MD-0512 Distribution Amplifier Users Guide
Product Overview
The MD-0512 is a multiformat 1 x 2 distribution amplifier, with signal bandwidth up to 350 MHz. This module can be used
with VGA, SVGA, XGA, UXGA signals. An optional HD15 to 5 BNC cable (RGB-5HD15-X) can be used for RGBHV, Y-Pr-Pb,
YUV, RGB, and composite signals. Supports screen formats up to 1920 x 1080
Features
•
Signal Bandwidth up to 350Mhz
•
Multiple applications
•
HD-15 Input Connection self terminating 75Ω
•
2 HD-15 Output Connections
•
All connections in rear of module
•
Includes Power Supply Model V-PS6-1.2A
•
Install in wall with supplied brackets or use on the desktop
Electrical Specifications
Signal Input HD-15 (VGA, SVGA, XGA, UXGA, RGBHV, YUV, Composite)
Signal Output 2 HD-15
Frequency Response 10 to 350 MHz
K factor <1%
Signal to Noise >70 db
Dynamic gain/phase <1% / <10
Cable length 250’
Power required 6 Volt D.C. supplied from V-PS6-1.2A (included) (1.2Amp Max)
Mechanical Specification
Dimensions
MD-0512 Weight 1.15 lbs (.34kg)
V-PS6-1.2A
Power Supply Weight
4.75”W x 4.125”D x 1.0”H
.20 lbs (0.10kg)
Optional Accessories
RGB-5HD15-X
(X = Length in feet 6, 10, 15, 20)
Cable
Stand
V-CB1
Page
2
Page 3
Marshall Electronics
Operational Setup
1. Unpack the MD-0512, and accompanying V-PS6-1.2A power supply and physically inspect for any damage that
may have occurred during shipping. Also verify there is a small package with mounting accessories. Should there
be any damage, immediately contact Marshall Electronics at 800-800-6608. If you are not located within the
continental united states call +1 310-333-0606.
2. Install in your desired location. If wall mounting is required, attach the mounting brackets by removing the
Phillips head screws on the sides, closest to the rear of the unit. (See below) Only one screw per side should be
removed. Use the same screw to attach the bracket with the flange facing away from the side and parallel to the
front of the MD-0514 metal case. The flange has two holes. For desktop use, apply the supplied rubber pads.
MD-0512 Distribution Amplifier Users Guide
Determine your signal configuration from the table below:
INPUT
SIGNAL
VGA from
Computer
VGA from
Computer
RGBHV
Y-Pr-Pb or RGB
From camera
Composite Video
group
(RGB BNC)
(3 Signals)
3.
Connect required cables for signal input and output.
CABLE OUTPUT
SIGNAL
HD-15 Male to Male
(Customer supplied)
HD-15 Male to Male
(Customer supplied)
RGB-5HD15-X
(X=length)
(6,10, 15, 20 feet)
RGB-5HD15-X
(X=length)
(6,10, 15, 20 feet)
RGB-5HD15-X
(X=length)
(6,10, 15, 20 feet)
VGA to Projector
RGBHV to
Projector or
Monitor
RGBHV to
Projector or
Monitor
Y-Pr-Pb or RGB
to monitor
Composite
group
(RGB BNC)
(3 Signals)
Video
CABLE
HD-15 Male to Male
(Customer supplied)
RGB-5HD15-X
(X=length)
(6,10, 15, 20 feet)
RGB-5HD15-X
(X=length)
(6,10, 15, 20 feet)
RGB-5HD15-X
(X=length)
(6,10, 15, 20 feet)
RGB-5HD15-X
(X=length)
(6,10, 15, 20 feet)
Note that 3 Composite video signals can be applied for distribution on the Red, Green, and Blue
BNC connections of RGB-HD15-X breakout cable. (See Illustration next page)
4. Plug the power supply into the A.C. source
5. Attach power connection to the back of the unit to turn on power. Verify power on indicator active on the front
of the MD-0512
Page
3
Page 4
Marshall Electronics
MD-0512 Distribution Amplifier Users Guide

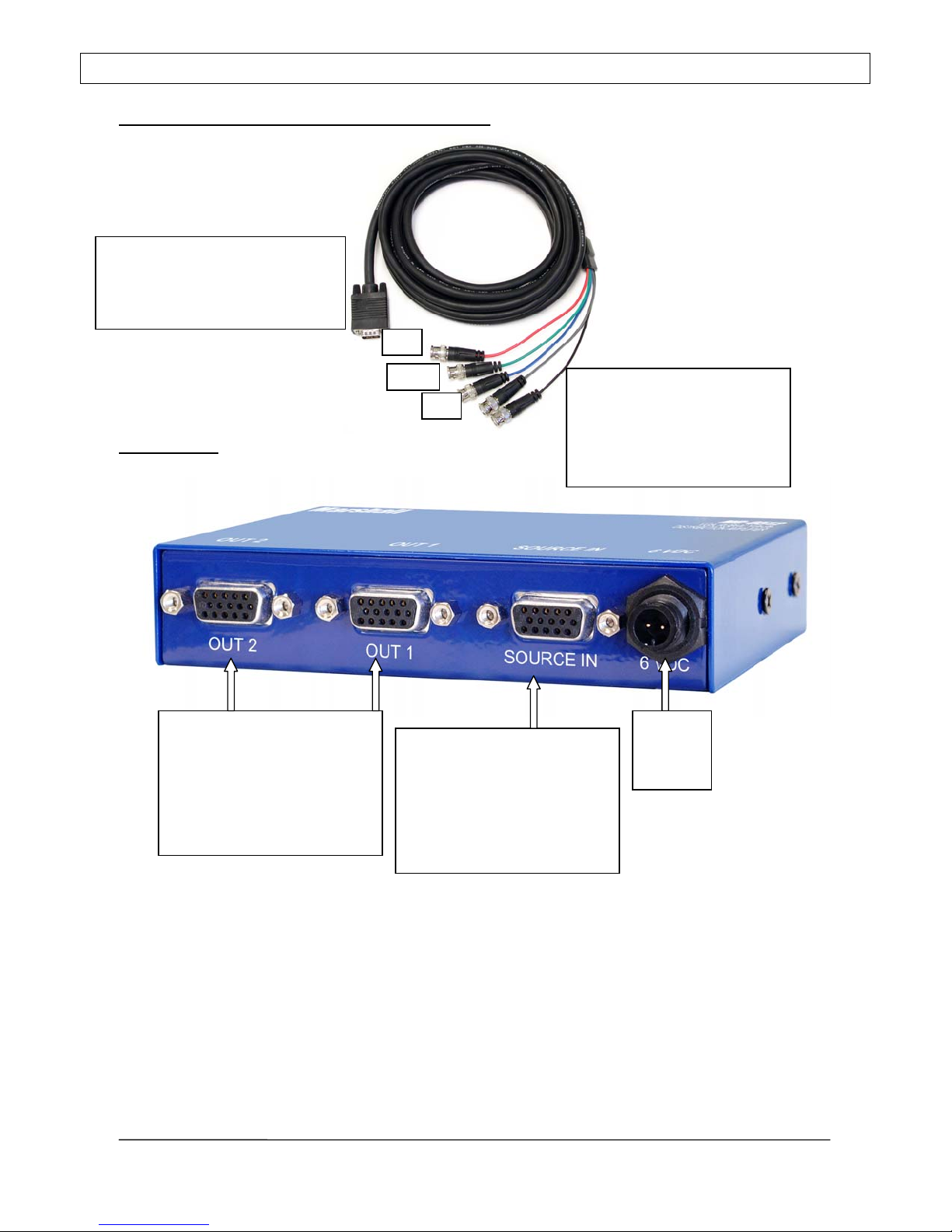

Composite Video using RGB-HD15-X cable
Composite Video Signal 1 on RED
Composite Video Signal 2 on Green
Composite Video Signal 3 on Blue
RED
GREEN
Connectors
BLUE
Gray and Black are not active
when used for composite video
or component video signals
DB HD-15 Female Connector Output
Pin-1 Red Out Pin-9
Pin-2 Green Out Pin-10
Pin-3 Blue Out Pin-11
Pin-4 Pin-12
Pin-5 Pin-13 VS Out
Pin-6 Ground Pin-14 HS Out
Pin-7 Ground Pin-15
Pin-8 Ground
DB HD-15 Female Connector Input
Pin-1 Red In Pin-9
Pin-2 Green In Pin-10
Pin-3 Blue In Pin-11
Pin-4 Pin-12
Pin-5 Pin-13 VS In
Pin-6 Ground Pin-14 HS In
Pin-7 Ground Pin-15
Pin-8 Ground
6 VDC from
V-PS6-1.2A
power supply
Left Pin - Pos
Right Pin- Neg
Page
4
