Marshall Electronics CV343, CV345, CV502, CV505 Operation Manual

Operation Manual

Full-HD (3G/HD-SDI)

Mini-Broadcast POV Cameras

CV343, CV502, CV345, CV505 models

Marshall Electronics

2

MENU STRUCTURE

SETUP SUB MENU SUB MENU

ESC

DC IRIS

AUTO

ATW

PUSH

COLOR TEMPERATURE

RED GAIN

BLUE GAIN

BRIGHTNESS 0~20

AGC LIMIT 0~20

AUTO

MANUAL

FLICKERLESS

DSS (SENS-UP) OFF, x2~64

WDR

BLC

SPOT

ACE LOW, MIDDLE, HIGH

LEVEL

COLOR

ANTI-SAT.

AGC LEVEL

AGC MARGIN

DWELL TIME

COLOR

NIGHT

DAY/NIGHT

AUTO

LENS

WB

CONTROL

MANUAL

AE CONTROL

(EXPOSURE)

SHUTTER

BACK LIGHT

BACK LIGHT

ECLIPSE

3

MENU STRUCTURE

SETUP SUB MENU SUB MENU

RANGE 10%, 20%, 30%

FILTER LOW, MIDDLE, HIGH

AUTO C OFF, HALF, FULL

AUDIO LEVEL 0~143

AUDIO AGC OFF, ON

AGC MAX 0~119

SAMPLE BITS 16, 20, 24, 32 BITS

COLOR LEVEL 0~20

SHARPNESS 0~20

MIRROR

FLIP

D-ZOOM 1.0X ~ 16.0X

AUTO

MANUAL

DNR OFF, LOW, MIDDLE, HIGH

MOTION

SHADING

GAMMA

FRAME RATE

CAM VERSION

CAM TITLE

PRIVACY

CAM ID 0~255

BAUDRATE

LANGUAGE

RESET

EXIT

DISPLAY

CONTROL


STABILIZER

AUDIO


CONTROL

DEFOG

MENU

LENS
WB CONTROL
AE CONTROL
BACK LIGHT
DAY / NIGHT
IMAGE STABILIZER
AUDIO MIC
IMAGE CONTROL
DISPLAY CONTROL
RESET
EXIT

Press SET button to access the MAIN MENU.

Use the UP & DOWN buttons

to select the desired item.

Use the LEFT & RIGHT buttons

to change the sub-item.

Icon indicates “Press OSD Button” or “Enter Sub Menu”.

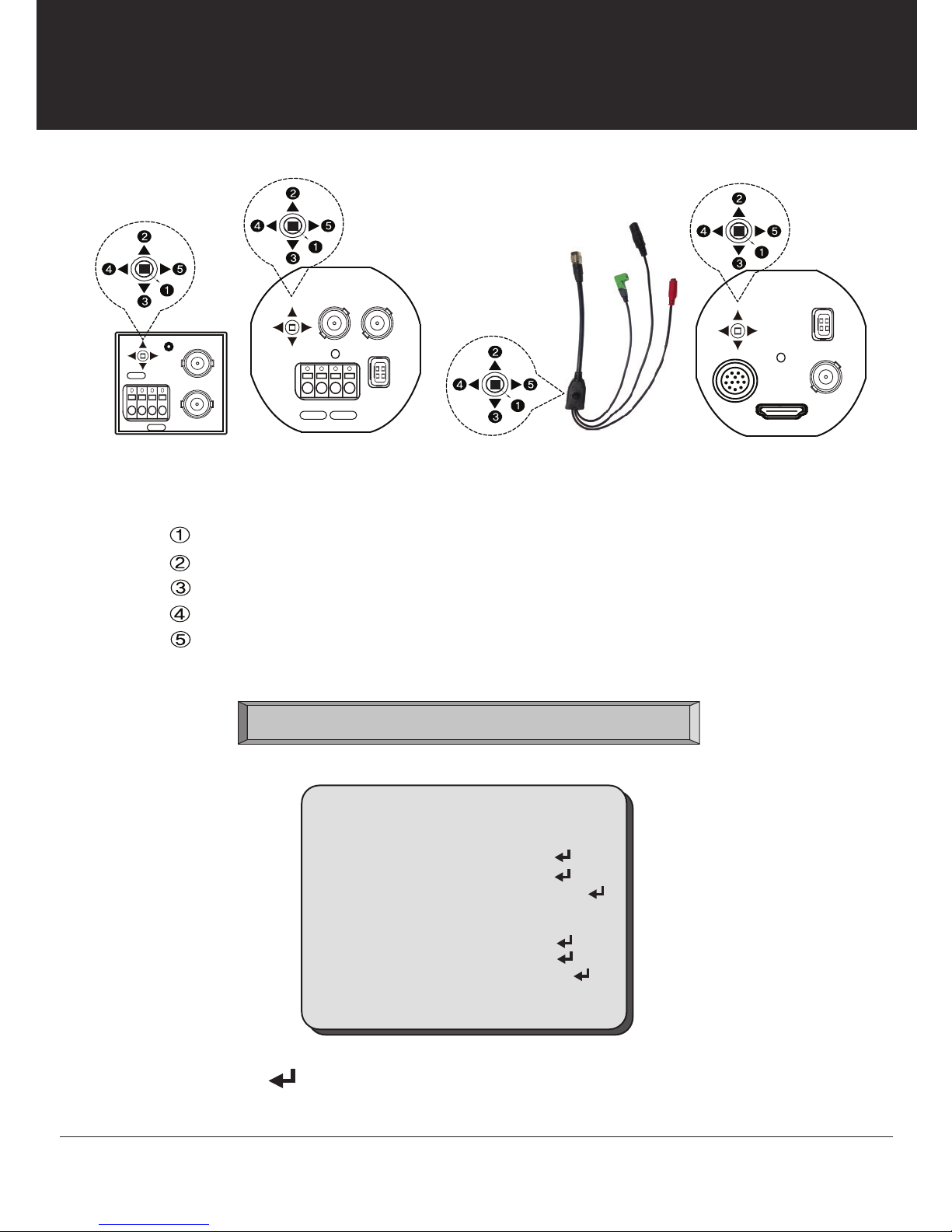

OSD Joystick and Button

SET

Used to access the menu and confirm selection.

Used to move the cursor up.

Used to move the cursor to left and change the value.

Used to move the cursor to right and change the value.

Used to move the cursor down

UP
DOWN

RIGHT

LEFT

4

CVBS

3G/HD-SDI

12VDC

RS-485

+ -

+ -

SDICVBS

12VDC RS-485

+ -

+ -

IRIS

SDI

IRIS

HDMI

POWER

I/O

CV502 CV343

I/O Cable

for CV345/502

CV345

ESC
ATW

AUTO
OFF
ON

ON

5

Select LENS using the UP or DOWN button.
You can change between ESC and DC IRIS using the LEFT or RIGHT button.

ESC: Manual IRIS Lens (Fixed IRIS lens)

LENS ESC, DC IRIS

DC IRIS: DC Auto IRIS Lens.

MENU

LENS
WB CONTROL
AE CONTROL
BACK LIGHT
DAY / NIGHT
IMAGE STABILIZER
AUDIO MIC
IMAGE CONTROL
DISPLAY CONTROL
RESET
EXIT

ESC
ATW

AUTO
OFF
ON

ON

MENU

LENS
WB CONTROL
AE CONTROL
BACK LIGHT
DAY / NIGHT
IMAGE STABILIZER
AUDIO MIC
IMAGE CONTROL
DISPLAY CONTROL
RESET
EXIT

DC IRIS
ATW

AUTO
OFF
ON

ON

Shutter will automatically control exposure if SHUTTER is set as AUTO.

IRIS will automatically control exposure.

6

Select WB CONTROL using the UP or DOWN button.
You can change between AUTO, ATW, PUSH, and MANUAL using the LEFT or RIGHT button.

AUTO: Controls the automatic adjustment of the light source's color
temperature to 3,000°K ~ 8,000°K.

WB CONTROL AUTO, ATW, PUSH, MANUAL

ATW: Continuously adjusts camera color balance in accordance with any

change in color temperature. Compensates for color temperature changes
within the range of 1,900°K to 11,000°K.

PUSH: Color temperature will be manually adjusted by pushing the OSD
button. Place the white paper in front of the camera when OSD button is
pressed to obtain the optimum result.

MANUAL: Select this to fine-tune White Balance manually.

You can adjust the blue and red tone level manually.

COLOR TEMP: Select color temperature from LOW, MIDDLE, or HIGH.
BLUE: Adjust the Blue tone of the image. (0~20)
RED: Adjust the Red tone of the image. (0~20)

WB CONTROL

COLOR TEMP LOW
BLUE 10
RED 10
RETURN

■ Adjust White Balance first by using the AUTO or ATW mode before switching to MANUAL mode.

■ White Balance may not work properly under the following conditions. In this case, select the ATW mode.

- When the ambient illumination of the subject is dim.

- If the camera is directed towards a fluorescent light or is installed in place where illumination changes
dramatically, the White Balance operation may become unstable.

MENU

LENS
WB CONTROL
AE CONTROL
BACK LIGHT
DAY / NIGHT
IMAGE STABILIZER
AUDIO MIC
IMAGE CONTROL
DISPLAY CONTROL
RESET
EXIT

ESC
MANUAL

AUTO
OFF
ON

ON

Camera will raise up gain to the selected gain limit under dark conditions.

7

Select AE CONTROL using the UP or DOWN button.
You can select one sub-mode from BRIGHTNESS, AGC LIMIT, SHUTTER, and DSS using
the UP or DOWN button.

AE CONTROL

BRIGHTNESS: The brightness control function adjusts gain and iris to keep

a brightness level.

AGC LIMIT: This function controls the amplification/gain process automatically
if the illumination falls under the usable level.

DSS (Digital Shutter Speed): When luminance condition is low, DSS can adjust
the picture quality by maintaining the light level. Slow shutter speed limits to x64.

SHUTTER: This function control shutter speed.

AE CONTROL

BRIGHTNESS
AGC LIMIT
SHUTER
DSS
RETURN

MENU

LENS
WB CONTROL
AE CONTROL
BACK LIGHT
DAY / NIGHT
IMAGE STABILIZER
AUDIO MIC
IMAGE CONTROL
DISPLAY CONTROL
RESET
EXIT

ESC
MANUAL

AUTO
OFF
ON

ON

10
10
AUTO
OFF

SHUTTER

MODE
RETURN

NORMAL

MANUAL: Shutter speed will be fixed at the selected speed. (1/60~40,000)
AUTO: Shutter controls exposure automatically when IRIS is manual. (NORMAL/DEBLUR)
FLICKERLESS: This function will help to decrease video flickers due to a conflict with the

installed lighting frequency.

SHUTTER

SPEED
RETURN

1/90

BRIGHTNESS, AGC LIMIT

SHUTTER, DSS
