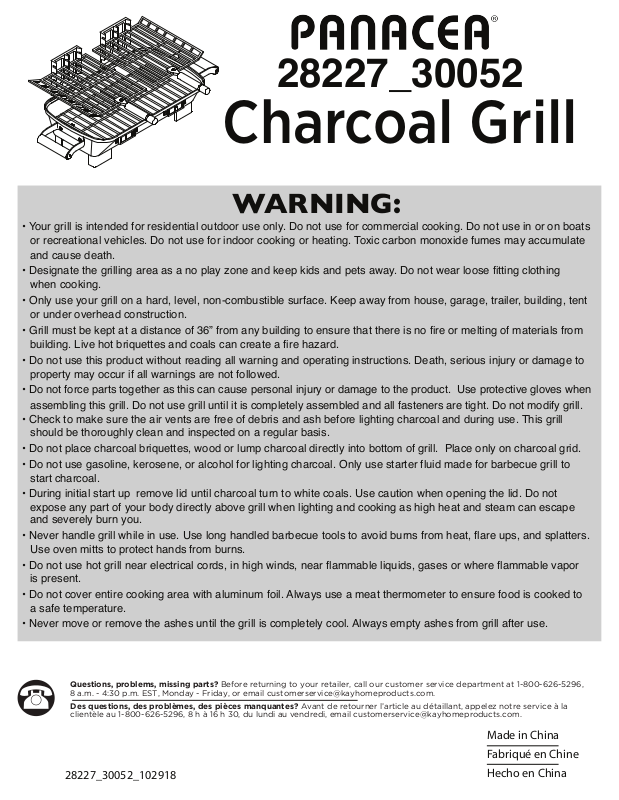

Charcoal Grill
WARNING:
• Your grill is intended for residential outdoor use only. Do not use for commercial cooking. Do not use in or on boats
or recreational vehicles. Do not use for indoor cooking or heating. Toxic carbon monoxide fumes may accumulate
and cause death.
• Designate the grilling area as a no play zone and keep kids and pets away. Do not wear loose fitting clothing
when cooking.
• Only use your grill on a hard, level, non-combustible surface. Keep away from house, garage, trailer, building, tent
or under overhead construction.
• Grill must be kept at a distance of 36” from any building to ensure that there is no fire or melting of materials from
building. Live hot briquettes and coals can create a fire hazard.
• Do not use this product without reading all warning and operating instructions. Death, serious injury or damage to
property may occur if all warnings are not followed.
• Do not force parts together as this can cause personal injury or damage to the product. Use protective gloves when
assembling this grill. Do not use grill until it is completely assembled and all fasteners are tight. Do not modify grill.
• Check to make sure the air vents are free of debris and ash before lighting charcoal and during use. This grill
should be thoroughly clean and inspected on a regular basis.
• Do not place charcoal briquettes, wood or lump charcoal directly into bottom of grill. Place only on charcoal grid.
• Do not use gasoline, kerosene, or alcohol for lighting charcoal. Only use starter fluid made for barbecue grill to
start charcoal.
• During initial start up remove lid until charcoal turn to white coals. Use caution when opening the lid. Do not
expose any part of your body directly above grill when lighting and cooking as high heat and steam can escape
and severely burn you.
• Never handle grill while in use. Use long handled barbecue tools to avoid burns from heat, flare ups, and splatters.
Use oven mitts to protect hands from burns.
• Do not use hot grill near electrical cords, in high winds, near flammable liquids, gases or where flammable vapor
is present.
• Do not cover entire cooking area with aluminum foil. Always use a meat thermometer to ensure food is cooked to
a safe temperature.
• Never move or remove the ashes until the grill is completely cool. Always empty ashes from grill after use.
Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-626-5296,
8 a.m. - 4:30 p.m. EST, Monday - Friday, or email [email protected].
Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article au détaillant, appelez notre service à la
clientèle au 1-800-626-5296, 8 h à 16 h 30, du lundi au vendredi, email [email protected].
Made in China
Fabriqué en Chine
28227_30052_102918
Hecho en China
Page 2
Parts List
Thoroughly inspect contents of box before assembly to ensure that there are no
missing or damaged parts. If you have missing or damaged parts DO NOT RETURN
PRODUCT TO STORE. Contact the Kay Home Products Customer Service
Department at the toll free number listed on the front of this manual.
Approximate Assembly Time: One Hour

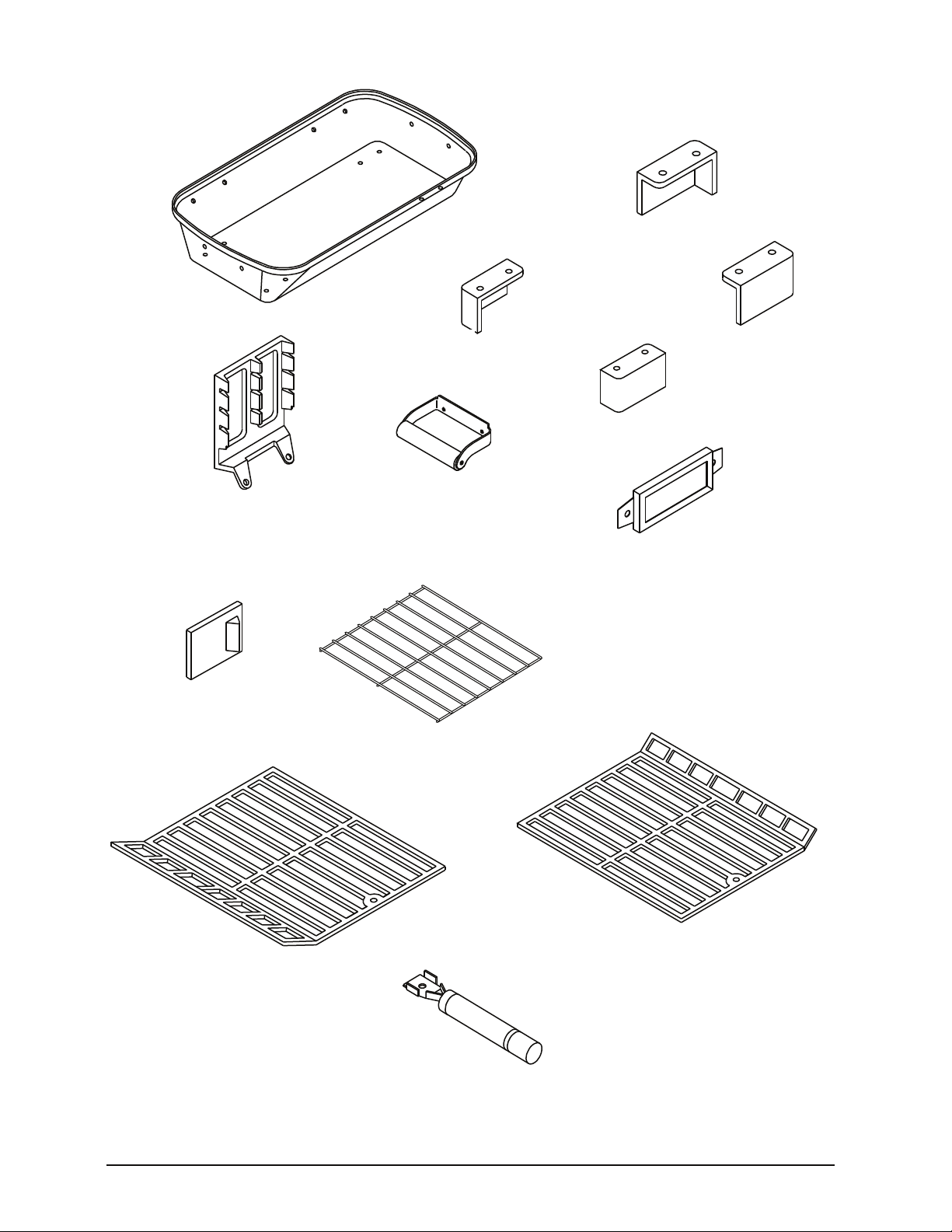

Parts List
Item Qty
A
B
C
D
E 1
F
G
1
1
1
1
2
2 Side Handle
Bowl H 2
Leg (Right Rear)
Leg (Right Front)
Leg (Left Front)
Leg (Left Rear)
Grid Support

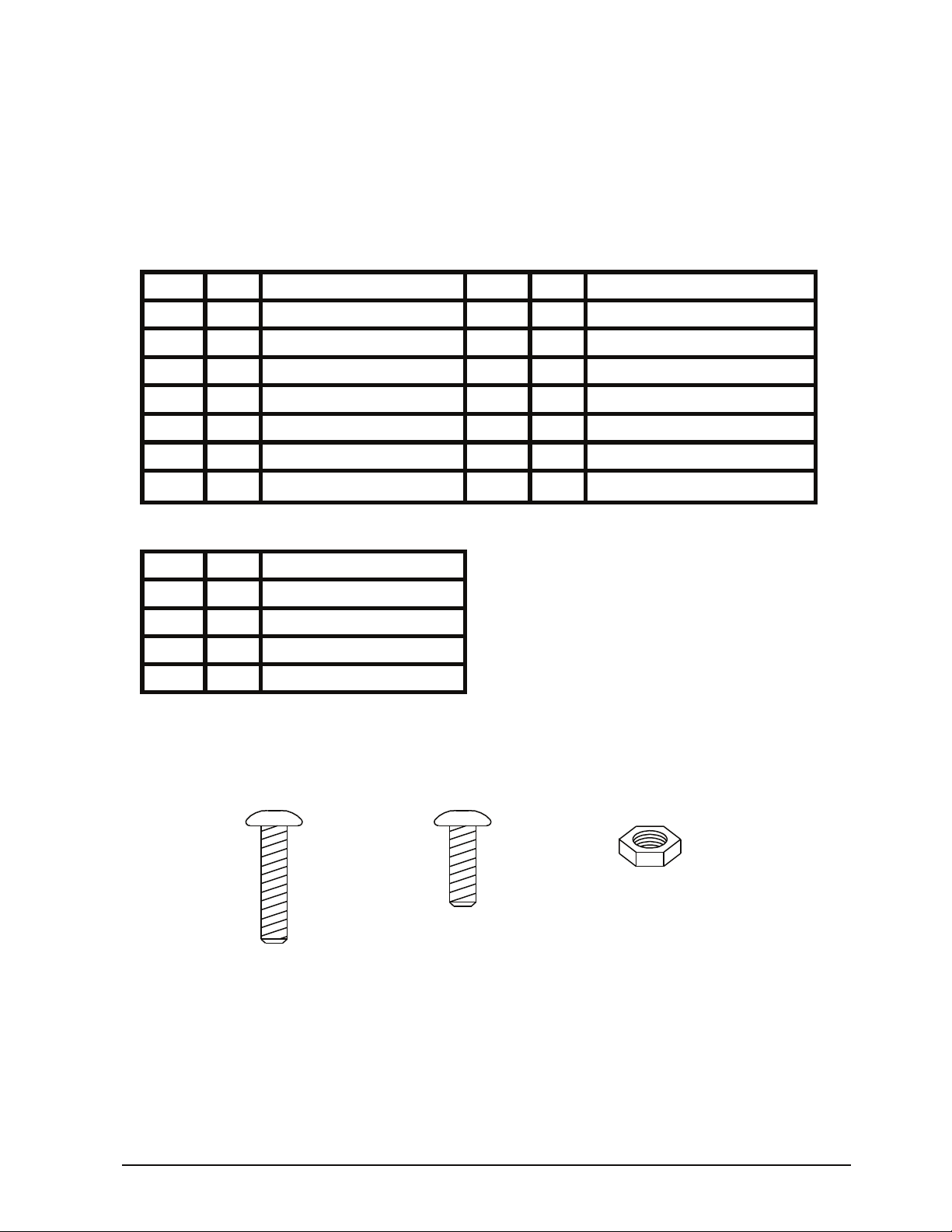

Hardware List
Item Qty
S1
S2
N1 22
14
8
Part Name
Long Screw
Short Screw
Hex Nut
Part Name
Item
J
K 1
L 1 Cooking Grid (Right)
M
Qty
I 2
2
2
Part Name
Vent Door Bracket
Vent Door
Charcoal Grid
Cooking Grid (Left)
Cooking Grid Handle
S1
N1
S2
2
Page 3
A
B
C
D
E
F
G
H
K
I
J
L
M
3
Page 4
F
S2
G
N1
C
G
F
A
N1
B
S1
D
S1
N1
Figure 1
E

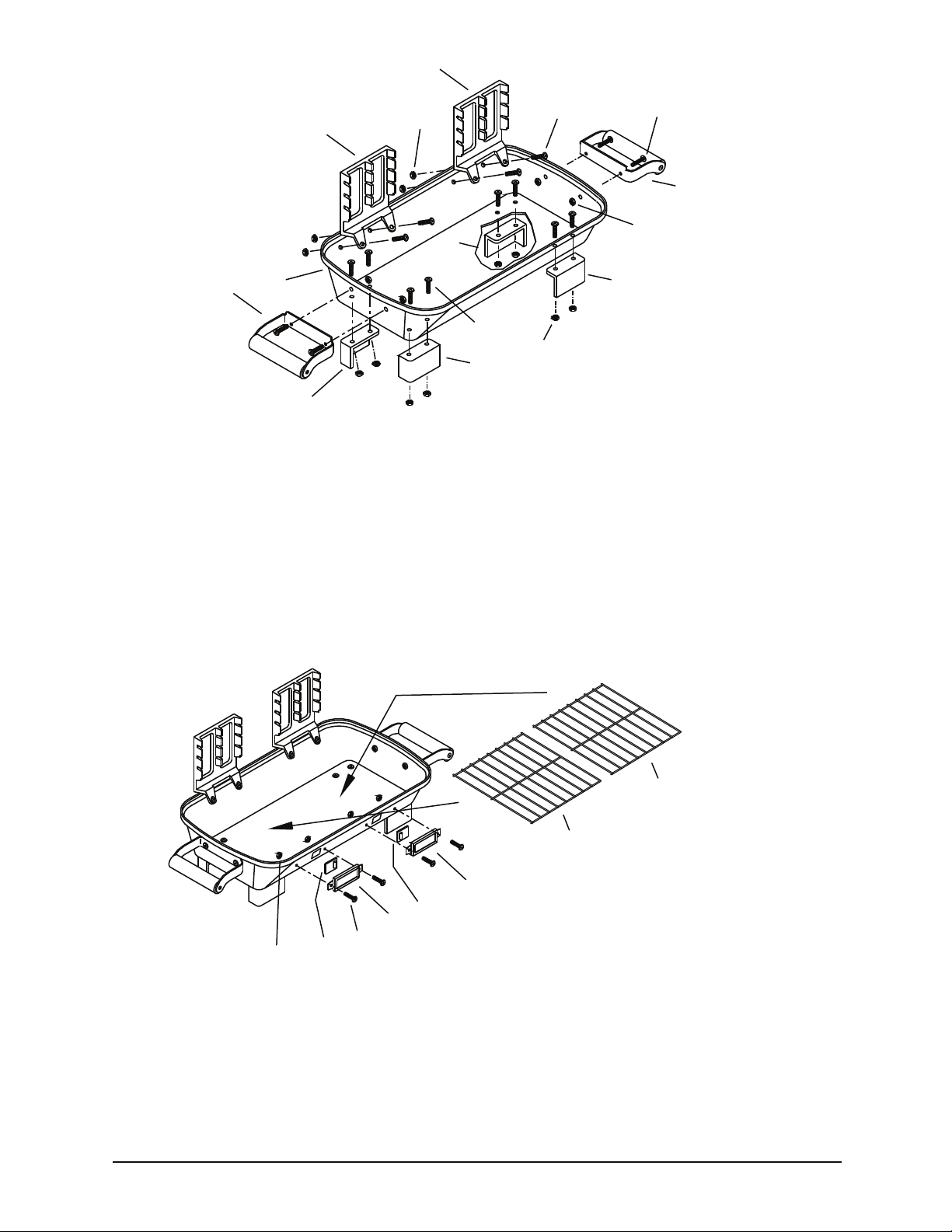

1. Attach Legs(Items B, C, D, and E) to bottom of Bowl (Item A) as shown in Figure 1
using Long Screws(S1) and Nuts (N1).
2. Attach Grid Supports (Item F) to inside rear of Bowl (Item A) as shown in Figure 1
using Long Screws (S1) and Nuts (N1).
3. Attach Side Handles (Item G) to sides of Bowl (Item A) as shown in Figure 1 using
Short Screws (S2), and Nut (N1).
J
J
H
I
N1
H
S2
I
Figure 2
4. Attach Vent Doors (Item I) and Vent Door Brackets (Item H) to outside front
of Bowl (Item A) as shown in Figure 2 using Short Screws (S2), and Nuts (N1).
The vent door fits in between the bracket and the bowl.
5. Place Charcoal Grids (Item J) inside of Bowl (Item A) as shown in Figure 2.
When in use, the charcoal must be placed on top of these grids.
4
Page 5
Figure 3
L
S1
K
M

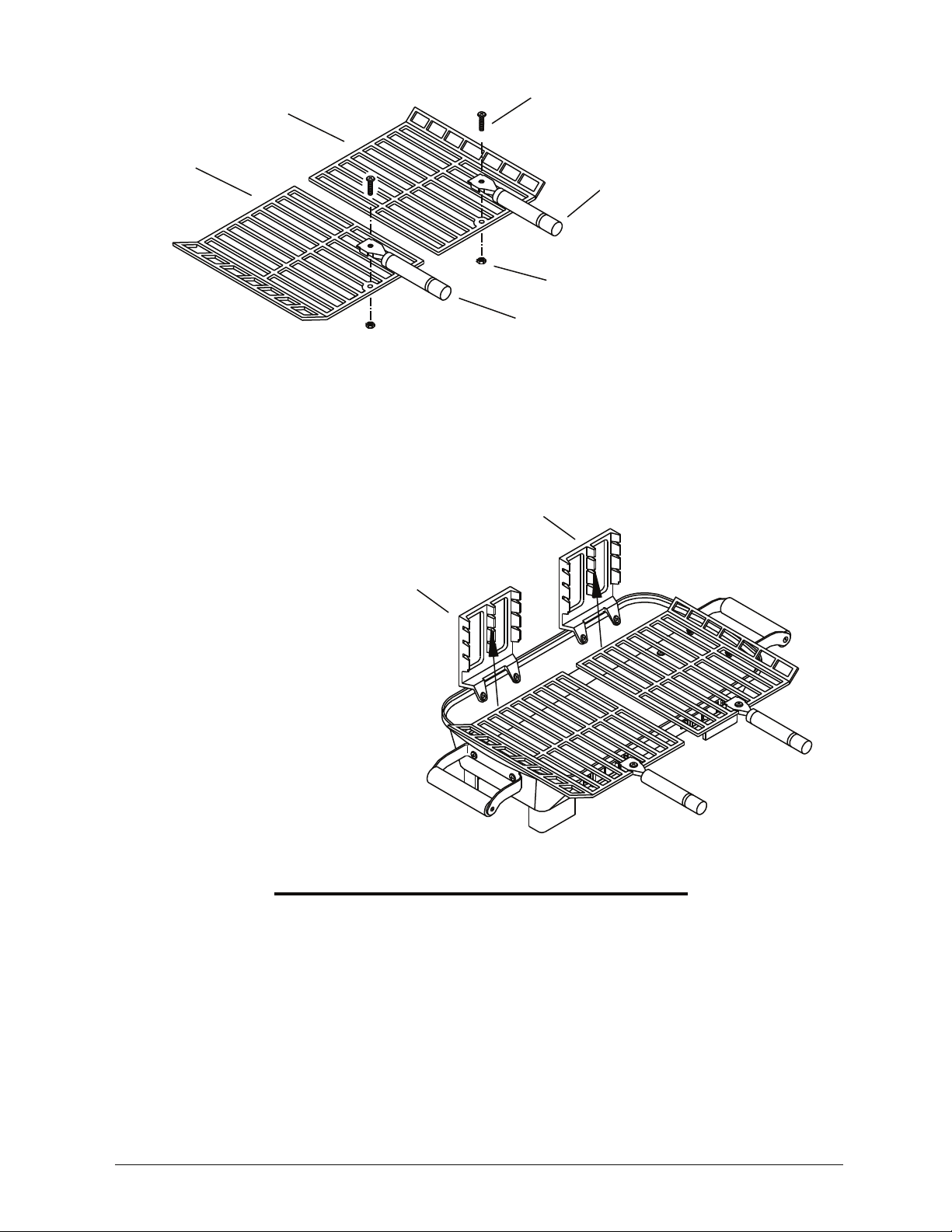

6. Attach Cooking Grid Handles (Item M) to Cooking
Grids (Item K, L) as shown in Figure 3 using Long
screws (S1) and Nuts (N1).
F
M
N1
Figure 4
7. Insert the rear edge of
the cooking grids into slots
in Grid Supports(Item F) as
shown in Figure 4. Using the
lower slots will provide higher
cooking temperature. Using the
higher slots will produce a lower
cooking temperature.
Cleaning
Allow grill to cool completely before cleaning. Disassemble grill and scrape off
grease. Clean with hot, soapy water and rinse completely. Use a wire brush if
necessary on cooking grid. Do not use a self-cleaning oven agent to clean any
part of the grill.
F
Storage
Allow grill to cool completely before transporting or storing. Place grill on a firm,
level surface.
5
Page 6
WARNING
CARBON MONOXIDE HAZARD
Burning wood or charcoal inside
can kill you. It gives off carbon
monoxide, which has no odor.
NEVER burn wood or charcoal inside
homes, vehicles or tents.
AVERTISSEMENT
RISQUE DE MONOXYDE DE CARBONE
Allumer du bois ou charbon à l’intérieur
peut vous tuer. Ceci émet du monoxyde
de carbone, qui n’a pas d’odeur.
JAMAIS brûler du bois ou charbon de
bois à l’intérieur de maisons, véhicule
ou tente.
RIESGO DE MONOXIDE DE CARBONO
Encender madera o carbones en un
espacio cerrado puede ser mortal, ya
que produce la emisión de monóxido
de carbono, un gas sin olor.
NUNCA encienda madera o carbones dentro
de su casa, veículo o tienda de campaña.
WARNING:
Combustion byproducts
produced when using
this product include
carbon monoxide and
other chemicals known
to the State of California
to cause cancer, birth
defects or other
reproductive harm.
AVERTISSEMENT:
Les sous-produits de
combustion produits lors
de l’utilisation de ce produit
incluent le monoxyde de
carbone et autres produits
chimiques reconnus par
l’État de la Californie
pouvant causer le cancer,
malformations congénitales
et autres anomalies de la
reproduction.
ADVERTENCIA:
Entre los subproductos
de combustión
producidos al utilizar
este producto se
encuentran el monóxido
de carbono y otras
sustancias químicas
que según el estado
de California producen
cáncer, defectos de nacimiento u otros daños
reproductivos.
