Page 1
Product Overview
Features
Standard Accessories
Optional Accessories
Electrical Specifications
Mechanical Specifications
Faceplate Cleaning
Operational Setup
Input Connectors
Switch Settings, Adjustments and Indicators
Warranty
1
2
3
4
5
6
7
8
Marshall Electronics
1910 East Maple Ave.
El Segundo, CA 90245
Tel.: 800-800-6608 • 310-333-0606
Fax: 310-333-0688
www.LCDRacks.com
Email: sales@lcdracks.com
V-R70DP
V-R70DP
Users Guide
Users Guide
Marshall Electronics warranties to the first consumer, that this V-R70DP portable monitor will, under normal use, be free from defects in
workmanship and materials, when received in its original container, for a period of one year from the purchase date.
This warranty is extended to the first consumer only and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right, not to honor the warranty set forth above. Therefore, labor and
parts may be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifications
in design or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any warranties
other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period
described above.
Due to constant effort to improve products and product features, specifications may change without notice.
11
Warranty
10

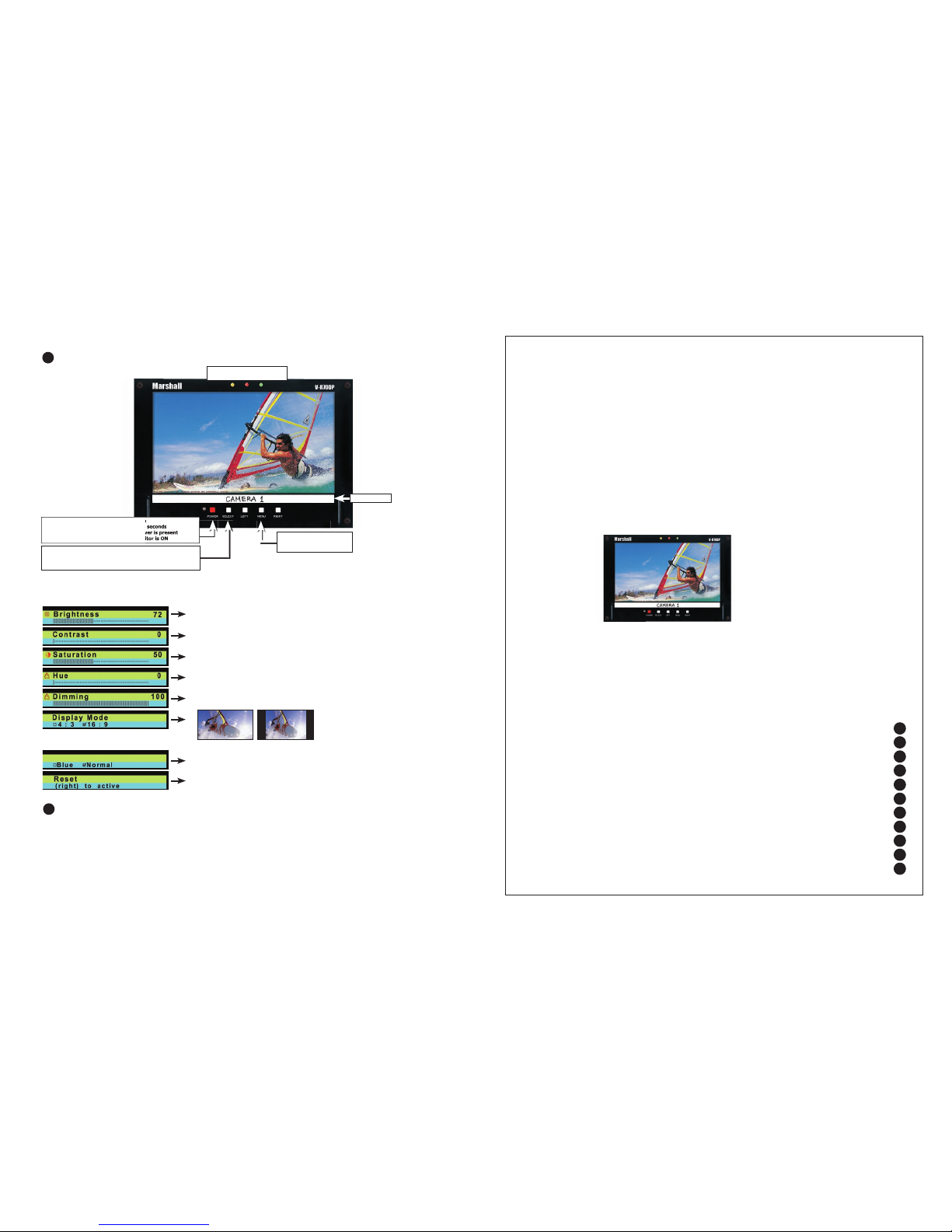

Switch Settings, Adjustments and Indicators
Tally Indicators
Illuminate when active
Dry Erase Label
Power On/Off switch
To activate - hold down for 3 seconds
Illuminates red when system power is present
Illuminates Green when monitor is ON
Select Button. Use to select active input source.
This function will search until an active input is found.
Selected source and system format will be displayed on screen
for 3 seconds
Menu and Navigation Buttons
Use to step though and select
screen adjustments/settings
9
10
11
Menu Selections
Note: Menu will automatically exit 3 seconds after any selection
Note: Menu activation requires a video signal on any of the inputs
Use left and right buttons to adjust on screen image brightness
Use left and right buttons to adjust on screen image contrast
Use left and right buttons to adjust on screen image color intensity
Use left and right buttons to adjust on screen image color phase/tint
Use left and right buttons to adjust display backlight intensity
Use left and right buttons
to adjust screen aspect
Use left and right buttons to activate blue screen
for adjustment using SMPTE color bars
16:9 Aspect
Use right button to reset to factory conditions
4:3 Aspect
Page 2
1
Product Overview
The V-R70DP is the successor to the V-R70P. Signifi cant improvements over the previous model include our completely digital
TFT-Megapixel™ high resolution TFT/LCD screen with 1.2 million pixels, V-Mount battery adapter, 4 pin XLR power jack, and
optical grade polycarbonate screen protection. All signals are digitized to provide the truest representation of your captured video
images. Convenient front panel controls provide fast access to all functions for this model that accepts Two Composite plus One
S-Video signal.
2
Features
2
5
V-R70DP
V-R70DP
Users Guide
Users Guide
Marshall Electronics
High Defi nition Display • Capable of displaying more than 800 TV Lines resolution. Standard defi nition is internally up
converted to High Defi nition. All signals remain completely digital to provide the most exact images
available.
Standard Inputs • Two Analog Composite with PAL/NTSC Auto Detect with passive lop through
• Y/C (S-video)
Durable metal enclosure • Protection for all connections and controls with strategically placed ventilation for use in harsh
environments
Protective Screen Cover • Optical grade polycarbonate screen cover with Antirefl ective/Antiglare coating
Memory Function • Adjustment Settings Memory stored on shutdown and recalled when power is applied.
Blue Gun • Use for adjustment to SMPTE color Bars
V-Mount Battery Adapter • Use virtually any battery system used in the fi eld today
OSD • On Screen Display to provide instant feedback of adjustments and settings
Tally (DB-15) • Three LEDs (Red, Green, Amber) produce 7 different tally indications
Camera Hot Shoe Mount V-LCD4-MT Attaches monitor to camera
Stand V-LCD4-ST Use for table top mount
Sun Hood V-H7M Use for viewing in bright lighting or outdoors
Power Adapter Cable V-PAC-D Use with Anton Bauer D-type connection
Power Adapter Cable V-PAC-XLR Use with 4 Pin XLR connections
4
Optional Accessories
3
Standard Accessories
Accessories Supplied with the V-R70DP
• Users manual
• “Brick” type 12vdc power supply with 4 Pin Female XLR connector
• “V” Mount battery adapter
• ¼”-20 mounting plate
210 Plastic Cleaner & Polish and 210 Plus Cleaner
Sumner Laboratories
186 Lincoln Street
Boston, MA 02111
617-542-8656 / Fax: 617-482-9001
20/20 Plastic-Cleaner
Craftics, Inc.
PO Box 91930
Albuquerque, NM 87199
(505) 338-0005
Crystalclean
Discovery Plastics
3700 Western Way, NE
Millersburg, OR 97231
541-926-2900 / Fax: 541-967-8441
www.discoveryplastics.com
Plexus Plastic Cleaner
Plexus
638 Lindero Canyon Rd. #371
Agoura, CA 91301
800-405-6495
Fax: 818-879-0697
Scotch-Brite High Performance Cloth
3M Stationery & Offi ce Supplies Div.
3M Center
St. Paul, MN 55144-1000
877-362-5684
Fax: 651-733-0382
www.mmm.com
NOVUS #1 Plastic Clean and Shine
NOVUS, Inc.
12800 Highway 13 South, Suite 500
Savage, MN 55378
800-548-6872 ext.451
Fax: 952-946-0435
The Simco Industrial Static Control
An Illinois Tool Works Co.
2257 North Penn Road
Hatfi eld, PA 19440-1998
800-203-3419
215-822-2171
Fax: 215-822-3795
www.simco.biz
Exair Corporation
1250 Century Circle North
Cincinnati, OH 45246-3309
513-671-3322
Fax : 513-671-3363
www.exair.com
Recommended Anti-Static Cleaners and Polishes
8
Operational Setup
1. Unpack the V-R70DP and accompanying power supply. Physically inspect for any damage that may have occurred during shipping. Should there be any damage, immediately contact Marshall Electronics at 800-800-6608. If you are not located within the
continental united states call +1 310-333-0606.
2. Connect required cables for signal input and output. All BNC connectors should be rated for 75..
3. Plug the power supply into the A.C. source
Please note that power can be supplied from a variety of DC sources, such as batteries or Vehicle power. Input power range is
10.7 to 15 Volt D.C.
In operation, the V-R70DP will draw approx. 0.8 amp.
Attach 4 Pin XLR power connection from V-PS12-V-5 power supply to the back of the unit.
4. Turn on the V-R70DP by depressing the power switch located on the front of the unit.
9

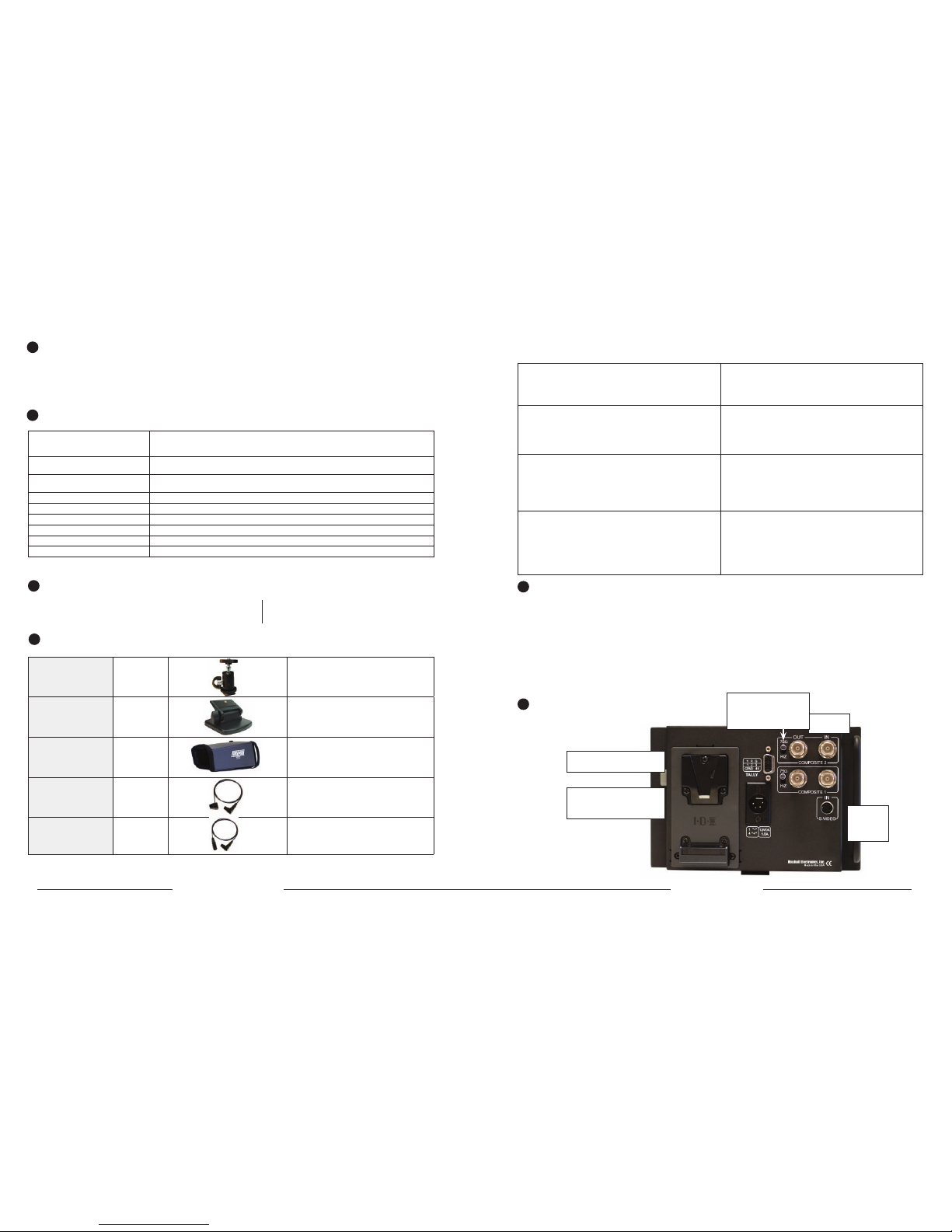

Input Connectors
Battery and External Power can
not be used simultaneously
V-Mount Battery Adapter See
Optional Accessory section for a
selection of batteries
* Tally lamps active when connected to ground
Composite
Video In
Termination Switches and
Video outputs
Non Loop through of composite video
requires termination switch set to the
75 position. For loop through set to
HiZ position
S-Video In
4 Pin Din (Female)
Pin1 - GND
Pin2 - GND
Pin3 - Yin
Pin4 - Cin
Page 3
Optional Accessories (continued)
Battery Adapter
V-mount to Anton Bauer adapter
Sequential 2 channel charger
Sequential 4 channel charger
Simultaneous 4 channel charger
V-DV-PWR1
V-ABA-01
IDX-VL-2Plus
IDX-VL-4
IDX-VL-4S Charges 4 ENDURA E series batteries in 2.5 hours or less
Uses 2 Sony DVCam/HDV FP-Type batteries.
When used with monitor power supply, you
can charge batteries plus operate monitor
Use to power Marshall Electronics monitors that have VMount plate with Anton Bauer Gold Mount battery.
2-channel sequential charger with a built-in 60W power supply. Charges 2 ENDURA E series batteries in fewer than 5
hours. One 10’ XLR cable included. Weighs only 2 lbs
Economically charges 4 ENDURA E series batteries in
under 6 hours using Full Power Charge (FPC) method
55 W Lithium Battery IDX-E7S V-Mount battery pack with 3 LED power Indicator
55 W Lithium Battery
with Power Link
82 W Lithium Battery IDX-E10S V-Mount battery pack with 3 LED power Indicator
82 W Lithium Battery
with Power Link
Digital to Analog Converter BC-0301-10 Converts SDI to analog Composite
Mounting Plate Attaches to any side for mount to ¼-20 threaded component
IDX-E7
IDX-E10
V-Mount Battery Pack with PowerLink includes accurate
Power Status Display and supports Digi-View
V-Mount Battery Pack with PowerLink includes accurate
Power Status Display and supports Digi-View
Cleaning Wipes V-HWP-K
Package of 10 non-toxic, antistatic, alcohol and ammonia
free cleaning wipes.
Marshall Electronics
3
Page 4
Electrical Specifi cations
5
Display (Viewing Area) 7” (6.14”H × 3.27”V) (156.0mm x 83.28mm)
Viewing Angles 150° x 130°
Resolution (RGB Dots) 800H×RGBx480V (1.2 million pixels)
Contrast Ratio 300:1
Dot Pitch 0.1905 Square Pixel
Pixel Response 12ms rise / 18ms fall
Backlight Type / Life CCFL / 10,000 to 20,000 Hours Typical
Brightness 400 cd/m²
LCD Screen Treatments Anti Reflection, Anti Glare, Hardcoat
Protective Screen 0.118” (3mm) thick Optical Grade Polycarbonate with Anti-Glare and Anti-Abrasion
coatings. (600 Cheesecloth mil-M-13508C)
System NTSC/PAL auto recognition
Inputs 2 Analog Composite (BNC)
S-Video (Y/C) (4 pin mini din female)
3 Lamp Tally (DB-15 Female)
Power (4 pin male XLR)
Active Outputs 2 Composite Video (BNC) Available when power is applied to monitor
Color temperature D65 (6500° Kelvin)
Color Gamut SMPTE-C of CEI-1931 65%
Luma Linearity Typical +/- 3% with 5 ire increments (0 to 10 ire)
Mechanical Specifi cation
6
Dimensions 7.44”W x 5.125”H x 2.5”D (18.89cm x 13.0cm x 6.35cm)
Approx. Weight 3 lbs
Power Consumption 14-10 VDC, 15 Watt nominal
(3.0Amps max - UL Class 2 supply included)
Operating Temperature -20” C to 65” C Ambient
Storage Temperature -30” C to 85” C
Faceplate Cleaning
7
Faceplate Cleaning
When cleaning the faceplate it is very important to use non-abrasive and ammonia free cleaning agents and a clean micro fi ber
cloth. Do not use paper towels. Paper towel fi bers are coarse and may scratch the surface of the Polycarbonate faceplate.
Paper towels may also leave streaks on the surface. Antistatic and fi ngerprint resistant cleaning agents are recommended.
Wash protective cover with a solution of mild soap or detergent and lukewarm water. Use a clean soft cloth, applying only light pressure. Rinse with clean water and dry by blotting with a damp cloth or chamois. Grease, oil or tar may be removed with a good grade
of hexane, aliphatic naphtha, or kerosene. These solvents may be obtained at a paint or hardware store and should be used in accordance with manufacturer’s recommendations.
DO NOT USE: window cleaning sprays, kitchen scouring compounds or solvents such as acetone, gasoline, benzene,
alcohol, carbon tetrachloride, or lacquer thinner. These can scratch the sheet’s surface and/or weaken the sheet causing
small surface cracks called “crazing.”
Faceplate Dusting
Dust with a soft, damp cloth or chamois. Dry or gritty cloths may cause surface scratches and create a static electric charge on the
surface. Neutralizing static electricity effects by using recommended cleaning and polishing practice.
Faceplate Polishing
Protect and maintain surface gloss by occasional polishing with a good plastic cleaner and polish. Apply a thin, even coat with a soft
clean cloth and polish lightly with cotton fl annel. Then wipe with a damp cloth to help eliminate electrostatic charges that can attract
dust particles
Marking on the Faceplate
Use SHARPEE or equivalent marker. Clean as per instructions with an ammonia free cleaning agent.
4
V-R70DP Users Guide
