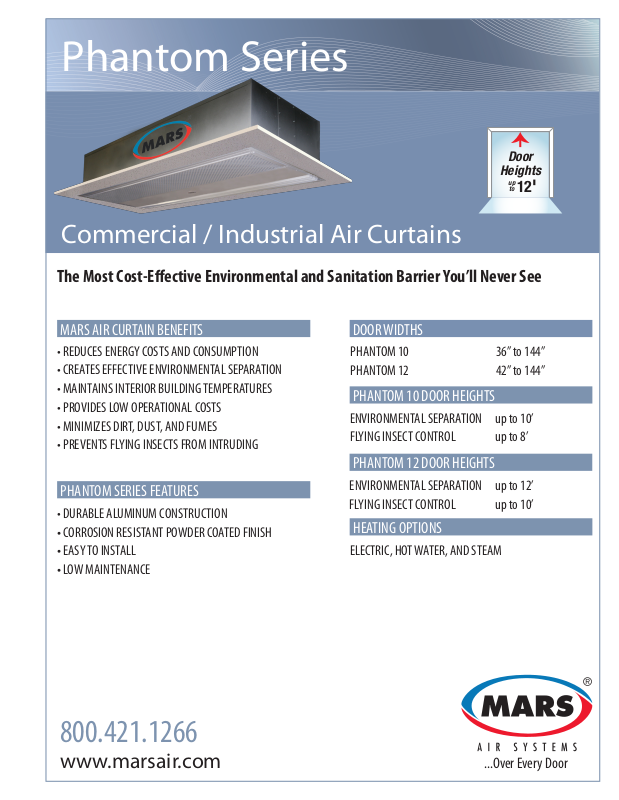

Mars Air PH12108-2 User Manual

Phantom Series

Door

Heights

12'

up

to

Commercial / Industrial Air Curtains

The Most Cost-Eective Environmental and Sanitation Barrier You’ll Never See

MARS AIR CURTAIN BENEFITS

• REDUCES ENERGY COSTS AND CONSUMPTION

• CREATES EFFECTIVE ENVIRONMENTAL SEPARATION

• MAINTAINS INTERIOR BUILDING TEMPERATURES

• PROVIDES LOW OPERATIONAL COSTS

• MINIMIZES DIRT, DUST, AND FUMES

• PREVENTS FLYING INSECTS FROM INTRUDING

PHANTOM SERIES FEATURES

• DURABLE ALUMINUM CONSTRUCTION

• CORROSION RESISTANT POWDER COATED FINISH

• EASY TO INSTALL

• LOW MAINTENANCE

DOOR WIDTHS

PHANTOM 10 36” to 144”
PHANTOM 12 42” to 144”

PHANTOM 10 DOOR HEIGHTS

ENVIRONMENTAL SEPARATION up to 10’
FLYING INSECT CONTROL up to 8’

PHANTOM 12 DOOR HEIGHTS

ENVIRONMENTAL SEPARATION up to 12’
FLYING INSECT CONTROL up to 10’

HEATING OPTIONS

ELECTRIC, HOT WATER, AND STEAM

800.421.1266

www.marsair.com

...Over Every Door

OUTSIDE:

• Wind

• Cold or Hot Air

• Dirt or Dust

• Fumes or Odors

• Flying Insects

NO

INSIDE:

• Reduces Heating/
Cooling Costs

• Maintains Comfortable
Work Environment

• Increases Quality Control

• Improves Sanitation Levels

• Improves Safety

• Improves Employee Morale

Phantom Series

Commercial / Industrial Air Curtains

AVAILABLE COLORS

Pearl White

*Contact Factory for

custom colors

Typical Applications

• Retail Entrances

• Oce Entrances

• Restaurant Entrances

* Please refer to marsair.com under

Submittals for complete technical

information.

MODEL

NUMBER

PH1036-1 36” 8’-10’ 5.1 2.5/2.5 66 60

PH1042-1 42” 8’-10’ 5.1 2.5/2.5 66 60

PH1048-1 48” 8’-10’ 5.1 2.5/2.5 66 65

PH1060-2 60” 8’-10” 10.2 5.0/5.0 68 100

PH1064-2 64” 8’-10’ 10.2 5.0/5.0 68 100

PH1072-2 72” 8’-10’ 10.2 5.0/5.0 68 105

PH1084-2 84” 8’-10’ 10.2 5.0/5.0 68 125

PH1096-2 96” 8’-10’ 10.2 5.0/5.0 68 130

PH10108-3 108” 8’-10” 15.3 7.5/7.5 71 170

PH10120-4 120” 8’-10’ 20.4 10.0/10.0 73 200

PH10144-4 144” 8’-10’ 20.4 10.0/10.0 73 210

PH1242-1 42” 10’-12’ 9.0 5.0/5.0 70 90

PH1248-1 48” 10’-12’ 9.0 5.0/5.0 70 90

PH1260-1 60” 10’-12’ 9.0 5.0/5.0 70 95

PH1272-2 72” 10’-12’ 18.0 10.0/10.0 73 155

PH1284-2 84” 10’-12’ 18.0 10.0/10.0 73 175

PH1296-2 96” 10’-12’ 18.0 10.0/10.0 73 180

PH12108-2 108” 10’-12’ 18.0 10.0/10.0 73 185

PH12120-2 120” 10’-12’ 18.0 10.0/10.0 73 190

PH12144-4 144” 10’-12’ 36.0 20.0/20.0 75 310

WIDTH

OF DOOR

DOOR

HEIGHT

FLA SINGLE PHASE SOUND

115 V 208 V / 230 V

dBA

(10’ from nozzle)

WEIGHT

(lbs)

DISTRIBUTED BY:

ASSOCIATION APPROVALS AND LISTING. All Mars Air Systems products are manufactured using the best materials and components available. They

are crafted by highly skilled, experienced tradespeople. Our products must pass stringent qualit y control standards. Mars Air Systems products are reliable, durable, and
meet the stringent listing or certication requirements of many organizations. Specics vary depending on the model, options installed or application usage. For specics
and warranty information, please call factory details. Mars reserves the right to make improvements and changes to specications without notice.

...Over Every Door

800.421.1266

www.marsair.com

14716 South Broadway

Gardena, CA 92048
