Read Carefully - These instructions are written to help
you prevent difficulties that might arise during installation
of heaters. Studying the instructions first may save you
considerable time and money later. Observe the following
procedures, and cut your installation time to a minimum.
To reduce risk of fire or electric shock:
1. Disconnect all power coming to heater at main service panel
before wiring or servicing.
2. All wiring must be in accordance with the National and Local
Electrical Codes and the heater must be grounded as a precaution against possible electric shock.
3. Verify the power supply voltage coming to heater matches the
ratings printed on the heater nameplate before energizing.
4. This heater is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces.
5. Do not insert or allow foreign objects to enter any ventilation
or exhaust opening as this may cause an electric shock,
fire,or damage to the heater.
6. Do not block air intakes or exhaust in any manner. Keep combustible materials, such as crates, drapes, etc., away from
heater. Do not install behind doors, furniture, towels, or
boxes.
7. A heater has hot and arcing or sparking parts inside. Do not
use it in areas where gasoline, paint or flammable liquids are
stored.
8. Use this heater only as described in this manual. Any other
use not recommended by the manufacturer may cause fire,
electric shock, or injury to persons.
9. This heater is not approved for use in corrosive atmospheres
such as marine, green house or chemical storage areas.
Installation & Maintenance Instructions
SAVE THESE INSTRUCTIONS
WARNING
1
FILE #E21609
!
10
3
/
8
”
12
1
/
2
”
9
1
/
4
”
11”
4”
1”
SRA-DS Series Model B
Fan Forced Wall Heaters
Page 2
4. Run power supply cable through the connector, leaving about 8” of
wire inside the box.
5. Connect the supply cable ground wire to green ground screw provided.
NOTE: Lead holes for a #8 sheet metal screw have been provided in the
sides of the back box.. After the finished wall or ceiling has been put up,
drive a # 8(m4) sheet metal screw (recommended 1” long) through the
side of the box not mounted to the stud. This will prevent the back box
from pulling out when installing the heater assembly. (See Figure 1)
INSTALLATION OF BACK BOX
IN EXISTING CONSTRUCTION
(WALL OR CEILING)
1. Carefully mark and cut a hole measuring 9-3/8" (235mm) wide by 111/8" (283mm) long. One edge of the hole must be cut along the
edge of a stud.
2. Proceed to No. 1 through 5 (Installation of Wall Box in New
Construction).
FIELD CONVERSION FOR LOWER WATTAGE RATING
NOTE: Refer to specification chart for lower wattage ratings which are
available.
To convert heater to lower wattage rating, completely remove red jumper
wire from both heating elements (See Figure 2). Discard this jumper. Be
sure remaining wires are securely connected.
INSTALLATION AND WIRING
OF HEATER / FAN ASSEMBLY
1. Following wiring diagram (Figure 3) connect supply wiring to heater
leadwires in back box.
NOTE: For 120 and 277 volt heaters connect the white neutral supply
lead to the heaters white pigtail lead, and connect the black supply lead
to the heater black pigtail lead. For 208 and 240 volt heaters change the
color of the heaters white pigtail lead to black by wrapping with black electrical tape. (Most electrical codes require the supply leads to be connected to black leads). Then connect the two black supply leads to the
two black receptacle leads.
2. Secure supply ground wire under green ground screw in back box.
3. Slide supply wiring under retaining straps in back box to hold in
place.
4. Insert wiring plug from heater/fan assembly into socket in back box.
5. Fit heater/fan assembly into back box and secure in place with (2)
screws provided through the center slots in the fan assembly.
NOTE: Use the screws provided by the factory to install fan deck to
the back box.
GENERAL
The heater is designed for recessed installation in 2” X 4” (50mm X
101mm) stud or larger wall or ceiling sections using the wall box provided. The heater may also be surface mounted by using the Surface
Mounting Frame, Model SRASM or semi-recess mounted by using a
SRAS1 (for 1” (25 mm) recess frame) or a SRAS2 (for 2” (50mm) recess
frame). All three accessories are ordered separately. The heater may be
wired with standard building wire (60°C). Refer to specification chart (see
pg. 4) for correct supply voltage and wire size.
NOTE: The optimum mounting height for this heater is 18" to 24" (450 to
600mm) from floor to bottom of back box. Do not install closer than
2”(50mm) from the floor. Back box may be mounted such that discharge
portion of grille can be oriented down, left, right, or up.
For surface or semi-recess mounting, consult Installation Instructions
packed with SRASM, SRAS1, SRAS2
INSTALLATION OF WALL BOX
IN NEW CONSTRUCTION
(WALL OR CEILING)
NOTE: If the finished wall surface is already up, follow instructions for
“INSTALLATION OF BACK BOX IN EXISTING CONSTRUCTION”.
1. Determine which side of the back box is to be mounted against a
stud and bend the tabs at the rear corners out 90 degrees so that
the back box will be square with the stud after installation. (See
Figure 1).
2. Remove one of the knockouts on socket side of the back box and
install a cable or conduit connector.
3. Position back box against side of studs and secure using nails or screws
as shown in Figure 1.
NOTE: The back box must be installed with the front edge flush with the finished surface.
Figure 2
AN ELECTRICAL SHOCK, FIRE OR WATER DAMAGE COULD
RESULT IF WIRING OR PIPING IS DAMAGED DURING CUTTING.
MAKE SURE ALL WIRING AND PIPING ARE CLEAR OF AREA
BEFORE CUTTING.
THE HEATER IS HOT WHEN IN USE. DO NOT INSTALL THE
HEATER BEHIND DOOR, BEHIND TOWEL RACK, IN CLOSET ,
WHERE CURTAINS OR DRAPES COULD TOUCH OR BECOME
SCORCHED BY HEATER, OR WHERE AIRFLOW TO HEATER MAY
BE OBSTRUCTED. KEEP ELECTRICAL CORDS, BEDDING, FURNITURE AND OTHER COMBUSTIBLES AWAY FROM HEATER.
FOR WALL MOUNTING, DO NOT INSTALLHEATER CLOSER THAN
2" (51mm) TO THE FLOOR OR ANY ADJACENT WALL SURFACE. DO
NOT INSTALL CLOSER THAN 36" (915mm) TO THE CEILING. FOR
CEILING MOUNTING, DO NOT INSTALL CLOSER THAN 12” (304mm)
TO ADJACENT WALL.
TO PREVENT HAZARD OF FIRE OR ELECTRICAL SHOCK, DO NOT
INSTALLWITHOUT BACK BOX.
CAUTION
IMPORTANT
WARNING
CAUTION
CAUTION
2
Figure 1
Remove red
jumper for
lower wattage
rating
!!!
!
!
Page 3
MAINTENANCE AND CLEANING
Y our heater is designed for years of trouble-free operation and requires no
special maintenance other than occasional cleaning. The motor is permanently lubricated.
Once each year, the heater should be cleaned to remove dust and other
foreign material which has collected during the heating season, as follows:
1. Turn power off at main switch.
2. Remove thermostat knob.
3. Remove front cover by depressing plastic tabs with a flat
bladed screwdriver as shown in Figure 4. Release both tabs
on one side then rotate cover off of heater assembly.
4. Use vacuum cleaner with brush attachment to remove dust and dirt
that has accumulated in heater (especially around element and fan
blade). Do not use water or any cleaners to clean heater components.
5. Replace grille and thermostat knob.
6. Wipe grille clean with a damp cloth. DO NOT use waxes or any
cleaners that leave a residue since these may discolor during heater
operation.
7. Turn the main line switch on at the switch panel to restore power to
heater. The heater is now ready for another season of operation.
OPERATIONAL NOTICE
Your heater is equipped with an automatic reset high limit control that
will automatically turn the heater off to prevent a fire if the heater overheats. Should this occur, the indicator light will illuminate and will continue to shine until the limit resets.
THE ILLUMINATED INDICATOR LIGHT SIGNIFIES THE HEA TER
HAS BEEN SUBJECTED TO SOME ABNORMAL CONDITION.
CHECK HEATER TO INSURE THATIT HAS NOT BEEN BLOCKED IN
ANY MANNER (IF SO, REMOVE BLOCKAGE). IF THERE IS NO
INDICATION OF BLOCKAGE, IT IS RECOMMENDED THE HEATER
BE CHECKED BY A REPUTABLE ELECTRICIAN OR REPAIR SERVICE TO INSURE THE HEATER HAS NOT BEEN DAMAGED.
3
CAUTION
INSTALLATION OF FRONT COVER (GRILLE) AND
THERMOSTAT KNOB
1. Position the front cover so the four (4) holes on the side align
with the tabs on the plastic pieces of the heat deck.
2. Hook the front cover over the tabs on one side then rotate
the front cover into place making sure that all four tabs are
snapped onto the front cover.
3. Fit the thermostat knob onto the thermostat shaft and push
into place.
HEATER CHECKOUT AND OPERATION
1. After heater is completely assembled, push the disconnect
switch to the “on” position and rotate thermostat knob counterclockwise until control stops. This is the minimum heat
setting.
2. Turn power supply to heater “ON” at main switch panel.
3. Heater should not operate. If it operates, disconnect power
and re-check wiring.
4. Rotate thermostat clockwise until it stops (maximum heat
setting) and wait at least 2 minutes. Fan control will delay
fan coming on until element is warm.
5. If heater and fan do not come on, disconnect power and
check wiring.
6. Allow heater to continue to operate until room temperature
reaches desired comfort level. Then rotate thermostat knob
counterclockwise slowly until thermostat clicks off. Fan will
continue to operate for a minute or so until element cools.
7. It may be necessary to readjust thermostat a time or so until
exact comfort level is attained. Rotation in the clockwise
direction will increase the amount of time the heater will produce heat. Rotation in the counterclockwise direction will
reduce the amount of time the heater is on.
NOTE: For best results, the heater should be left “ON” constantly during
the heating season as the thermostat, when properly set, will maintain the
desired temperature. In the full counter-clockwise position the heater will
remain off until the room temperature drops well below freezing.
Figure 4
!

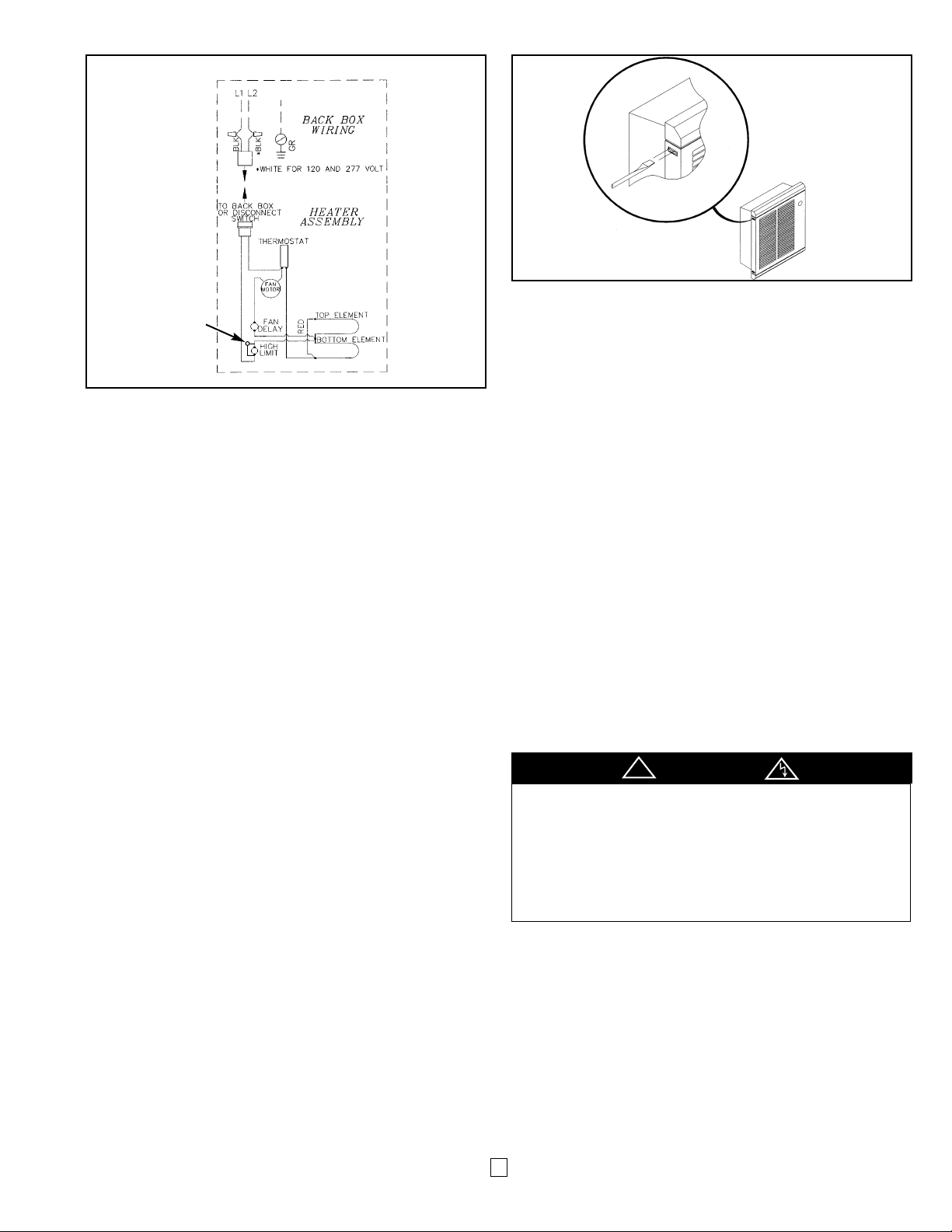

Figure 3
INDICATOR
LIGHT
Page 4
IMPORTANT INFORMATION
HOW TO ORDER REPAIR PARTS
In order to obtain any needed repair or replacement
parts, warranty service or technical information, please
contact Marley Engineered Products Service Center tollfree by calling 1-800-642-HEAT .
When ordering repair parts, always give the information listed as follows:
1. The Part Number
2. The Model Number
3. The Part Description
4. Date of Manufacture
LIMITED WARRANTY
All products manufactured by Marley Engineered Products are warranted against defects in workmanship and materials for one year from date of
installation, except heating elements which are warranted against defects in workmanship and materials for five years from date of installation. This
warranty does not apply to damage from accident, misuse, or alteration; nor where the connected voltage is more than 5% above the nameplate
voltage; nor to equipment improperly installed or wired or maintained in violation of the product’s installation instructions. All claims for warranty work
must be accompanied by proof of the date of installation.
The customer shall be responsible for all costs incurred in the removal or reinstallation of products, including labor costs, and shipping costs incurred
to return products to Marley Engineered Products Service Center.Within the limitations of this warranty, inoperative units should be returned to the
nearest Marley authorized service center or the Marley Engineered Products Service Center, and we will repair or replace, at our option, at no charge
to you with return freight paid by Marley. It is agreed that such repair or replacement is the exclusive remedy available from Marley Engineered
Products.
THE ABOVE WARRANTIES ARE IN LIEU OF ALLOTHER WARRANTIES EXPRESSED OR IMPLIED. AND ALL IMPLIED WARRANTIES OF MERCHANTABILITYAND FITNESS FOR A PARTICULAR PURPOSE WHICH EXCEED THE AFORESAID EXPRESSED WARRANTIES ARE HEREBY
DISCLAIMED AND EXCLUDED FROM THIS AGREEMENT. MARLEY ENGINEERED PRODUCTS SHALL NOT BE LIABLE FOR CONSEQUENTIAL DAMAGES ARISING WITH RESPECT TO THE PRODUCT, WHETHER BASED UPON NEGLIGENCE, TORT, STRICT LIABILITY, OR CONTRACT.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to
you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
For the address of your nearest authorized service center, contact Marley Engineered Products in Bennettsville, SC, at 1-800-642-4328.
Merchandise returned to the factory must be accompanied by a return authorization and service identification tag, both available from Marley
Engineered Products. When requesting return authorization, include all catalog numbers shown on the products.
03-02
MODEL NO.
SRA2024DSB DATE CODE 0695
SMALL ROOM FAN FORCED HEATERS
2000/1000W @ 240VAC 60HZ
1500/750W @ 208VAC 60HZ
MUST BE USED WITH SR-BB BACK BOX.
DO NOT OPERATE WITHOUT SR-FC
SERIES FRONT COVER IN PLACE.
MARLEY ENGINEERED PRODUCTS
BENNETTSVILLE, SC 29512 399726043
774G LISTED
ROOM HEATER
Part No. 5200-2181-005
4
ECR 35194
MODEL
NO.
SRA1012DSB
SRA1512DSB
SRA1812DSB
SRA2024DSB
SRA2027DSB
SRA1527DSB
SRA****IF
SRBB
SRASM
SRAS2
SRAS1
SRADS
SRAFCTP
WIRE
SIZE
14AWG
12AWG
12 AWG
14AWG
14AWG
14AWG
VOLTS
120
120
120
240
208
277
240
277
240
AMPS
8.40
4.20
12.50
6.25
15.0
8.40
4.20
7.30
3.61
7.30
3.61
6.25
3.20
5.5
2.75
4.7
2.35
WATTS
1000
500
1500
750
1800
2000
1000
1500
750
2000
1000
1500
750
1500
750
1125
562
BTU/HR
3413
1706
5120
2560
6143
6826
3413
5120
2560
6826
3413
5120
2560
5120
2560
3840
1920
Inner Frame (Fan Deck Assembly & Grille) Only
Back Box Only - For All Above Heaters
Surface Mounting Frame (Accessory) Order Separately
12-1/2”H X 10-3/8”W X 4”D
2” Recess Mounting Frame (Accessory) Order Separately
12-1/2”H X 10-3/8”W X 2”D
1”Recess Mounting Frame (Accessory) Order Separately
12-1/2”H X 10-3/8”W X 1”D
20 Amp-2 Pole Disconnect Switch Kit (Accessory) Order Separately
Tamper Proof Front Cover (Accessory Order Separately)
Specifications
NAMEPLATE
SPX Corporation
470 Beauty Spot Rd. East
Bennettsville, SC 29512 USA
Loading...
