Marksman X6 Installation Manual

Page 1

Installation

Manual

Model: X6

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

For Technical Assistance, please call (800) 638-3600,

or visit www.magnadyne.com

Page 2

Table of Contents

Installer Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Component Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Wiring Harness Quick Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Wiring

Starter and Power Harness Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Door Lock Output Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

Accessory Alarm and Remote Start Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-15

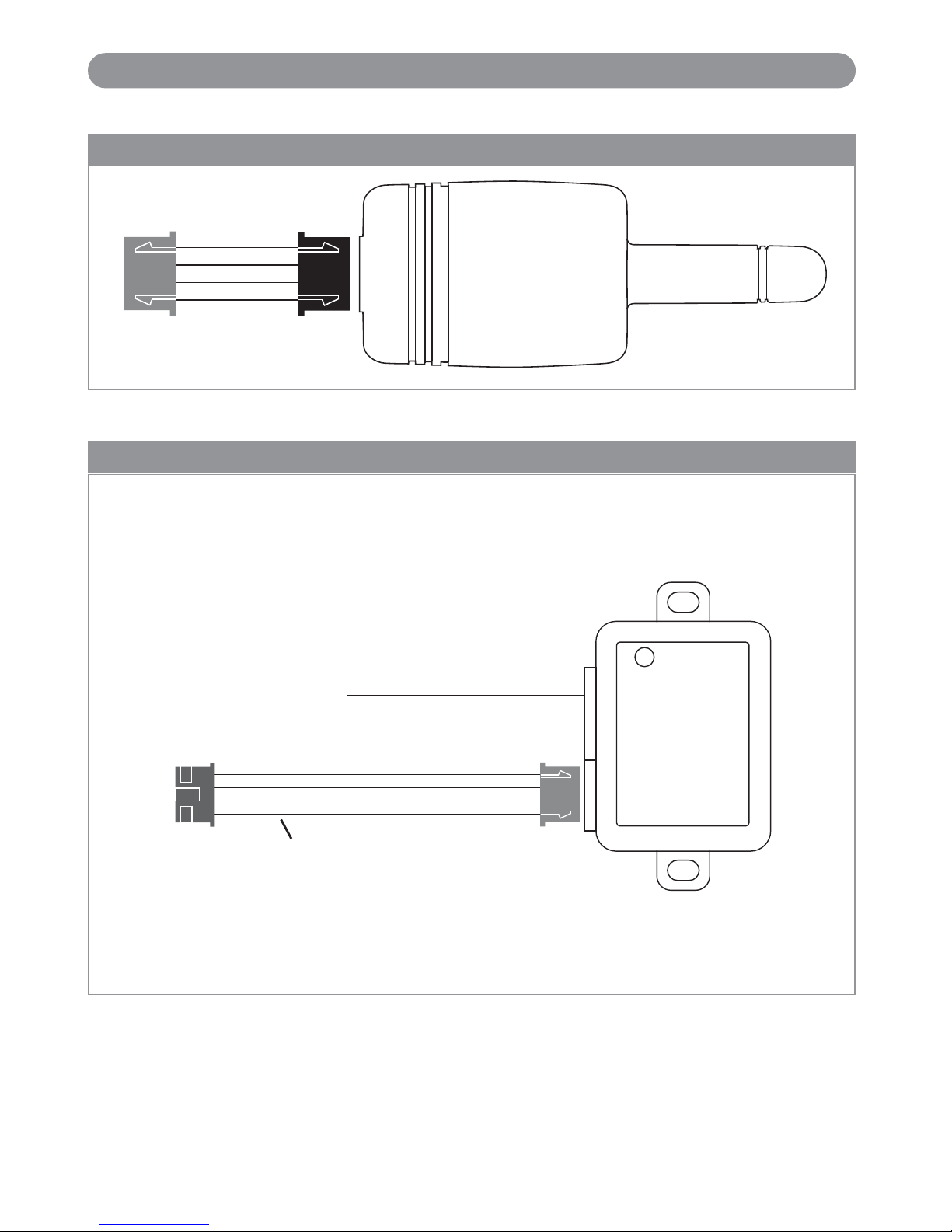

Plug-In Harness Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-16

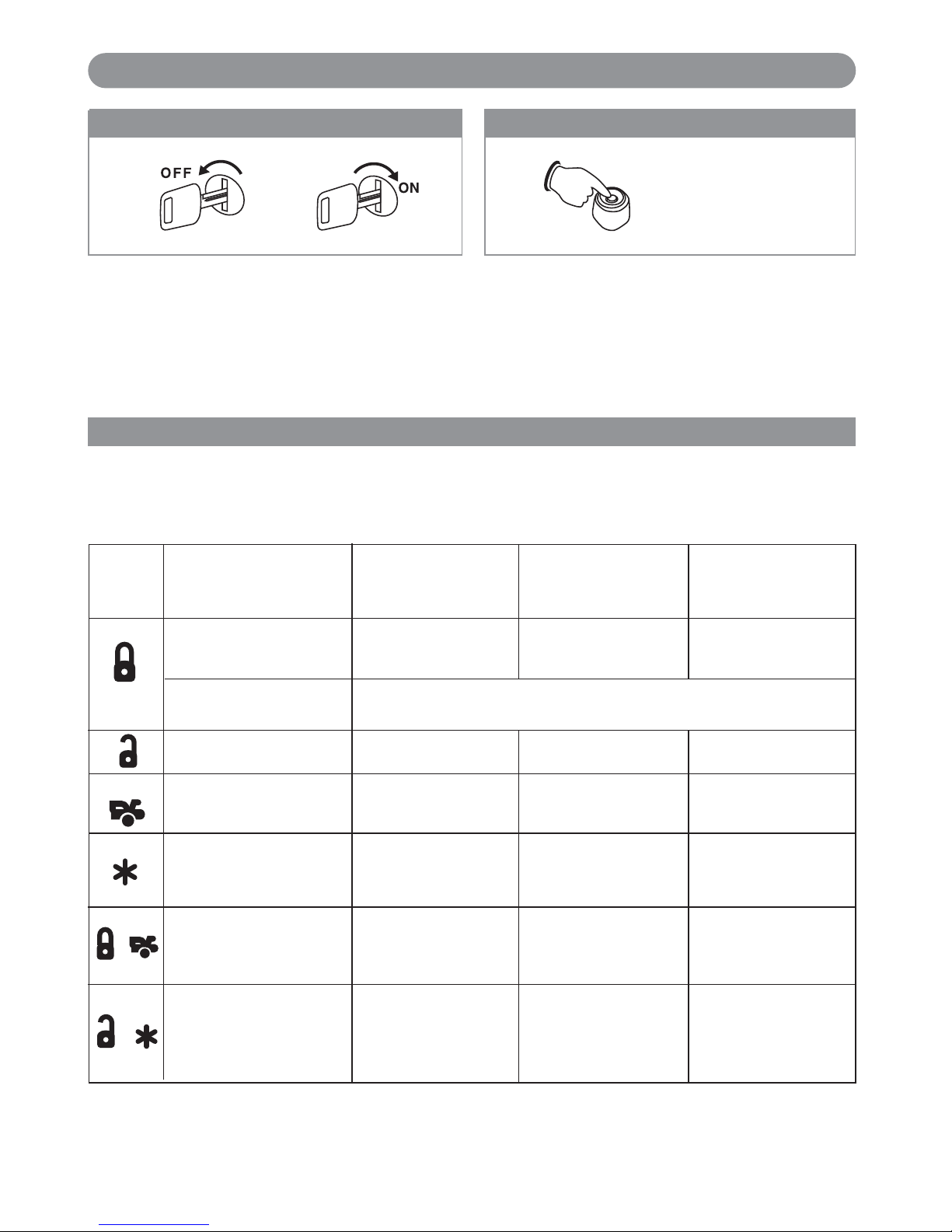

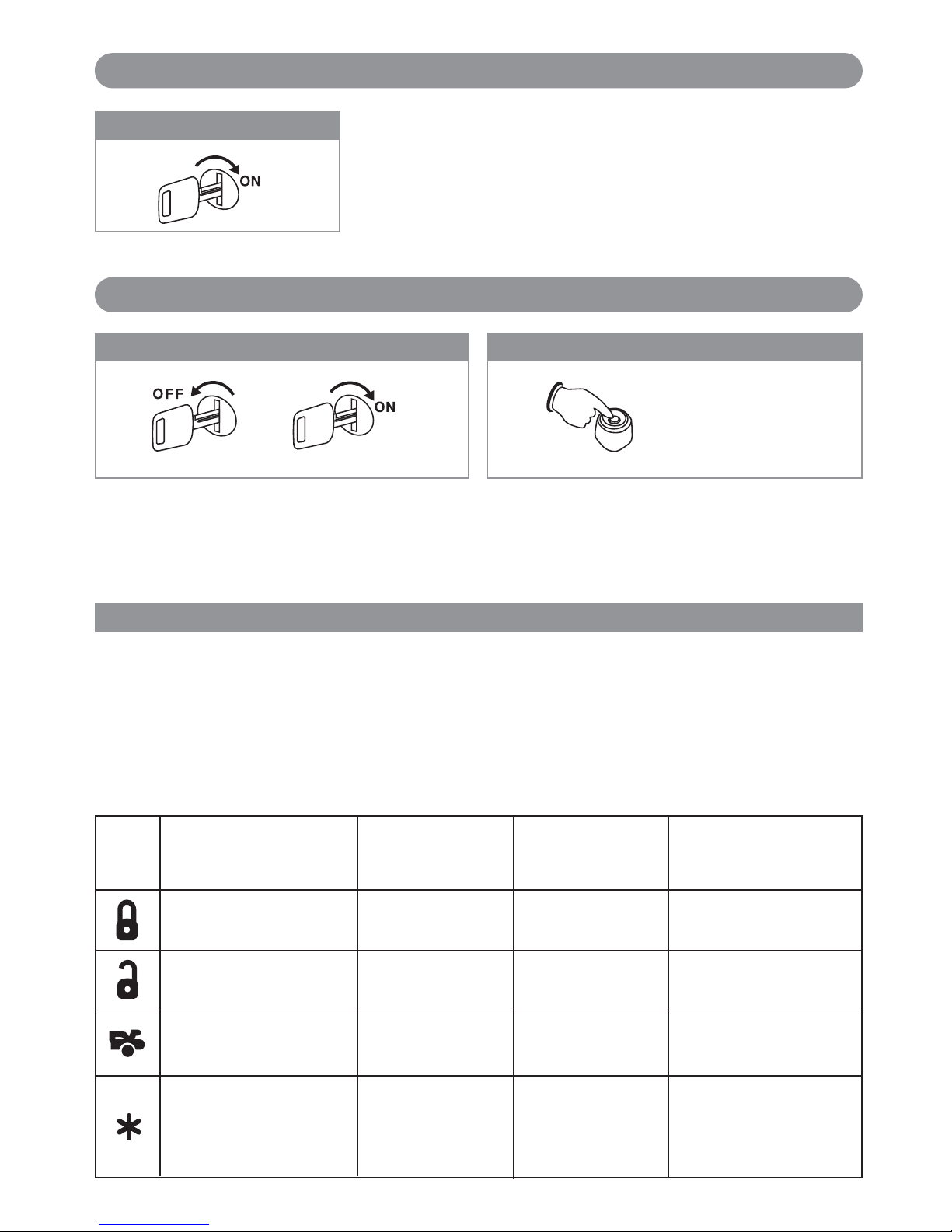

Transmitter Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

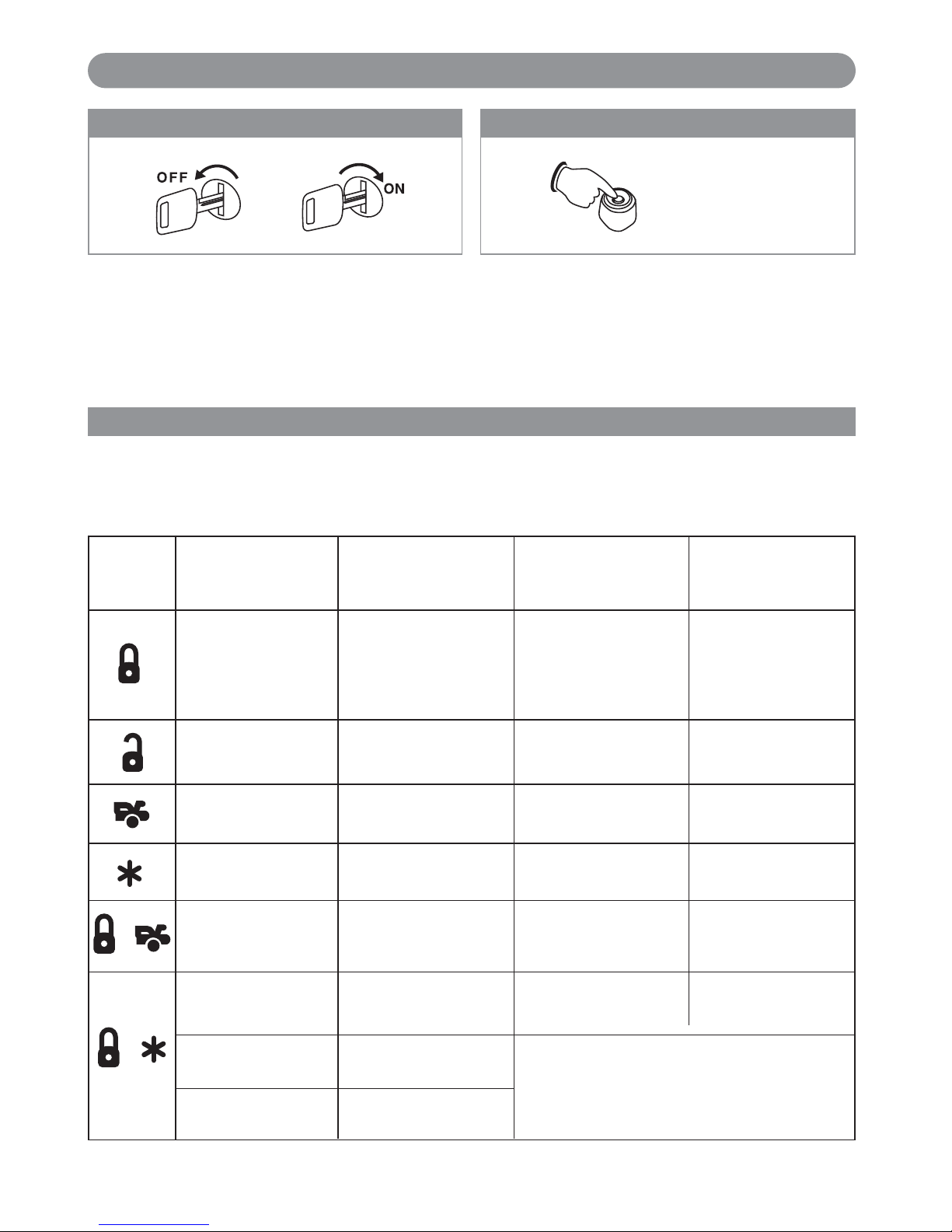

Keyless Entry Feature Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19

Remote Start Feature Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21

Engine Crank Detection Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-23

Remote Start Shutdown Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Return to Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25

Safety Testing the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

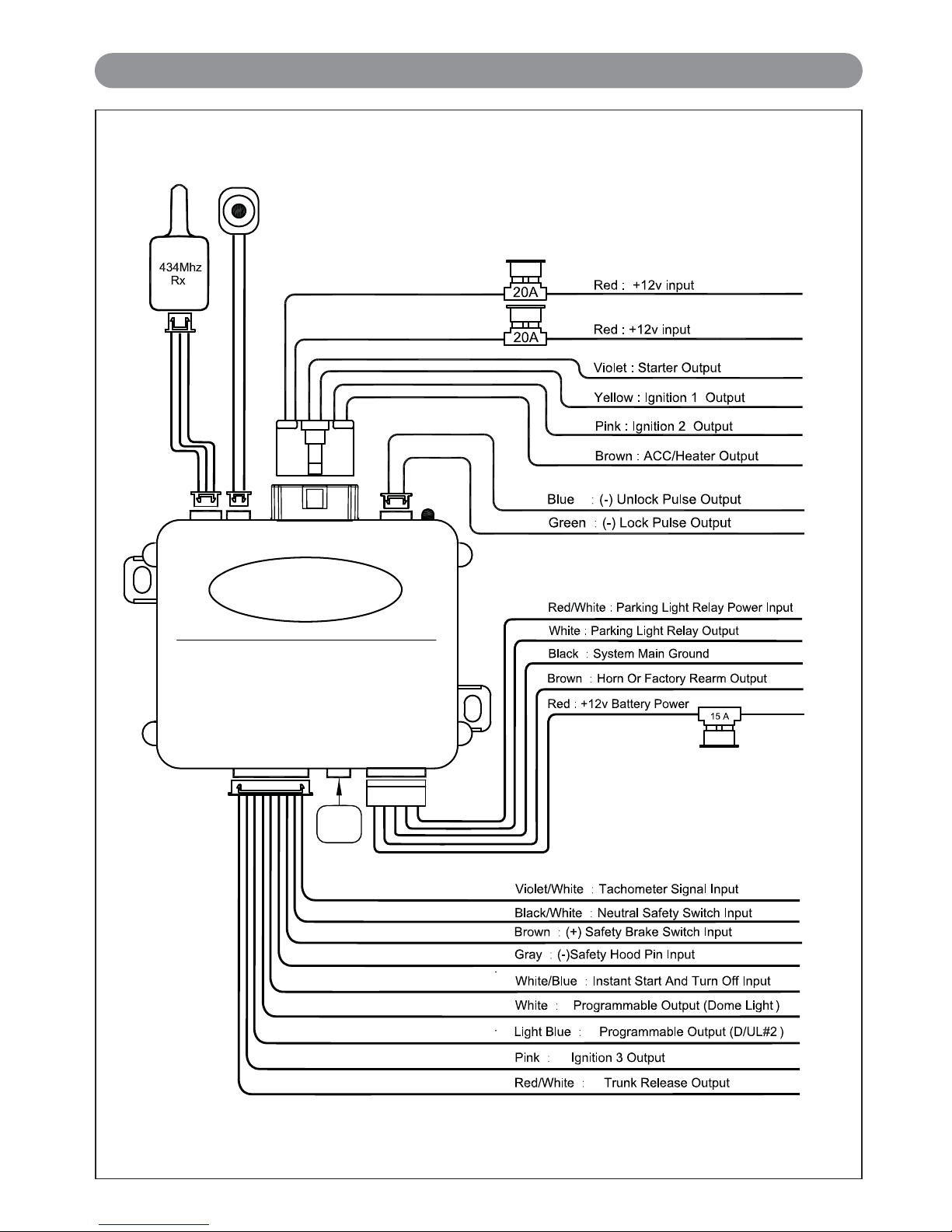

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Page 3

• Due to the complexity of this system, installation must only be performed by a qualified professional installer. This remote start and alarm system is NOT a “Do It Yourself” product.

• This remote starter and alarm system is designed to be installed on fuel injected gasoline or diesel vehicles with an automatic transmission ONLY. Installation of this system on a vehicle with a manual transmission (Stick Shift) is dangerous and is contrary to it’s intended use.

• This system must be installed and wired through a safety switch so it will not start the engine while in any forward or reverse gear. This is normally accomplished by connecting the systems provided safety wire to the vehicles electronic Neutral Safety switch located on the transmission shifter.

• Some automatic transmission vehicles may have a mechanical type park safety lock system instead of electrical safety switch. This mechanical type system does not interrupt the starter circuit when the transmission is any gear and does not offer the 100% level of safety required for remote starting purposes. The next best safety connection point on this type of vehicle would be the vehicle parking brake switch. This requires the user to set the parking brake prior to activating the remote starting system.

• Once you install this system, you must verify that the vehicle will not start in any forward or reverse gear. Regardless of the type of vehicle.

• Do not install any component near the brake, gas pedal or steering linkage.

• Some vehicles have a factory installed transponder immobilizer system that can severely complicate the installation. There is a possibility that this system can not be installed on some immobilizer equipped vehicles.

• Most vehicles have an SRS air bag system. Use extreme care and do not probe any wires of the SRS system. Disconnect the vehicle (+) or (-) battery cable before installing this system on the vehicle.

• Use conventional crimp lock type connectors on all low current wiring connections. Poor wiring, i.e. taped joints, will introduce unreliability into the remote start and alarm system and may result in false alarms, incorrect or failed operation.

• All wires that operate at currents higher than 10A should be soldered to insure a long lasting connection.

• Install wiring neatly under carpets or behind trim to prevent possible damage to wires.

• For dealer technical assistance, please call (800) 638-3600 or visit www.magnadyne.com

Installer Warnings

Page 4

Windshield Receiver/Antenna

• The combination windshield receiver/antenna mounts on the windshield (inside).

• We suggest you mount it on the lower or upper left-hand side of the windshield.

Warning! Do not mount in such a manner that it obstructs the driver’s view.

• The receiver/antenna whip can be vertical or horizontal.

1. Remove the protective tape backing.

2. Carefully align the receiver/antenna and apply to windshield.

3. Route the black connecting cable behind the trim and connect to receiver/antenna.

4. Connect the other end to the control module.

HC1 6-Pin Remote Start Harness

Violet Remote Starter Output

Red +12VDC Battery Input #2

Yellow +Ignition 1 Output

Red +12VDC Battery Input #1

Brown +ACC / Heater-Air Conditioner Output

Pink +Ignition 2 / ACC 2 Output

Component Placement

Wiring Harness Quick Reference

Valet Switch

Select a mounting location for the switch that is easily accessible to the driver of the vehicle. The switch does not have to be concealed, however, concealing the switch is always recommended, as this provides an even higher level of security to the vehicle. Mount the valet switch in a hidden but accessible location. Route the valet switch wires to the control module.

Mount the antenna horizontally for

best reception.

Page 5

HC2 5-Pin Power Input Harness

Red/White Park Light Relay Input

Black Chassis Ground

Brown (-) Programmable Output (Horn - Default)

White Parking Light Relay Output

Red +12VDC Battery Input

HC3 3-Pin Door Lock Harness

Green (-) Lock Output

Blue (-) Unlock Output

Wiring Harness Quick Reference

Violet/White Tach Input

Gray (-) Remote Start Hood Pin Safety Input

Brown (+) Brake Switch Input

Black/White (-) Neutral Safety Switch Input

HC4 9-Pin Accessory Harness

Pink (-) Ignition #3 Output

White/Blue AUX Start and Turn Off Input

White (-) Programmable Output (Dome Lt - Default)

Red/White (-) Channel #3 Output (Trunk Release)

Light Blue (-) Programmable Output (2nd Unlock Ouput)

Page 6

HC1: White 6-Pin High Current Remote Starter Harness

The method that the remote starter uses to start the vehicle is a duplicate of the ignition switch function. Below, is an explanation of the 3 basic functions of the ignition switch. Since this installation will require analysis of the ignition switch functions, it is recommended that you make the three connections below at the ignition switch harness directly.

Careful consideration for the connection of this wire must be made to prevent the vehicle from starting while in gear. Understanding the difference between a mechanical and an electrical Neutral Start Switch will allow you to properly identify the circuit and select the correct installation method. In addition you will realize why the connection of the safety wire is required for all mechanical switch configurations.

WARNING! Failure to make this connection properly can result in personal injury and property damage. In all installations it is the responsibility of the installing technician to test the remote start unit and assure that

the vehicle can not start via RF control in any gear selection other than park or neutral.

In both mechanical and electrical neutral start switch configurations, the connection of the Violet wire will be made to the low current start solenoid wire of the ignition switch harness. This wire must have +12 volts when the ignition switch is turned to the “START” (crank) position only. This wire have 0 volts in all other ignition switch positions. Note: If a starter disable relay is installed, the connection of the violet wire must be at the starter side of the relay, not the ignition switch side.

Failure to connect this wire to the ignition switch side of the neutral safety switch can result in personal injury and property damage (See Neutral Start Safety Test for further details).

Remove the two 20A fuses prior to connecting these wires and do not replace them until the harness has been plugged into the control module. These wires are the source of current for all the circuits the relay harness will energize. They must be connected to a high current source. Connection to 12V battery terminal recommended.

Connect the Yellow wire to the ignition 1 wire from the ignition switch. The ignition wire should receive +12 volts when the ignition key is in the “ON” or “RUN” and “START” or “CRANK” position. When the ignition is turned “OFF”, the ignition wire should receive “0” voltage. The yellow wire must be connected.

"ACC"

"START"

"OFF" "ON"

Starter

Start Cut Relay

(When Used)

Violet Wire

Closed in Park

or Netral Only

Neutral Safety Switch

6-Pin

White Connector

Wiring

Violet Wire: Starter Output

Red Wires (2): +12V Power Input

Yellow Wire: Ignition 1 Output

Page 7

HC1: White 6-Pin High Current Remote Starter Harness (continued)

Some vehicles have 2 ignition wires that must be powered. Connect the “Pink” wire to the ignition 2 wire from the ignition switch. No connection required on vehicles without second ignition.

Connect the Brown wire to the accessory wire that powers the climate control system. An accessory wire will show +12 volts when the ignition switch is turned to the “ACCESSORY” or “ON” and “RUN” positions, it will show 0 volts when the key is turned to the “OFF” and “START” or “CRANK” position. There will often be more than one accessory wire in the ignition harness. The correct accessory wire will power the vehicle’s climate control system. Some vehicles may have separate wires for the blower motor and the air conditioning compressor. In such cases, it will be necessary to add a relay to power the second accessory wire.

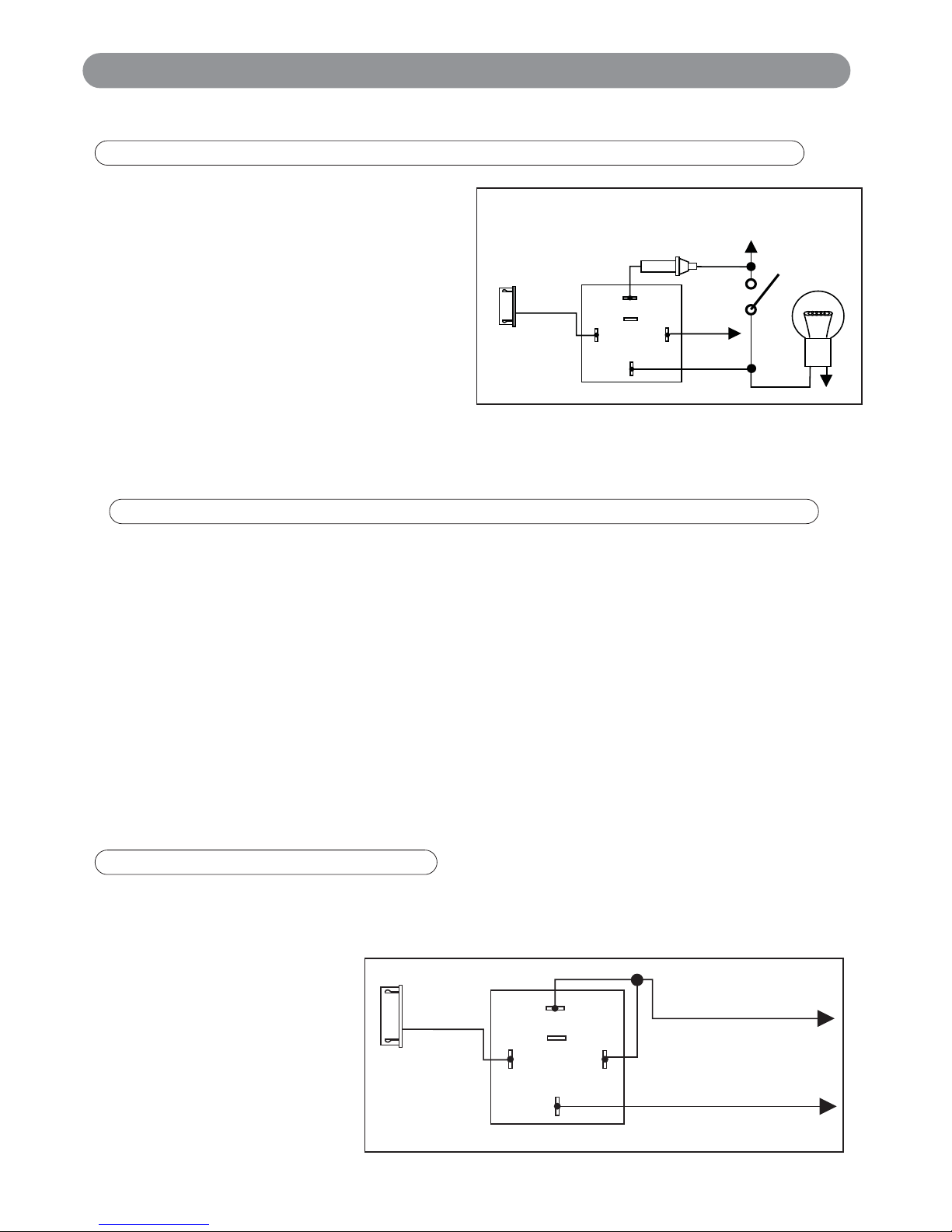

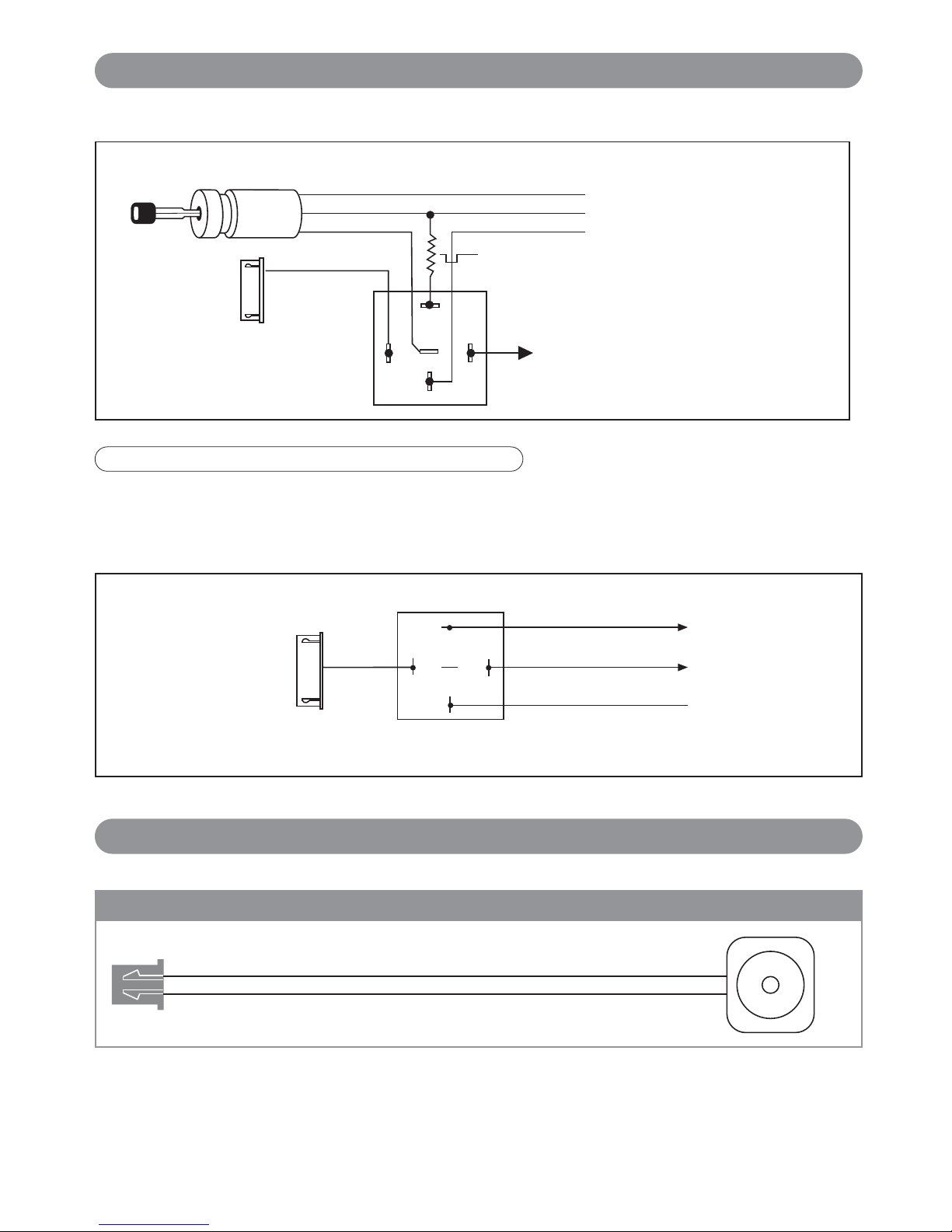

HC2: White 5-Pin Power Harness

The Red/White wire has already been assembled to work with a +12 volt switched parking light system (most vehicles). For vehicles with ground switched parking light activation cut this wire and connect it to ground.

Connect the White wire to the parking light wire coming from the headlight switch. Do not connect the White wire to the dashboard lighting dimmer switch (damage to the dimmer will result). The limitation of the White wire is 10 amp maximum. Do not exceed this limit or damage to the alarm and parking relay will result.

This is the main ground connection of the alarm module. Make this connection to a solid section of the vehicle chassis. Do not connect this wire to any existing ground wires supplied by the factory wire loom, make the connection to the vehicle’s chassis directly.

By default, the Brown wire is the negative (-) output connection for the horn. Current capacity is 200mA. Make the connection to the horn relay trigger wire. Typically, this wire can be found at the steering column near the ignition switch. Some vehicle horn systems may be (-) trigger and a relay will need to be added for proper operation as shown. Option: (-) Factory Alarm Re-Arm Output (See “Alarm Feature Programming” to change this function) Connect this wire to the existing vehicle’s alarm ARM trigger wire.

The “Red” wire supplies power to the system. Connect this wire to a constant +12 volt source.

87a

Brown

Wire

To Ground

To Horn

+12V or Ground

Depending on

System Requirements

Fuse

White

5-Pin

Connector

Wiring (continued)

Pink Wire: Ignition 2 Output

Brown Wire: Accessory Output, Heater/AC Output

Red/White Stripe: Parking Light Relay Input

White Wire: Parking Light Relay Output, + or - Selectable

Black Wire: System Ground

Brown Wire: (+) Programmable Output - Horn Default Setting

Red Wire: System Power, +12V Constant

Page 8

If the door lock control system on the vehicle is (-) type, connect the Blue wire to the unlock wire from the door lock switch . If the door lock control system on the vehicle is not (-) type, locate the diagram enclosed that matches your application and follow that diagram.

If the door lock control system on the vehicle is (-) type, connect the Green wire to the lock wire from the door lock switch . If the door lock control system on the vehicle is not (-) type, locate the diagram enclosed that matches your application and follow that diagram

Green Wire: (-) Door Lock Control

HC3: Black 3-Pin Door Lock Harness

Wiring (continued)

Blue Wire: (-) Door Lock Control

3 Wire Ground Trigger Door Lock System

(-) Lock Out

Ground Input

(-) Unlock Out

To Door Lock Control Relays

Lock Control

Switch

Blue Wire: Connect to Unlock

Green Wire: Connect to Lock

Black 3-Pin

Mini Connector

3 Wire Positive Door Locking Systems

87A

To +12 Volts (Battery +)

Black 3-Pin

Mini Connector

Green Wire

Blue Wire

Note: ALA-DL1 relay pack can be used

(+) Lock Out

+12 Volts Input

(+) Unlock Out

Lock Control

Switch

To Factory Door Lock SYstem

5 Wire Ground at Rest Door Locking Systems

87A

To +12 Volts (Battery +)

To Power Lock Switch

To Power Lock Motors

White Wire: Lock

Brown Wire: Unlock

Green Wire: Lock

Blue Wire: Unlock

Violet Wire

ALA-DL1

Relay Pack

Red Wire: Lock

Black Wire: Unlock

Black 3-Pin

Mini Connector

Green Wire

Blue Wire

Note:

Orange wire from ALA-DL1

must be connected to +12V

Page 9

Newly Installed Power Door Lock Motors

87A

To +12 Volts (Battery +)

To Ground

To Newly Installed Power Door Lock Motors

White Wire

Brown Wire

Green Wire: Lock

Blue Wire: Unlock

Violet Wire

ALA-DL1

Relay Pack

Red Wire: Lock

Black Wire: Unlock

Black 3-Pin Connector

Green Wire

Blue Wire

Note: Orange wire from ALA-DL1

must be connected to +12V

Wiring (continued)

HC3: Black 3-Pin Door Lock Harness

(continued)

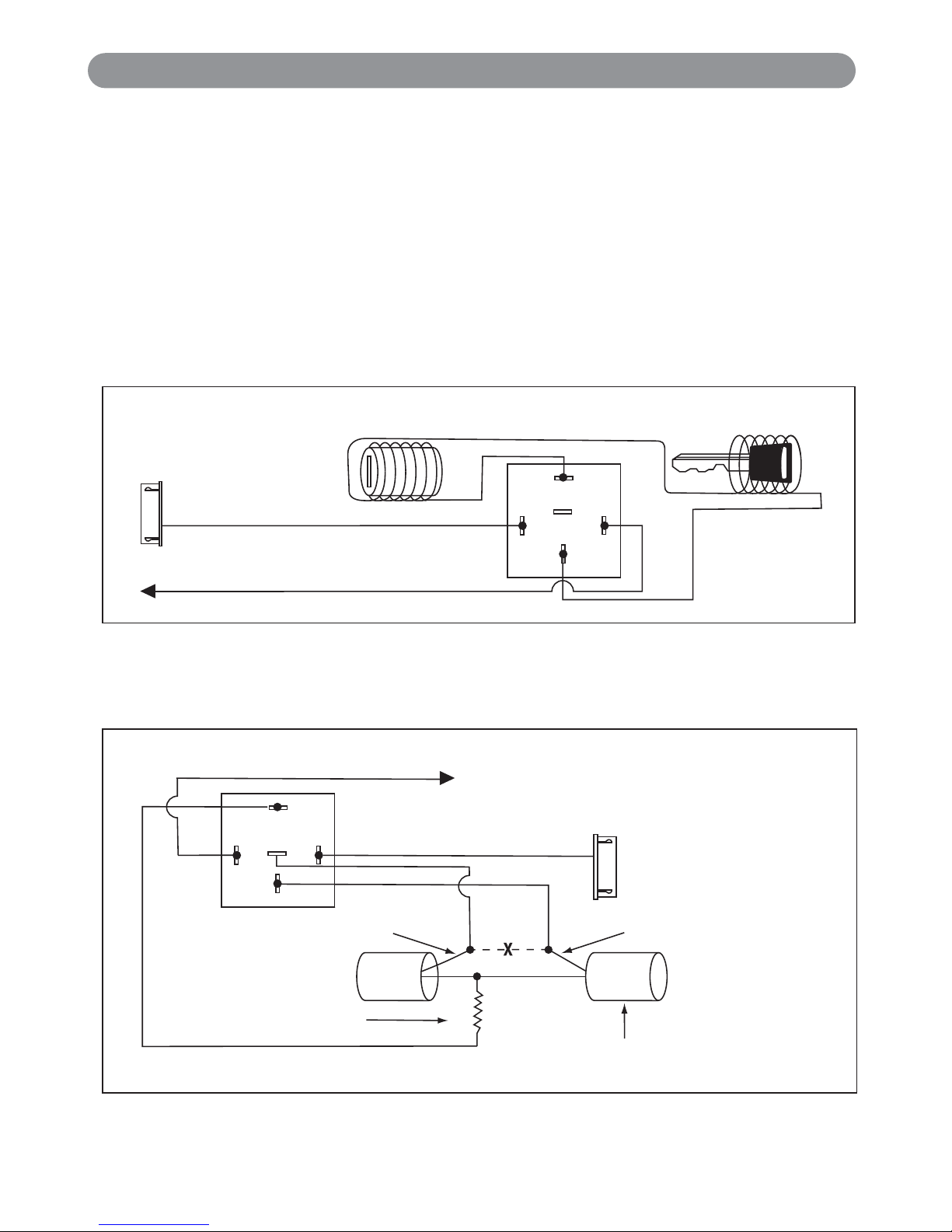

Unlock Driver's Door First for 3-Wire Negative Door Lock Systems

Unlock Driver's Door

87A

Unlock Wire

Passenger's Door

Lock

Unlock

To +12V or Ground

Driver's Door

Rear Door

Passenger's

Door Switch

Door Lock Relay

Control Module

Lock

Unlock

+12V

ALA984H

Relay

Driver's

Door

Switch

Cut

Black 3-Pin

Connector

Light Blue Wire

White

9-Pin Mini

Connector

Green Wire

Blue Wire

Page 10

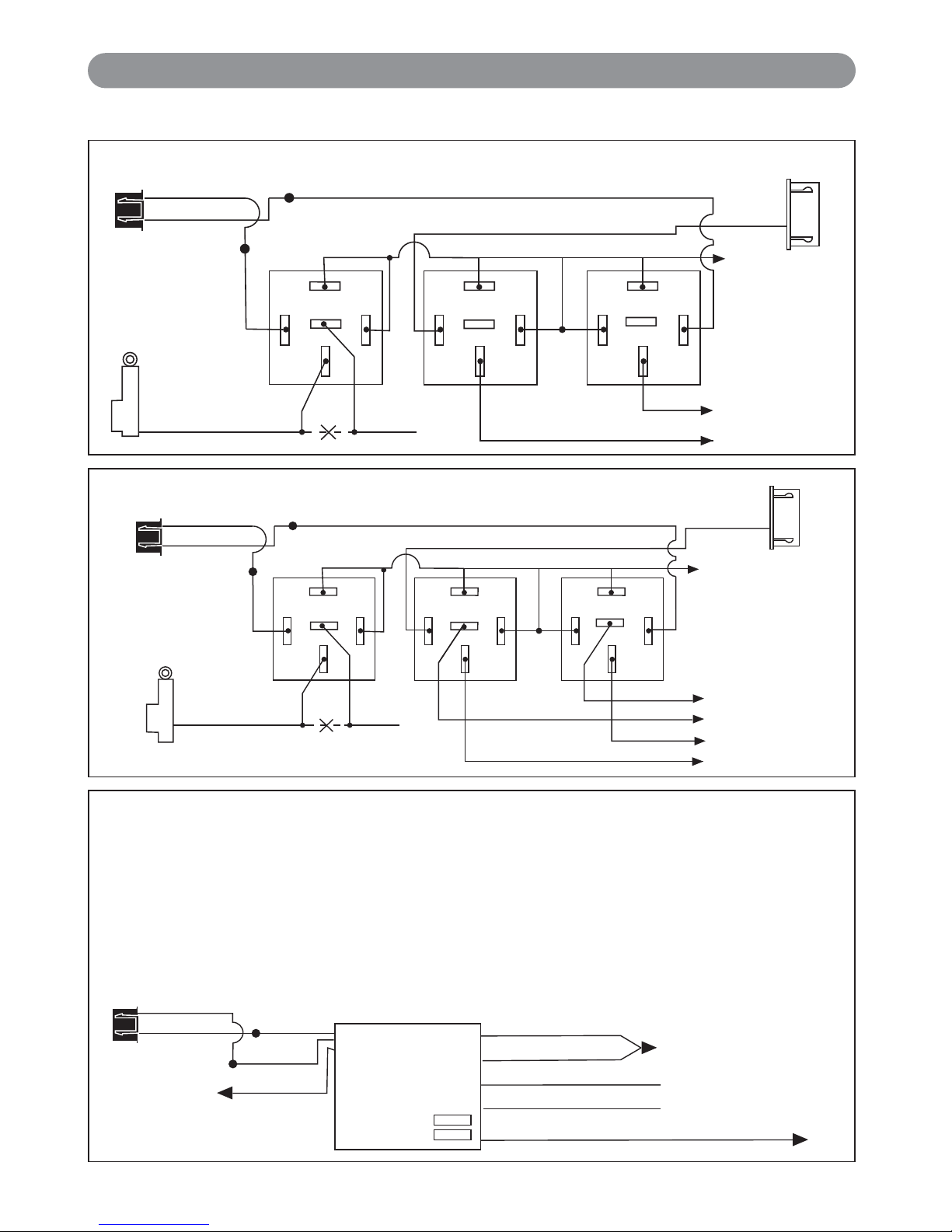

Unlock Driver's Door First Wiring for 3-Wire Positive Door Lock System

87A

To +12 Volts (Battery +)

To Power Door Lock Switch Lock/ Unlock Wires

Lock

Unlock

87A

+ Unlock

Cut

Driver's Door Motor

White 9-Pin Mini

Connector

Light Blue Wire

Black 3-Pin

Mini Connector

Green Wire

Blue Wire

Unlock Driver's Door First Wiring for 5-Wire Ground at Rest Door Locking Systems

87A

To +12 Volts (Battery +)

To Power Lock Switch

To Power Lock Motors

Lock

Unlock

87A

+ Unlock

Cut

Driver's Door Motor

White 9-Pin

Mini Connector

Light Blue Wire

Black 3-Pin

Mini Connector

Green Wire

Blue Wire

HC3: Black 3-Pin Door Lock Harness

(continued)

Wiring (continued)

White Wire No Connection

To Vehicles Lock/Unlock Wire

Brown Wire No Connection

Green Wire Lock

Blue Wire Unlock

Violet Wire To +12 Volts or Ground as Required

Lock Fuse 1

Unlock Fuse 2

ALA-DL1

Red Wire

Black Wire

Black 3-Pin

Mini Connector

Green Wire

Blue Wire

Note: Orange wire from ALA-DL1

must be connected to +12V.

Orange Wire

+12 Volts

One Wire Multiplexing Door Locking Systems

Some vehicle’s use one wire to lock and unlock the doors. Some require 2 resistors, one for lock and one for unlock. We have developed patented plug-in fuse resistors for this application. Simply remove the fuse from the ALA-DL1 door lock module and replace with correct resistor value fuses that matches the vehicles door lock switch system.

Wiring:

1. Connect both the green (lock) and the blue (unlock) wires to the vehicles one wire lock/unlock wire.

2. Connect the violet polarity input wire to +12v or to ground. To match vehicles door lock polarity.

3. The white and the brown wires will not be used.

Page 11

HC4: White 9-Pin Accessory Harness (continued)

This input provides the remote start system with information about the engine’s revolutions per minute (RPM). It can be connected to the negative side of the coil in vehicle with conventional coils.

In multi-coil ignition system, the system can have individual coil wires. Individual coil wires in a multi-coil ignition system will register lower amounts of AC voltage. Common locations for a tachometer wire are the ignition coil itself, the back of the gauges, engine computers, and automatic transmission computers. Note: This wire requires programming (See “Remote Start Feature Programming” for the proper programming procedure).

Important! Do not test tachometer wires with a test light or logic probe. Electronic components of the ignition system will be damaged. You must us a Digital Multi-meter.

Note: If you use the voltage or timer checking method for remote start detection, this wire does not need to be

connected.

How to find a tachometer wire with your multi-meter:

1. Set the meter to read ACV or AC voltage (12 or 20V).

2. Attach the (-) probe of the meter to chassis ground.

3. Start the vehicle’s engine.

4. Probe the wire you suspect of being the tachometer wire with the red probe (+) of the meter.

If the probed wire is the correct wire, the meter will read between 1V and 6V at idle and will increase with RPM.

The Black/White wire is a safety input wire. The remote start unit will not activate unless this wire is grounded. When this wire is disconnected from ground, the remote start system is disabled.

1. The primary connection point for the Black/White wire is at the Neutral Safety Switch located on/at the transmission

shifting lever. The switch output must be GROUNDED when the shifter lever is in the PARK position.

2. The second best connection point for the Black/White wire is at the Parking Brake Switch output wire. Make

sure that when the parking brake is engaged that the output wire of the switch is grounded.

3. An optional remote start toggle switch can be added to temporarily disable the Remote Start Device. It can

prevent the vehicle from being remote started accidentally. This feature is useful if the vehicle is being serviced or stored in an enclosed area. To disable the remote start, move the optional remote start enable toggle switch to the OFF position. To enable the remote start, move the optional remote start enable toggle switch to the ON position.

Note: When the Black/White wire is not used for it’s intended safety purpose, connect the Black/White wire to the “Ground” or remote start system will not function.

Wiring (continued)

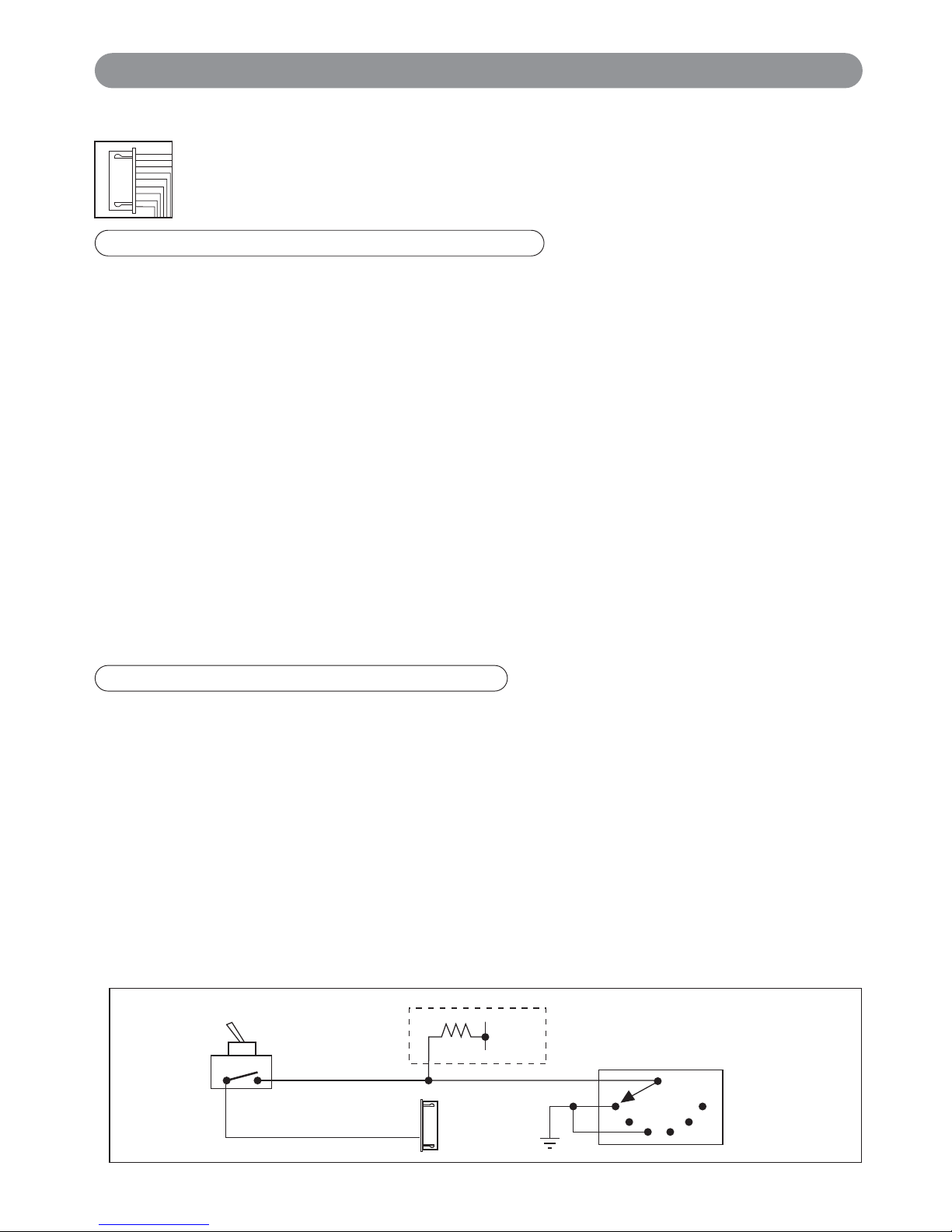

Black/White Wire: (-) Neutral Safety Switch Input

Black/White Wire

Neutral Safety Switch Input

Optional Enable Switch

Ignition

Electronic Control Module (ECM) Solid State, Do Not Measure Resistance

White 9-Pin Mini Connector

Violet/WhiteWire: (-) Tachometer Signal Connection

Page 12

Wiring (continued)

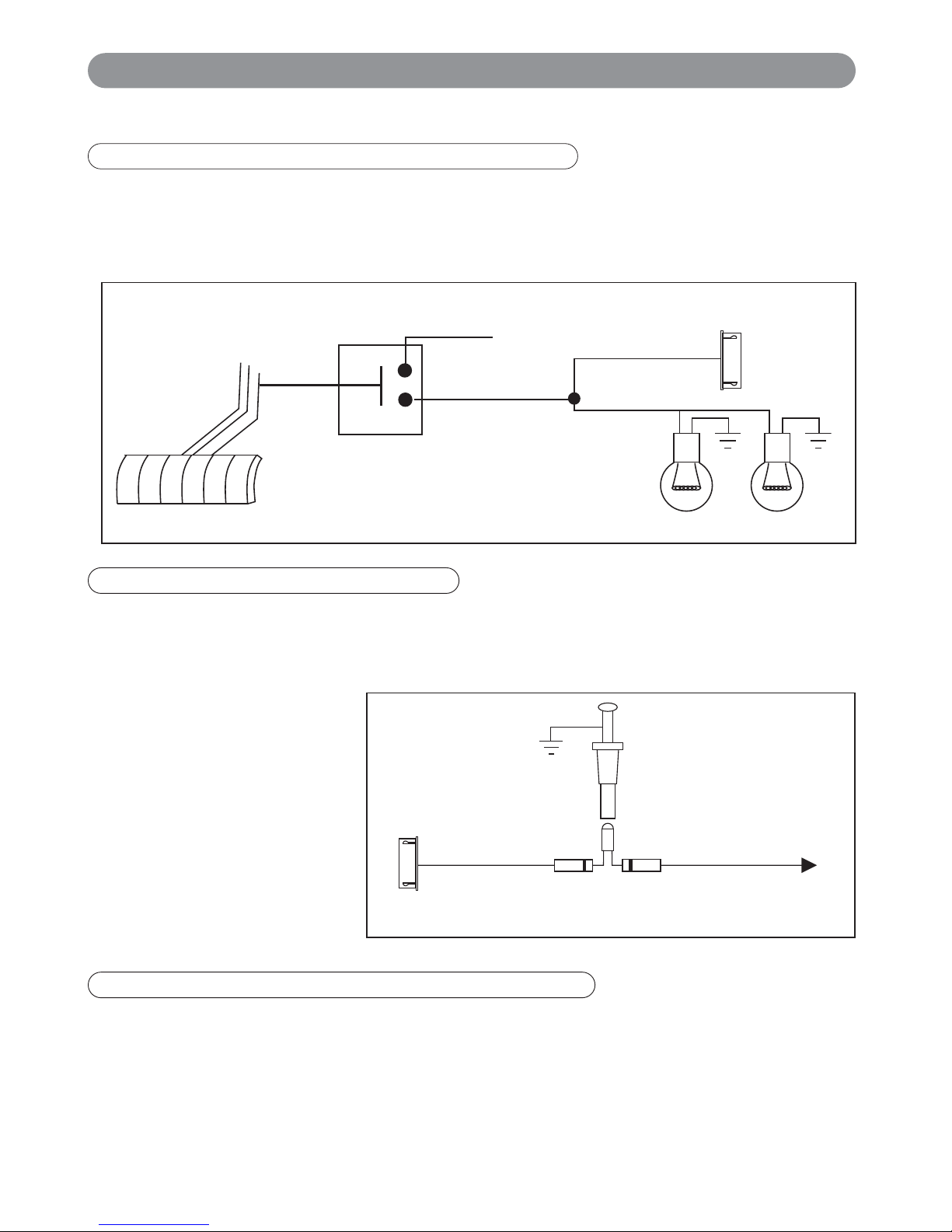

Brown Wire: Positive Brake Safety Shut Down Input

This wire provides instant shutdown for the remote start, when it receives +12 volts. If the brake lights switch in the vehicle switches +12 volts to the brake light circuit, connect this wire to the output side of the brake switch. This will allow the remote start to shut down if an attempt is made to operate the vehicle without the key while running under the control of the remote start. A relay may be required if the brake light switch is (-) type.

White 9-Pin Mini Connector

Brake Light

Bulbs

+12 Volts

Switch Closes when

Brake is Depressed

Brown Wire

Brake

Pedal

To Lights

Gray Wire: (-) Hood Safety Shut Down Input

The Gray wire provides instant shutdown for the remote start when it is grounded. Connect the Gray wire to an existing hood pin switch or install the one provided in this kit. This wire must be routed through a grommet in the firewall and connected to the hood pin switch. If the hood pin switch is also to be used as an alarm system trigger, diodes are required as shown.

Important! This connection is a safety wire and must be connected as shown and tested as specified. Failure to do so may result in personal injury or property damage.

Note: The Gray wire can also be used as the “Brake Safety” connection if the vehicle brake light circuit switches a ground signal to the brake lights. An isolation diode must be used and connected to the output of the brake switch.

Hood Pin Switch

Gray Wire

Negative Safety

Diode Diode

To Alarm Instant

Trigger Blue Wire

White

9-Pin Mini

Connector

White/Blue Wire: AUX Start and Turn Off Input

This wire can turn on and off the remote start system each time it sees a momentary ground signal. This wire is normally used for testing or activating the remote starter from an after-market alarm system. A common connection point would be at the trunk release wire or the door lock wire.

HC4: White 9-Pin Accessory Harness (continued)

Page 13

Wiring (continued)

HC4: White 9-Pin Accessory Harness (continued)

Dome Light Control Output :

This wire becomes grounded when the system is unlocked. The current capacity of this wire is 200mA. This wire can control the operation of the interior lights. Use of optional relay as shown is recommended. Upon unlocking, the interior lights will remain on for 30 seconds.

Ground Output During Crank Option: (See “Alarm Feature Programming”):

This wire can be used to control another device as needed when the remote start is cranking the engine. This wire will supply a constant ground while the engine is cranking.

Driver’s Door Priority 2nd Unlock Output:

By default the Light Blue wire provides a second (-) unlock output to unlock the passenger’s doors. Follow the diagrams on pages 8-10 for proper connection.

Factory Security Disarm Output:

The Light Blue wire can be programmed to provide a (-) pulse output every time the X6 is unlocked. This connection can be used to disarm the vehicles factory security system at the same time the X6 is unlocked. See Alarm Feature Programming (Group 1), page 18.

Start Status Output:

The Light Blue wire can be programmed to provide a constant (-) output during the time that the vehicles engine is running under the control of the X6. In this configuration, the Light Blue wire can be used as sensor bypass control. Connect a relay to the sensor power wire and use the Light Blue wire to trigger the relay. See Alarm Feature Programming (Group 1), page 18.

Some newer vehicles use a third ignition wire which is required to start and keep the vehicle’s engine running. The Pink wire provides a 200mA (-) ground output that becomes active 4 seconds before the remote start unit initializes. This wire remains grounded while the engine is running. This is a low current output wire and will require a 30a/40a relay (not supplied) for correct operation. Wire the relay as shown. Note: This wire can an also be used to control an ignition immobilizer bypass module.

87a

White

Wire

White 9-Pin Mini Connector

+12V

Courtesy

Light

Door

Switch

Fuse

+12 Volts or Ground Depending

on Vehicle Requirement

White Wire : (-) 200mA Programmable Output (Dome Light Supervision Default Setting)

Light Blue Wire : (-) 200mA Programmable Output (2nd Unlock Output Default Setting)

Pink Wire : (-) 200mA Ignition 3 Output

87a

Pink

Wire

+12 V Constant

Fused 25A Capable

Ignition 3 Wire from

Ignition Key Switch

White 9-Pin Mini Connector

Page 14

Wiring (continued)

Transponder Key

87A

Ignition Switch

+12 Volt Ignition

Pink Wire

White 9-Pin Mini Connector

HC4: White 9 Pin Accessory Harness (continued)

Transponder Interfacing Using ALA984 Relay: Can also use optional RS-TIM bypass module.

If the vehicle has transponder system installed, you will need to bypass the system while the vehicle is operating under the control of the Remote Start Unit. To do this, follow these steps:

1. You will need a transponder key that’s already programmed to the vehicle.

2. Remove the trim around the ignition switch.

3. Wrap a thin (30 awg) wire tightly around ignition switch 6 to 8 times and secure it.

4. About 6" down line make another loop of approximately 2" diameter.

5. Place the key inside this loop and secure it to the loop.

6. Connect on end of the 30 awg wire to pin (87) of the relay module.

7. Connect the other end of the loop wire to Pin (30) of relay module.

8. Connect (86) to ignition, connect (85) to the Yellow wire of 5-pin mini white connector.

GM VATS Key Override Using ALA984:

Can also use RS-PLM bypass module.

Passkey/Vats: Anti-Theft Bypass

87A

To Ignition

White 9-Pin Mini Connector

Passkey Wire Computer Side

Orange or Black Plastic Tube

at Steering Column

Resistor

Cut

Passkey Wire Key Side

Pink Wire

Page 15

Red/White Wire : Channel 3 (Trunk Release) Output

The Red/White will become grounded for 1 second when activated by the remote transmitter. The current capacity of this wire is 200mA and may require an additional relay to operate properly.

(Relay Not Supplied)

Output to Power

Trunk Switch

To Constant +12 Volts

Input to Relay (+ or

)

White

9-Pin Mini

Connector

Red/White

Wire

Wiring (continued)

Resistor

Yellow

Trucks: Orange/Black or Cars: Black

Passkey II Passive Anti-Theft Bypass

87A

To Vehicle's Ignition Wire

Trucks: Red/White or Cars: White

White 9-Pin Mini Connector

Pink Wire

HC4: White 9 Pin Accessory Harness (continued)

P2 Valet Switch

Plug-In Harnesses

Page 16

P6 Antenna / Receiver

Plug-In Harnesses (continued)

Black Wire No Connection

Red Wire No Connection

DBI Conection Harness (supplied)

P7 Data Adapter Communication

Data Interface Harness:

Allows direct communication between Marksman Remote Start and the vehicle’s data bus communication. (Data Interface Modules sold separately)

Note: The DBI Connection Harness provides power and ground to the Data Interface Module. Do not connect

power and ground from Data Interface Module Harness.

Page 17

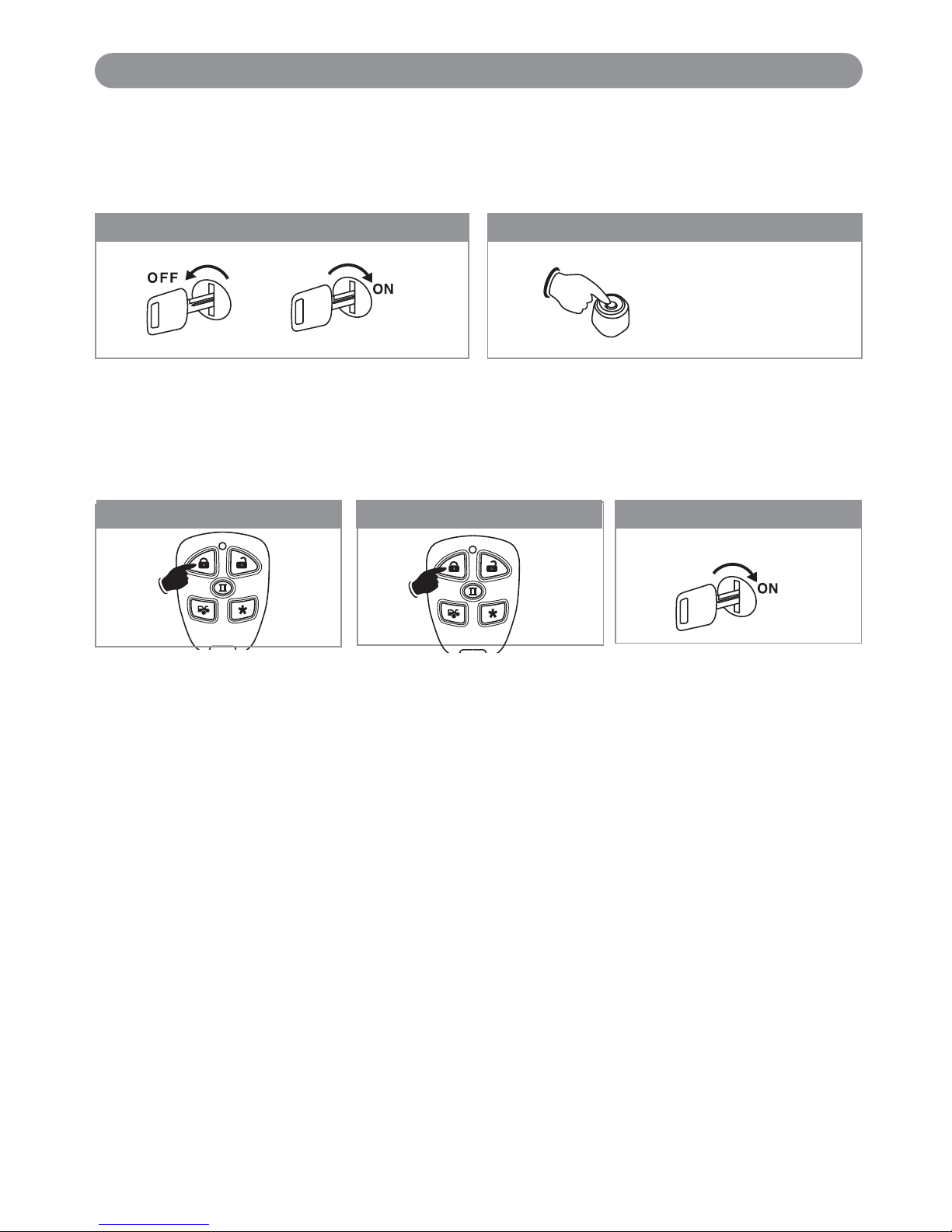

With the ignition switch in the OFF position, turn the ignition switch On - Off - On - Off - On.

Before 15 seconds has passed, push and release the valet switch 3 times holding the button down on the 3rd press. Wait until you hear a long chirp from the siren/horn. Release the button. You are now in “Programming the Transmitter” mode.

Step 1 Step 2

The transmitters included with this system have been pre-programmed and should not need re-programming. Note: This system will accept codes from 4 transmitters. If more than 4 transmitters are programmed, the system

will only operate from the last (4) programmed transmitters.

Follow the enclosed procedure to program additional transmitters:

2X + 1X (Hold)

Step 3A

Press the “Lock” button on the first transmitter until you hear a confirmation chirp/beep. The transmitter is now coded into the system.

Step 3B

Repeat Step 1 for each additional transmitter.

Step 4: Exit Programming

When finished, either turn off the ignition key or wait for 15 seconds to get out of transmitter programming mode. You will hear 3 long chirp/beeps to indicate you are out of the “Programming the Transmitter” mode.

Programming the Transmitter

Page 18

One Chirp Two Chirps Three Chirps Four Chirps

Button One LED Pulse Two LED Pulses Three LED Pulses Four LED Pulses

(Default Setting)

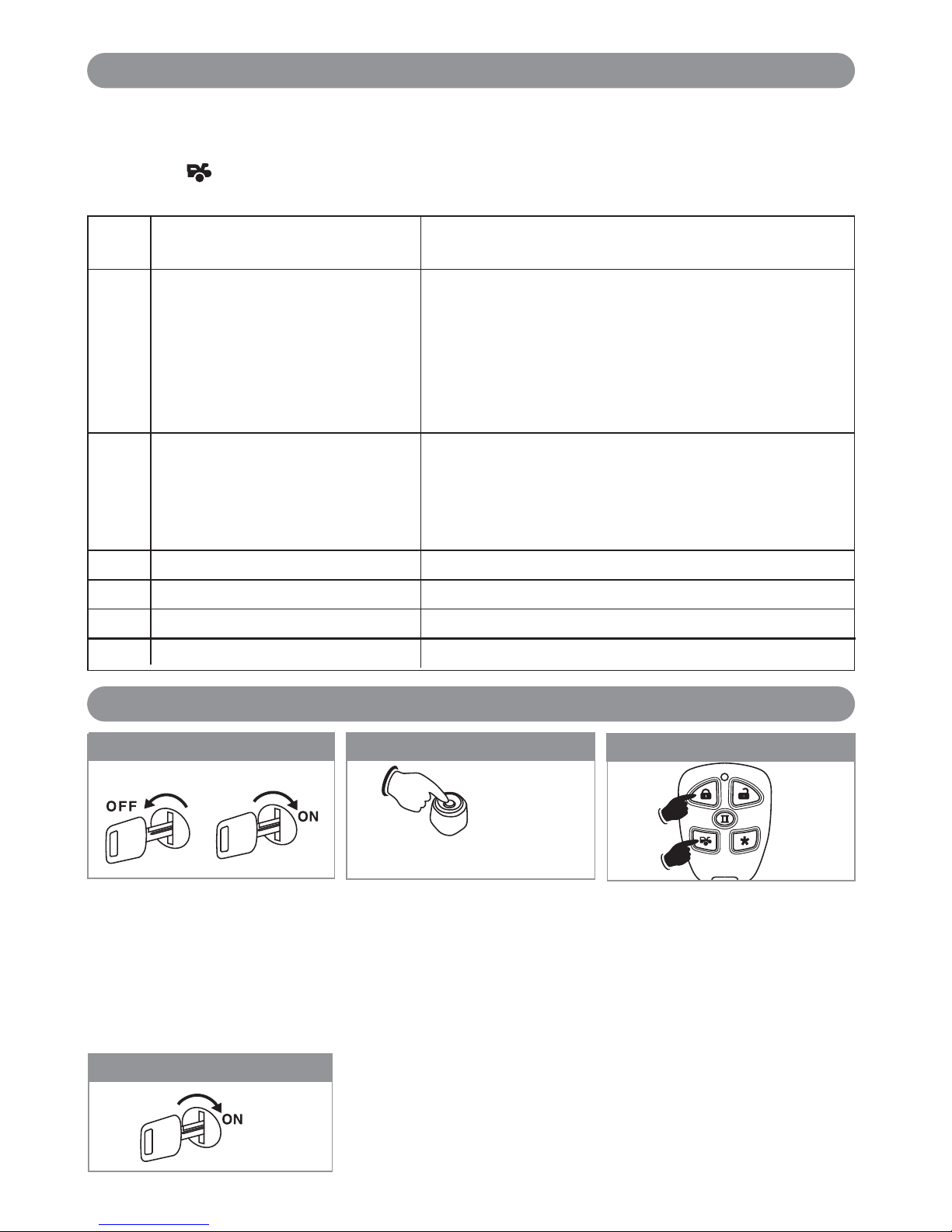

With the ignition switch in the OFF position, turn the ignition switch On - Off - On - Off - On - Off.

Before 15 seconds has passed, push and release the valet switch 2 times holding the button down on the 2nd press. Wait until you hear 1 short and 1 long chirp/beeps. Release the button. You

are now in “Alarm

Feature Programming (Group 1)” mode.

Step 1 Step 2

1X + 1X (Hold)

Step 3

Remote Feature Programming

Press the transmitter buttons as illustrated to adjust the features required. Keep re-pressing the transmitter button that relates to the feature you want to adjust until the correct amount of chirp/beeps is heard then move on to the next feature.

All Chirps On All Chirps Off

Parking Light On for 30 sec.

after Unlock Signal

Parking Light On 10 sec.

after Lock and 30 sec. after

Unlock

Pathway Illumination

Off

HC4 Light Blue Wire:

2nd Unlock Output

HC4 Light Blue Wire:

Fact. Security disarm Output

HC2 Brown Wire:

(-) Horn Output

HC4 White Wire:

(-) Domelight Supervision

Output

HC4 White Wire:

(-) Output During Starting

Normal Horn Output

Pulse Duration

PVID 1

Horn Output

S-S-S - L-L-L - S-S-S

PVID 2

Horn Output

S-L-S-L

PVID 3

Horn Output

S-S-S-L

PVID 4

Horn Output

S-M-L-S-M-L

PVID 5

Horn Output

S-S - L - S-S

Five Chirps

Five LED Pulses

Six Chirps

Six LED Pulses

Keyless Entry Feature Programming (Group 1)

HC4 Light Blue Wire:

Start Status Output

HC2 Brown Wire:

Fact. Security Re-arm Output

Page 19

Turn On the Ignition

3 long chirps and 3 flashes of the parking lights will confirm exit of the programming mode.

Note: Waiting 15 seconds after the last command will also cause the system to automatically exit the programming mode.

Step 4 Exit Programming

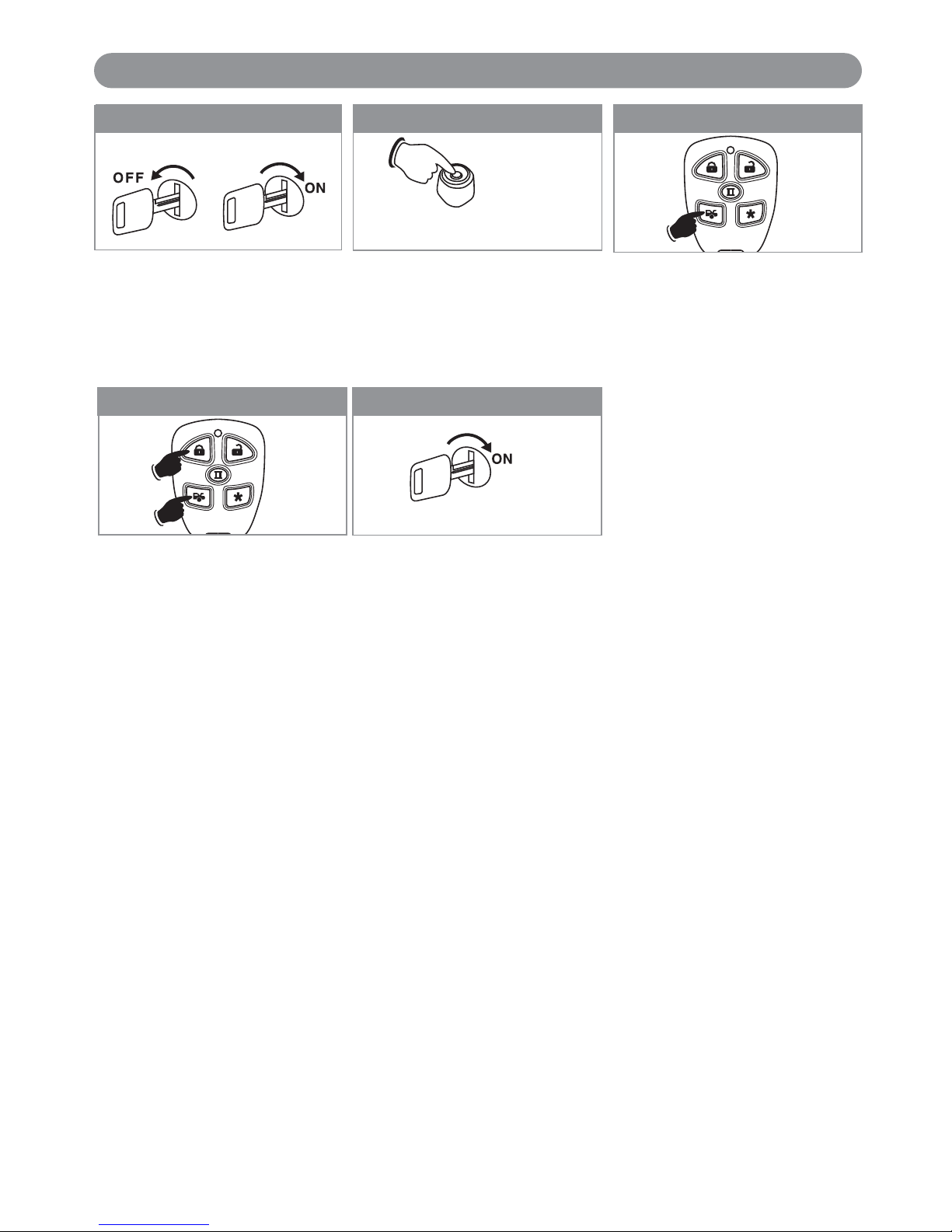

With the ignition switch in the OFF position, turn the ignition switch On - Off - On - Off - On - Off.

Before 15 seconds has passed, push and release the valet switch 4 times holding the button down on the 4th press. Wait until you hear 2 short chirps/beeps + 1 long chirp/ beep. You are now in “Alarm Feature Programming (Group 2)” mode.

Step 1 Step 2

3X + 1X (Hold)

One Chirp Two Chirps Three Chirps Four Chirps

Button One LED Pulse Two LED Pulses Three LED Pulses Four LED Pulses

(Default Setting)

Step 3

Double Unlock Pulse

Ignition Controlled

Door Lock Only

Ignition Controlled

Door Unlock Only

Ignition Key Controlled

Door Lock and Unlock

Doors Lock Before Start

All Door Lock / Unlock

Control Off

HC4

White/Blue Wire:

One (-) input pulse to

activate Remote Start

HC4

White/Blue Wire:

Three (-) input pulses

to activate remote

start

3.5 Second Door Lock Pulse

0.8 Second Door Lock Pulse

Ignition Key Door

Lock Control Off

Door Lock with

"Comfort Features"

Doors Lock After

Shutdown

Doors Lock Before Start

and Doors Lock After

Shutdown

Remote Feature Programming

Comfort Feature: Some vehicles (Mercedes, BMW, VW,etc.) have a special “Comfort Feature”. When you lock the door with the ignition key, you keep the key in the “lock” position for about 5 or 7 seconds and the windows will close. If the vehicle has a “Comfort Feature” and you want the windows to closed upon Lock/Arm the security system, you can set the door lock output to “Comfort Feature”.

Keyless Entry Feature Programming (Group 1) (continued)

Keyless Entry Programming (Group 2)

Page 20

One Chirp Two Chirps Three Chirps Four Chirps

Button One LED Pulse Two LED Pulses Three LED Pulses Four LED Pulses

(Default Setting)

Before 15 seconds has passed, push and release the valet switch 8 times holding the button down on the 8th press. Wait until you hear

4 short chirps/beeps + 1 long chirp beep. Release the button. You are now in “Remote Start Feature Programming”

mode.

7X + 1X (Hold)

Step 3

10 Minute Run Time

Factory Alarm Disarm

with Channel 3 “On”

Diesel Engine and

10 Second Warm-up

Gasoline

Engine

Diesel Engine and

15 Second Warm-up

Diesel Engine and

20 Second Warm-up

20 Minute Run Time

30 Minute Run Time 5 Minute Run Time

Without this Feature

Constant Parking

Light Output

Flashing Parking

Light Output

Step 1 Step 2

Press the (*) Button =

Activates Remote Start

Press the (*- *)

Button = Activates

Remote Start

3 Hour Time Start

2 Hour Time Start

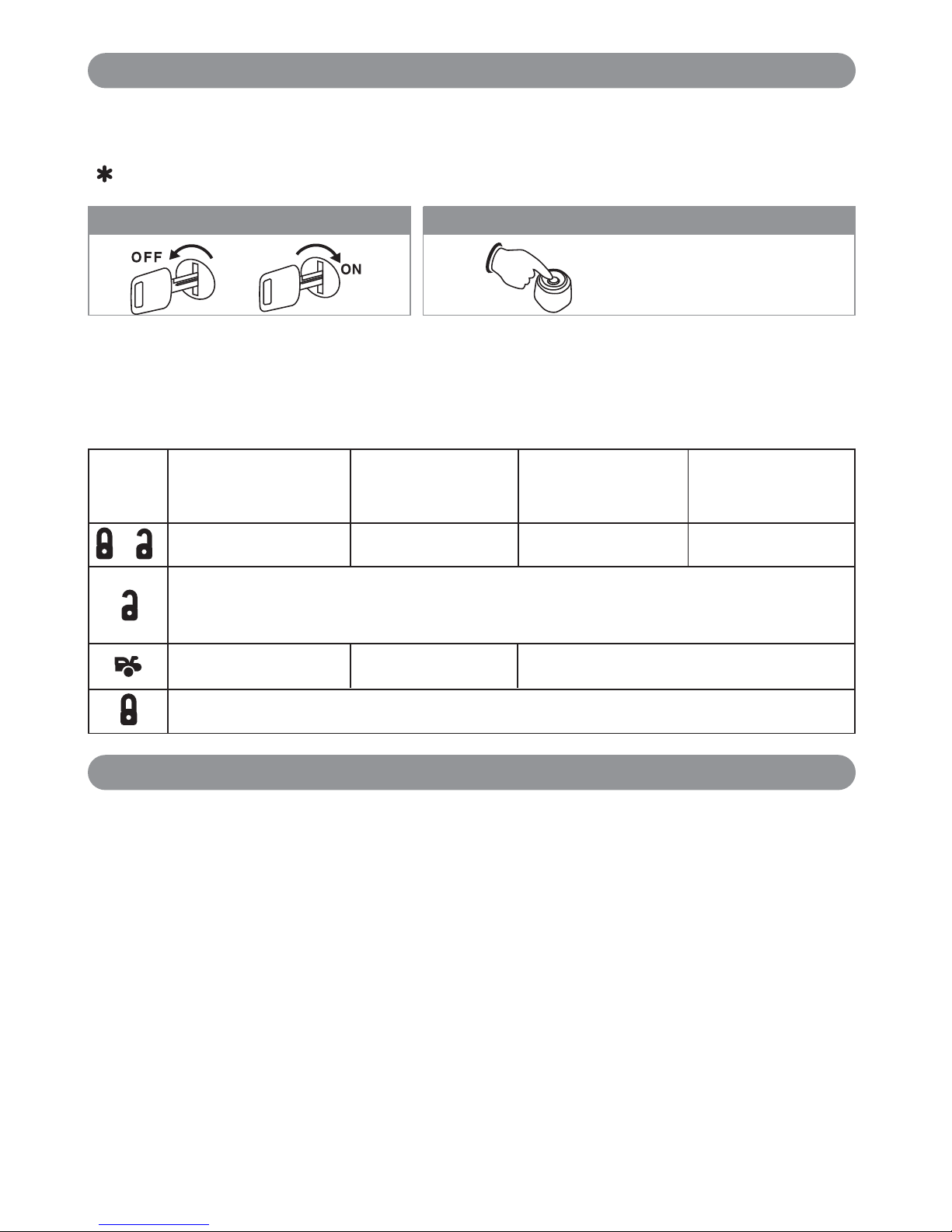

With the ignition switch in the OFF position, turn the ignition switch On - Off - On - Off - On - Off.

Remote Feature Programming

Remote Start Feature Programming (Group 1)

Five Chirps

Diesel-DBI

Page 21

sprihC eerhTsprihC owTprihC enO

Button One LED Pulse Two LED Pulses Three LED Pulses

(Default Setting)

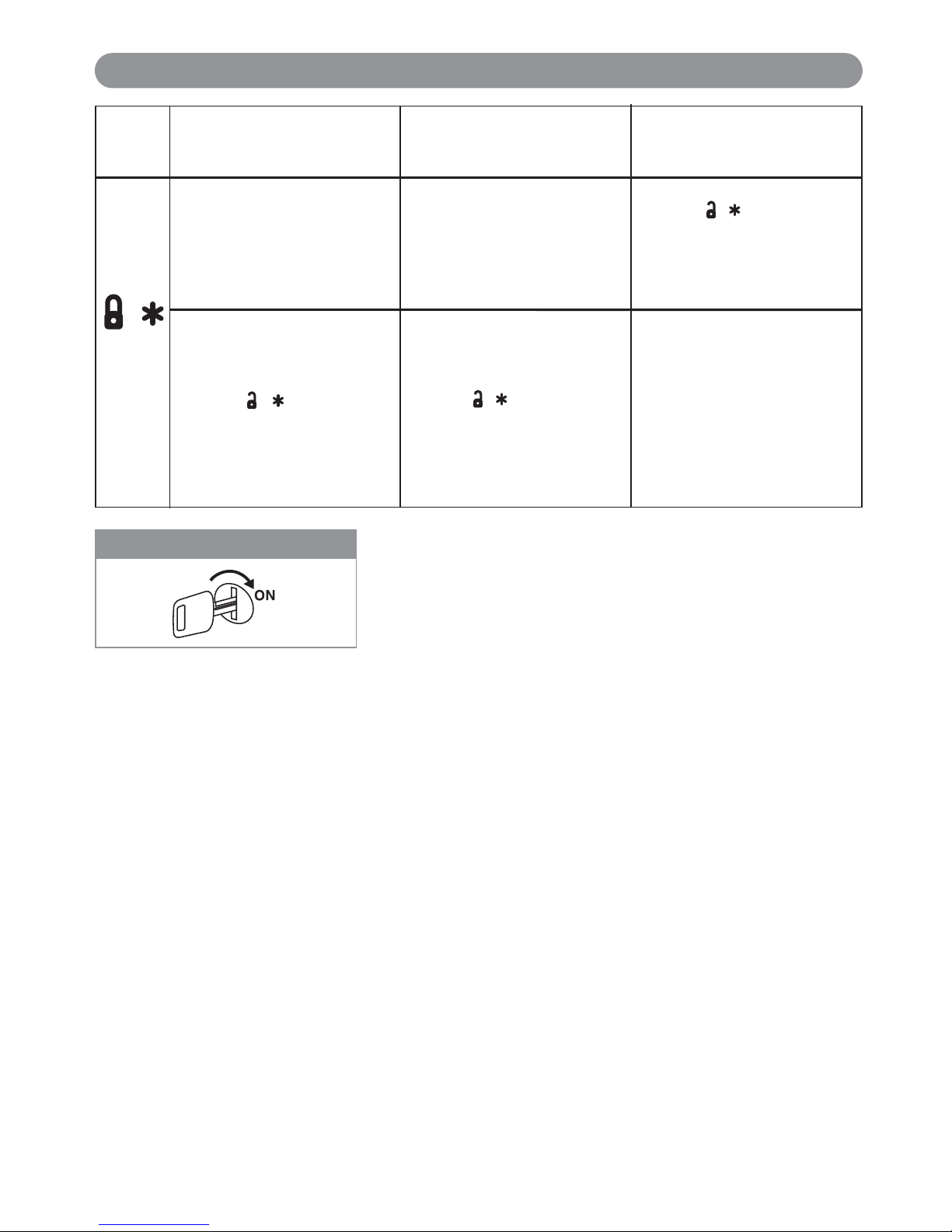

Turbo Timer Control is Active Press the ( + ) buttons before removing the ignition key to activate the 1 minute Turbo timer control. The keyless entry system can lock the doors while the engine is running

Turn On the Ignition

3 long chirps and 3 flashes of the parking lights will confirm exit of the programming mode.

Note: Waiting 15 seconds after the last command will also cause the system to automatically exit the programming mode.

Step 4: Exit Programming

Remote Start Feature Programming (Group 1) (continued)

(Default Setting)

Turbo Timer Control

Function is Off. The keyless entry system can not lock the doors while the engine is running.

Turbo Timer Control is Active Press the ( + ) buttons before removing the ignition key to activate the 3 minute Turbo timer control. The keyless entry system can lock the doors while the engine is running

Turbo Timer Control is Active Press the ( + ) buttons before removing the ignition key to activate the 5 minute Turbo timer control. The keyless entry system can lock the doors while the engine is running

Four Chirps

Four LED Flashes

Notice:

The Turbo Timer

feature will not

operate when using

the 1 button

transmitter

Five Chirps

Four LED Flashes

The vehicle has an aftermarket turbo timer installed. The keyless entry system can lock the doors while the vehicle is running.

Page 22

One Chirp Two Chirps Three Chirps Four Chirps

Button LED One Pulse LED Two Pulse LED Three Pulse LED Four Pulse

(Factory Default Setting)

Exit the Programming Mode (3 long chirps and 3 parking light flashes to confirm this exit)

Tachometer

Checking Type

RPM Learning Start Timer:

0.6 second (1 chirp)

0.8 second (2 chirps)

1.0 second (3 chirps)

1.2 second (4 chirps)

1.4 second (5 chirps)

1.6 second (6 chirps)

1.8 second (7 chirps)

2.0 second (8 chirps)

3.0 second (9 chirps)

4.0 second (10

chirps)

Voltage Checking

Type

Fixed Crank

Mode

Low Check Level

High Check Level

9X + 1X (Hold)

Step 2

Step 1

Enter the crank detection programming mode, select the engine checking type, then follow the procedures to test and re-set the cranking parameters as needed.

Note: The default detection setting is “Voltage Detection”. Once your wiring is completed, you can press the

button (2) times and start the engine to make sure all your connections are good to this point.

With the ignition switch in the OFF position, turn the ignition switch On - Off - On - Off - On Off.

Before 15 seconds has passed, push and release the valet switch 10 times holding the button down on the 10th press. Wait until you hear 5 short chirps/beeps + 1 long chirp/beep. Release the button. You are now in “Engine Crank Detection Programming” mode.

Engine Crank Detection Programming

Use the transmitter buttons as illustrated to adjust the features required. Keep re-pressing the transmitter button that relates to the feature you want to adjust until the correct amount of chirp/beeps is heard. Move on to the next feature.

In this programming group you will set the type of engine starting detection you want to use in your installation. There are 3 types available:

1. Tachometer (RPM) Detection: (Most reliable and recommended) This type of detection requires a wire

connection to the vehicles ignition coil. You must also “teach” the remote start unit the engine idle RPM level before you can start the engine by remote

2. Voltage Detection: This method detects the drop and rise in the battery voltage when the vehicle is started by

remote. This type of detection requires a solid main power input connection but it does not require any additional hard wire connections.

3. Elapsed Timer: This method is the easiest for installation but is not always the best method for year round

usage (Summer and Winter). To operate this method, you will program a specific time window for the remote start to crank the engine. Battery strength, environment and the aging process of the vehicle may require the timer to reset from time to time or season to season.

Engine Crank Detection Programming Explanations

Page 23

Press

Buttons

Chirp/

LED Flash

Checking

Type

Test and Adjustment Procedure

Voltage

Type

A. Press the button two times to start the engine. Allow engine to run

for more than 10 seconds.

A1. If the engine shuts off before 10 seconds, follow the “Engine Crank

Detection Programming” Step 1 and Step 2 procedure on page 22 to change “low check level” to “hi check level” (2 chirps). Exit the programming mode and Repeat A above.

A2. If the engine cranks too long or too little, follow the “Engine Crank

Detection Programming” Step 1 and Step 2 procedure on page 22 to select a different crank duration (see chart enclosed). Exit the programming mode and Repeat A/A1 above.

Press

Buttons

Chirp/

LED Flash

Checking

Type

Test and Adjustment Procedure

Tachometer

Type

Step 3B Crank Detection Programming and Procedure

Step 3A Crank Detection Programming and Procedure

Press

Buttons

Chirp/

LED Flash

Checking

Type

Test and Adjustment Procedure

Fixed Crank

Mode

A. Press two times to start the engine. Allow engine to run for more

than 10 seconds.

A1. If the engine cranks too long or too little, follow the “Engine Crank

Detection Programming” Step 1 and Step 2 procedure on page 22 to select a different crank duration (see chart enclosed). Repeat A above.

Engine Crank Detection Programming (continued)

Step 3C Crank Detection Programming and Procedure

A. Learn the engine idle RPM.

1. Press and release the button on the transmitter.

2. Start the engine with the ignition key and allow the choke to turn off.

3. With the engine at true idle speed, press and hold the valet switch

until you hear (1) long chirp and the LED is on solid for two seconds.

Note: If you do not get a response from holding down the valet switch,

check your tach connection. It may be loose or incorrect.

4. Turn off the ignition key.

B. Press the button two times to start the engine. Allow engine to run

for more than 10 seconds.

B1. If the engine shuts off before 10 seconds, follow the “Engine Crank

Detection Programming” Step 1 and Step 2 procedure on page 22 to change “high check level” to “low check level” (2 chirps). Repeat B above.

B2. If the engine cranks too long or too little, follow the “Engine Crank

Detection Programming” Step 1 and Step 2 procedure on page 22 to select a different crank duration (see chart enclosed). Repeat B/B1 above.

Page 24

Turn the ignition switch from the OFF position to the ON position 3 times leaving it in the Off position the third time.

Step 1

Before 15 seconds has passed, push and release the valet switch 12 times holding the button down on the 12th press. Wait until

you hear 6 short

beeps. Release the button.

11X + 1X (Hold)

Step 2

Press the (Lock) and (Car) button on the transmitter together for 6 seconds, there will be a confirmation six chirp with 3 long chirp and 3 parking light flashes to confirm the system “Alarm Features 1, 2 and 3 Programming” all returns to factory default setting.

Step 3

Turn On the Ignition

3 long chirps and 3 flashes of the parking lights will confirm exit of the programming mode.

Note: Waiting 15 seconds after the last command will also cause the system to automatically exit the programming mode.

Step 4: Exit Programming

The unit has the ability to report the cause of the last shutdown of the remote start system. Enter the Vehicle:

1. Turn the Ignition switch to “On” position.

2. Press the button on the transmitter

3. The LED will now report the last system shutdown by flashing for 3 cycles in the following grouped patterns:

LED Shutdown Mode

Flashes

1 (-) Safety Shutdown Input (Hood) 1. Close the Hood

(+)Safety Shutdown Input (Brake) 2. Check White/Black Wire Connection (7-Pin Mini Black)

or Neutral Safety Switch Input 3. Check White/Violet Wire Connection (7-Pin Mini Black)

noitisop ”nO“ ot hctiwS elggoT elbanE eht evoM .4liaF

(If Installed)

5. Move the gear selector to “Park”/”Neutral” Position.

6. Check Black/White Wire Connection (7-Pin Mini Black)

3 No RPM or Low Voltage: Tachometer Checking Type:

Check White/Red wire Connection

Voltage Checking Type:

Program the “Check Level” from “Hi Check Level” to “Low Check Level”

5 Over-Rev

6 System Timed Out

7 Transmitter is Off

8 Tach. Signal has not been learned Re-learning the RPM

Remote Start Shutdown Diagnostics

Returning to Factory Default Settings (Reset Keyless Features Only)

Page 25

Turn the ignition switch from the OFF position to the ON position 3 times leaving it in the Off position the third time.

Step 1

Before 15 seconds has passed, push and release the valet switch 12 times holding the button down on the 12th press. Wait until

you hear 6 short

beeps. Release the button.

11X + 1X (Hold)

Step 2

Press and release the (Car) button first.

Step 3

Turn On the Ignition

3 long chirps and 3 flashes of the parking lights will confirm exit of the programming mode.

Note: Waiting 15 seconds after the last command will also cause the system to automatically exit the programming mode.

Step 5: Exit Programming

Return to Factory Default Settings (Resets All Programmable Features)

Press and hold the (Lock) and (Car) button on the transmitter together for 6 seconds, there will be a six chirp confirmation with 3 long chirp and 3 parking light flashes to confirm the system “All Features return to factory default setting.

Step 4

Page 26

Caution! The following procedure must be performed after the installation of the Remote Start Device. It is the

responsibility of the installing technician to complete these tests. Failure to test the unit in the following manner may result in personal injury, property damage, or both.

1. Test the brake shutdown circuit: With the vehicle in “Park” (P), start the vehicle using the remote

transmitter, Once the engine is running, press the brake pedal. The vehicle should shut down immediately. If the vehicle continues to run, check the brake circuit White/Violet wire.

2. Test the “Hood Pin” shutdown circuit: Start the vehicle using the remote transmitter, Once the engine is

running, pull the hood release and raise the hood. The vehicle should shut down immediately. If the vehicle continues to run, check the hood pin “White/Black” wire connection.

3. Neutral Start Safety Test:

A. Set the vehicle parking brake. B. Block the drive wheels to prevent vehicle movement. C. Sitting in the vehicle, turn the ignition switch “On” or “Run” position. But do not start the engine. D. Step on the brake pedal and shift the gear selector into “Drive” (D). E. Put you foot over the brake pedal but do not press down on it. Be ready to step on the brake to shut

down the Remote Start Device.

F. Start the vehicle using remote transmitter.

a. If the starter does not engage, the test is complete. b. If the starter engages, immediately step on the brake pedal to shut down the system, recheck your

Violet wire (6-Pin White, Starter Output) connection. The heavy gauge Violet wire must be connected to the ignition switch side of the Neutral Start Switch. If the vehicle you are working on does not have an Electrical Neutral Safety Switch, it will be necessary to reconfigure the Remote Starts Wiring to accommodate this vehicle. The information concerning the Mechanical Neutral Safety Switch provided below will help you to determine if the vehicle you are working on has this type of safety switch and will provide alternate wiring methods to accommodate this situation.

Safety Testing the Installation

Page 27

(-)

Valet

Switch

Transceiver

LED

Indicator

HC1

White 6-Pin

HC2

White 5-Pin

HC3

Black 3-Pin

HC4

White 9-Pin

Blue

2-Pin

P6 White 3-Pin

Brown

4-Pin

Data

Port

Wiring Diagram
