Mark Feldstein Roll-Up Piano User Manual

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for Class B
digital devices, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and the receiver.

-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Roll Up Piano Instruction Manual

Product Introduction

The Roll Up Piano is designed in a compact, portable size to be taken anywhere and
played after unfolding it. When finished, simply roll it up. The Roll Up Piano can
connect externally to your home theatre or stereo which is ideal for parties and other
gatherings. It can also be used with headphones so one can play it silently.

It features 100 tones and rhythms, including piano, saxophone, harp and guitar selections.
It is not only for professional players, but perfect for beginners as well.

To avoid damage, please use and handle with care. Please read instructions carefully
before using. Please have adult supervision when in use by children.

Page 1

Product Specifications:

• Keyboard: 49 standard keys (4 sets of octachord)

• Tone: 100 tones are available (00-99 tone controls)

• Rhythm: 100 accompaniments available (00-99 rhythm accompaniments)

• Digital Display: The tones and rhythms of the Roll Up Piano are displayed.

• Inner Connection of Amplifier: Headphones/Amplifier (Home Theatre) can be
connected externally.

• Power Supply: 4 “AA” batteries (not included) can be played continuously for
5 hours, or 6 Volt Adapter (not included).

Page 2

Instructions on Product Functions:

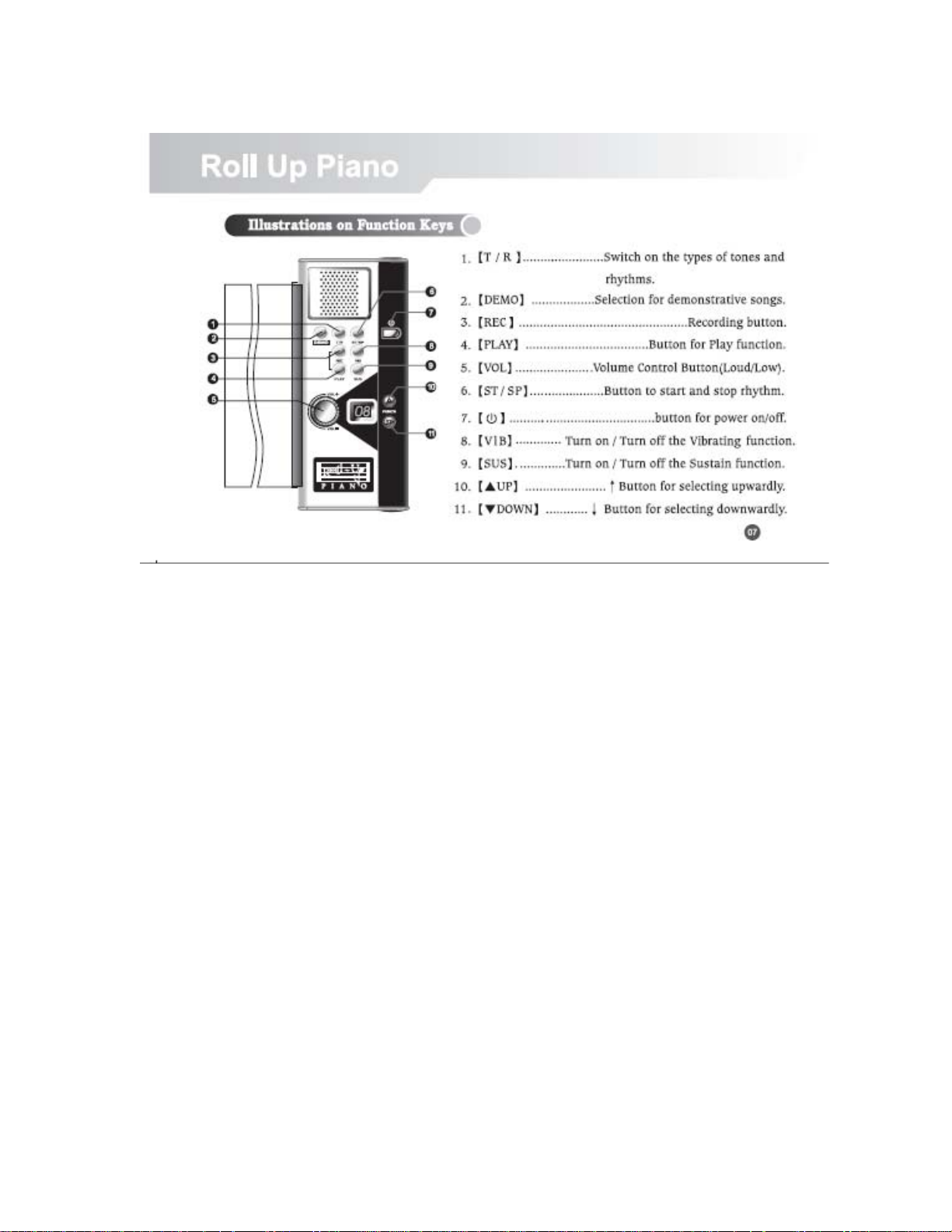

Put the Roll Up Piano on a flat surface and set it on automatic play. Button interface area
on the right side is the main area which shall be used to select tones, rhythms, function
settings, demonstrative songs, recording, and powering the unit on and off. The Red
Digital Display area provides the status of tones/combinations/rhythms/demo songs. The
Keyboard area on the left side is the same as an ordinary piano and can be played
normally.

*Selection for Types of Tones and Rhythms:

The number in the Digital Display area shows the status of the types of presetting tones
or rhythms currently selected. Press the (FUNC’N) keys to select from 100 types of
tones and rhythms.

There are 100 tones available in the presetting mode. To switch to Tone Selection Mode:

1. Turn on the power by pressing the Power button. The LCD screen indicates

“0.0”.

2. Press (FUNC’N) keys either up or down to select desired tone. When pressing

up, the LCD screen indicates “9.9”. When pressing down, the LCD screen
indicates “0.1”.

Page 3

*Accompaniment Function:

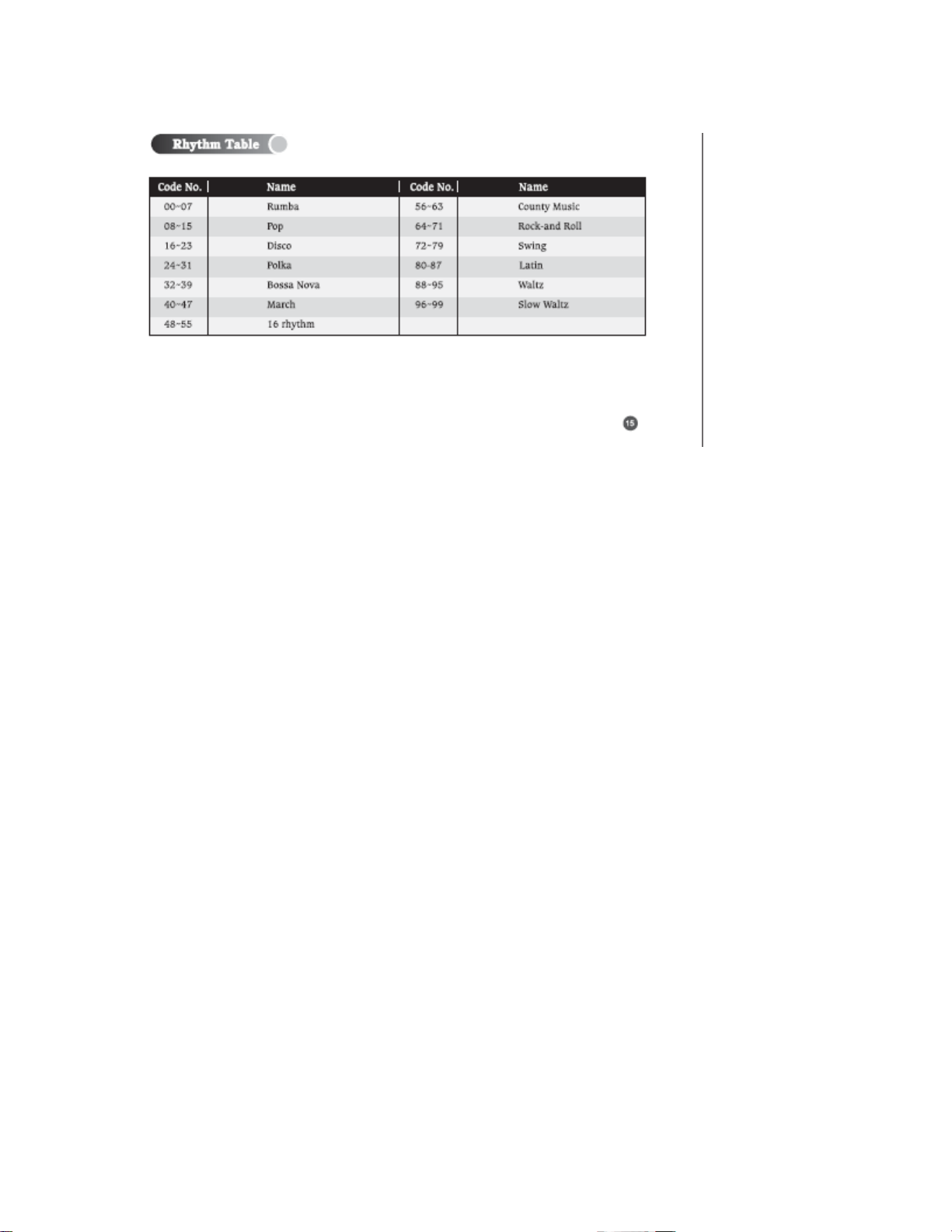

There are 100 rhythms available in the presetting mode. To switch to Rhythm Selection
Mode:

1. Turn on the power by pressing the power button. The LCD screen indicates

“0.0”.

2. Press the (T/R) button. The LCD screen indicates “00”.

3. Press the (ST/SP) button.

4. Press (FUNC’N) keys either up or down to select desired rhythm. When pressing

up, the LCD screen indicates “99”. When pressing down, the LCD screen
indicates “01”.

5. To stop rhythm from playing, press the (ST/SP) button again.

*Song Recording and Playing:

Maximum of 52 musical notes can be recorded under the Recording Function. It will
stop recording when (ST/SP) or (DEMO) buttons are pressed.

1. Recording

Press the (REC) button. The letter “E” will be displayed in the Digital Display
area. It is now in the recording mode. You can now begin using the keyboard
and whatever you play will be automatically saved. When you are finished
playing, press the (REC) button again and the musical notes will be saved.

Page 4
