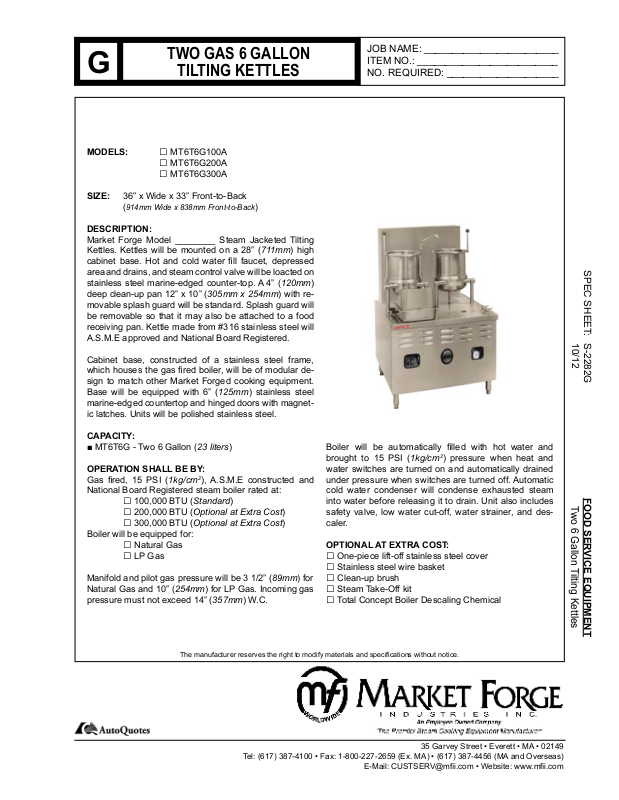

Market Forge MT6T6G100A User Manual

TWO GAS 6 GALLON

G

MODELS: □ MT6T6G100A

□ MT6T6G200A
□ MT6T6G300A

SIZE: 36” x Wide x 33” Front-to-Back

(914mm Wide x 838mm Front-to-Back)

DESCRIPTION:

Market Forge Model ________ Steam Jacketed Tilting
Kettles. Kettles will be mounted on a 28” (711mm) high
cabinet base. Hot and cold water  ll faucet, depressed
area and drains, and steam control valve will be loacted on

stainless steel marine-edged counter-top. A 4” (120mm)
deep clean-up pan 12” x 10” (305mm x 254mm) with re-

movable splash guard will be standard. Splash guard will
be removable so that it may also be attached to a food

receiving pan. Kettle made from #316 stainless steel will
A.S.M.E approved and National Board Registered.

TILTING KETTLES

JOB NAME: ________________________
ITEM NO.: _________________________
NO. REQUIRED: ____________________

SPEC SHEET: S-2282G

10/12

Cabinet base, constructed of a stainless steel frame,
which houses the gas  red boiler, will be of modular de­sign to match other Market Forged cooking equipment.
Base will be equipped with 6” (125mm) stainless steel

marine-edged countertop and hinged doors with magnet-

ic latches. Units will be polished stainless steel.

CAPACITY:

■ MT6T6G - Two 6 Gallon (23 liters)

OPERATION SHALL BE BY:

Gas  red, 15 PSI (1kg/cm2), A.S.M.E constructed and
National Board Registered steam boiler rated at:

□ 100,000 BTU (Standard)
□ 200,000 BTU (Optional at Extra Cost)
□ 300,000 BTU (Optional at Extra Cost)

Boiler will be equipped for:

□ Natural Gas
□ LP Gas

Manifold and pilot gas pressure will be 3 1/2” (89mm) for

Natural Gas and 10” (254mm) for LP Gas. Incoming gas
pressure must not exceed 14” (357mm) W.C.

Boiler will be automatically  lled with hot water and
brought to 15 PSI (1kg/cm2) pressure when heat and

water switches are turned on and automatically drained
under pressure when switches are turned off. Automatic
cold water condenser will condense exhausted steam

into water before releasing it to drain. Unit also includes
safety valve, low water cut-off, water strainer, and des-

caler.

OPTIONAL AT EXTRA COST:

□ One-piece lift-off stainless steel cover
□ Stainless steel wire basket
□ Clean-up brush
□ Steam Take-Off kit
□ Total Concept Boiler Descaling Chemical

FOOD SERVICE EQUIPMENT

Two 6 Gallon Tilting Kettles

The manufacturer reserves the right to modify materials and speci cations without notice.

Tel: [phone] • Fax: [phone] (Ex. MA) • [phone] (MA and Overseas)

E-Mail: CUSTSERV@m i.com • Website: www.m i.com

35 Garvey Street • Everett • MA • 02149

36

[914]

4 [102]

D

HW

CW

2.5 [64]

10.5

[280]

2.75
[70]

2

[51]

33

[838]

5.5 [369]
(100OR 200K)

ST

EC

G

5

[127]

24

[610]

(300K)

17.5

[445]

(100OR 200K)

5

[127]

3

[76]

ST

G1

15.75
[400]

1.75

[43]

D

HW

CW

EC

G

ST ST

G1

22

[559]

28

[711]

55.25

[1403]

18.5

[471]

8

[205]

6

[152]

G

SPEC SHEET: S-2282G

10/12

FOOD SERVICE EQUIPMENT

CAUTION:

Before connecting water to this unit, water supply should
be analyzed to make sure hardness is no greater than 2.0

grains per gallon and pH level is within the range of 7.0-

8.5. Water that fails to meet these standards should be
treated by installation of water conditioner. EQUIPMENT

FAILURE CAUSED BY INADEQUATE WATER QUAL­ITY IS NOT COVERED UNDER WARRANTY.

Two 6 Gallon Tilting Kettles

It is our policy to build equipment which is design certied by U.L., A.S.M.E., N.S.F. and C.S.A. However, a continuing program of product improvement makes

TWO GAS 6 GALLON

DETAILS & DIMENSIONS

TILTING KETTLES

SERVICE CONNECTIONS

Gas Fired

G Gas Connection - 3/4 (19mm) NPT 100,000 &

200,000 BTU

G1 Gas Connection - 1 (25mm) NPT 300,000 BTU

HW

CW

HWK

CWK

D

EC

ST*

* Steam supply connection available on either side of
cabinet base.

NOTES: Units supplied for use in Canada require only
one electrical connection at “EP” for both power and
control circuits.

PVC and CPVC pipe are not acceptable materials for
drains.

The only available space to supply utilities to the steam

generator is the 6” (152mm) space between the oor and

the cabinet base. Allow 3” (76 mm) spacing from side wall
and 6” (152mm) from rear wall if adjoining wall is combus­tible.

it necessary to submit new models to the agencies as they are developed and consequently not all models bear the appropriate agency labels at all times.

Hot Water - 3/8” (9.5mm) O.D. tubing for hot water

to generator. Hot water lines will have a maximum
of 50 PSI (3.5kg/cm2) and a minimum of 25 PSI
(1.8kg/cm2) water pressure.

Cold Water - 3/8” (9.5mm) O.D. tubing for cold

water to condenser. Cold water lines will have a
maximum of 50 PSI (3.5kg/cm2) and a minimum of
25 PSI (1.8kg/cm2) water pressure.

1/2” (13mm) O.D. tubing for hot water to kettle ll
faucet.

1/2” (13mm) O.D. tubing for cold water to kettle ll
faucet.

Drain - Pipe full 2” (50mm) I.P.S. to ush oor drain

capable of receiving water owing at a maximum

rate of 5 gallons (19 liters) per minute. DO NOT
MAKE SOLID CONNECTION TO FLOOR DRAIN.

Electrical Connection - 115 VAC, 60 Hz, 2 amps,
1/2” (13mm) conduit connection or equivalent. Use
wire suitable for at least 90°C.

Steam Take-Off - Connection for operation of adja­cent steam-powered equipment
