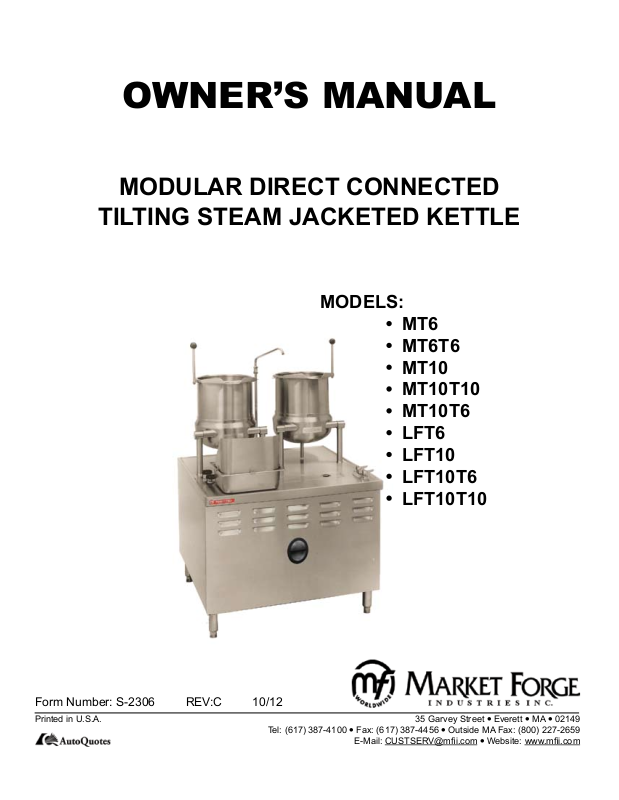

OWNER’S MANUAL

MT6

MT6T6

MT10

MT10T10

MT10T6

LFT6

LFT10

LFT10T6

LFT10T10

MODULAR DIRECT CONNECTED

TILTING STEAM JACKETED KETTLE

MODELS:

MT6

•
MT6T6

•
MT10

•
MT10T10

•
MT10T6

•
LFT6

•
LFT10

•
LFT10T6

•
LFT10T10

•

Form Number: S-2306 REV:C 10/12

Printed in U.S.A. 35 Garvey Street  Everett  MA  02149

Tel: [phone]  Fax: [phone]  Outside MA Fax: [phone]

E-Mail: CUSTSERV@m i.com  Website: www.m i.com

TABLE OF CONTENTS

INTRODUCTION ................................................................................................................

OPERATING .......................................................................................................................

MAINTENANCE ..................................................................................................................

REPAIR AND REPLACEMENT ...........................................................................................

PARTS LIST ........................................................................................................................

1

2

2

3

4-10

i

INTRODUCTION

This manual contains general, maintenance, parts and service information for Market Forge Modular Direct
Connected Tilting Steam Jacketed Kettles. A parts list is included in which each replaceable part is identied
and shown in an accompanying illustration unless otherwise indicated.

DESCRIPTION:

Market Forge MT6 and MT10 Tilting Steam Jacketed
Kettles are mounted on a modular stainless steel cabi­net. Double wall construction around the lower half
of the kettle forms a surrounding chamber inot which
steam is introduced as a source of heat for cooking.

Steam input plumbing is equipped with a manual con­trol valve. Condensate is removed through a steam trap
connecting with the kettle drain plumbing assembly. A
swing nozzle, hot-cold combination faucet provides a
source of water for addition to the kettle for cooking
and cleaning.

The 6 gallon kettle is mounted in a trunnion assembly
to the modular cabinet top. The trunnion pivots include
steam input and return connections for the kettle. Kettle
tilting is accomplished manually by moving the handle
xed to the rim so as to rotate the kettle in a trunnion.

SERVICE:

Modular kettles are exceptionally and durable cooking
equipment requiring a minimum of service other then
routine cleaning and preventive methods explained
on page 2. Should repairs be required, a network of
authorized service agencies is available to assist with
prompt service. A current directory of authorized ser­vice agencies may be obtained by contacting:

Market Forge Ind., Inc.

35 Garvey Street

Everett, MA 02149-4403
Tel: [phone] or [phone]
Fax: [phone] or [phone]
Parts & Service Toll Free: [phone]
www.mi.com/company/service
custservice@mi.com

The model and/or serial numbers must be referenced
when corresponding with Market Forge. The data plate
containing model and serial numbers pertaining to the
equipment is located inside the cabinet door on the
right vertical frame member.

MODELS:

MT6 / MT10

Single 6 Gallon or 10 Gallon kettle mounted on an 18” (457mm) wide x 28” (711mm) tall cabinet base equipped
for direct connection to a remote steam source.

MT6T6 / MT10T10

Two 6 Gallon or 10 gallon Kettle mounted side by side on an 36” (914mm) wide x 28” (711mm) tall cabinet base
equipped for direct connection to a remote steam source.

LFT6 / LFT10

Single 6 Gallon or 10 Gallon kettle mounted on an 18” (457mm) wide x 20” (508mm) tall Low Boy cabinet base
equipped for direct connection to a remote steam source.

LFT10T6/LFT10T10

One 6 Gallon and 10 Gallon or Two 10 Gallon kettles mounted on an 18” (457mm) wide x 20” (508mm) tall Low
Boy cabinet base equipped for direct connection to a remote steam source.

1

OPERATING

Consult boiler information or instructions plate and
complete all start-up instructions.

OPERATE KETTLE AS FOLLOWS:

Check pressure gauge of steam supply to ensure

1.

steam input is at approximately 15 PSI (1.0kg/cm2)
to a maximum of 50 PSI (3.5 kg/cm2). For direct
connected steam, turn on external steam supply

valve.

Load kettle with food to be cooked.

2.

Add water for cooking by turning swing nozzle over

3.

kettle and using combination faucet.
Turn steam valve to full counterclockwise position

4.

to allow steam to ow into jacket. Wait until food
reaches desired temperature.

Adjust subsequent cooking temperature by turning

5.

steam control valve. Turn clockwise to reduce heat

(steam ow) and counterclockwise to increase heat
(steam ow).

Close steam control valve and remove food from

6.

kettles as soon as cooking is complete to prevent
overcooking. (OLD Style - Place food pan under kettle

being used and tip kettle forward using kettle handle.
NEW Style - Attach splash guard to food pan. Place
food under kettle being used and tip kettle forward using

kettle handle). (NOTE: Before tilting kettle, ensure that
a.) Swing nozzle is rotated clear of kettle. b.) Kettle is
not full. If kettle is full ladle out 2 gallons of contents by
hand.)

Complete Cleaning Procedure (see below).

7.

MAINTENANCE

GENERAL:

This section contains both preventive and corrective
maintenance information. Preventive maintenance
may be performed by maintenance personnel at the
establishment in which the kettle is installed. It is rec­ommended that user personnel never attempt to make
repairs or replacements to the equipment without the
assistance of authorized services. Assistance in ser­vice methods or a current directory of authorized ser­vice agencies may be obtained from Market Forge (see

page 1 for contact information).

PREVENTIVE MAINTENANCE:

The most important preventive maintenance opera­tion on the steam jacketed kettle is the cleaning pro­cedure. Cleaning should be faithfully completed at the
end of each day, Including cabinet doors, counter-top,
xtures, kettle lid, etc, should be washed and rinsed to
remove all food spills.

CLEANING PROCEDURE AS FOLLOWS:

1.

Fill kettle with water and mild detergent immediate­ly after removing food from the kettle.

2.

Remove food soil using a nylon brush. (NOTE:

Never scrape the inside of the kettle with metal tools,
steel scouring pads or abrasive cleaners. Scratches will
result which ruin the general appearance of the kettle
and make it harder to clean and maintain in a sanitary

condition).

Loosen food which is stuck to the kettle by allow-

3.

ing it to soak. Also, a small amount of steam may
help.

4.

Place clean-Up pan under kettle being washed by
inserting clan-up pan drain extension into counter­top drain opening. (NEW Style - Attach splash guard

to clean-Up pan). Tilt kettle to pour out wash water.

Rinse kettle with hot water.

5.

Thoroughly wash and rinse kettle exterior and cabi-

6.

net exterior.
Thoroughly dry unit.

7.

2

REPAIR AND REPLACEMENT

In the event that the kettle fails to operate correctly,
the difculty should rst be isolated to either the kettle
itself or the steam supply which heats the kettle. While
mechanical problems are obvious faults of the kettle,
any deciencies in volume and pressure of the steam
should be traced to the steam generator and the cause
determined. Steam input requirements are listed be­low. This list recommends delivered boiler horsepower
for kettle size and steam ow.

MT6 1/3 BHP 15-30 PSI
MT10 1/2 BHP 15-30 PSI
MT6T6 1/3 BHP 15-30 PSI
MT10T6 1/2 BHP 15-30 PSI
MT10T10 1/2 BHP 15-30 PSI
LFT6 1 BHP 15-30 PSI
LFT10 1 BHP 15-30 PSI
LFT10T6 1 BHP 15-30 PSI
LFT10T10 1 BHP 15-30 PSI

CABINET EXTERIOR REMOVAL:

Side and rear panels of all cabinets in which kettles are
mounted are easily removed without the use of tools.
Each panel is grasped at the bottom edge and pulled
out sharply to release it from the panel mounting brack­ets shown in gure 6 on page 9. Replacement is com­pleted by pushing panel up under the cabinet top and
pressing in at the bottom until panel mounting brackets
are engaged.

Doors may be removed to improve access to cabinet
interior for repairs as shown in gure 6 on page 9 and

10. The two at head screws, nuts, and holding cabinet

hinge are removed to lift the door out shown in gure
6 on page 9 and 10. When doors are remounted, the
nal tightened position of hinge determines the align­ment of the door and must be set with care, also shown
in gure 6 on page 9 and 10.

TRUNNION MOUNTED KETTLE DISASSEMBLY:

Trunnion mounted kettles may be removed from the
cabinet top for replacement of worn o-rings and lubri­cation of trunnion parts.

Disassemble as follows:

Disconnect both steam inlet and condensate return

1.

plumbing connected to kettle legs from inside of
cabinet.
Remove 3/8” nuts and washer used to fasten kettle

2.

legs to cabinet top.
Lift kettle with legs attached off of cabinet top.

3.

Insert blade of screwdriver in slots of trunnion end

4.

caps and pry off caps.
Remove retaining rings from ends of trunnions us-

5.

ing retaining ring pliers.
Slip leg and support collar assemblies off of ket-

6.
tle.
Remove o-rings and clean off trunnion parts includ-

7.

ing insides of support collars attached to legs.
Replace o-rings and lubricate trunnion parts with

8.

krylon base no. 1325 silicon spray.
Reassemble kettle and trunnion by completing step

9.

6 and the 5, and tapping end cap back in place (slot
down) with a rubber mallet.

Remount kettle and trunnion assembly on cabinet

10.

top by completing steps 3, 2 and then 1.

3

PARTS LIST

Fig. 1 MT6T6

5

2

2a

6

3

9

1

4

8

10a

10b

10c

10d

Fig. 1 MT6T6

ITEM PART

NO. NO. DESCRIPTION QTY.

1 97-5008 KNOB 2

2 97-5115 HANDLE 2

2a 97-5116 NUT, ACORN - FOR HANDLE

3 10-5242 STEAM, VALVE, ANGLE 1/2” (SEE FIG. 5) 2

4 10-3556 FAUCET (SEE FIG. 5)

5 10-5753 SWING NOZZLE (SEE FIG. 5)

6 97-5117 END CAP 4

* 97-0662 6 GALLON

8 97-1975 CLEAN-UP PAN

9 CABINET, 36” (SEE FIG. 5 NEW STYLE. FIG. 6 OLD STYLE)

- 10-4755 STEAM TRAP (SEE FIG. 4)

- 97-5122 O-RING, 5/8” ID X 7/8” OD X 1/8” SECT. (NOT SHOWN) 8

- 97-5123 RETAINING RING (NOT SHOWN) 4

10a 97-5118 STANCHION ASS’Y 6 GALLON KETTLE

10b 97-5119 STANCHION ASS’Y 10 GALLON KETTLE

10c 97-5118A STANCHION ASS’Y WITH STEAM CONTROL VALVE 6 GALLON KETTLE

10d 97-5119A STANCHION ASS’Y WITH STEAM CONTROL VALVE 10 GALLON KETTLE

- 97-5120 WASHER FOR STANCHION

- 97-5121 LOCKNUT FOR STANCHION

97-0663 10 GALLON

4

PARTS LIST

Fig. 2 Faucet

ITEM PART

NO. NO. DESCRIPTION

1 10-3108 MOUNTING BASE, RISER

2 10-3357 ADAPTER, 90

3 10-3741 REDUCING, BUSHING

4 91-0887 RISER, 15”

5 10-5753 SWING NOZZLE

6 10-3556 FAUCET

7 10-3684 COMPRESSION FITTING, MALE

8 10-1100 SWIVEL BODY

O

5

PARTS LIST

Fig. 3 Steam Valve

ITEM PART

NO. NO. DESCRIPTION

1 10-0105 STEAM VALVE HANDLE

2 10-5247 VALVE DISC

3 10-5242 STEAM CONTROL VALVE, ANGLE 1/2”

Fig. 4 Steam Trap

ITEM PART

NO. NO. DESCRIPTION

1 10-4755 STEAM TRAP 1/2”

2 10-4937 THERMOSTAT, STEAM TRAP

6

PARTS LIST

NEW STYLE CABINET BASE

Fig. 5 New Style Cabinet Base

7

NEW STYLE CABINET BASE

PARTS LIST

ITEM

NO.

1 98-3681 BOILER, 200K GAS, 24” FRAME 1

2 98-3998 TOP, PLAIN, 200K GAS BOILER, 24” FRAME 1

3 98-3995 REAR PANEL, 24” FRAME 1 1

4 98-3994 SIDE PANEL, LEFT & RIGHT 2 2 2 2 2

5 98-3992 CONTROL (FRONT) PANEL, 24” FRAME 1 1

6 08-5894 MARKET FORGE NAME PLATE 1 1 1 1 1

7 10-2347 STUD RECEIVER 2 2 2 2 2

8 98-4015 SUPPORT FRAME, TOP MOUNT, 36” FRAME 1 1 1

9 08-3822 1/4 Ø FLAT WASHER, ST. ST. 4 4 4 4 4

10 08-7840 1/4-20 SERRATED, FLANGED, HEX NUT, ST. ST. 8 8 8 8 8

11 10-1770 1/4-20 X 3/4 LG. FLAT HEAD SCREW, ST. ST. 4 4 4 4 4

12 98-0593 INNER FLUE, WELD ASSY. 200K GAS, 24” FRAME 1

13 91-8892 FLUE COVER, FRONT & SIDES, 24” FRAME 1

14 91-2713 FLUE COVER, BACK, 36” FRAME 1 1

15 10-1735 #8 X 3/8 LG., PAN HEAD TYPE-A S.M. SCREW 12 12 12

PART

NO.

98-3682 BOILER, 200K GAS, 36” FRAME 1

98-3983 BOILER, 300K GAS, 36” FRAME 1

98-3684 BOILER, ELECTRIC, 24” FRAME 1

98-3985 BOILER, ELECTRIC, 36” FRAME 1

98-3999 TOP, PLAIN, 200 & 300K GAS BOILER, 36” FRAME 1 1

98-4000 TOP, PLAIN, ELECTRIC BOILER, 24” FRAME 1

98-4001 TOP, PLAIN, ELECTRIC BOILER, 36” FRAME 1

98-3996 REAR PANEL, 36” FRAME 1 1 1

98-3993 CONTROL (FRONT) PANEL, 36” FRAME 1 1 1

94-5124 SUPPORT ANGLE, TOP MOUNT, 24” FRAME 1 1

91-8936 INNER FLUE, WELD ASSY. GAS, 36” FRAME 1 1

91-8938 FLUE COVER, FRONT & SIDES, 36” FRAME 1 1

91-8893 FLUE COVER, BACK, 24” FRAME 1

DESCRIPTION

91-5812 ELECTRIC

QTY. QTY. QTY. QTY. QTY.

91-5811 ELECTRIC

BOILER 36” FRAME

91-5810 300K GAS

BOILER 24” FRAME

91-5809 200K GAS

BOILER 36” FRAME

BOILER 36” FRAME

91-5808 200K GAS

BOILER 24” FRAME

8

PARTS LIST

OLD STYLE CABINET BASE

Fig. 6 Old Style Cabinet Base

9

PARTS LIST

ITEM PART OLD STYLE CABINET BASE

NO. NO. DESCRIPTION

1 10-2500 WASHER, LOCK ST. 1/4

2 10-0495 STRIP, FEATURE

3 91-8126 TRAY, HOSE

4 91-3348 CHANNEL, REAR FRAME SUPPORT

5 90-3210 BRACKET FOR DOOR MAGNET

6 10-5561 MAGNET, DOOR

7 91-5482 HINGE, LEFT, BOTTOM

8 91-5481 HINGE, RIGHT, BOTTOM

9 90-2663 BRACKET, SIDE AND REAR ST.

10 91-5490 DOOR, ASS’Y, RIGHT HAND

11 91-5484 DOOR, ASS’Y, LEFT HAND

12 91-6132 PANEL, REAR, ALUMINIZED ST.

13 90-2661 PANEL, SIDE, RIGHT & LEFT, ST.

14 10-1928 STUD

15 10-1927 RECEPTACLE

16 10-1929 RETAINER, SPLIT RING

17 10-8057 SCREW RD. HD. ST. 6-32 X 5/8 LG.

18 10-2050 SCREW RD. HD. CAP 3/8-16 X 7/8 LG.

19 10-2503 WASHER, LOCK 3/8

20 10-2141 SCREW RD. HD. CAP 5/16-18 X 1 1/2 LG.

21 10-2511 WASHER, LOCK 5/16

22 10-2405 WASHER, PLAIN ST 5/16

23 10-2147 SCREW HEX. HD. CAP 5/15-18 X 3/4 LG.

24 10-2307 NUT HEX. 5/16-18

25 10-2089 SCREW HEX. HD. CAP 1/4-20 X 7/8 LG.

26 10-2500 WASHER, LOCK ST. 1/4

27 10-2308 NUT HEX. ST. 1/4-20

28 10-1755 SCREW MACHINE, FLAT HD. ST. 1/4-20 X 1 LG.

29 91-3358 GUARD, SPLASH ASS’Y

30 10-0631 FEET, ADJUSTABLE 6”

31 10-0636 FEET, ADJUSTABLE WITH FLANG (NOT SHOWN)

32 10-1869 SCREW FLAT HD. 10-32 X 1/2 LG.

33 10-2505 WASHER, LOCK #10

34 10-2340 NUT, HEX. 10-32

35 10-2143 SCREW HEX. HD. CAP 5/16-18 X 1 1/4 LG.

36 10-1836 SCREW RD. HD. ST. 8-32 X 1/2 LG.

37 10-2521 WASHER, LOCK #8

38 10-2332 NUT, HEX. 8-32

39 10-2400 WASHER, PLAIN 1/4

40 10-1582 BEARING, FLANGE TYPE NYLON

10
