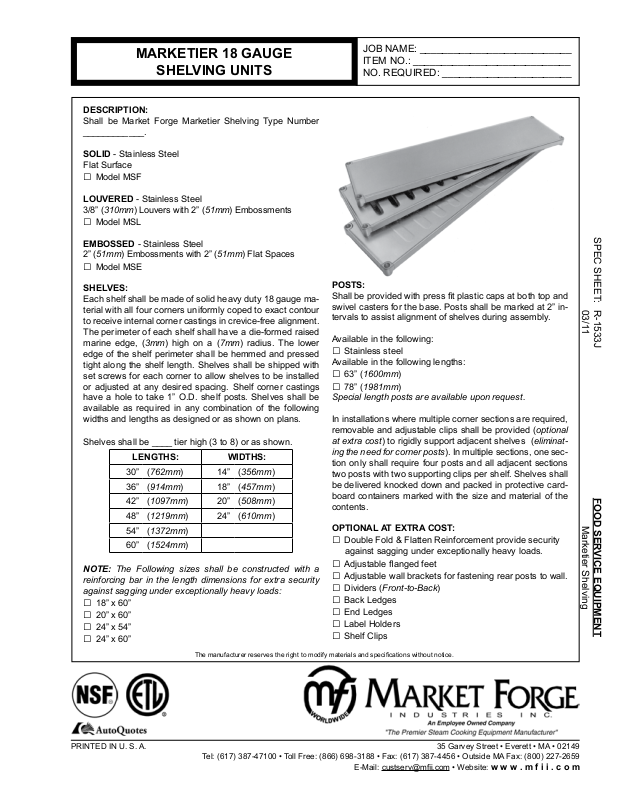

Market Forge MSF User Manual

MARKETIER 18 GAUGE

SHELVING UNITS

DESCRIPTION:

Shall be Market Forge Marketier Shelving Type Number
____________.

SOLID - Stainless Steel
Flat Surface

□ Model MSF

LOUVERED - Stainless Steel
3/8” (310mm) Louvers with 2” (51mm) Embossments

□ Model MSL

EMBOSSED - Stainless Steel
2” (51mm) Embossments with 2” (51mm) Flat Spaces

□ Model MSE

JOB NAME: ___________________________
ITEM NO.: ____________________________
NO. REQUIRED: _______________________

SPEC SHEET: R-1533J

03/11

SHELVES:

Each shelf shall be made of solid heavy duty 18 gauge ma-

terial with all four corners uniformly coped to exact contour

to receive internal corner castings in crevice-free alignment.
The perimeter of each shelf shall have a die-formed raised
marine edge, (3mm) high on a (7mm) radius. The lower
edge of the shelf perimeter shall be hemmed and pressed

tight along the shelf length. Shelves shall be shipped with
set screws for each corner to allow shelves to be installed

or adjusted at any desired spacing. Shelf corner castings
have a hole to take 1” O.D. shelf posts. Shelves shall be

available as required in any combination of the following
widths and lengths as designed or as shown on plans.

Shelves shall be ____ tier high (3 to 8) or as shown.

LENGTHS: WIDTHS:

30” (762mm) 14” (356mm)

36” (914mm) 18” (457mm)

42” (1097mm) 20” (508mm)

48” (1219mm) 24” (610mm)

54” (1372mm)

60” (1524mm)

NOTE: The Following sizes shall be constructed with a
reinforcing bar in the length dimensions for extra security
against sagging under exceptionally heavy loads:

□ 18” x 60”
□ 20” x 60”
□ 24” x 54”
□ 24” x 60”

The manufacturer reserves the right to modify materials and specications without notice.

POSTS:

Shall be provided with press t plastic caps at both top and
swivel casters for the base. Posts shall be marked at 2” in-

tervals to assist alignment of shelves during assembly.

Available in the following:

□ Stainless steel

Available in the following lengths:

□ 63” (1600mm)
□ 78” (1981mm)

Special length posts are available upon request.

In installations where multiple corner sections are required,

removable and adjustable clips shall be provided (optional
at extra cost) to rigidly support adjacent shelves (eliminat­ing the need for corner posts). In multiple sections, one sec-

tion only shall require four posts and all adjacent sections

two posts with two supporting clips per shelf. Shelves shall
be delivered knocked down and packed in protective card­board containers marked with the size and material of the

contents.

OPTIONAL AT EXTRA COST:

□ Double Fold & Flatten Reinforcement provide security

against sagging under exceptionally heavy loads.

□ Adjustable anged feet
□ Adjustable wall brackets for fastening rear posts to wall.
□ Dividers (Front-to-Back)
□ Back Ledges
□ End Ledges
□ Label Holders
□ Shelf Clips

FOOD SERVICE EQUIPMENT

Marketier Shelving

PRINTED IN U. S. A. 35 Garvey Street • Everett • MA • 02149

Tel: [phone] • Toll Free: [phone] • Fax: [phone] • Outside MA Fax: [phone]

E-Mail: custserv@mi.com • Website: w w w . m f i i . c o m

MARKETIER 18 GAUGE

SHELVING UNITS

TYPES MATERIAL MODEL TYPE

DETAILS & DIMENSION

AVAILABLE TYPES OF SHELVING

SPEC SHEET: R-1533J

03/11

Solid

(Flat Surface)

Louvered

(3/8” Louvers with 2” Embossments)

Embossed

(2” Embossments with 2” Flat Spaces)

Stainless Steel MSF

Stainless Steel MSL

Stainless Steel MSE

Marketier Shelving

FOOD SERVICE EQUIPMENT

This Product is ETL Complaint with ANSI/NSF-2 Standard.
