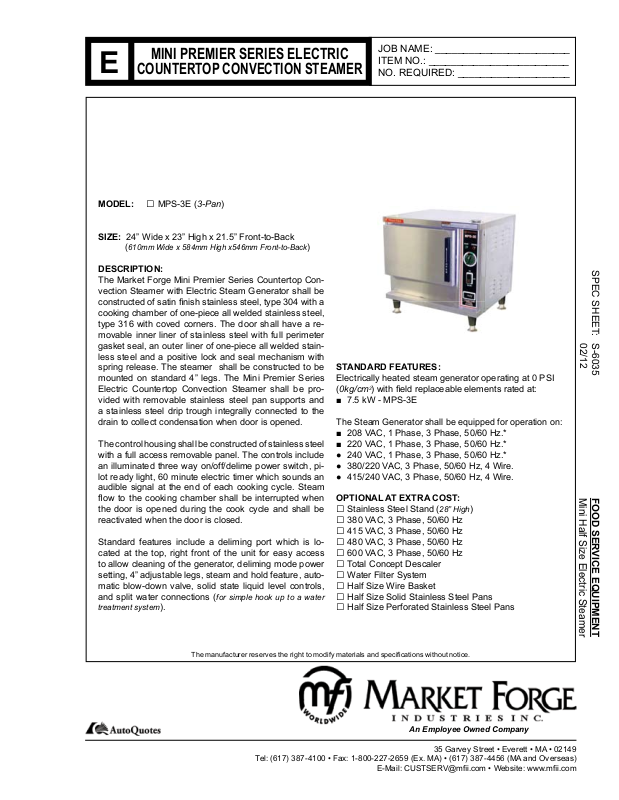

Market Forge MPS-3E User Manual

MINI PREMIER SERIES ELECTRIC

E

MODEL: □ MPS-3E (3-Pan)

SIZE: 24” Wide x 23” High x 21.5” Front-to-Back

(610mm Wide x 584mm High x546mm Front-to-Back)

DESCRIPTION:

The Market Forge Mini Premier Series Countertop Con­vection Steamer with Electric Steam Generator shall be
constructed of satin  nish stainless steel, type 304 with a
cooking chamber of one-piece all welded stainless steel,
type 316 with coved corners. The door shall have a re­movable inner liner of stainless steel with full perimeter
gasket seal, an outer liner of one-piece all welded stain­less steel and a positive lock and seal mechanism with
spring release. The steamer shall be constructed to be
mounted on standard 4” legs. The Mini Premier Series
Electric Countertop Convection Steamer shall be pro­vided with removable stainless steel pan supports and
a stainless steel drip trough integrally connected to the
drain to collect condensation when door is opened.

The control housing shall be constructed of stainless steel
with a full access removable panel. The controls include
an illuminated three way on/off/delime power switch, pi­lot ready light, 60 minute electric timer which sounds an
audible signal at the end of each cooking cycle. Steam
 ow to the cooking chamber shall be interrupted when
the door is opened during the cook cycle and shall be
reactivated when the door is closed.

Standard features include a deliming port which is lo­cated at the top, right front of the unit for easy access
to allow cleaning of the generator, deliming mode power
setting, 4” adjustable legs, steam and hold feature, auto­matic blow-down valve, solid state liquid level controls,
and split water connections (for simple hook up to a water

treatment system).

COUNTERTOP CONVECTION STEAMER

JOB NAME: ________________________
ITEM NO.: _________________________
NO. REQUIRED: ____________________

STANDARD FEATURES:

Electrically heated steam generator operating at 0 PSI

(0kg/cm2) with  eld replaceable elements rated at:

■ 7.5 kW - MPS-3E

The Steam Generator shall be equipped for operation on:

■ 208 VAC, 1 Phase, 3 Phase, 50/60 Hz.*

■ 220 VAC, 1 Phase, 3 Phase, 50/60 Hz.*

● 240 VAC, 1 Phase, 3 Phase, 50/60 Hz.*

● 380/220 VAC, 3 Phase, 50/60 Hz, 4 Wire.

● 415/240 VAC, 3 Phase, 50/60 Hz, 4 Wire.

OPTIONAL AT EXTRA COST:

□ Stainless Steel Stand (28” High)
□ 380 VAC, 3 Phase, 50/60 Hz
□ 415 VAC, 3 Phase, 50/60 Hz
□ 480 VAC, 3 Phase, 50/60 Hz
□ 600 VAC, 3 Phase, 50/60 Hz
□ Total Concept Descaler
□ Water Filter System
□ Half Size Wire Basket
□ Half Size Solid Stainless Steel Pans
□ Half Size Perforated Stainless Steel Pans

SPEC SHEET: S-6035

02/12

Mini Half Size Electric Steamer

FOOD SERVICE EQUIPMENT

The manufacturer reserves the right to modify materials and speci cations without notice.

An Employee Owned Company

35 Garvey Street • Everett • MA • 02149

Tel: [phone] • Fax: [phone] (Ex. MA) • [phone] (MA and Overseas)

E-Mail: CUSTSERV@m i.com • Website: www.m i.com

E

MINI PREMIER SERIES ELECTRIC

COUNTERTOP CONVECTION STEAMER

JOB NAME: ________________________
ITEM NO.: _________________________
NO. REQUIRED: ____________________

SPEC SHEET: S-6035

02/12

SERVICE CONNECTIONS

Electrically Operated

EC

Electrical Connection - 1-1/8” (29mm) electric
connection to controls.

D

Drain - 1” (25mm) IPS piped to open oor drain.

NO SOLID CONNECTION TO FLOOR DRAIN.
NO BENDS OR ELBOWS.

CW

Cold Water - 3/8” (10mm) OD tubing at 25-50 PSI.

GW

Generator Water - 3/8” (10mm) OD tubing at 25-50 PSI.

AMP/PHASE

SINGLE PHASE THREE PHASE

MODEL kW

MPS-3E 7.5 36 34 31.3 20.8 18.8 11.4 10.4 9

208V 220V 240V 208V 240V 380V 415V 480V

CAUTION: Before connecting water to this unit, water
supply should be analyzed to make sure hardness is no
greater than 2.0 grains and pH level is within the range of

7.0-8.5. Water which fails to meet these standards should
be treated by installation of water conditioner. EQUIPMENT

FAILURE CAUSED BY INADEQUATE WATER QUALITY
IS NOT COVERED UNDER WARRANTY.

PAN CAPACITIES (Half Size Pans)

Size - Deep

MPS-3E 6 3 2 1

1”

Deep

2-1/2” 4” 6”

Mini Half Size Electric Steamer

FOOD SERVICE EQUIPMENT

It is our policy to build equipment which is design certied by N.S.F. and C.S.A. However, a continuing program of product improvement makes

it necessary to submit new models to the agencies as they are developed and consequently not all models bear the appropriate agency labels at all times.
