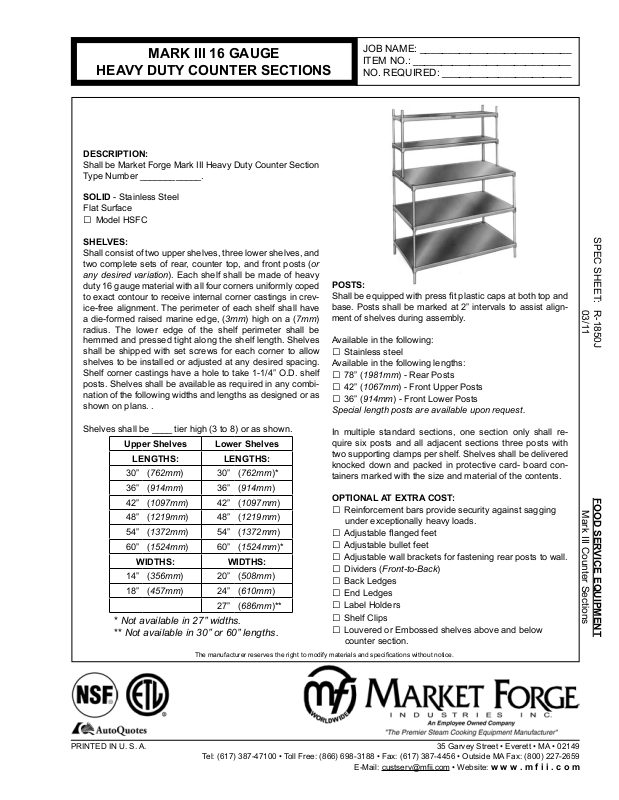

Market Forge HSFC User Manual

MARK III 16 GAUGE

HEAVY DUTY COUNTER SECTIONS

DESCRIPTION:

Shall be Market Forge Mark III Heavy Duty Counter Section
Type Number ____________.

SOLID - Stainless Steel
Flat Surface

□ Model HSFC

SHELVES:

Shall consist of two upper shelves, three lower shelves, and
two complete sets of rear, counter top, and front posts (or

any desired variation). Each shelf shall be made of heavy

duty 16 gauge material with all four corners uniformly coped

to exact contour to receive internal corner castings in crev­ice-free alignment. The perimeter of each shelf shall have

a die-formed raised marine edge, (3mm) high on a (7mm)
radius. The lower edge of the shelf perimeter shall be

hemmed and pressed tight along the shelf length. Shelves

shall be shipped with set screws for each corner to allow

shelves to be installed or adjusted at any desired spacing.
Shelf corner castings have a hole to take 1-1/4” O.D. shelf
posts. Shelves shall be available as required in any combi-

nation of the following widths and lengths as designed or as
shown on plans. .

JOB NAME: ___________________________
ITEM NO.: ____________________________
NO. REQUIRED: _______________________

POSTS:

Shall be equipped with press t plastic caps at both top and

base. Posts shall be marked at 2” intervals to assist align­ment of shelves during assembly.

Available in the following:

□ Stainless steel

Available in the following lengths:

□ 78” (1981mm) - Rear Posts
□ 42” (1067mm) - Front Upper Posts
□ 36” (914mm) - Front Lower Posts

Special length posts are available upon request.

SPEC SHEET: R-1850J

03/11

Shelves shall be ____ tier high (3 to 8) or as shown.

Upper Shelves Lower Shelves

LENGTHS: LENGTHS:

30” (762mm) 30” (762mm)*

36” (914mm) 36” (914mm)

42” (1097mm) 42” (1097mm)

48” (1219mm) 48” (1219mm)

54” (1372mm) 54” (1372mm)

60” (1524mm) 60” (1524mm)*

WIDTHS: WIDTHS:

14” (356mm) 20” (508mm)

18” (457mm) 24” (610mm)

27” (686mm)**

* Not available in 27” widths.
** Not available in 30” or 60” lengths.

The manufacturer reserves the right to modify materials and specications without notice.

In multiple standard sections, one section only shall re­quire six posts and all adjacent sections three posts with
two supporting clamps per shelf. Shelves shall be delivered
knocked down and packed in protective card- board con­tainers marked with the size and material of the contents.

OPTIONAL AT EXTRA COST:

□ Reinforcement bars provide security against sagging

under exceptionally heavy loads.

□ Adjustable anged feet
□ Adjustable bullet feet
□ Adjustable wall brackets for fastening rear posts to wall.
□ Dividers (Front-to-Back)
□ Back Ledges
□ End Ledges
□ Label Holders
□ Shelf Clips
□ Louvered or Embossed shelves above and below

counter section.

FOOD SERVICE EQUIPMENT

Mark III Counter Sections

PRINTED IN U. S. A. 35 Garvey Street • Everett • MA • 02149

Tel: [phone] • Toll Free: [phone] • Fax: [phone] • Outside MA Fax: [phone]

E-Mail: custserv@mi.com • Website: w w w . m f i i . c o m

MARK III 16 GAUGE

HEAVY DUTY COUNTER SECTIONS

AVAILABLE TYPES OF SHELVING

DETAILS & DIMENSION

SPEC SHEET: R-1850J

03/11

SOLID

LOUVERED

(OPTIONAL)

EMBOSSED

(OPTIONAL)

TYPES MATERIAL MODEL TYPE

Solid

Stainless Steel HSFC

(Flat Surface)

Louvered or Embossed Shelves above and below counter are available as options at
an additional cost.

Mark III Counter Sections

FOOD SERVICE EQUIPMENT

This Product is ETL Complaint with ANSI/NSF-2 Standard.
