MARKEM 811RFID Users Manual

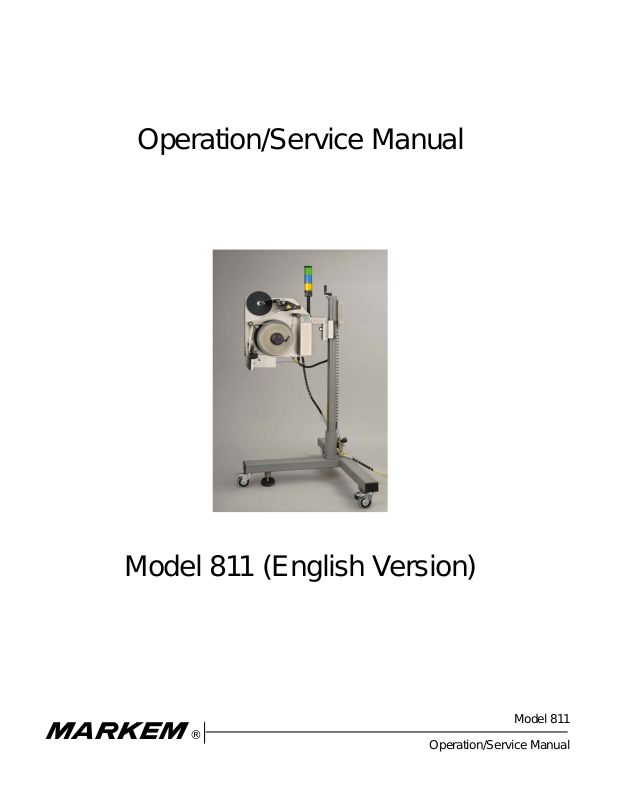

Operation/Service Manual

Model 811 (English Version)

m

Model 811

®

Operation/Service Manual

150 Congress Street, PO Box 2100, Keene, New Hampshire 03431-7100

m®

TEL : [phone] FAX: [phone] http://WWW.MARKEM.com

WARRANTY

All MARKEM products are warranted to be free of defects in materials and workmanship and to conform to MARKEM
specifications in effect at the date of shipment. Any changes Buyer requests to MARKEM specifications are not effective
without advance, written authorization by MARKEM. The warranty period is as follows:

Machines: One year from date of shipment or 2000 operating hours, whichever expires first, unless any specific

machine is designated as Made to Order ("MTO"), in which event the warranty period is 90 days from date
of shipment.

Ink Jet Orifice Plates (on new machines and as replacement parts): 90 days from date of shipment.

Replacement Parts: 90 days from date of shipment.

Software: 90 days from date of shipment. Warranty does not entitle Buyer to new releases, upgrades or

enhancements introduced during the warranty period.

Supply Products: For the period of shelf life of the supplies as stated in the applicable specification standards or
one year from the date of shipment if not specified.

During the warranty period, MARKEM will, at its option, repair, replace or refund the purchase price of MARKEM
products which prove to be defective in materials or workmanship or which do not conform to the applicable MARKEM
specifications. Within MARKEM service travel areas and for certain products designated by MARKEM, warranty service
for machines and parts will be provided at the installation site. In all other cases, products must be returned to a service
facility designated by MARKEM.

For products returned to MARKEM for warranty repair or replacement, Buyer shall obtain a return authorization number
and shipping instructions from MARKEM and return the product shipping charges prepaid. Shipping charges for the
return of products to Buyer shall be paid by MARKEM within the contiguous forty-eight United States and the District of
Columbia; for all other locations, the warranty excludes all costs of shipping, customs clearance and any other related
charges. All replaced products shall become the property of MARKEM.

The foregoing warranty shall not apply to defects or non-conformance with MARKEM specifications which result from:
(1) improper installation, use, storage, care or maintenance by Buyer; (2) wear resulting from normal use of parts subject
to wear, such as ink rolls, offset pads, foil feeds, thermal transfer print heads, etc.; (3) modification, alteration or retiming
of a MARKEM machine; (4) cycling a MARKEM machine out of specification; or (5) adding a unit timed or driven by a
MARKEM machine; (6) use of products (including supplies) or software not furnished by MARKEM; (7) modification of
products without MARKEM's approval; (8) accident, neglect, misuse or abuse; or (9) exposure conditions outside the
range so the environmental, power and operating specifications provided by MARKEM.

NO OTHER WARRANTY IS EXPRESSED OR IMPLIED. MARKEM SPECIFICALLY DISCLAIMS ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Determination of the
suitability of the products described on the face hereof is the sole responsibility of the Buyer and MARKEM shall have no
responsibility in connection therewith. BUYER WARRANTS THAT HE IS NOT PURCHASING THE PRODUCTS FOR
PERSONAL, FAMILY OR HOUSEHOLD PURPOSES. THE REMEDIES PROVIDED HEREIN ARE BUYER'S SOLE AND
EXCLUSIVE REMEDIES. MARKEM SHALL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, WHETHER BASED IN CONTRACT, TORT OR ANY OTHER LEGAL THEORY, OR
FOR THE COST OF SUBSTITUTE GOODS. CONSEQUENTIAL DAMAGES for purposes of this Agreement shall
include, without limitation:

1. Loss of use, income or profit, or losses sustained as a result of the injury (including death) to any person or loss or

damage to property, including, without limitation, material manufactured, processed or labeled by the use of the
products.

2. Damages arising out of or in connection with delays in delivery, MARKEM's performance, non-performance or

breach of this contract, defects in the equipment, failure of the products to perform properly or non-conformance of
the products with specifications or the operation, use, installation, repair or replacement of the products.

(Formerly 0874339) REF00037 Rev: 10 12/04

NOTICE

The use of this or any industrial system may involve hazards such as hot
surfaces, sharp objects, or nip points, as well as danger from exposure to
electrical and/or pneumatic power, UV or laser radiation, or hazardous
chemicals. This manual is provided to assist you in the safe and efficient
use of your system. Read and follow the instructions carefully for
maximum safety, and to obtain the best use of your system and supplies.

A Material Safety Data Sheet is provided with each hazardous chemical
product sold by MARKEM. These sheets include information about
composition, properties, usage, and hazards.

All systems and supplies, whether considered hazardous or not, should be
used in accordance with principles of good manufacturing practice.

If you have questions or comments contact

your local MARKEM Business Center

or visit our website at www.MARKEM.com

KNOW HOW TO USE THIS SYSTEM SAFELY

BEFORE

YOU START TO USE IT.

0874810 REV. 00 6/96

This guide explains the basic operation and care of the Model 811.

Preliminary for Review - June 30, 2006: To the best of our knowledge, the information
contained in this guide was correct at the time of publication. However, continual
enhancement of our products can result in some differences between the instructions
represented in this guide and your machine.

MARKEM is a registered trademark of MARKEM Corporation.
This guide was written by:

MARKEM Corporation
150 Congress Street
Keene, New Hampshire 03431 U.S.A.

Copyright © 2006 by MARKEM Corporation
All rights reserved.

Reference List
The information on your packing slips can be written below for reference. When contacting

MARKEM please give your Model Number, Serial Number, and Customer Account Number.

Model ____________ Serial Number_________________ Date Installed______________

Customer Account Number__________________________________________________

Name of MARKEM Representative_____________________________________________

Options/
Accessories_______________________________________________________________

________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________

10008547aa 06/06 m® i

TABLE OF CONTENTS

Section 1 General Information

1.0 Welcome to the Model 811. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.1 What is in this Manual?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.2 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

2.0 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

2.1 Machine Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

2.2 Modifications to the Model 811 . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

2.3 Foreseen Use/misuse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

2.4 MARKEM Training Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

2.5 Removal from Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

3.0 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

3.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

3.2 Tag Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

3.3 Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

3.3.1 Dispenser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

3.3.2 Applicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

3.4 Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

3.5 Tape Drive System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

3.6 Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

3.7 Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

3.8 Beacon Light (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

3.9 Machine Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9

Section 2 Installation Guide

1.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

1.1 Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

1.2 Power Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

1.3 Air Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

1.4 I/O Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

2.0 Positioning the Applicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

3.0 Installation Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Section 3 Operating Guide

1.0 Preparing for Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

2.0 The Tape Drive System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

2.1 Loading Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

2.2 Unwinding a Full Core from the Rewind Hub . . . . . . . . . . . . . . . . 3-6

3.0 Powering Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

4.0 Operator Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

4.1 The Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

4.1.1 Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

4.1.2 Keypad LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

4.2 Beacon Light (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

10008547aa 06/06 m® iii

TABLE OF CONTENTS

iv m® 10008547aa 06/06

SECTION 1

General Information

m

®

Model 811

Operation/Service Manual

1.0 Welcome to the Model 811

The Model 811 is a high speed, compact RFID tag dispenser and
applicator that is compatible with a full range of MARKEM products.

1.1 What is in this Manual?

The Model 811 manual addresses the basic installation, operation
and care of the RFID tag dispenser , as well as safety, maintenance,
troubleshooting, and service information.

1.2 Glossary

active tags – tags that use batteries as a source of power (can be

either partial or complete power); there are tags with replaceable
batteries and tags that have the batteries inside a sealed unit –
sometimes called unitized active tags

addressability – ability to address bits, fields, files or other portions
of storage in a tag

AK – “Acknowledge” communications response
antenna – conductive elements that radiate and/or receive energy

in the radio frequency spectrum to or from the tag

SECTION 1 General Information

bi-directional – a tag that can be read or written from either side
capacity – amount of bits or bytes that can be programmed into a

tag; these may be bits accessible to the user, or the total number,
including those reserved for the manufacturer (such as parity or
control bits)

converted RFID – Assembly of an inlay sandwiched between an
adhesive and substrate (usually paper stock) which is then die cut
into a specified size

dispenser – the enclosure that houses the electronics, LUI,
mechanical components, and tape drive system.

electronic tag – a tag that has an electronic RFID tag embedded
within it

EMC – electromagnetic compatibility
frequency – number of times a signal makes a complete pass

through its maximum and minimum values and returns to the same
value (cycles)

gap - the distance between tags (or labels) on the liner (or backing),
measured from the bottom of one tag to the top of the next tag

inlay - an RFID microchip attached to an antenna and mounted on a
substrate; essentially an unfinished RFID label

10008547aa 06/06 m® 1–1

SECTION 1 General Information

LUI – Local User Interface; keypad on the Model 811
misread – a condition that exists when the data presented by the

reader does not match the corresponding data in the tag

NAK – “Negative Acknowledge” communications response
passive tags – An RFID tag without a battery. When radio waves

from the reader or programmer reach the chip's antenna, the energy
is converted by the antenna into electricity that can power up the
microchip in the tag. The tag is able to send back information stored
on the chip.

programming – adding information to or altering a tag
programmability – data and identification information must be

entered into tags in order for them to become identifiers of specific
objects; this capability is called programmability

programmer – tag contents can be changed by a set of electronics
in close proximity or in electrical contact with them; those electronics
and their packaging are called a programmer

RFID – Radio Frequency IDentification. A method of identifying
unique items using radio waves. Typically, a reader communicates
with a tag, which holds digital information in a microchip.

RFID tag: see tag
range – distance at which successful reading and/or writing can be

attained
read – decoding, extraction and presentation of data from

formatting, control and error management bits sent from a tag
readability – ability to extract data under less than optimal

conditions
read rate – maximum rate at which data can be read from a tag,

expressed in bits or bytes per second
read/write – many applications require that new data, or revisions to

data already in the tag, be entered into the tag while it is still
attached to its object; tags with this capability are said to be
reprogrammable and are called read/write tags, memory cards, or

memory modules
reader – device containing the digital electronics that extract and

separate the information from the format definition and error
management bits; digital electronics perform the actual reading
function; these read electronics may also interface to an integral
display and/or provide a parallel or serial communications interface
to a host computer or industrial controller

reader/writer – the set of electronics can change the contents of the
tags while they are still attached to their object; they are called the
transceiver or reader/writer (see reader)

1–2 m® 10008547aa 06/06

SECTION 1 General Information

reprogrammable – many applications require that new data, or

revisions to data already in the tag, be entered into the tag while it is
still attached to its object; the ability to read from and write data to
the tag while it is attached to its object is called in-use
programming; tags with this capability are said to be
reprogrammable and are called read/write tags, memory cards, or

memory modules
scanner – the antennae, transmitter (or exciter) and receiver

electronics are integrated in a single package called the scanner;
they may be combined with additional digital electronics, including a
microprocessor in a package called a reader

tag – A microchip attached to an antenna that is packaged in a way
that it can be applied to an object. The tag picks up signals from and
sends signals to a reader . The transceiver plus the information
storage mechanism attached to the object is referred to as the tag,
transponder, electronic tag, code plate, and various other terms.
Although transponder is technically the most accurate term, the
most common term and the one preferred by the Automatic
Identification manufacturers is tag.

transceiver – see reader/writer
transponder – see tag
unitized active tags – see active tags
verify – assure that the desired operation was performed correctly
WebU I – Web User Interface
write – transfer of data to a tag; the tag’s internal operation of

storing the data, sometimes including the data, in order to verify the
operation

write rate – rate at which information is transferred to a tag, written
into the tag’s memory and verified as being correct; it is quantified
as the average number of bits or bytes per second in which the
complete transaction can be performed

10008547aa 06/06 m® 1–3

2.0 Specifications

SECTION 1 General Information

Weight: Model 811: Approx: 40,82kg (90 lbs)

Stand: 42,64kg [94 lbs]

Dimensions: Model 811:

Width: 660mm [26.00”] with mounting bar
Width: 508mm [20.00"] to edge of dispenser
Height: 547mm [21.55”] with full rewind roll
Height:495mm [19.50] to top of dispenser
Depth: 395mm [14.76”]

Stand:
Width: 870mm [34.25”]
Height: 17277mm [68.0”]
Depth: 1156mm [45.50”]

See Dimensional Drawing (Paragraph 4.0)

RFID Standards: Frequency 860-925 mHz

Class 1, Class 1 Gen 2

Electrical Standards: CE marked ?

FCC ID: QME811RFID

Voltage: 100/115/200/208/230V, 50–60Hz,

single phase, 450W
Air Supply: 90psi / 6 bar (dry, uncontaminated)
Air Consumption: 0.035 cfm (1 l/min) at 20 labels per minute
Environmental: Operating temperature range

4°–40°C [39°– 104°F]

Relative humidity

10-90%, non-condensing

Noise emission

Does not exceed 80 dB(A)
Sensors: Tag gap / out sensor included

Product detect sensors included
Communications: Connection via Ethernet or network switch

to support Web User Interface (Web UI) to

Windows-based computer

1–4 m® 10008547aa 06/06

SECTION 1 General Information

Encode Process: Erases tag, programs tag with EPC code,

reads tag, if good, applies tag, if bad,
rejects tag

Reject Mechanism: bad tags are rejected onto the backing web

for easy disposal

Tag Cycle Rate: Up to 100 per minute depending on tag size,

the applicator used, communication
protocols, and machine settings

Tag Footprints (in inches):

Tall Wide Applicator

Required

On-pitch inlays: 0.5”[12,7mm] x 4.0” [101,6mm] Tamp

0.5”[12,7mm] x 6.0” [152,4] Tamp

Converted tags: 1.5”[38,1mm] x 4.0” [101,6mm] Tamp or blow

2.0”[50,8mm] x 4.0” [101,6mm] Tamp or blow

3.0”[76,2mm] x 3.0” [76,2mm] Tamp or blow

1.5”[38,1mm] x 6.0” [152,4mm] Tamp

2.0”[50,8mm] x 6.0” [152,4mm] Tamp

6.0”[152,4mm] x 4.0” [101,6mm] Tamp

10008547aa 06/06 m® 1–5

3.0 Dimensional Drawing

SECTION 1 General Information

Figure 1–1

1–6 m® 10008547aa 06/06

4.0 Safety Information

The Model 811 has been designed to meet various safety
standards. To alert you to potentially hazardous situations, labels
and messages appear on the machine and throughout the manual.

CAUTION refers to a potentially hazardous situation which, if not
avoided, could result in personal injury.

4.1 Machine Safety

High Voltage
This safety label is located on the ourside of the rear cover of the

machine and indicates that line voltages are inside.
To prevent injury from electrical shock, the power cord should be

removed from the electrical outlet before performing troubleshooting
or repair.

Electronic troubleshooting must be performed by personnel trained
to troubleshoot electrical circuits.

Pinching/Crushing

SECTION 1 General Information

This safety label is located on the drive pressure roller and indicates
that operators should be careful not to pinch or crush their fingers.

Earth
This safety label is located inside the machine and indicates an

earth point.

4.2 Modifications to the Model 811

Any changes or modifications not expressly approved by MARKEM
that could affect FCC Compliance could void the user’s authority to
operate the machine.

CAUTION: Applicator cylinders have been factory-set to 27 PSI for
safety . If the t amp applicator cylinders are operated over 27 PSI, the
machine must be protected by guarding, supplied by the customer.
Do not adjust the tamp applicator regulator pressure above 27 PSI
unless guarding is in place.

10008547aa 06/06 m® 1–7

4.3 Foreseen Use/Misuse

This manual provides information about Safety, Installation,
Operation, Troubleshooting, Illustrated Parts, Electrical Schematics,
Recommended Spares and Preventive Maintenance Procedures.
Using the Model 811 in any other manner is considered a misuse of
the product. Please consult your local MARKEM Business Center
before using this machine for anything other than the foreseen use.

Misuses include, but are not limited to:

• Operating a system that is incomplete, cannot be serviced, or

has been modified without authorization

• Failing to observe hazard requirements in the manual and/or on

safety labels

• Combining or interfacing non-MARKEM equipment with this

system, other than as intended

• Permitting a person who has not been fully trained to operate

and/or service the system

• Using unspecified supplies or material which may produce

unsatisfactory or unexpected results

SECTION 1 General Information

4.4 MARKEM Training Programs

Operators, maintenance personnel, and service technicians are
considered “qualified” when they have gained, through training and
experience, an understanding of safe and correct methods of
operation, maintenance, or repair.

MARKEM conducts training programs. In addition to ongoing
courses about current machine models, customers are invited to
inquire about any training need.

1–8 m® 10008547aa 06/06

4.5 Removal from Service

Follow these instructions to remove the Model 811 from service.
These instructions also pertain to transporting or storing the
machine.

SECTION 1 General Information

Figure 1–2

1. Turn off the power to the machine.

2. Disconnect the power cable from the system.

3. Disconnect all other cables from the system.

4. Disconnect the air supply.

5. Remove tape supplies from the rewind and supply hubs.

6. Tape the rewind U-pin to the rewind hub.

7. Put the rewind dancer in the forward position.

8. Lock the supply hub and the supply outer disk.

9. Being careful because of the weight of the machine, remove the
machine from the stand.

10.Carefully move the machine to the desired location and
repackage the system in the original shipping containers.

10008547aa 06/06 m® 1–9

5.0 Label and Symbol Identification
FCC ID Compliance Label

This label is affixed to the rear plate of the Model 811.

Serial/I.D./Rating Label

This label is affixed to the rear of the enclosure and indicates the
following:

SECTION 1 General Information

Model number
IType of equipment
Information about MARKEM
Patents covered
Serial number (Serial number is also affixed inside the enclosure)
Electrical specifications

AC voltage configuration ~

Fuse information

(X0) Serial Port

This symbol indicates the serial (RS232) ports and connects to the
reader.

(X8) Interface Device Port (1)

This symbol indicates the interface device port that is used for the
scanner port.

1–10 m® 10008547aa 06/06

SECTION 1 General Information

(X1) Sensor (2)

This symbol indicates the feed sensor port.

(X7) Sensor (1)

This symbol indicates the apply sensor port.

(X6) Beacon Light

This symbol indicates the beacon light port.

(X5) Interface Device Port (2)

This symbol indicates the interface device port that is used for a
second scanner port.

(X4) Encoder

This symbol indicates the encoder port.

Ethernet Port

This symbol indicates the port for the Ethernet cable.

(Antenna Port

This symbol indicates the antenna port.

Voltage Configuration Labels

Spare voltage configuration labels are provided. If the AC voltage
configuration of your machine changes, affix the appropriate voltage
configuration label to the Serial/I.D./Rating label on the rear panel of
the enclosure, so it covers the old voltage configuration rating.

Serial Number Label

This label appears inside the enclosure and matched the serial
number on the Serial/I.D./Rating label when the machine was
shipped from the factory. If the serial number on the Serial/I.D./
Rating label and on the label inside the enclosure do not match, the
serial number on the label inside the enclosure is the correct serial
number. (The machine cover may have been switched from another
machine.)

10008547aa 06/06 m® 1–11

6.0 Components

6.1 Dispenser

6.2 Tape Drive

SECTION 1 General Information

The Model 811 is a high speed, compact RFID tag dispenser and
applicator and can be supplied with options: an adjustable height
stand; signal tower; signal inputs.

The dispenser is the main body of the machine and houses the
electronics and mechanical components.

The dispenser supports a variety of different mountable applicator
modules.

The dispenser consists of:

• The tape drive

• Sensors for tag control

• Local user interface (LUI)

The tape drive system is shown in Figure 1-3.

Figure 1–3

1–12 m® 10008547aa 06/06

6.3 Applicator

6.3.1 Model 824 Blow Applicator

SECTION 1 General Information

Applicators are available in blow or tamp to meet your different
requirements.

The different applicators apply tags in different ways. The choice of
applicator also determines the face of the product that is tagged.

6.3.2 Model 854 Tamp Applicator

Figure 1–4

Figure 1–5

10008547aa 06/06 m® 1–13

6.4 Reader/Programmer

The device containing the digital electronics that extract and
separate the information from the format definition.

6.5 Networking

SECTION 1 General Information

Figure 1–6

The Model 811 provides options for communicating with PCs and
other computers. The methods available are:

• A serial link to a single PC

• Ethernet link
The Web user interface (Web UI) connects to the Model 811 via a

Windows-based PC and is needed for such purposes as controlling
settings, querying machine status, and monitoring faults.

6.6 Beacon Light (Optional)

The optional beacon light, which is mounted in a prominent position
on or near the machine has three lamps: green, blue, and amber to
alert the operator of machine status.

Figure 1–7

1–14 m® 10008547aa 06/06

SECTION 2

Installation Guide

m

®

Model 811

Operation/Service Manual

1.0 Installation Requirement s

The Model 811 system includes:

• the dispenser

• applicator

• reader/programmer

• connections for electrical and air supply

• options, such as a stand, beacon light, and product sensor
The Model 811 must be installed by qualified and trained personnel

in accordance with applicable requirements. Installation by the
customer must be sanctioned by MARKEM.

WARNING: Failure to perform installation as stated above will

1.1 Machine Requirements

Ensure that the required services and control signals are available:

• Power: 100/115/200/208/230V single phase power supply rated
at 450W

SECTION 2 Installation Guide

invalidate the machine warranty.

• Compressed air: a dry, clean air supply at 6 bar (90psi)

• Interfaces and trigger signals appropriate for the application

• Sufficient space for installation and operation

• Machine mounting point

1.2 Installation Overview

Determine a location for the Model 811 that will:

• Provide access to the front and rear of the dispenser

• Provide sturdy, level mounting

• Meet environmental, electrical, air supply, and communications
specifications

Model 811 installation includes:

• Removing the Model 811 and associated components from the

packaging.

• Assembling the stand (optional)

• Securing the Model 811 to the stand or other mounting

• Positioning/Leveling the Model 811

• Verifying or changing the voltage configuration

• Mounting the air supply

• Mounting the reader

• Mounting the beacon light (optional)

• Installing options, such as a product sensor

• Connecting power, devices, and other interfaces

10008547aa 06/06 m® 2–1

• Connecting to Web UI

• Verifying that the mechanical settings are appropriate for the
RFID tag stock or making necessary changes

• V erifying that the software p arameter settings are appropriate for
the RFID tag stock or making necessary changes

1.3 Unpacking the Model 811

Move the cartons containing the Model 811 and associate
components to the installation site.

1. Remove the Model 811 and associated components from the
packaging.

2. If a stand was ordered, unpack the stand.

2.0 Assembling the Stand (Optional)

If the optional stand was purchased, it will need to be assembled.
The stand comes in two boxes: the T-base is in one box and the
upright is in the other.

SECTION 2 Installation Guide

1. The T-base is in two parts with the feet and casters already
attached. To assemble the T-base, remove the bolt and washer.
Fit the two pieces together and then re-install the bolt.

2. To install the upright, remove the nut and washer from the
upright. Place the upright onto the T- base by guiding the floating
bolt into the proper hole. Re-install the nut and washer.

3. The crank is assembled at the factory. However, using an allen
wrench, the handle needs to be flipped to the opposite side of
the mating piece.

4. A package of M6 button head screws is provided for mounting
the machine to the L-piece. The mounting plate is attached to the
upright with the hardware loosely in place to receive the L-piece.
Remove the 2” bar from the L-piece. The Model 811 has its own
longer 2” bar attached to its main plate and does not use the bar
provided on the stand.

5. The cable channel is already installed onto the upright from the
factory . Remove the cable cover by gently prying and snapping it
off. It will be re-installed after all the cables and tubes have been
connected.

2–2 m® 10008547aa 06/06
