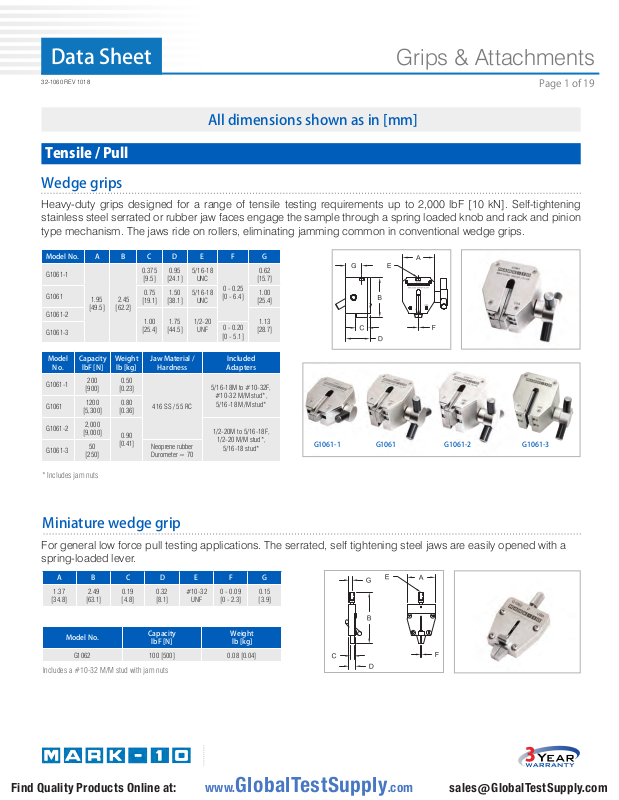

Data Sheet

Specifications subject to change without prior notice

Grips & Attachments

32-1060 REV 1018

All dimensions shown as in [mm]

Tensile / Pull

Wedge grips

Heavy-duty grips designed for a range of tensile testing requirements up to 2,000 lbF [10 kN]. Self-tightening
stainless steel serrated or rubber jaw faces engage the sample through a spring loaded knob and rack and pinion
type mechanism. The jaws ride on rollers, eliminating jamming common in conventional wedge grips.

Model No. A B C D E F G

0.375

0.95

G1061-1

G1061

G1061-2

G1061-3

1.95

[49.5]

2.45

[62.2]

[9.5]

0.75

[19.1]

1.00

[25.4]

[24.1]

1.50

[38.1]

1.75

[44.5]

5/16-18

UNC

5/16-18

UNC

1/2-20

UNF

0 - 0.25
[0 - 6.4]

0 - 0.20
[0 - 5.1]

0.62

[15.7]

1.00

[25.4]

1.13

[28.7]

Page 1 of 19

Model

G1061-1

G1061

G1061-2

G1061-3

No.

Capacity

lbF [N]

200

[900]

1200

[5,300]

2,000

[9,000]

50

[250]

Weight

lb [kg]

0.50

[0.23]

0.80

[0.36]

0.90

[0.41]

Jaw Material /

Hardness

416 SS / 55 RC

Neoprene rubber
Durometer = 70

Included
Adapters

5/16-18M to #10-32F,

#10-32 M/M stud*,

5/16-18 M/M stud*

1/2-20M to 5/16-18F,

1/2-20 M/M stud*,

5/16-18 stud*

G1061-1 G1061 G1061-2 G1061-3

* Includes jam nuts

Miniature wedge grip

For general low force pull testing applications. The serrated, self tightening steel jaws are easily opened with a
spring-loaded lever.

A B C D E F G

1.37

[34.8]

Includes a #10-32 M/M stud with jam nuts

2.49

[63.1]

Model No.

G1062 100 [500] 0.08 [0.04]

0.19
[4.8]

0.32
[8.1]

Capacity

lbF [N]

#10-32

UNF

0 - 0.09
[0 - 2.3]

Weight

lb [kg]

0.15
[3.9]

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

32-1060 REV 1018

Miniature component grip

For testing small and hard-to-reach electronic and
mechanical components. Slender profile allows this
grip to be used in a wide range of applications.

Grips & Attachments

Page 2 of 19

Model

G1003

No.

Capacity

lbF [N]

30

[150]

Weight

lb [kg]

0.05

[0.02]

A B C D E

0.5

[12.7]

1.7

[43.2]

0.5

[12.7]

0 - 0.07
[0 - 1.8]

Includes a #10-32 M/M stud with jam nuts

Multi-jaw grip

For gripping round or odd shaped items. Jaws
expand and retract by rotating the housing.

Model

G1056

Includes a #10-32 M/M stud with jam nuts

No.

Cap.

lbF [N]

100

[500]

Weight

lb [kg]

0.30

[0.14]

ØA B C ØD E ØF

2.30

3.50

[88.9]

[58.4]

MAX

1.63

[41.4]

1.55

[39.4]

0.075
[1.91]

0.40 - 1.25

[10.2 - 31.7]

Clevis grip

This grip is designed for ergonomic assessment,
spring testing, and other pull testing applications.

0.15
[3.8]

Model

G1077

No.

Capacity

lbF [N]

500

[2,500]

Weight

lb [kg]

0.29

[0.13]

A B C D E ØF

1.70

1.25

0.38

0.85

[43.2]

[31.8]

[9.7]

[21.6]

1.45

[36.8]

0.25
[6.3]

Includes a 5/16-18M to #10-32F thread adapter, 5/16-18 M/M stud with jam nuts, and
#10-32 M/M stud with jam nuts

High capacity clevis grip

This high capacity grip is designed for spring testing
and pulling testing applications. Integrated eye end.

Model No.

G1090 2,000 [9] 0.78 [0.35]

A B C ØD E F ØG ØH ØI

2.77

[70.4]

1.80

[45.7]

Capacity

lbF [kN]

0.55

[14.0]

1.40

[35.6]

2.32

[58.9]

Weight

lb [kg]

0.87

[22.1]

0.63

[15.9]

0.32
[8.0]

0.38
[9.7]

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

32-1060 REV 1018

Packaging / Peel / Friction

Film and paper grips

Grips & Attachments

Page 3 of 19

For gripping film, paper, and other thin materials
for tensile and peel testing. Adjustable serrated
interlocking jaws grip the sample securely.

Model

G1008

G1015-1

G1015-2

G1015-3

Includes a #10-32 M/M stud with jam nuts

No.

Capacity

lbF [N]

100

[500]

Weight

lb [kg]

0.31

[0.14]

0.65

[0.29]

0.80

[0.36]

0.90

[0.41]

A B C D

1.25

[31.8]

3.00

[76.2]

5.00

[127.0]

7.00

[177.8]

2.50

[63.5]

3.00

[76.2]

1.2

[30.5]

1.90

[48.3]

0 - 0.15

[0 - 3.8]

0 - 0.50

[0 - 12.7]

Pneumatic lm and paper grip

Fully enclosed, air-powered grip for seal strength
testing of packaging, elongation testing of various
materials, and other tensile testing requirements.
Serrated interlocking jaws effectively grip samples
for up to 100 lbF of force. The grip features a
unique integrated open/close valve for quick
sample engagement and disengagement. An air
connection kit, consisting of tubing and fittings
needed to connect two grips, is available separately.
A membrane repair kit is also available. See below.

Model

No.

G1046

Includes a #10-32 M/M stud with jam nuts, one spare rubber membrane*, one
alcohol wipe, and two cotton swabs

Capacity

100 lbF [500 N] at

100 PSI [0.86 MPa]

Weight

lb [kg]

0.58

[0.26]

Max.

pressure

PSI (MPa)

125 [0.86]

Air input

thread

#10-32

UNF

A

0 - 0.13
[0 - 3.3]

G1008

G1015-X

G1008

G1015-X

The optional air connection kit consists of:

Model No. Description

AC1019 Air connection kit for G1046

AC1044* Maintenance kit for G1046*

The optional maintenance kit* consists of:

1. Rubber membrane (qty. 5)

2. Alcohol wipe (qty. 5)

* The flexible internal membrane actuating the movable jaw has a variable life expectancy dependent upon the maximum air pressure used and the quality of the compressed air. It should

be free from impurities, solvents and oils. Since field conditions are outside of Mark-10’s control, the standard 3-year warranty does not apply to the flexible membrane. For convenience,
a spare membrane and alcohol wipe is included with every new grip. A membrane repair kit may be purchased from Mark-10.

Find Quality Products Online at: [e-mail]

3. Cotton swab (qty. 12)

4. Wrench set

www.GlobalTestSupply.com

- Coiled tubing, 1/8” OD, 1/16” ID, 8” retracted length (qty. 2)

- Y-splitter (qty. 1)

- Straight tubing, 1/8” OD, 1/16” ID, 5’ length (qty. 1)

- Elbow fitting, tubing termination (qty. 2)

- Elbow fitting, tubing to #10-32M (qty. 1)

- Thread adapter, #10-32F to 1/4” NPT M (qty. 1)

- Adhesive-backed guide (qty. 4)

Data Sheet

Specifications subject to change without prior notice

Grips & Attachments

32-1060 REV 1018

90° peel xture

For testing adhesive strength. Maintains a 90° angle between the table and direction of pull. Optional limit switch
stops travel on a motorized test stand, preventing cable breakage. Maximum load of 5 lbF [25 N].

Page 4 of 19

Includes mounting hardware and adapters to mount to the
ESM303, ESM1500/750 (w/AC1055 plate), and ES30
test stands. Recommended for use with a motorized test
stand.

 G1045-1

optional limit switch

Model No. Description

G1045 90° peel fixture

G1045-1 Limit switch for G1045

Coe󱐰cient of friction xture

For determining friction properties of paper, film, and other thin flexible materials. Conforms to ASTM D1894
and other relevant standards. Includes work table, 200 g sled, cable, and low-friction pulley. Static and kinetic
coefficients can be measured using the M5-2-COF gauge.

Model No. Description

G1086 Coefficient of friction fixture

Includes mounting hardware and adapters to mount
to the ESM303 test stand. Recommended for use
with a motorized test stand.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

Grips & Attachments

32-1060 REV 1018

Score bending xture

Used to produce a 90° bend in fiber board materials and plastics to conform to TAPPI standard T829. Set
of upper and lower dies.

Model

No.

G1071 50 [250]

Upper die includes a 5/16-18M to #10-32F thread
adapter and #10-32 M/M stud with jam nuts.

Lower die includes mounting hardware for the following
test stands: ESM303, ESM1500/750 (w/AC1055 plate),
ES30, TSC1000, TSF, ES10/ES20 (w/AC1060 plate).

Recommended for use with a motorized test stand.

Capacity

lbF [N]

Weight

lb [kg]

Upper die: 0.15 [0.67]
Lower die: 0.30 [0.14]

Opening force xture

Used to determine the opening force of flat folded cartons along score lines. Set of upper and lower dies.

Page 5 of 19

Model No.

G1072 50 [250]

Capacity

lbF [N]

Weight

lb [kg]

Upper die: 0.06 [0.03]
Lower die: 0.10 [0.05]

A B C D

0.75

1.00

[25.4]

0.50

[12.7]

[19.1]

Upper die includes a 5/16-18M to #10-32F thread adapter and #10-32 M/M
stud with jam nuts.

0.25

Lower die includes mounting hardware for the following test stands: ESM303,

[6.4]

ESM1500/750 (w/AC1055 plate), ES30, TSC1000, TSF, ES10/ES20 (w/AC1060
plate). Recommended for use with a motorized test stand.

Loop tack xture

Designed for tack force testing of pressure-sensitive adhesives, in conformance with ASTM D6195 and related
standards. A looped sample is loaded onto the test strip, and the closed end of the loop is secured by an upper
grip (not included - suggested model: G1008, pictured below). The test strip may be indexed in three positions,
allowing for three tests to be performed between cleaning cycles.

Model No.

G1098

* Including one test strip

Includes a 5/16-18 M/M stud with jam nuts.

Capacity

lbF [N]

100

[500]

Weight*

lb [kg]

1.10
[0.5]

Test strip

material

T304 SS,

per ASTM A666

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

Grips & Attachments

Ø0.50 [12.7]

0.19 [4.8]

2.00 [50.8]

0.79 [20.1]

0.36 [9.1]

#10-32 UNF

0.52 [13.3]

1/2-20 UNF-2B THRU

3.05 [77.5]2.00 [50.8]

2.00 [50.8]

7.75 [196.9]

1.50 [38.1]

5.50 [139.7]

3.55 [90.2]

5.16 [130.9]

18.13 [460.5]

9.24 [234.6]

Ø0.20 [Ø5.1]

4.49 [113.9]

4.75 [120.7]

4.30 [109.2]

3.05 [77.5]

32-1060 REV 1018

Flip Cap Pull Grip

Designed to engage the tab on a flip cap for pull-off force measurements. A spring-loaded hook retracts as it is
lowered into the starting position, then snaps into place below the tab.

Page 6 of 19

Model

No.

G1104

Capacity

lbF [N]

20 lbF

[100 N]

Weight

lb [kg]

0.10 lb

[0.04 kg]

Includes a #10-32 M/M stud with jam nuts

Cork Pull Fixture

Designed to extract a cork stopper out of a bottle for pull force measurements, in conformance with ISO 9727.

Model

No.

G1105

Includes a G1035 large hook, G1018-2 swivel adapter,
and test stand mounting hardware. Recommended for
use with a motorized test stand.

Capacity

lbF [N]

200 lbF

[1000 N]

Weight

lb [kg]

9.5 lb

[4.3 kg]

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

32-1060 REV 1018

Vise / Parallel Jaw

Parallel jaw / vise-action grip, large

For general tensile and pull testing applica­tions. Includes an adjustable stop to ensure
consistent sample placement. Integrated
eye end.

Grips & Attachments

Page 7 of 19

Model

G1100

3.94 in [100.0 mm] extended length jaws are available. See website for details.

No.

Capacity

lbF [kN]

2,000

[9 k]

Weight

lb [kg]

5.9 lb
[2.7]

Housing

Material

Aluminum

Jaw

Material  

Hardened steel,

58 RC

Parallel jaw / vise-action grip, medium

For general tensile and pull testing applica­tions. Integrated eye end.

Model

G1101

Extended length jaws are available: 1.97 in [50.0 mm], 3.15 in [80.0
mm], 3.94 in [100.0 mm]. See website for details.

No.

Capacity

lbF [N]

200

[1,000]

Weight

lb [kg]

1.0 lb
[0.5]

Housing
Material

Aluminum

Jaw

Material  

Hardened steel,

58 RC

Parallel jaw / vise-action grip

For general tensile and pull testing applications.

Model

No.

G1013

Capacity

lbF [N]

[1,000]

200

Weight

lb [kg]

0.65

[0.29]

A B C D

1.75

[44.5]

2.25

[57.2]

1.25

[31.8]

0 - 0.25
[0 - 6.3]

Includes a 5/16-18M to #10-32F adapter and #10-32 M/M stud with jam nuts

Vise grip, standard

General purpose vise, for a wide range of tension
and compression testing applications.

Model

No.

G1074

A B C D E F G

1.00

[25.4]

Includes mounting hardware and adapters to mount to the following test stands: ESM303,
ESM1500/750 (w/AC1055 plate), ES30, TSC1000, TSF, ES10/ES20 (w/AC1060 plate)

Find Quality Products Online at: [e-mail]

0.50

[12.7]

Capacity

lbF [N]

500

[2,500]

1.50

[38.1]

Weight

lb [kg]

2.00

[50.8]

2.0

[0.9]

2.50

[63.5]

0 - 1.50

[0 - 38.1]

1.00

[25.4]

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

Grips & Attachments

5.50 [139.7]

32-1060 REV 1018

Vise grip, self-centering

General purpose vise, for a wide range of tension and compression testing applications. Self-centering,
replaceable jaws can be field-modified to improve sample gripping characteristics.

Page 8 of 19

Model No.

G1106 500 [2,500] 3.00 [1.36]

Capacity

lbF [N]

Weight

lb [kg]

4.75 [120.7]

4.35 [110.5]

1.35 [34.3]

1.20 [30.4]

1.75 [44.5]

2.00 [50.8]

Includes mounting hardware and adapters to mount to the
following test stands: ESM303, ESM1500/750 (w/AC1055

1.90 [48.3] 2.10 [53.3]

3.05 [77.5]

plate), ES30, TSC1000, TSF, ES10/ES20 (w/AC1060 plate).

R0.10 [R2.5]
R0.18 [R4.4]

2.78 [70.6]

1.00 [25.4]

1.25 [31.7]

0.38 [9.5]

1.29 [32.6]

0.35 [8.9]

2.00 [50.8]
MAX

0.93 [23.5]

7.93 [201.5]

Wire / Rope / Yarn / Tubing

Wire terminal grips

For securing wire terminals, cables, connectors, and other samples for pull testing.

Model

G1001

G1001-1

G1001-2

Includes a 5/16-18M to #10-32F adapter and #10-32 M/M stud with jam nuts

No.

Capacity

lbF [N]

200

[1,000]

Weight

lb [kg]

0.29

[0.13]

ØA B C D

0 - 0.125
[0 - 3.1]

1.00

3.40

[86.4]

0.125 - 0.25
[3.1 - 6.3]

0.25 - 0.375
[6.3 - 9.5]

[25.4]

1.45

[36.8]

Wire terminal grip, turret style

For securing wire terminals, cables, connectors, and other samples for pull testing. Indexing wheel contains
grooves of varying widths to accommodate a wide range of sample shapes and sizes.

Model

G1076

Includes a 5/16-18M to #10-32F adapter and #10-32 M/M stud with jam nuts

Find Quality Products Online at: [e-mail]

No.

Capacity

lbF [N]

200

[1,000]

Groove Widths

0.01 [0.3], 0.03 [0.7], 0.04 [1.0], 0.06 [1.5],

0.08 [2.0], 0.09 [2.3], 0.11 [2.8], 0.12 [3.0],

0.14 [3.5], 0.15 [3.8], 0.17 [4.3], 0.18 [4.5],

0.20 [5.1], 0.21 [5.3], 0.23 [5.8], 0.25 [6.3]

www.GlobalTestSupply.com

Weight

lb [kg]

1.00

[0.45]

Data Sheet

Specifications subject to change without prior notice

Grips & Attachments

32-1060 REV 1018

High capacity wire terminal grip

For securing wire terminals, cables, connectors, and other samples for pull testing. Indexing wheel contains
grooves of varying widths to accommodate a wide range of sample shapes and sizes. Integrated eye end.

Page 9 of 19

Model

G1093

No.

Capacity

lbF [kN]

2,000

[9]

Groove Widths

0.08 [2.0], 0.12 [3.0], 0.16 [4.0],

0.20 [5.0], 0.24 [6.0], 0.31 [8.0],

0.39 [10.0], 0.46 [11.8]

Weight

lb [kg]

6.4 [2.9]

Dual roller grips

For securing the ends of wire, cable, and tubing samples for pull testing. Engaging and disengaging samples is
quick and easy via an efficient cam design and convenient side slot for sample insertion. Serrated steel rollers
produce effective gripping characteristics.

Model No.

G1002

G1002-1 0.24 [0.11]

Model No. A B C D E F G

G1002

G1002-1

Includes a #10-32 M/M stud with jam nuts

Capacity

lbF [N]

200 [1,000]

1.18

[30.0]

1.30

[33.0]

2.00

[50.8]

0.75

[19.1]

Weight

lb [kg]

0.19 [0.09]

0 - 0.25
[0 - 6.3]

0.10 - 0.34
[2.5 - 8.6]

0.25

[6.4]

0.64

[16.5]

1.0

[25.4]

Adjustable dual roller grip

For securing tubing, cables, and odd shaped samples for pull testing applications. Engaging and disengaging
samples is quick and easy, with a side slot for sample insertion and serrated steel rollers. Rollers can be reposi­tioned as required for the application.

Model No.

G1085 200 [1,000] 0.51 [0.23]

Model No. A B C D E F G

G1085

Includes a 5/16-18 M/M stud with jam nuts

Capacity

lbF [N]

2.40

[61.0]

2.45

[62.2]

Find Quality Products Online at: [e-mail]

1.30

[33.0]

Weight

lb [kg]

0 - 1.00

[0 - 25.4]

0.34

1.20

[30.5]

1.78

[45.3]

[8.6]

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

32-1060 REV 1018

Miniature lament grip

For securing small diameter wires and filaments. The
sample wraps around the bollard and the loose end
is secured by the adjustable jaw. Integrated swivel
ensures sample alignment under load.

Grips & Attachments

Page 10 of 19

Model

G1078

Includes #10-32 M/M stud with jam nuts

No.

Cap.

lbF [N]

50

[250]

Weight

lb [kg]

0.06

[0.03]

A B C D E F G

2.38

1.09

0.10

0.10

0.55

[60.4]

[27.7]

[2.5]

[2.5]

[14.1]

Ø0.45
[11.4]

Wire / rope grip, medium

For securing wire and rope. The sample
wraps around the bollard and the loose end
is secured by the adjustable rubber-faced jaw.
Integrated eye end.

Model No.

G1103

Capacity

lbF [N]

200

[1,000]

Weight

lb [kg]

0.6

[0.6]

Wire / rope grip, large

For securing wire and rope. The sample
wraps around the bollard and the loose end
is secured by an adjustable jaw. Integrated
eye end.

Model No.

G1102

Capacity

lbF [N]

1,000

[5,000]

Weight

lb [kg]

1.8

[0.8]

0.20
[5.1]

Wire / rope grip, high capacity

For high capacity wire and rope pull testing
applications. Secures the free end of the
sample via a bollard and vise. Integrated eye
end.

Model No.

G1092

Capacity

lbF [kN]

2,000

[9]

Find Quality Products Online at: [e-mail]

Weight

lb [kg]

6.0

[2.7]

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

32-1060 REV 1018

High capacity eccentric roller grip

Features a serrated cam for effectively
securing wires, plastics, textiles, and
other materials in pull testing applications.
Integrated eye end.

Grips & Attachments

Page 11 of 19

Model No.

G1094 2,000 [9] 7.4 [3.4]

Capacity

lbF [kN]

Weight

lb [kg]

Compression / Bend / Push

Compression plates

For compressing springs, foams, cartons,
aerosol cans, and many other products.

Model No.

G1009

G1009-1

G1009 includes a #10-32 M/M stud with jam nuts

G1009-1 includes a 5/16-18M/M stud with jam nuts

Cap.

lbF [N]

[1,000]

[2,500]

200

500

Weight

lb [kg]

0.08

[0.04]

0.27

[0.12]

ØA Thread Material

2.0
#10-32 UNF

[51.0]

3.0

[76.2]

5/16-18 UNC

Aluminum

High capacity compression plates

For compression spring testing, top load testing,
and other applications. Inegrated eye end.

Model

G1087

G1087-1

Find Quality Products Online at: [e-mail]

No.

Capacity

lbF [kN]

2,000

[9]

2,000

[9]

Weight

lb [kg]

1.50

[55.9]

0.63

[0.29]

ØA B Material

3.78

[96.0]

2.20

[55.9]

1.28

[32.5]

1.18

[30.0]

303 SS

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

Grips & Attachments

32-1060 REV 1018

Bend xtures

Family of fixtures for 3-point and 4-point bend testing of plastics, metals, ceramics, tubing, and many other
materials. Two base sizes are available, along with an upper anvil, and optional roller diameters. Use a base-anvil
combination for 3-point bend testing or two bases for 4-point bend testing.

G1095

G1096

Page 12 of 19

3-point bend

G1097

4-point bend

Model No.

G1095 500 [2.5] 3.0 [1.3] 2024 Al 303 SS 416 SS, hardened Two 10 mm dia. rollers and o-rings

G1096 2,000 [10] 7.1 [3.2] 2024 Al 303 SS 416 SS, hardened Two 10 mm dia. rollers and o-rings

G1097 2,000 [10] 0.5 [0.2] 303 SS - 416 SS, hardened 10 mm. dia. roller and o-rings

Includes mounting hardware to mount to the following test stands: ESM303, ESM1500/750 (w/AC1055 plate), ES30, TSC1000, TSF, ES10/ES20 (w/AC1060 plate). May also be mounted
via integrated eye end.

Capacity

lbF [kN]

Weight

lb [kg]

Housing

material

Block

material

Roller

material

Includes

Optional Items

Model No. Description

AC1067

AC1067-1 Rollers for bend fixtures, 2 mm dia., set of 4

AC1067-2 Rollers for bend fixtures, 5 mm dia., set of 4

Rollers for bend fixtures, 1 mm dia., set of 4

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

32-1060 REV 1018

Jacobs chuck pin vises

For securing pins, round samples, and fixtures.

Grips & Attachments

Page 13 of 19

Model

No.

G1010

G1010-1 0.25 [0.11]

G1010-2 0.66 [0.30]

Includes a #10-32 M/M stud with jam nuts

Capacity

lbF [N]

30 lbF

[150 N]

Weight

lb [kg]

0.35 [0.16]

ØA

0.062 - 0.375
[1.6 - 9.5]

0.028 - 0.25
[0.7 - 6.3]

0.078 - 0.5

[2.0 - 12.7]

Padded attachments

For applications in physical therapy
and ergonomics, including muscle
strength testing, job task requirements,
and more.

Model No.

G1019 500 [2,500] 0.03 [0.01]

G1020 500 [2,500] 0.13 [0.06]

G1021 500 [2,500] 0.25 [0.11]

Includes a 5/16-18M to #10-32F adapter and #10-32 M/M
stud with jam nuts

Capacity

lbF [N]

Weight

lb [kg]

G1019

G1020

G1021

Rubber tip

Simulates a finger for testing pushbuttons,
membrane switches, touch-screen panels,
keyboards, etc.

Model No.

G1011

Includes a #10-32 M/M stud with jam nuts

Capacity

lbF [N]

50

[250]

Find Quality Products Online at: [e-mail]

Weight

lb [kg]

0.01

[0.004]

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

32-1060 REV 1018

Syringe compression xture

For testing compression force of a syringe
plunger, as per ISO 7886-1 and other relevant
standards.

Consists of:

1. Frame

2. Replaceable blank inserts (4)

3. Cup tray

4. G1009 compression plate

Grips & Attachments

Page 14 of 19

Model No.

G1089 100 [500] 1.89 [0.86]

Includes 5/16-18 M/M stud with jam nuts

Capacity

lbF [N]

Weight

lb [kg]

Torque / Force

Universal bottle grip

For gripping bottles and containers in closure torque
testing applications. Eight rubber edged gripping
arms secure a wide range of sample shapes and
sizes and may be individually positioned at angles
up to 180°. Mounts directly to Series TST torque test
stands, most force test stands, and G1045 90° peel
fixture for applications such as top load testing and
90° peel testing.

Model No.

G1023 100 [11.3] 1.50 [0.7] 4.80 [122.0] MAX

Model No. Description

G1068 Adapter, G1023 to force test stand / G1045 fixture

Capacity

lbFin [Nm]

Weight

lb [kg]

ØA

G1023 includes mounting hardware for Series TST test stands or G1068 adapter.

G1068 includes mounting hardware for the G1023 fixture and the following test stands:
ESM303, ESM1500/750 (w/AC1055 plate), ES30, TSC1000, TSF, ES10/ES20 (w/
AC1060 plate)

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

32-1060 REV 1018

Universal V-jaw grip

For gripping round objects. Serrated, reversible alu­minum jaws effectively grip a wide range of sample
shapes and sizes. Mounts directly to Jacobs chucks,
force gauges, and test stands.

Grips & Attachments

Page 15 of 19

Model No.

G1053

Torque Capacity

lbFin [Nm]

100

[11.3]

A B C ØD1* ØD2*

3.1

[78.7]

2.0

[50.8]

Force Capacity

lbF [N]

100

[500]

1.6

[40.6]

1.10 - 1.55

[27.9 - 39.4]

Weight

lb [kg]

0.39

[0.18]

0.65 - 1.10

[16.5 - 27.9]

Universal cap grip

For securing caps, lids, and other similar items for
torque and pull testing. Accommodates a wide
range of sample sizes, and can be used manually
with a torque gauge or mounted to a test stand.

Model No. Capacity

G1058

A B C D E ØMIN - ØMAX

0.9

[22.9]

3.8

[96.5]

100 lbFin [11.3 Nm] or

50 lbF [250 N]

3.2

[81.3]

[71.1]

2.8

1.0

[25.4]

Weight

lb [kg]

0.65

[0.29]

0.20 - 3.50

[5.1 - 89.0]

* Reverse the jaws to switch from ØD1 to ØD2

Includes a #10-32 M/M stud with jam nuts

Includes #10-32 M/M stud with jam nuts

Jacobs chuck grips

For securing round samples, fixtures, or bits in
torque applications.

Model

No.

G1022-1

G1022-2

G1022-3

Includes mounting hardware for Series TST torque test stands

Capacity

lbF [N]

100 lbFin

[11.3 Nm]

Weight

lb [kg]

0.50

[0.23]

ØA ØB ØC

0.028 - 0.250
[0.7 - 6.3]

0.188

N/A

[4.7]

0.062 - 0.375
[1.6 - 9.5]

0.078 - 0.500

[2 - 12.7]

G1042

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

5/16-18 UNC

4.35 [110.5]

R0.50 [12.7]

1.27 [32.2]

32-1060 REV 1018

Basic Attachments & Adapters

Hooks

Grips & Attachments

Page 16 of 19

For general pull testing applications.

Model

No.

G1028

G1038

G1035

G1042

Capacity

lbF [N]

[100]

[1,000]

[2,500]

1,000

[4500]

Weight RA B ØC D

20

200

500

0.010

[0.005]

0.020

[0.009]

0.050

[0.023]

0.320

[0.145]

0.05
[1.3]

0.20
[5.1]

0.30
[7.6]

0.5

[12.7]

1.00

[25.4]

1.50

[38.1]

1.90

[48.3]

4.10

[104.1]

0.10
[2.5]

0.19
[4.8]

0.28
[7.1]

0.45

[11.4]

#10-32F

#10-32M

5/16-18M

1/2-20M

Snap hook

For general pull testing applications. Features
a snap clasp, for added safety in pull testing
applications. Swiveling action ensures proper
alignment.

Model

No.

G1107

Capacity

lbF [N]

500

[2,500]

Weight

lb [kg]

0.3

[0.14]

G1028

G1035

G1038

G1042

G1028

G1038

G1035

Flat heads

For compression testing of buttons, small springs,
membrane switches, etc.

Model

No.

G1029 200 [1,000] 0.01 [0.005] 0.5 [12.7] 0.5 [12.7] #10-32F

G1036 500 [2,500] 0.06 [0.027] 0.75 [19.1] 0.87 [22.1] 5/16-18F

Find Quality Products Online at: [e-mail]

Capacity

lbF [N]

Weight

lb [kg]

ØA B C

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

32-1060 REV 1018

Extension rods

For use between force gauge, grips,
andattachments. Suitable for tension and
compression applications.

Grips & Attachments

Page 17 of 19

Model

G1024

G1024-2 0.01 [0.005] 1.0 [25.4]

G1031

G1031-2 0.25 [0.113] 1.0 [25.4]

No.

Capacity

lbF [N]

200

[1,000]

500

[2,500]

Weight

lb [kg]

0.05 [0.023] 5.0 [127.0]

0.25 [0.113] 5.0 [127.0]

A ØB C D

0.25

[6.4]

0.50

[12.7]

#10-32F #10-32MG1024-1 0.02 [0.009] 2.0 [50.8]

5/16-18F 5/16-18MG1031-1 0.10 [0.045] 2.0 [50.8]

Chisel points

For compression testing applications.

Model

No.

G1025

G1032

Capacity

lbF [N]

200

[1,000]

500

[2,500]

Weight

lb [kg]

0.003

[0.001]

0.040

[0.018]

A ØB C

0.50

[12.7]

1.00

[25.4]

0.25

[6.4]

0.50

[12.7]

#10-32F

5/16-18F

Cone points

For various compression and puncture testing
applications.

Model

No.

G1026

G1033

Find Quality Products Online at: [e-mail]

Capacity

lbF [N]

200

[1,000]

500

[2,500]

Weight

lb [kg]

0.003

[0.001]

0.030

[0.014]

A ØB C

0.50

[12.7]

1.00

[25.4]

0.25
[6.4]

0.50

[12.7]

www.GlobalTestSupply.com

#10-32F

5/16-18F

Data Sheet

Specifications subject to change without prior notice

32-1060 REV 1018

V-grooves

For compression testing of round or odd-shaped samples.

Grips & Attachments

Page 18 of 19

Model

G1027

G1034

No.

Capacity

lbF [N]

200

[1,000]

500

[2,500]

Weight

lb [kg]

0.004

[0.002]

0.040

[0.018]

A ØB C D

0.50

[12.7]

1.00

[25.4]

0.25

[6.4]

0.50

[12.7]

#10-32F

5/16-18F

0.08
[2.0]

0.25
[6.4]

Swivel adapters

For use between grips and force gauges to provide a swiveling action for proper sample alignment.

Model No.

G1018-1 200 [1,000] 0.12 [0.05] #10-32M #10-32F

G1018-2 500 [2,500] 0.27 [0.12] 5/16-18M 5/16-18F

Capacity

lbF [N]

Weight

lb [kg]

A B

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Data Sheet

Specifications subject to change without prior notice

32-1060 REV 1018

Thread adapters & couplings

For use between gauges, load cells, test stands grips, and attachments.
Suitable for tension and compression applications.

Grips & Attachments

Page 19 of 19

Model No.

G1050

G1051 0.55 [14.0] #4-40M #10-32M

G1039

G1030 0.50 [12.7] 5/16-18M #10-32F

G1057 1.00 [25.4] #10-32F M6F

G1060 0.50 [12.7] #10-32M #10-32M

G1047 0.75 [19.1] #10-32M M4F

G1048 0.75 [19.1] M4M #10-32F

G1054 0.75 [19.1] M6M #10-32F

G1063 1.30 [33.0] #10-32M 5/16-18F

G1040

G1037 1.00 [25.4] 5/16-18F 5/16-18F

G1049 1.25 [31.8] M6M 5/16-18F

G1059 1.13 [28.7] 5/16-18F 1/2-20F

G1041 1.06 [26.9] 1/2-20M 5/16-18M

G1066 0.75 [19.1] 5/16-18F 1/2-20M

Capacity

lbF [N]

100

[500]

200

[1,000]

500

[2,500]

Length Thread A Thread B

0.75 [19.1] #4-40M #10-32F

0.75 [19.1] #10-32F #10-32F

0.92 [23.4] 5/16-18M 5/16-18M

G1044

G1067 0.75 [19.1] 1/2-20F 10-32M

G1069 1.25 [31.8] 5/16-18F 1/4-28M

G1091

G1044

1,000

[5,000]

1.30 [33.0] 1/2-20F 1/2-20F

Adapter plate, 1/2-20F. Compatible with the following test stands: ESM303,
ESM1500 (w/AC1055 plate), TSF, TSB100, TSC1000, and ES10/ES20 (w/AC1060
plate). Mounting hardware included. Pictured at right.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
