ESM303-003 Safety Shield - Assembly Instructions

The ESM303-003 safety shield is designed for use with the Mark-10 ESM303 mo­torized test stand. When properly used, it can protect the operator against the dan­gers of airborne debris resulting from compression and tension force testing. Follow
these assembly and usage instructions:

1. The safety shield is shipped fully assembled. Remove it from the box and remove
the protective packaging.

2. Position the mounting bracket on top of the ESM303 column, aligning the thru

www.GlobalTestSupply.com

holes with the corresponding threaded holes at the top of the ESM303 test stand
column. Fasten the six provided socket head screws, as shown in Fig. 1.

3. Plug the interlock cable into the corresponding connector in the rear of the test
stand column, labeled “AUX. LIMITS”, as shown in Fig. 2.

4. Route all cables, such as the test stand power cable and control panel cable,
underneath the shield, as shown in Fig. 3. Do not route cables through the cut­out in the sheet metal cover. Doing so can result in damage to the cables while
the door is rotating past this area. This cutout is provided for hand access to the
connector panel only.

5. The door may be opened in the clockwise or counter-clockwise direction. Mag­netic detents are provided for the closed position. If the interlock cable is plugged
in, the test stand’s control panel will display the message “SHIELD OPEN” when
the door is open. The test stand cannot be operated in this state, however, the
FollowMe
loading. Note that the following minimum test stand fi rmware versions are re-
quired:

Front: 2.02.08
Main: 2.02.07

With prior fi rmware versions, the FollowMeTM function will not operate while the
door is open, however, the Auto Return function can still be used to return the
crosshead to the home position automatically. Contact Mark-10 for upgrade in­structions. For further instructions refer to the ESM303 user’s guide.

TM

function may be used to adjust the crosshead position for sample

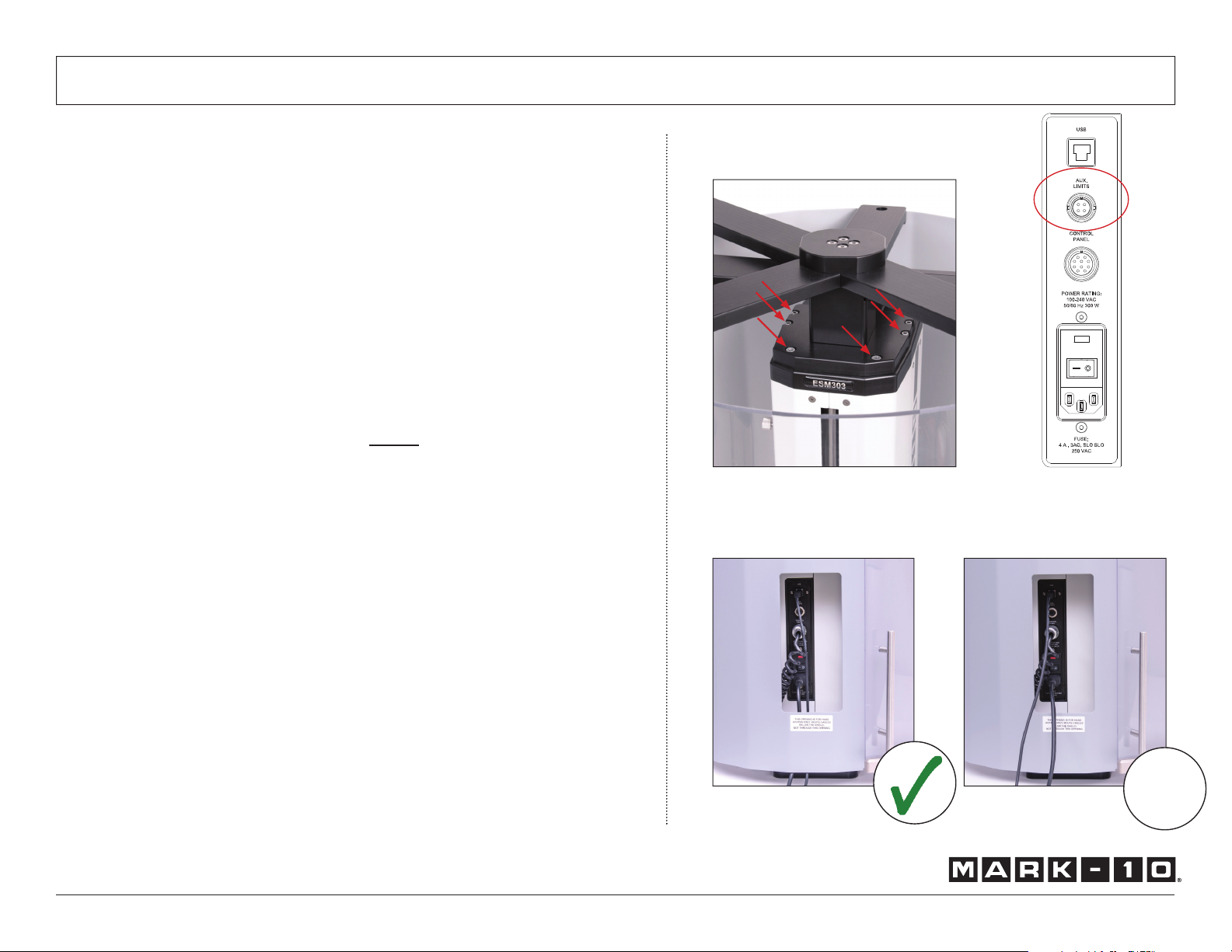

Fig. 1

Attaching the shield assembly to
the ESM303 test stand column

Fig. 3

Proper cable routing

Fig. 2

ESM303 rear connectors
