Mark-10 ES20 User manual

MODELS ES10 & ES20

Force Test Stands Series ES

User’s Guide

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

TABLE OF CONTENTS

GENERAL ................................................................................... 2

Unpacking and setting up ..................................................... 2

List of included items ............................................................ 2

OPERATION ............................................................................... 3

SPECIFICATIONS ...................................................................... 3

Models ES10 & ES20

Thank you!

Thank you for purchasing a Mark-10 Series ES Force Measurement Test
Stand. We are confident that you will get many years of service from this
product.

Series ES test stands can be used in any number of compression and tension
testing applications. Both models ES10 and ES20 are designed for testing up to
100 lb (500 N). To maintain smooth mechanical functioning of your test stand,
avoid repetitive overloads and shock loads.

We hope that this User’s Guide will provide a comprehensive explanation of the
test stands’ operation and sufficient detail on their specifications. However, if
you have any other questions or concerns our engineering and technical
support teams will be eager to help you.

Thank you again for your purchase and happy testing!

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

User’s Guide

3

UNPACKING AND SETTING UP

1. Carefully unpack the stand and inspect for any damage. Inspect the
contents to ensure that you have received a test stand complete with all
accessories – see “List of included items” section.

2. Install the loading lever into the hub on the ES10 stand or install the hand
wheel on the ES20 stand.

3. Place the stand on a firm, flat and level working surface free from vibration
to ensure accurate readings. If preferred, the test stand can be secured to a
work bench with two screws or bolts through the two clearance holes in the
base – see “Operation” section for further details.

Quantity Item

1 Force measurement stand, ES10 or ES20

4 Thumb screws for gauge mounting

1 Mounting hole drill template

LIST OF INCLUDED ITEMS

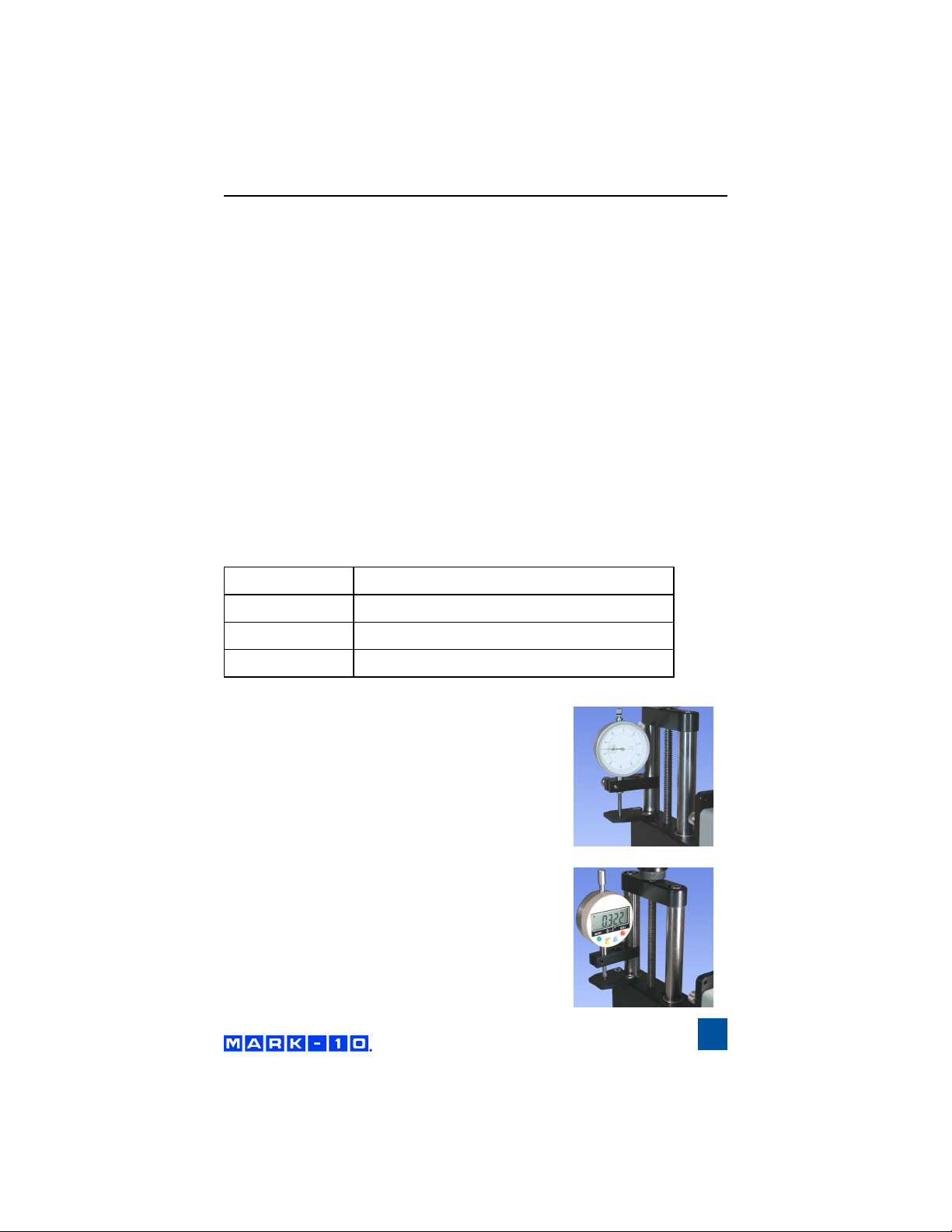

Optional dial indicator kit ES001

The dial indicator kit, ES001, clamps onto the column
of the stand. The dial can be repositioned along the

length of the column.

It allows for 1.0” travel and provides as resolution of

0.001”.

Optional digital indicator kit ES002

Displays up to 1" of displacement with resolution of

0.0005" and 0.01 mm. Includes zero button and in/mm

selector button.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Models ES10 & ES20

4

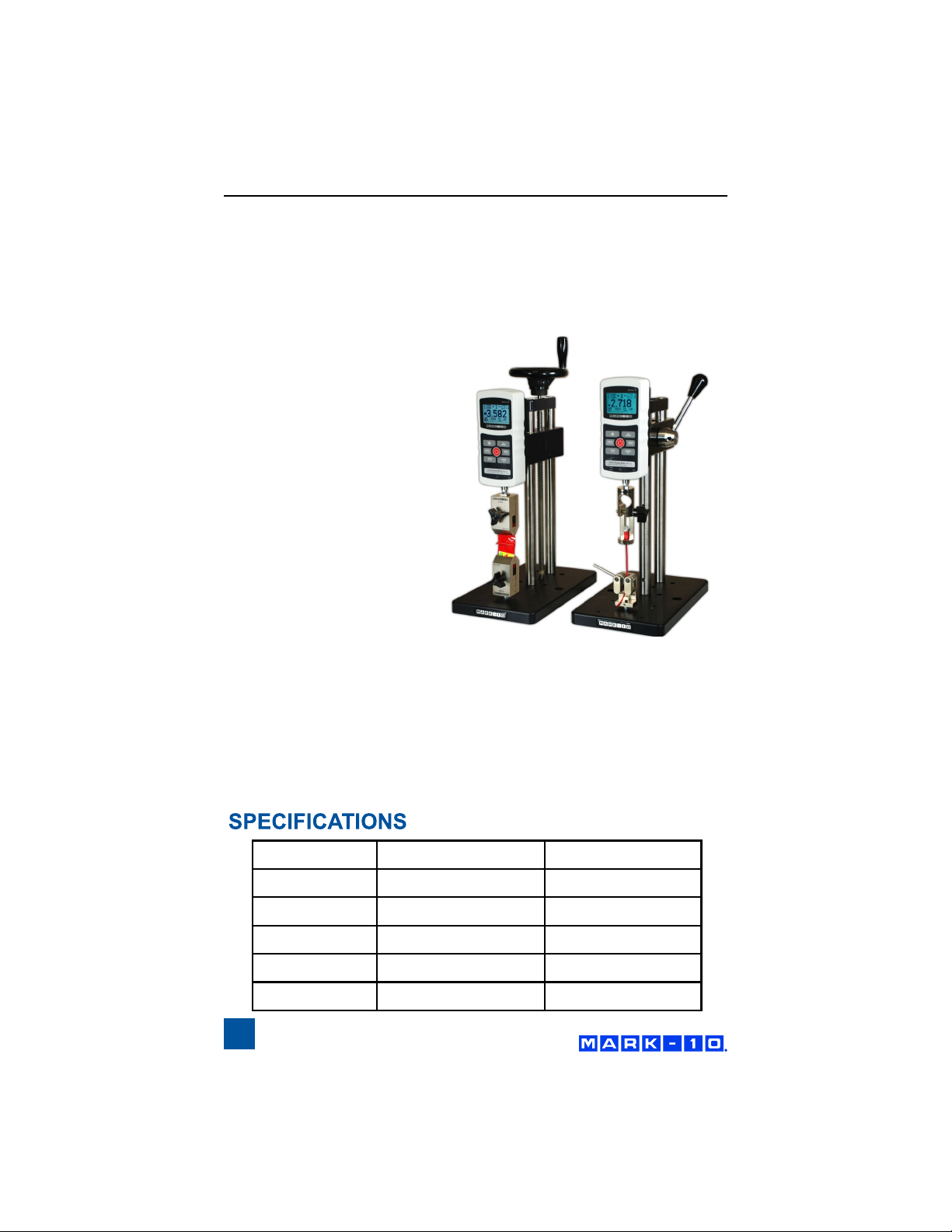

ES10 ES20

Load capacity 100 lbs [500 N] 100 lbs [500 N]

Maximum travel 9” [228.6 mm] 9” [228.6 mm]

Loading method Rack & pinion Hand wheel

Rate 1.050”/rev [26.7 mm] 0.083”/rev [2.1 mm]

Weight 10 lbs [4.5 kg] 10 lbs [4.5 kg]

OPERATION

The test stand can be mounted to a work bench using the clearance holes in
the base – see drawing for hole location. The included mounting hole drill
template can be used to locate holes in work area.

All Mark-10 force gauges (except the Series CG) can be mounted directly to the
stand without adapters. Mount the
gauge using the thumb screws
provided.

The loading lever on the ES10

can be adjusted to allow for ease
of operation. Reposition the lever
using one of the three tapped
holes located in the hub – refer to

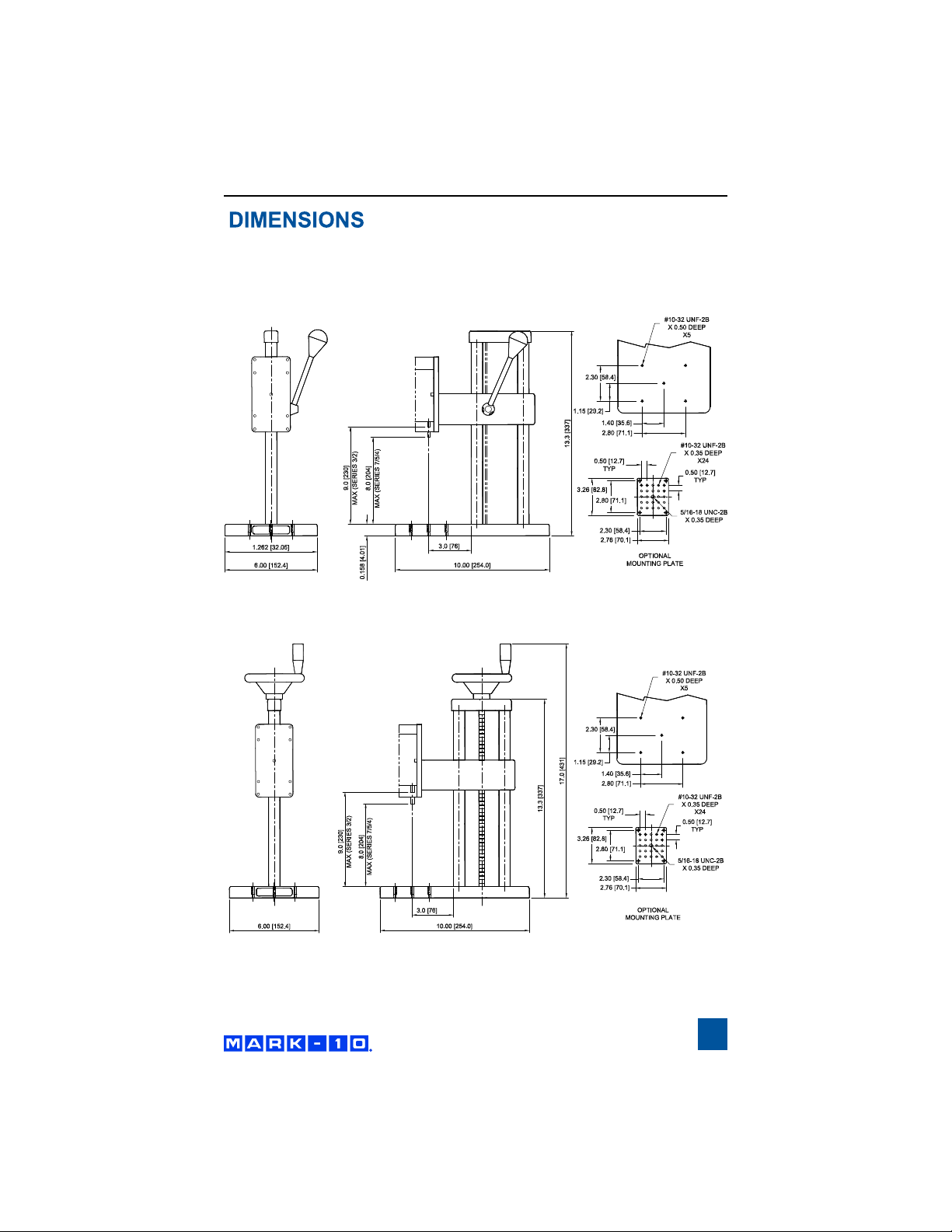

the dimensional drawing on the
next page.

If the optional dial Indicator kit
(ES001) or digital indicator kit
(ES002) is purchased separately,
it can be easily installed using the
hardware provided.

ES10 ES20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

User’s Guide

5

in [mm]

ES10

ES20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

User’s Guide

7

WARRANTY

Mark-10 Corporation expressly warrants to its buyer for three (3) years from the date of
delivery that the goods sold are free from defects in workmanship and materials. Mark-10
Corporation will, at its option, repair or replace or refund the purchase price of goods
found to be defective. This remedy shall be the buyer’s sole and exclusive remedy. Any
modification, abuse, exposure to corrosive environment or use other than intended will

void this warranty. This warranty is in lieu of all other warranties, including implied warran-

ties of merchantability and fitness for an intended purpose. In no event shall Mark-10
Corporation be liable for any incidental and consequential damages in connection with
goods sold or any part thereof.

OTHER MARK-10 PRODUCTS

A full line of force and torque measurement products and related items, includ­ing force gauges, torque gauges, force and torque test stands, sensors, grips,
software, and more.
