Mark Superparled 355 IP User Manual

SUPERPARLED 355 IP

User Manual/Manual de Uso

Rev. 1.0

SUPERPARLED

355 IP

Thanks for purchasing this product. For your own safety, please, read this user manual carefully before you initially start-up.

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to be qualified and to follow the instructions of
this manual.

- CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching

the wire.

- This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe

operation, it is absolutely necessary for the user, to follow the

safety instructions and warning notes written in this user manual.

- Important: Damages caused by the disregard of this user manual, are not subject to warranty. The dealer will not accept liability

for any resulting defects or problems.

- Keep away from heaters and other heating sources!

- If the

device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The

arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

- Make sure that the power-cord is never crimped or damaged by sharp edges.

Check the device and the power-cord from time to

time.

- If the external flexible cable or cord of this device is damaged, it shall be exclusively replaced by the manufacturer or his service

agent or a similar qualified person in order to avoid a hazard.

- Never let

the power-cord come into contact with other cables. Handle the power-cord and all connections with the mains with

particular caution.

- Make sure that the available voltage is not higher than stated in this manual.

- Always disconnect from the mains when the device is or in use or before cleaning it. Only handle the power-cord by the plug.

Never pull out the plug out the plug by tugging the power-cord.

- HEALTH HAZARD. Never look directly into the light source, as sensitive persons may suffer and epileptic shock.

- Please note that damages caused by manual

modifications on the device or unauthorized operation by unqualified persons, are

not subject to warranty.

- Keep away children and amateurs from the device.

- There are no serviceable parts inside the device. Maintenance and service operations are only to be carried out by authorized

dealers.

User Manual/Manual de Uso

Pag. 1

EN

Main Features:

1) Current Limiting, and will be decreasing 10% of

mA when the LED Fixture’s

Working Temperature reaches 75°C;

2) LED Fixture’s Working Temperature will be displa

yed (selectable on/off) on the

LED Display Menu after 1 minute;

3) Five Operating Modes: DMX512, Manual, Master/Sla

4) Selectable, on/off, between one of the Preset Pr

5) High Power LED Chips;

6) Switching Power Supply Unit.

ve, Audio Detected, 6

Preset Programs;

ogram Mode and DMX512

Standby Mode when there is No DMX Input Signal

bein

g detected by the LED

fixture;

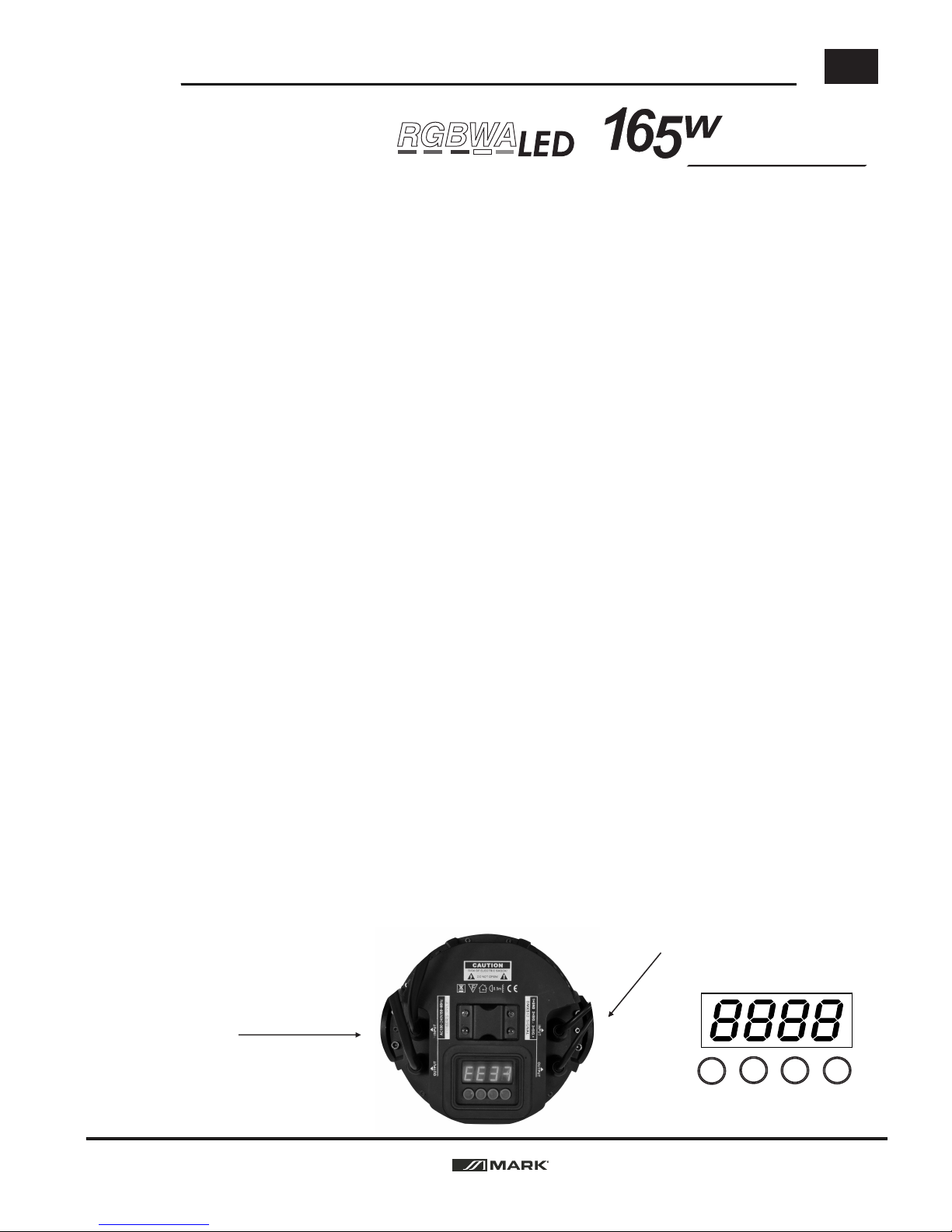

MENU UP DOWN ENTER

DMX IN/OUT
Connections

POWER SUPPLY

Connections

LED PROJECTOR

User Manual/Manual de Uso

Pag. 2

DMX Channel List:

LED Display Menu Operating Instructions:-

EN

SUPERPARLED

355 IP

CHANNEL FUNCTIONS

1 Dimmer

2 RED

3 GREEN

4 BLUE

5 WHITE

6 AMBER

7 Strobe Effect

8 Control Mode

0-60: DMX Control Mode

61-120: Preset Program Mode 1

121-180: Preset Program Mode 2 & 4

181-240: Preset Program Mode 1, 2 & 4

241-255: Audio Detected Mode

9 Preset Program Mode Speed Control

MENU ENTER ENTER Remarks

A001 d001-d512 DMX512 Addressing

CoLr rEd 000-255 Manual Control: RED Colour Dimmer

GrEE 000-255 Manual Control: GREEN Colour Dimmer

bLUE 000-255 Manual Control: BLUE Colour Dimmer

Whte 000-255 Manual Control: WHITE Colour Dimmer

AbEr 000-255 Manual Control: AMBER Colour Dimmer

ModE Pr01 SP00-SP99 Preset Program: RGBWA Colour Ch

asing

Pr02 SP00-SP99 Preset Program: RGBWA Colour Changin

g (Slow)

Pr03 SP00-SP99 Preset Program: Manual Colour Mixing

Pr04 SP00-SP99 Preset Program: RGBWA Colour Changin

g (Fast)

Pr05 SP00-SP99 Preset Program: Audio Detected

Pr06 SP00-SP99 Preset Program: Strobe Effect

Set MASt ON/OFF Master or Slave

AUtO ON/OFF ON: Selected Preset Program to be Auto-Run Mode

when there is No DMX Input Signal to be sent to

the LED Fixture.

tEMP ON/OFF ON: LED Fixture’s Working Temperature t

o be

shown on the Display MENU after 1 minute.

dISP ON/OFF Normal/Invert Display
