Mark SUPERLED 818 IP User Manual
Rev. 161202
SUPERLED 818 IP
User Manual/Manual de Uso
SUPERLED 818 IP - 1 - User Manual/Manual de Uso
1.Summary
Summary
Product introduction
Packing List
SUPERLED 818 IP
1 PC
DMX Signal Cable 1 Set
Waterproof input power cable 1 PC
User Manual
Thanks you for purchasing SUPERLED 818 IP. Please, read these instructions carefully before begin
and operate the fixture according to these instructions to avoid possible damages and accidents
causing by misusage.
SUPERLED 818 IP
It adopts high power 4-in-1 LED, which refers to single LED is made of R,G,B, W 4-in-1 LED, and long
life span, low consumption, good color mixing effect and high brightness are the most prominent
features. Each kind of LED can be independently dimmed. The built-in programs include dimming
stroble, gradual change and fading. It uses power switch, performs low weight and consumption,
stable capability and long life. Standard DMX 512 signal is requested.
uses casting aluminum housing, designed in a fashion form.
2.Safety Instructions
Safety Notes
- Enquire the authorized technical people to repair the unit.
- Always make sure disconnect from the power source before setting up, serving and moving.
- Avoid direct eye exposure to the fixture when it is on.
EN
Make sure the power supply voltage are consistent with this device. Ensure the use of voltage is in
the range of the technical parameters requested.
Before the installation, please, check if the device is in good conditions and appears no damage.
This device is designed for indoor/outdoor use thanks to IP 65 rating.
The fixture maybe mounted in any position provided there is adequate room for ventilation. Make sure
there are no inflammable and explosive items in 0.5 meter around.
Yellow/green cable cabling earthling safety, do not remove it
●
●
●
●
●
3. Dimensions
SUPERLED 818 IP - 2 - User Manual/Manual de Uso
EN
4. Main Function
Input voltage : AC 100V
- 264V/47
- 63HZ
Consumption
： 150W
Lamp Type ： 8 W LED 4 - in - 1 R 、 G 、 B 、 W(18 PCS)
Control mode ： DMX 512 / stand alone/ sound activated
Channel ： 1 0 CH 、 7 CH 、 5 CH 、 4 CH 、 3 CH
Function Effect: dimmer, strobe, gradual change
Touch buttons, automatic lock key
Built
- i n temperature control measurement function, when
LED work
overheated, intelligent reduce LED
output power, current power output can be viewed
Cooling mode: Natural Convection
Dimensions:
287.3*270.1*166
mm
Net Weight : 5.2 Kg
Beam Angle: 25°
3CH 4CH 5CH 7CH
10CH VALUE FUNCTION
CH1
-
CH1 CH1
CH1
0-255 Dimming all
-
CH1 CH2 CH2
CH2
0-255 Red
-
CH2 CH3 CH3
CH3
0-255 Green
-
CH3 CH4 CH4
CH4
0-255 Blue
CH2 CH4 CH5 CH5
CH5
0-255 White
-
-
-
CH6
CH6
0-5
No strobe
6-20
Random burst strobe(slow to fast)
21-60 Normal strobe(slow to fast)
61-100 Electronic Sinewave(slow to fast)
101-140 Random Strobe(slow to fast)
141-180 Opening pulse(slow to fast)
181-220 Closing pulse(slow to fast)
221-255 Electronic Squarewave(slow to fast)
-
-
-
-
CH7(CH
7 prior to
CH9)
0-10
No effect
11-15 CT01
16-20 CT02
21-25 CT03
26-30 CT04
31-35 CT05
36-40 CT06
41-45 CT07
46-50 CT08
51-55 CT09
56-60 CT10
61-65 AUTO 1 (R,G,B,W,RG,RB,GB,RGBW)
66-70 AUTO 2 (R↑,R↓,G↑,G↓,B↑,B↓,W↑,W↓)
71-75 AUTO 3 (R↑G↑,R↓G↓,R↑B↑,R↓B↓,B↑G↑,B↓G↓)
76-80 AUTO 4 (R↑G↑B↑W↑,R↓G↓B↓W↓)
81-85
AUTO 5 (Rainbow effect:
B,BG↑,BG,B↓G,G,GR↑,GR,G↓R,R,RB↑,RB,R↓B)
86-90 CHASE 1
91-95 CHASE 2
96-100 CHASE 3
101-110 Reserved
SUPERLED 818 IP - 3 - User Manual/Manual de Uso
EN
5. DMX Control Function
SUPERLED 818 IP - 4 - User Manual/Manual de Uso
EN
111-200
R:111-115,G:116-120,B:121-125,W:126
131-135,RGB:136-140,YELLOW:141
46-150,CYAN:151-155,ORANGE:156
T:161-165,GOLDEN:166-170,2700K:171
K:176-180,4000K:181-185,5500K:186
191-195,RGBW:196-200
201-255 Reserved
-
-
-
-
CH8
0-255
0-255(S),(speed of AUTO,fast to slow
AUTO1-AUTO5 effective）
CH3
-
-
-
CH9
(RGB
color
mixing
instead
of RGB
channel)
0-10 No effect
11
Blue (Blue=full, Red+Green=0)(step)
12-50 Red=0, Green->up,Blue =full(proportional)
51
Light Blue (Red=0, Green=full, Blue =full)(step
52-90 Red=0, Green=full, Blue
->down(proportional)
91
Green (Red=0, Green=full, Blue =0)(step)
92-130 Red->up, Green=full, Blue=0(proportional)
131
Yellow (Red=full, Green=full, Blue=0)(step)
132-170 Red=full, Green->down, Blue=0(proportional)
171
Red(Red=full, Green=0, Blue=0(step)
172-210 Red=full, Green=0, Blue
->up(proportional)
211
Magenta (Red=full, Green=0, Blue=full)(step)
212-250 Red -> down, Green=0, Blue=full(proportional)
251-255 Blue (Red=0, Green=0, Blue=full)(step)

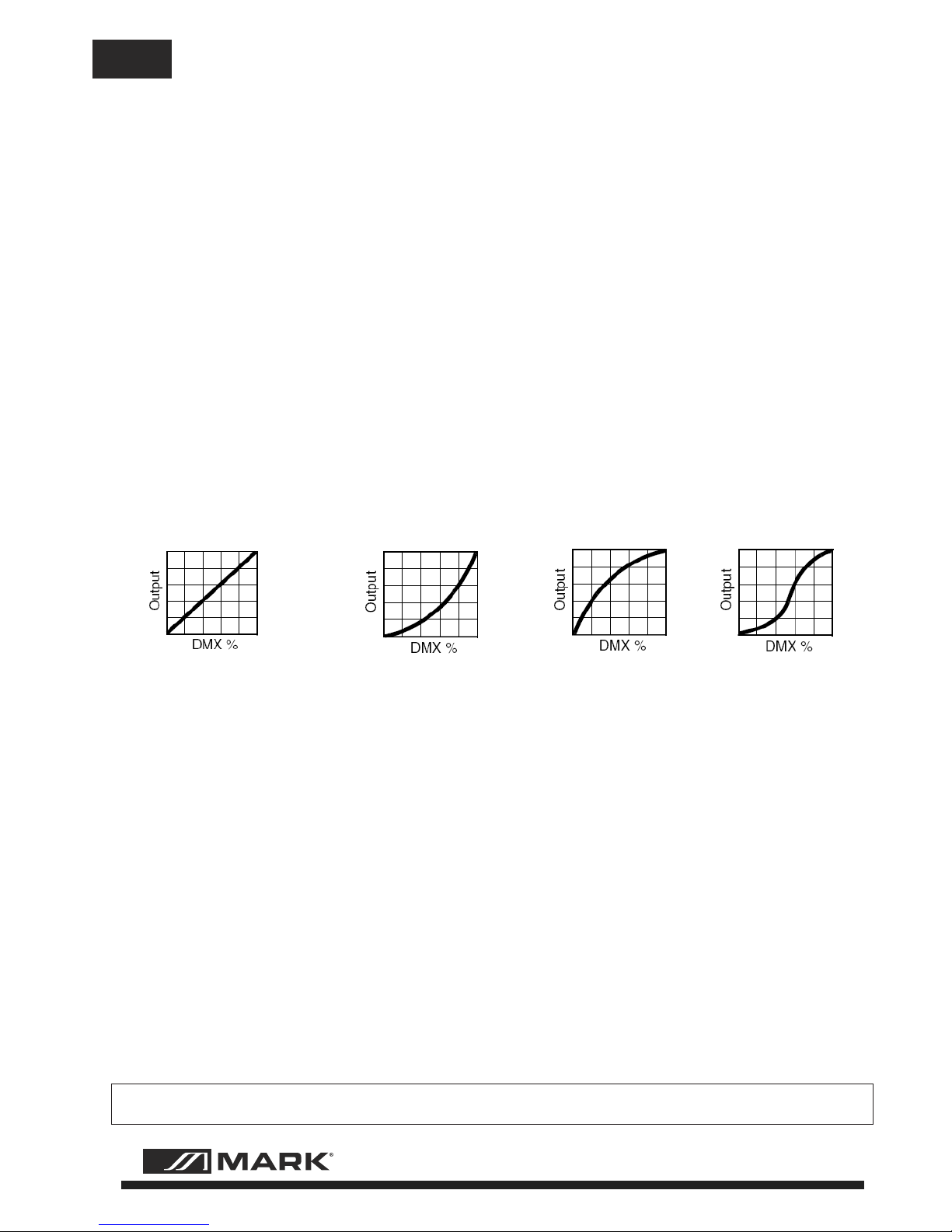

- - - CH7 CH10
0-10 Use the dimmer mode which menu had set up
11-20 Linear curve
21-30 Square law curve
31-40 Inverse square law curve
41-50 S-curve
51-60 Linear curve and smooth
61-70 Square law curve and smooth
71-80 Inverse square law curve and smooth
81-90 S-curve and smooth
91-255 Use the dimmer mode which menu had set up
-130,RGW:
-145,PINK:1
-160,VIOLE
-175,3200
-190,6500K:
，when
)
MENU : access the menu or return to a previous menu option
ENTER: select the current menu option
UP: menu selection or parameter increments
DOWN: menu selection or parameters decrease
6. Display Operation
SUPERLED 818 IP - 5 - User Manual/Manual de Uso
EN
Menu Tree
Tab
Level 1
Level 2
Level 3 Level 4
ADDR(Address) 001-512
STAT(Static
control)
R
0-255*
G
0-255*
B
0-255*
W
0-255*
SHUT
0-255*
PRSC(Preset
color)
NONE,R,G,B,W,RGW,RGB,Y
ELLOW,PINK,CYAN,ORANG
E,VIOLET,GOLDEN,2700K,3
200K,4000K,5500K,6500K,RG
BW *
SET(Set)
CAL(Calibration) R
0-255
G
0-255
B
0-255
W 0-255
USE YES/NO
CHMD(Channel
mode)
10CH
7CH
5CH
4CH
3CH
DIM(Dimming
mode)
LIN/SQR/ISQR/SCUR/LIN.
/SQR./ISQR/SCUR.
DISY(Display
set)
ON(Permanent on)
2MIN (2 minutes off)
LOCK(Key 2
minutes lock)
YES/NO
CTST(Custom
color set)
CT01
R
0-255
.
G
0-255
.
B
0-255
.
W
0-255
.
.
CT10
AUTO(Auto)
AT01
RUN..*
AT02
RUN..*
AT03
RUN..*
AT04
RUN..*
AT05
RUN..*
ATSP
0-255(S)
CHS1
RUN..*
CHS2
RUN..*
CHS3
RUN..*
PROG
（Program）
CHS1（Chase 1） SC01（Scene 1）
R 0-255
. . G 0-255
.
.
B 0-255
.
.
W 0-255
.
.
SHUT
0-255
.
.
AUTO
NONE,AT01-AT05
. . ATSP 0-255(S)
. . TIME 0-255(S)
. . WAIT 0-25.5(S)
. . USE YES/NO
.
SC20（Scene 20）
CHS3（Chase 3）
INFO
（Information）
SOFT(Software
version)
Vx.x
POW(Power 100%/80%/50%
SUPERLED 818 IP - 6 - User Manual/Manual de Uso
