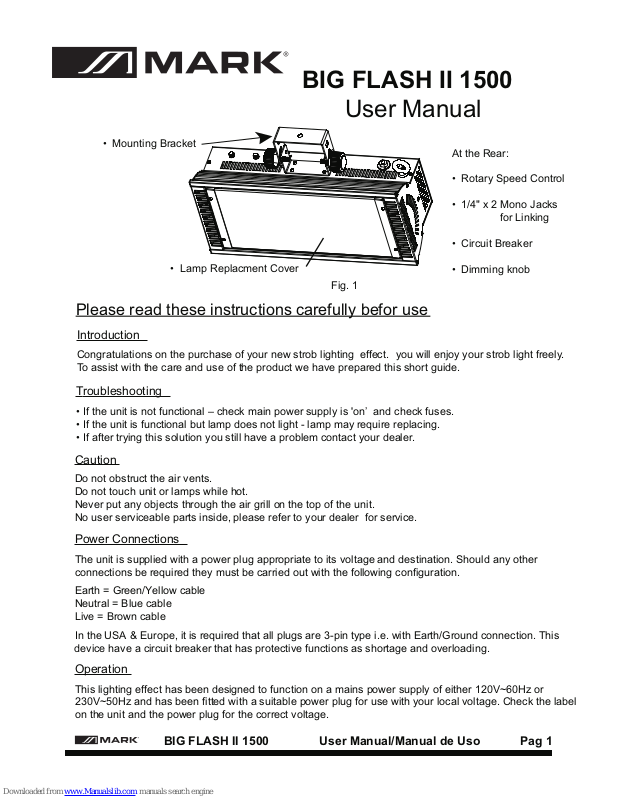

Mark BIG FLASH II 1500 User Manual

• If the unit is not functional – check main power supply is 'on’ and check fuses.

• If the unit is functional but lamp does not light - lamp may require replacing.

• If after trying this solution you still have a problem contact your dealer.

Do not obstruct the air vents.
Do not touch unit or lamps while hot.
Never put any objects through the air grill on the top of the unit.
No user serviceable parts inside, please refer to your dealer for service.

The unit is supplied with a power plug appropriate to its voltage and destination. Should any other
connections be required they must be carried out with the following configuration.

ellow cable

& Europe, it is required that all plugs are 3-pin type i.e. with Earth/Ground connection. This

BIG FLASH II 1500

User Manual

Please read these instructions carefully befor use

Congratulations on the purchase of your new strob lighting effect. you will enjoy your strob light freely.
To assist with the care and use of the product we have prepared this short guide.

fect has been designed to function on a mains power supply of either 120V~60Hz or
230V~50Hz and has been fitted with a suitable power plug for use with your local voltage. Check the label
on the unit and the power plug for the correct voltage.

• Lamp Replacment Cover

At the Rear:

• Rotary Speed Control

• 1/4" x 2 Mono Jacks
for Linking

• Circuit Breaker

• Dimming knob

Fig. 1

device have a circuit breaker that has protective functions as shortage and overloading.

• Mounting Bracket

Troubleshooting

Caution

Power Connections

Earth = Green/Y
Neutral = Blue cable
Live = Brown cable

In the USA

Introduction

Operation

This lighting ef

BIG FLASH II 1500 User Manual/Manual de Uso Pag 1

Technical Specifications

Cleaning

The most important part of your lighting ef fect to keep clean is the lens as this allows the light output to
transmit. This should be cleaned with a soft damp cloth. The body of the unit may also be cleaned in the
same way. We recommend internal cleaning be carried out by a fully qualified technician.

Maintenance & Servicing

Work on internal parts should be carried out by a qualified technician. Removal of any covers other than
the lamp replacement cover and screw cap fuseholder is considered a breach of warranty and will not be
covered under any such agreement unless authorized first by the company .

Before beginning operation refer to section on Installing/Replacing Lamps. When connected to the mains
power supply, turn on the circuit breaker the unit should begin to flash.

As the ef
rotary speed control it may be necessary to adjust to suit your mood. 1/4" mono plug allows for linking of
strobes for operation via a strobe controller.

The duty cycle for this ef fect should be no more than 15 minutes on then 15 minutes of

Installation / Mounting

This unit has been designed to be hung. It is recommended that, for safety purposes, your lighting ef
properly mounted using a suitable hanging clamp and safety cable.

Installing / Replacing Lamps

Finally before using, check that the lamp is housed correctly in the lamp holder and that the lamp
replacement cover has been screwed back into place.

Power

Lamps

Dimensions

Weight

230-240V~50Hz AC

1 x 1500W Xenon Flash Tube

507 x 204 x 130mm

4.64kg

1. Turn off and unplug from the electrical outlet and let the lamp cool.

2. Open the rear cover with your screwdriver, then disconnect the 3 wires of the old lamp from the PCB board.
Caution: you must remember the wiring between lamp and PCB board!

3. Gently remove the clear cover on the front of the STROBE via your screwdriver.

4. CAUTION: Do not touch bulb with bare fingers. Oil from fingers will ruin the lamp. Use a clean, dry colth
for replacement of bulb.

5. Gently remove the old lamp from the spring holder.

6. Insert the new lamp tube into the spring holder, and connect the wires of the lamp into the PCB board
according to your memory just now.

7. Reassemble.

This symbol on the product or on its packaging indicates that this product
shall not be trated as household waste. Instead it shall be handed over to
the applicable collection point for the recycling of electrical an electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling
of this product. The recycling of amterials will help to conserve natural
resources. For more detailed information sabout recycling of this product,
please contact your local city office, your household waste disposal service
or the shop where you purchased the product.

fect is controlled by the

f.

fect be
