Mark AMC 15 User Manual

AMC 15

User Manual/Manual de Uso

Rev. 13.02.01

1. The operating temperature & environment of this lithium battery must be:
CHARGE: 0º to 45º C
DISCHARGE: -20º to 55ºC
STORAGE: -5º TO 35ºC

2. Before use, please read the user manual first. Any incorrect operation can lead
to the battery to be heating, fire, broken, damaged or battery capacity decrease.

3. Must not be usede together with the other types of batteries like dry battery,
metal high power battery, nickel-cadmium battery, etc.

4. Must not be charged if the lithium battery was burned, color changed, shape
changed, leaking water or any un-normal changes. Must charge or discarge in
correct operation. When it was not charged, please do not discharge it
continuously.

5. Please keep the used-up or waste lithium batteries into the relevant place to be
environmental protection.

Our Mini waistband Pa Amplifier AMC 15 is constructed in a durable housing for
the applications of any public vocal sound amplification. With powerful and durable
SMD components & circuits and built-in battery. An efficient 3" (4 ohm) speaker
along with a quality headset microphone deliver, the reinforced vocal sound to
cover a reasonable wide area to make your heard clearly and far away. A heavy-duty
carry bag is provided for the storage and portability.

WARNING !!!

CAUTIONS

1. Do not drop the waistband pa amplifier to the floor or strike it with any object.

2. Charge the main unit of the AMC 15 according to the instructions showed in this
manual: HOW TO CHARGE THE UNIT.

3. This amplifier is equipped with magnetic speaker and lithium battery built inside,
it should be kept away from any high frequency objects or any hot sources or
any rain/water or any direct sunshine.

4. Please keep enough room to this unit when you are operating it so that it has
good air condition for its heat going outside.

5. Please do not litter the used.up battery, recommend to put it to relevant recycle
box.

6. Do not transform the product or it may damage the components or circuits. Or
cause any electronic shock.

7. Do not put any audio signals to the microphone jack to avoid any damages on
the main unit or the MP3 player.

8. Please, only take out the USB/Micro SD card from the main unit in the OFF
positiion avoid any damages of their ports and them.

EN

PAG. 1

User Manual/Manual de Instrucciones AMC 15

MAIN FEATURES & FUNCTIONS

- Waistband pa amplifier

- With SMD & SMT technology

- 8W power output

- USB/Micro SD ports for MP3 files.

- MP3 record function in USB/Micro SD card in MP3 format. Between 1GB and 16 GB.

- Digital ECHO function

- FM radio tuner

- AUX input

- Microphone input (headset)

- DC 9V input

- DC 7.4V/2000mAH lithium battery

- Main unit charger

PAG. 8

User Manual/Manual de Instrucciones AMC 15

EN

FUNCTIONS & CONTROL PARTS

1. CHARGE LED

2. MP3 & FM FUCTIONS
LED DISPLAY SCREEN

3. ANTENNA

4. DIGITAL ECHO

5. POWER ON/OFF/
/VOLUME TUNER

6. USB PORT

7. MICRO SD CARD PORT

8. EARPHONE INPUT

9. HEADSET MICROPHONE
INPUT

10. AUX INPUT

11. DC9V INPUT

12. MP3 REC/PLAY/DELETE

13. FUNCTION SELECT

14. FORWARD/EARPHONE VOLUME+

15. MP3 PLAY/PAUSE/FM AUTO SCAN

16. BACKWARD/EARPHONE VOLUME-

17. HANGING FOR ROPE

18. BUCKLE FOR BODY PACK

19. LOGO & NAME

20. BUILT IN SPEAKER INSIDE

AMC 15

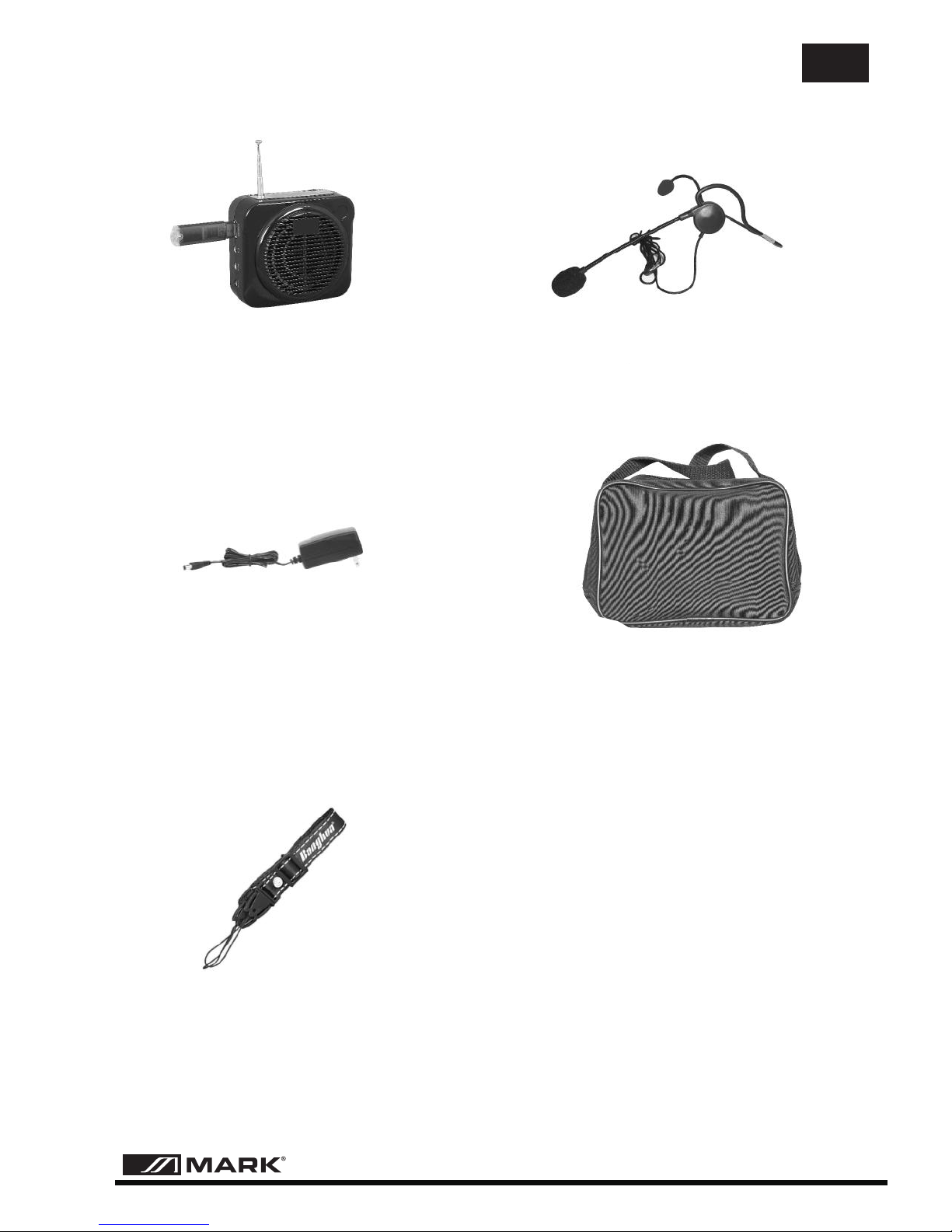

INCLUDED ACCESORIES

PAG. 3
