NP70-10
CR0592890 (INOX)
CR0580010 (65)

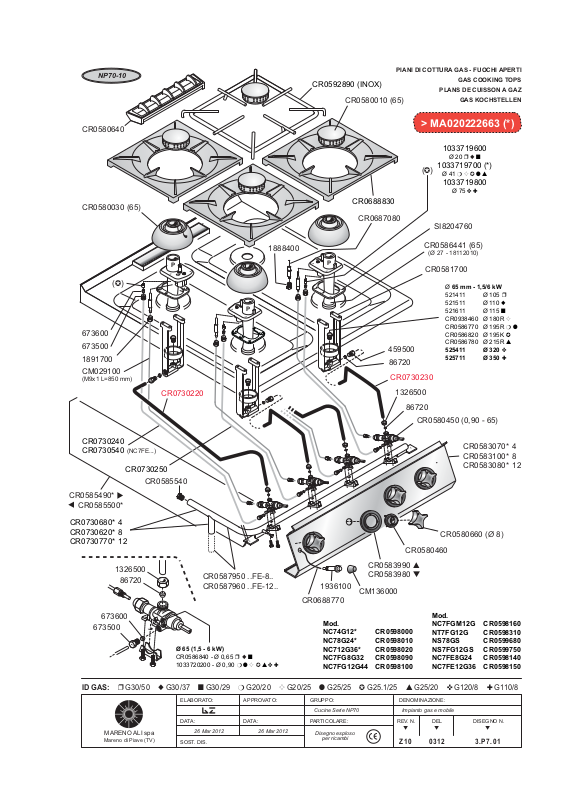

PIANI DI COTTURA GAS - FUOCHI APERTI
GAS COOKING TOPS
PLANS DE CUISSON A GAZ
GAS KOCHSTELLEN
CR0580640
CR0580030 (65)
(J)
673600
673500
1891700
CM029100
(M9x1 L=850 mm)
P
CR0730220
P
1888400
P
CR0688830
CR0687080
> MA020222663 (*)
(J)
CR0586441 (65)
(Ø 27 - 18112010)
CR0581700
459500
86720
CR0730230
1326500
86720
CR0580450 (0,90 - 65)
1033719600
Ø 20
r u n
1033719700 (*)
Ø 41
m G J l s
1033719800
Ø 75
< :
SI8204760
Ø 65 mm - 1,5/6 kW
521411 Ø 105
521511 Ø 110
521611 Ø 115
CR0938460 Ø 180R
CR0586770 Ø 195R
CR0586820 Ø 195K
CR0586780 Ø 215R
525411 Ø 320
525711 Ø 350
r
u
n
G
m l
J
s
<
:
CR0730240
CR0730540 (NC7FE...)
CR0730250
CR0583070* 4
CR0583100* 8
CR0583080* 12
CR0585540
CR0585490*
CR0585500*
s
t
CR0730680* 4
CR0730620* 8
CR0580660 (Ø 8)
CR0730770* 12
CR0580460
1326500
86720
CR0587950 ..FE-8..
CR0587960 ..FE-12..
1936100
CR0583990
CR0583980 t
CM136000
s
CR0688770
673600
673500
Ø 65 (1,5 - 6 kW)
CR0586840 - Ø 0,65
1033720200 - Ø 0,90
r u n
m l G J s < :
Mod.
NC74G12* CR0598000
NC78G24* CR0598010
NC712G36* CR0598020
NC7FG8G32 CR0598090
NC7FG12G44 CR0598100
Mod.
NC7FGM12G CR0598160
NT7FG12G CR0598310
NS78GS CR0599680
NS7FG12GS CR0599750
NC7FE8G24 CR0598140
NC7FE12G36 CR0598150
ID GAS: r G30/50 u G30/37 n G30/29 m G20/20 G G20/25 l G25/25 J G25.1/25 s G25/20 < G120/8 : G110/8
MARENO ALI spa
Mareno di Piave (TV)
APPROVATO:ELABORATO:
DATA: DATA:
26 Mar 2012 26 Mar 2012
SOST. DIS.
GRUPPO:
Cucine Serie NP70 Impianto gas e mobile
PARTICOLARE:
Disegno esploso
per ricambi
DENOMINAZIONE:
REV. N. DEL DISEGNO N.
sss
Z10 0312 3.P7.01
