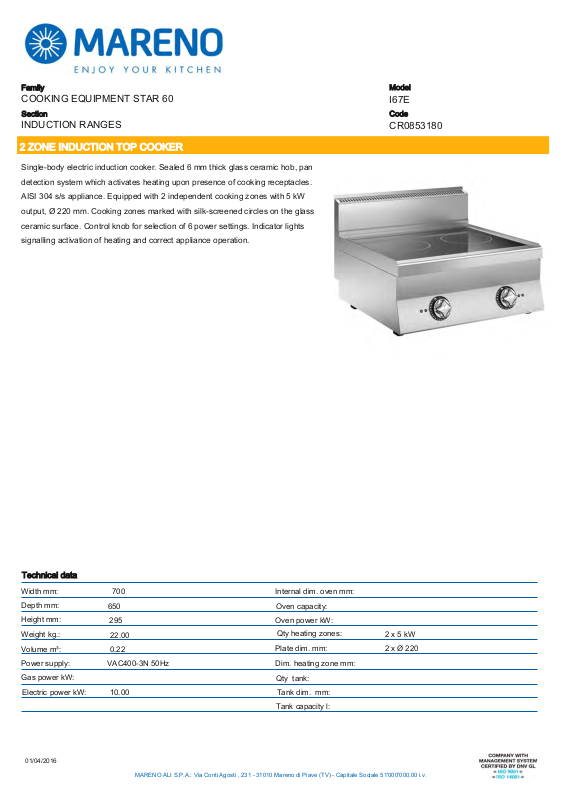

Page 1
CR0853180
I67E
Code
Model
Section
COOKING EQUIPMENT STAR 60
Family
INDUCTION RANGES
2 ZONE INDUCTION TOP COOKER
Technical data
22.00
0.22
Volume m³:
10.00
2 x Ø 220
2 x 5 kW
700
295
650
Single-body electric induction cooker. Sealed 6 mm thick glass ceramic hob, pan
detection system which activates heating upon presence of cooking receptacles.
AISI 304 s/s appliance. Equipped with 2 independent cooking zones with 5 kW
output, Ø 220 mm. Cooking zones marked with silk-screened circles on the glass
ceramic surface. Control knob for selection of 6 power settings. Indicator lights
signalling activation of heating and correct appliance operation.
Electric power kW:
Gas power kW:
Power supply:
Weight kg.:
Height mm:
Depth mm:
Width mm:
VAC400-3N 50Hz
Tank capacity l:
Tank dim. mm:
Qty tank:
Dim. heating zone mm:
Plate dim. mm:
Qty heating zones:
Oven power kW:
Oven capacity:
Internal dim. oven mm:
MARENO ALI S.P.A.: Via Conti Agosti , 231 - 31010 Mareno di Piave (TV) - Capitale Sociale 51'000'000,00 i.v.
01/04/2016
Page 2
CR0853180
I67E
Code
Model
Section
COOKING EQUIPMENT STAR 60
Family
INDUCTION RANGES
2 ZONE INDUCTION TOP COOKER
Legend
(V) Steam:
(FR) In e out freon:
(S) Draining:
(AC) Hot water:
(AF) Cold water:
(AD) Softened water:
(G) Gas:
(E) Socket 2:
(E) Socket 1: Connection supply terminal floor level (+100mm). Spare cable 1500mm
MARENO ALI S.P.A.: Via Conti Agosti , 231 - 31010 Mareno di Piave (TV) - Capitale Sociale 51'000'000,00 i.v.
01/04/2016
